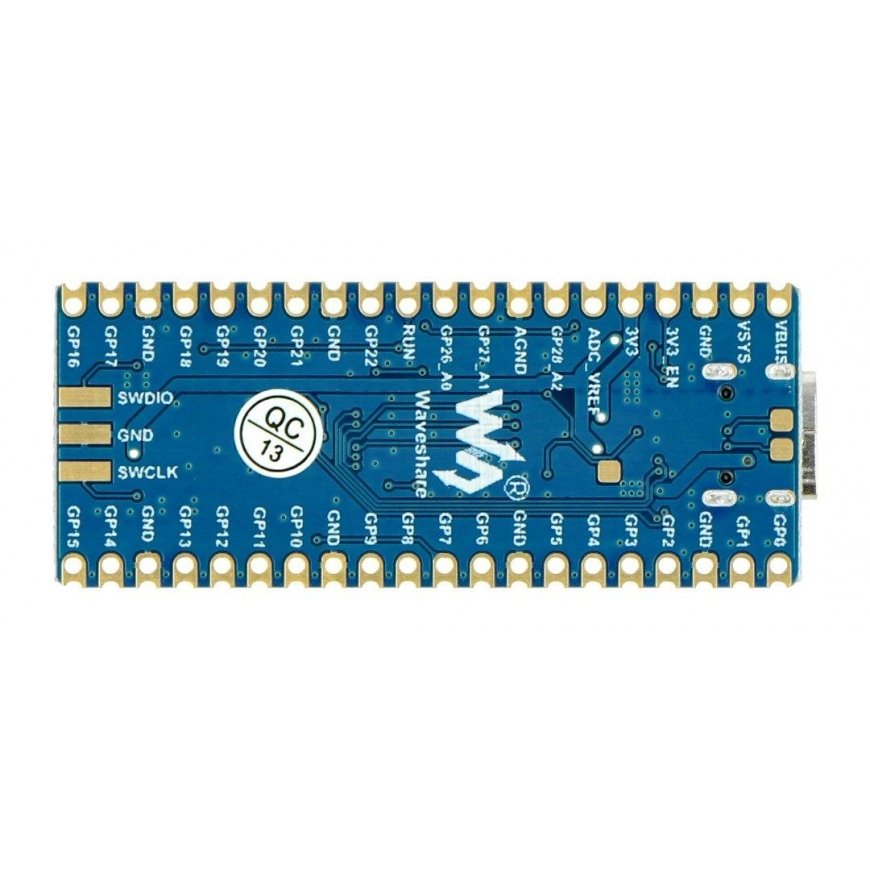

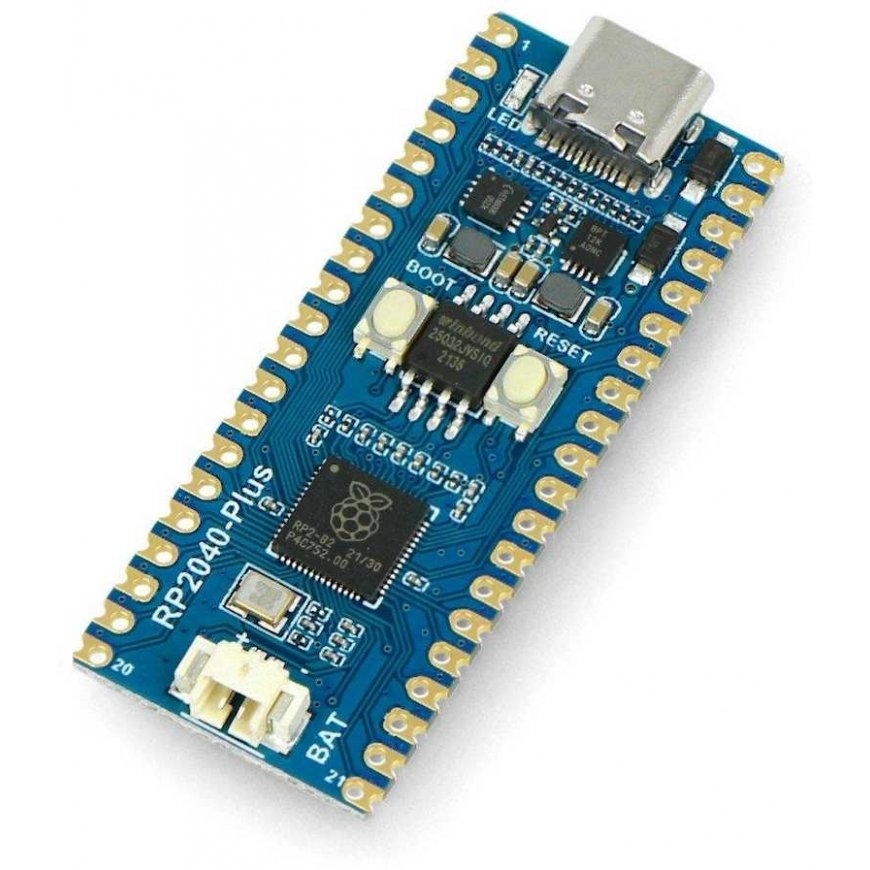

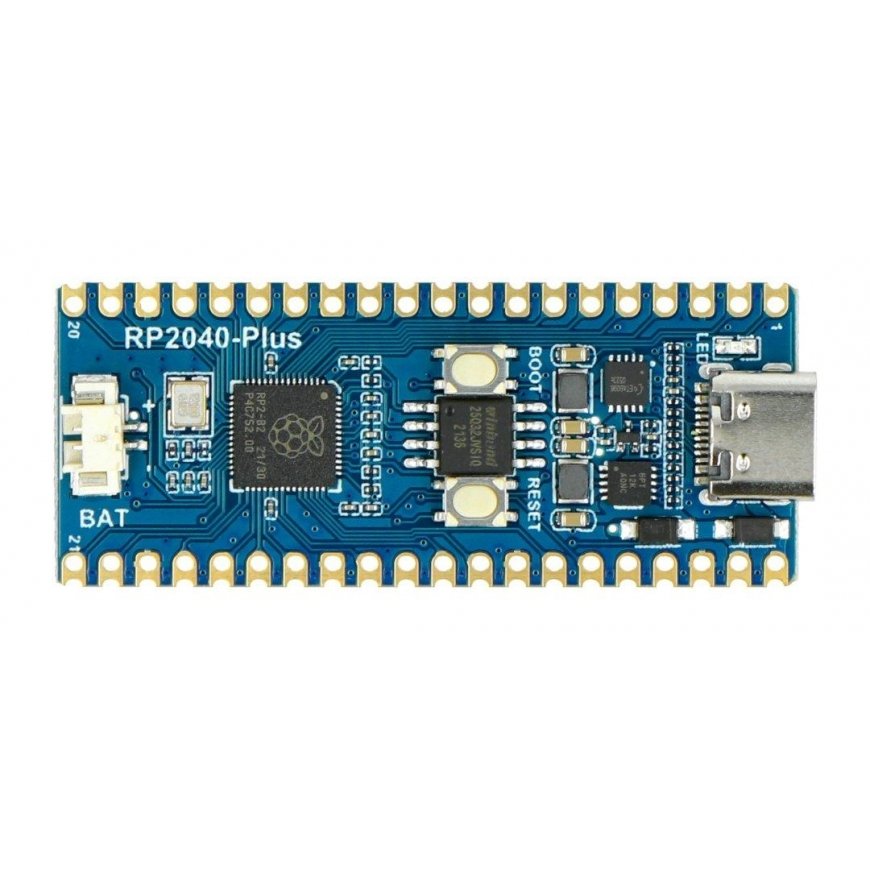

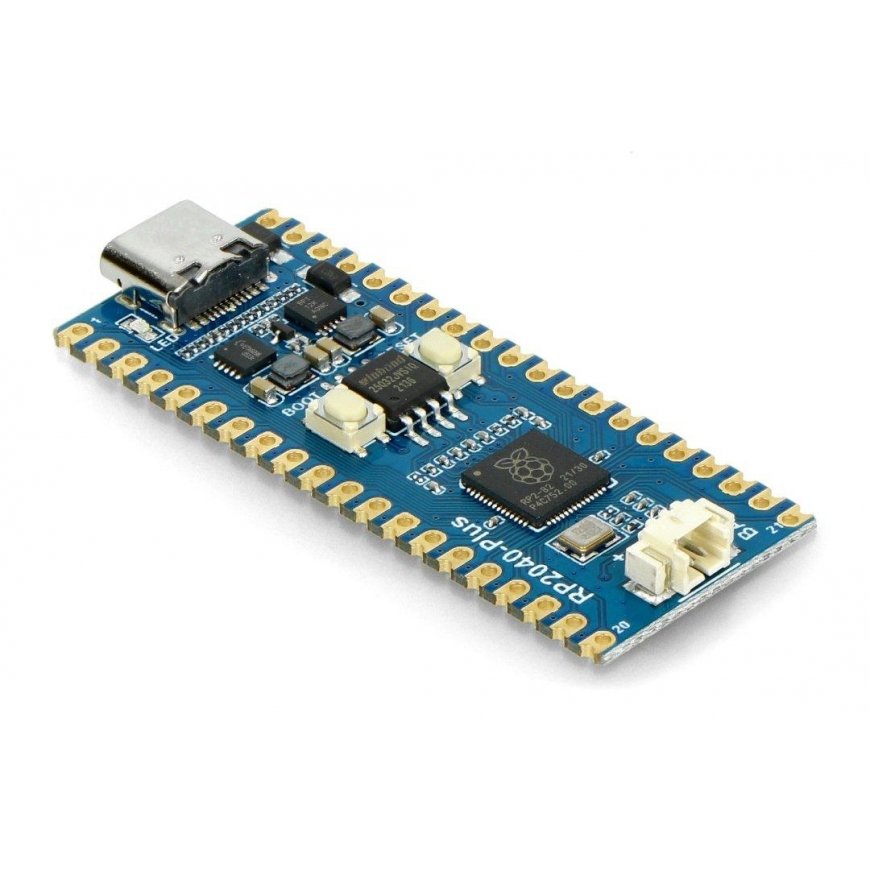

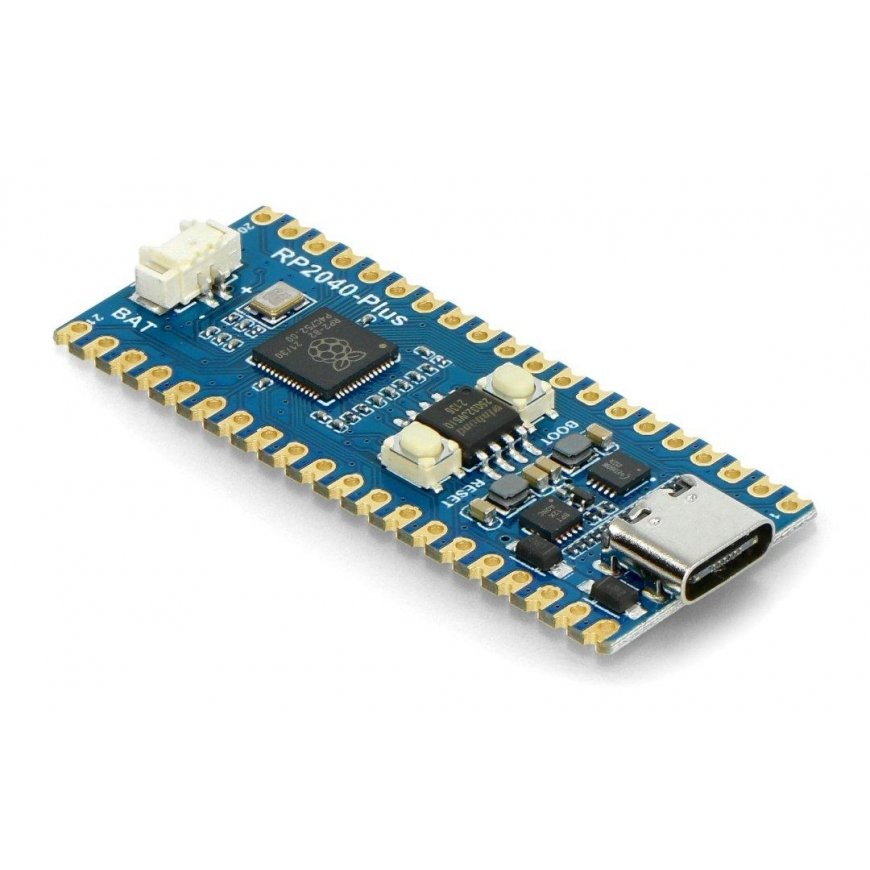

RP2040-Plus - board with RP2040 microcontroller and additional flash memory - Waveshare 20290
19.00 €
3655564 AN-20533
5904422381554
Shipping 11-18 b.d.
You are interested in this product?
All about the product
A board from Waveshare with a Raspberry RP2040 microcontroller, which also includes the Raspberry Pi Pico. The RP2040-Plus has two ARM Cortex-M0+ cores with a clock frequency of up to 133 MHz, 264 kB of integrated SRAM and an additional 4 MB of Flash memory. The platform supports the popular programming languages MicroPython, CircuitPython and C/C++. Programs can be loaded into the memory using the USB Type-C interface.Main features:
- Equipped with RP2040 microcontroller chip, developed in the UK
- Additional 4 MB Flash memory
- Dual-core Arm Cortex M0+ processor
- Lithium battery charging/discharging socket - suitable for mobile devices
- Integrated TPS63000 DC-DC, high-efficiency buck-boost DC-DC, 1.8 A current switch
- USB 1.1 with device and host support
- Drag and drop programming using USB mass storage
- 26 multi-function GPIO pins, compatible with Raspberry Pi Pico pins
- 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC, 16x PWM interfaces
- Integrated temperature sensor
- 8x programmable I/O (PIO) to support optional peripherals
- Chip: Raspberry Pi RP2040
- Core: ARM Cortex-M0+ dual-core 133 MHz
- SRAM: 264KB
- Integrated Flash memory: 4 MB
- Pins: 26 multi-function GPIO pins
- Interfaces: 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC, 16x PWM
- Development environment: Raspberry Pi C/C++ SDK or MicroPython
- Power connector: USB Type-C
- Board dimensions: 51 x 21 mm
