Seeed Studio Grove - 0.96” OLED (SSD1315) 128x64px SPI/I2C display - Seeedstudio 104020249
20.13 €
3654095 AN-20125
5904422380274
Shipping 11-18 b.d.
You are interested in this product?
All about the product

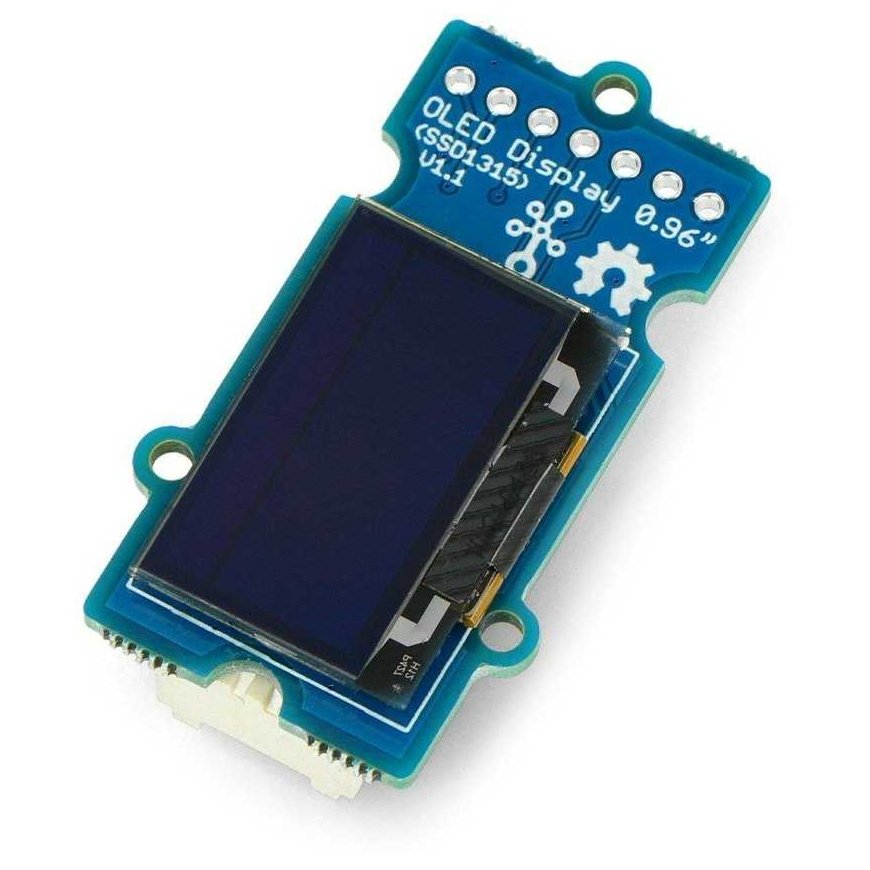

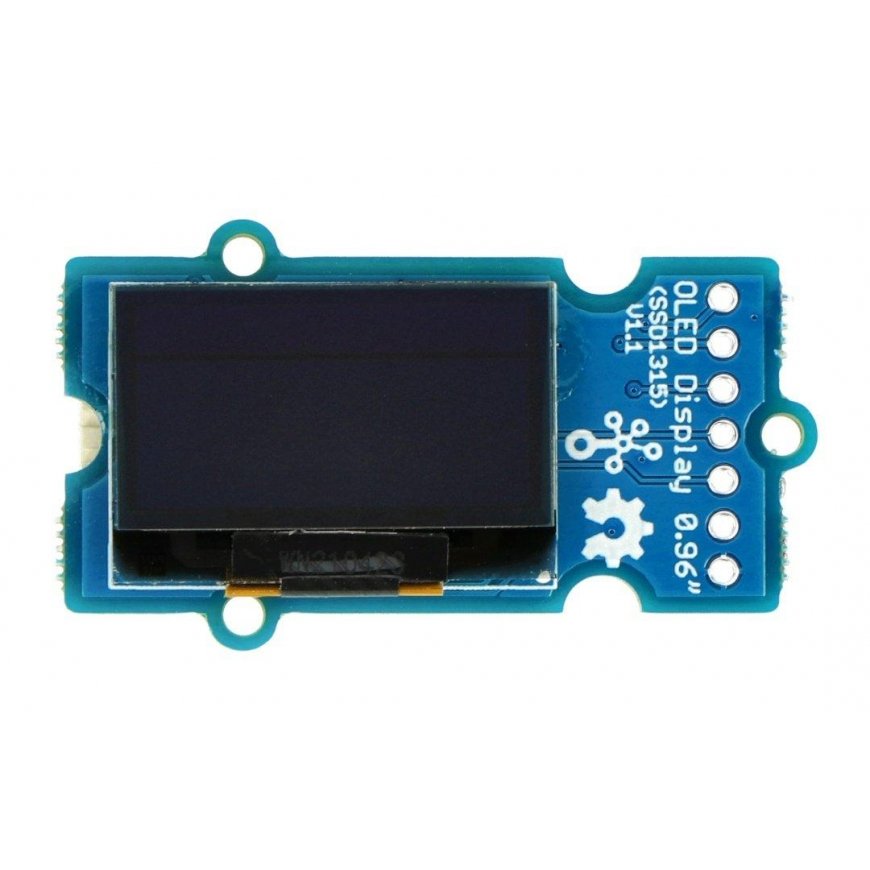

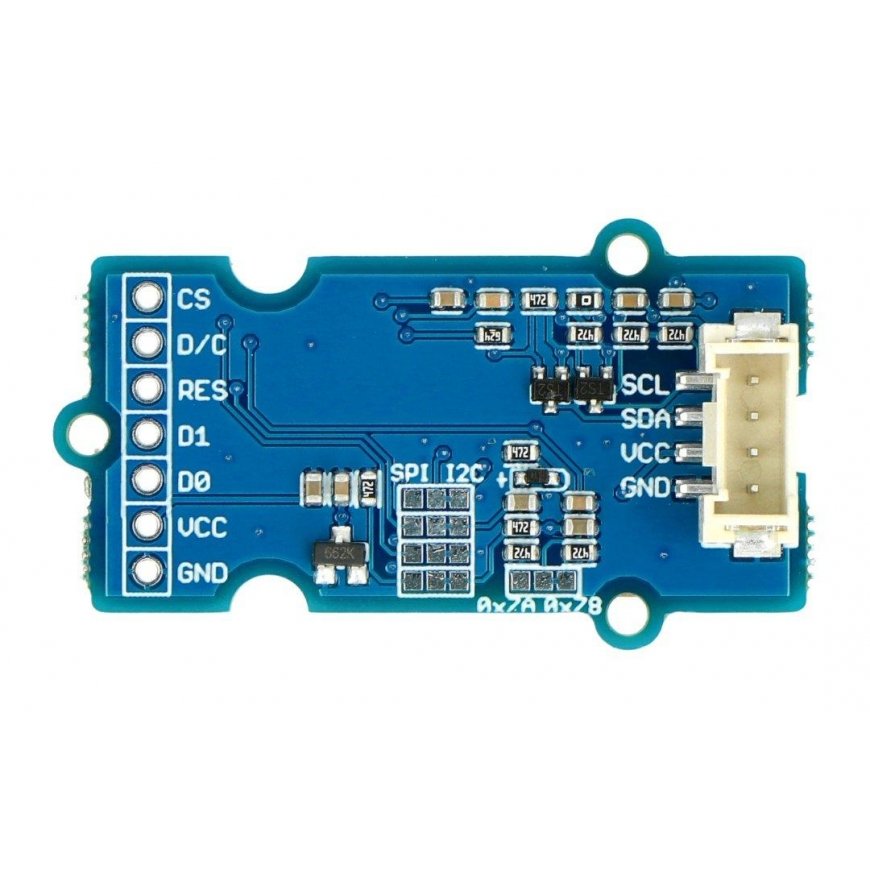

Bi-color (blue and yellow) display with a 0.96” diagonal and a resolution of 128x64px. The product is based on the SSD1315 chip, using the SPI/I2C bus for the interface. It operates with 3.3 V and 5 V voltage. The kit also includes a cable for connecting to the Seeedstudio Base Shield v2.0 add-on.Specifications:
- Supply voltage: 3.3V/5V
- Operating voltage: 0 V to 2.3 V
- Display type: monochrome
- Resolution: 128x64px
- Diagonal size: 0.96”
- Supported interfaces: SPI/I2C
- Variable I2C address
- Product version: 1.1
- Operating temperature range: -40 °C to 85 °C

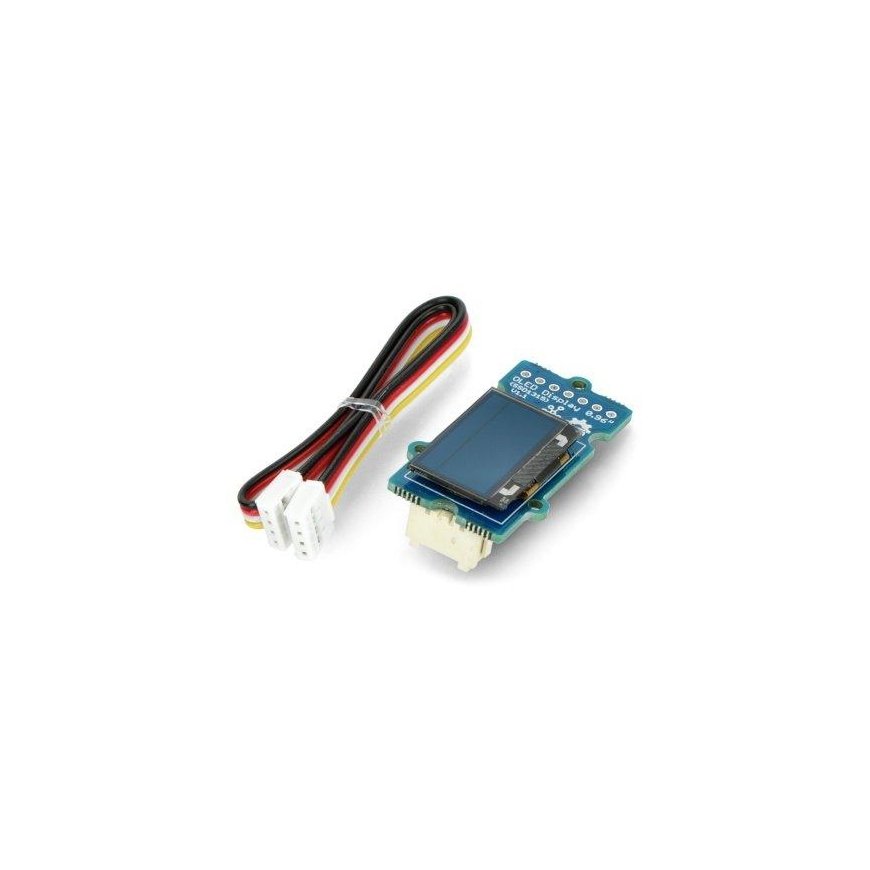

- Grove 0.96” OLED display (SSD1315)
- Grove cable
