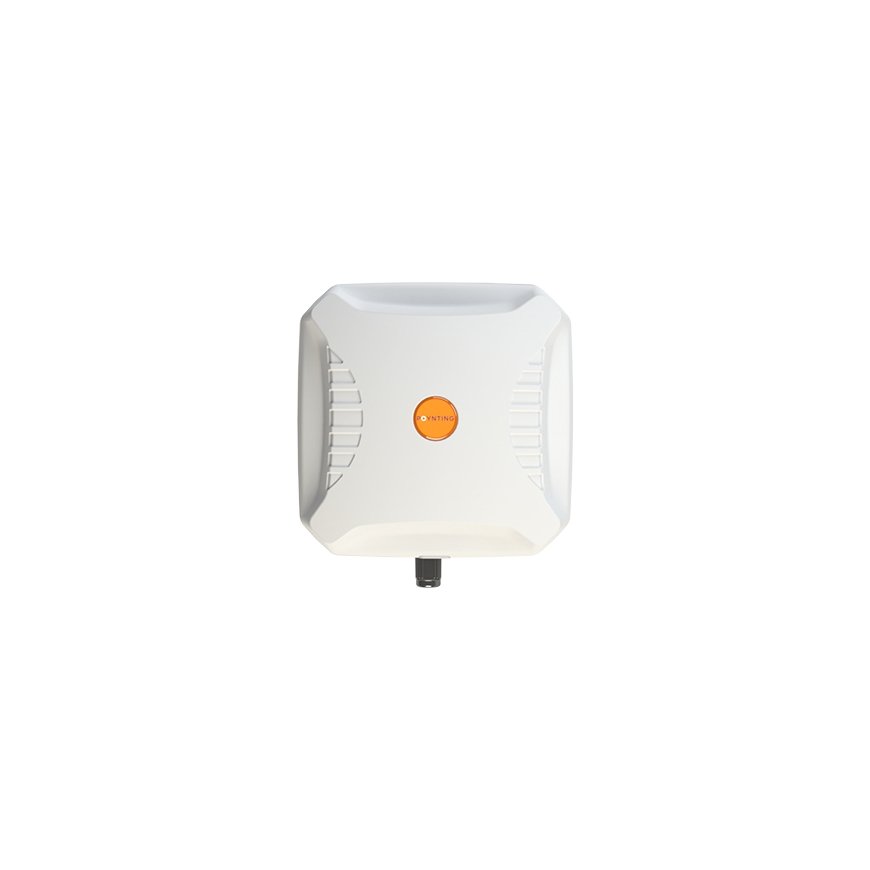

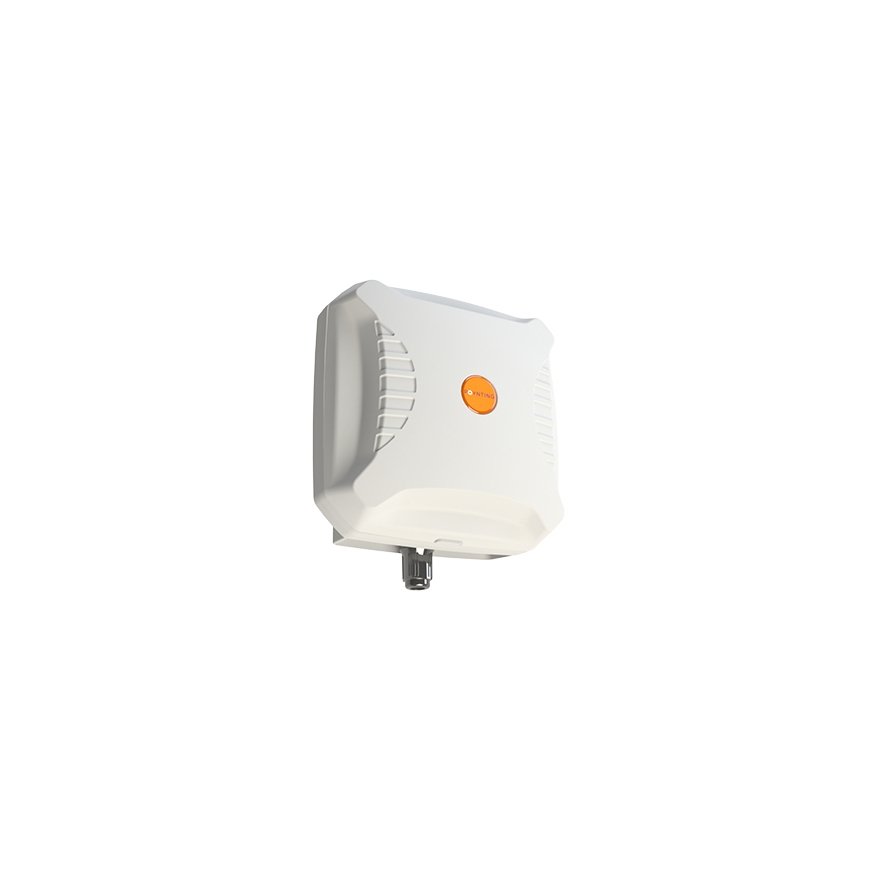

Poynting EPNT-2 network antenna SMA 11 dBi
369.00 €
Monthly payment from 10,40 €
3652392 A-EPNT-0002-V3-01
6009710927915
Shipping 11-14 b.d.
You are interested in this product?
All about the product

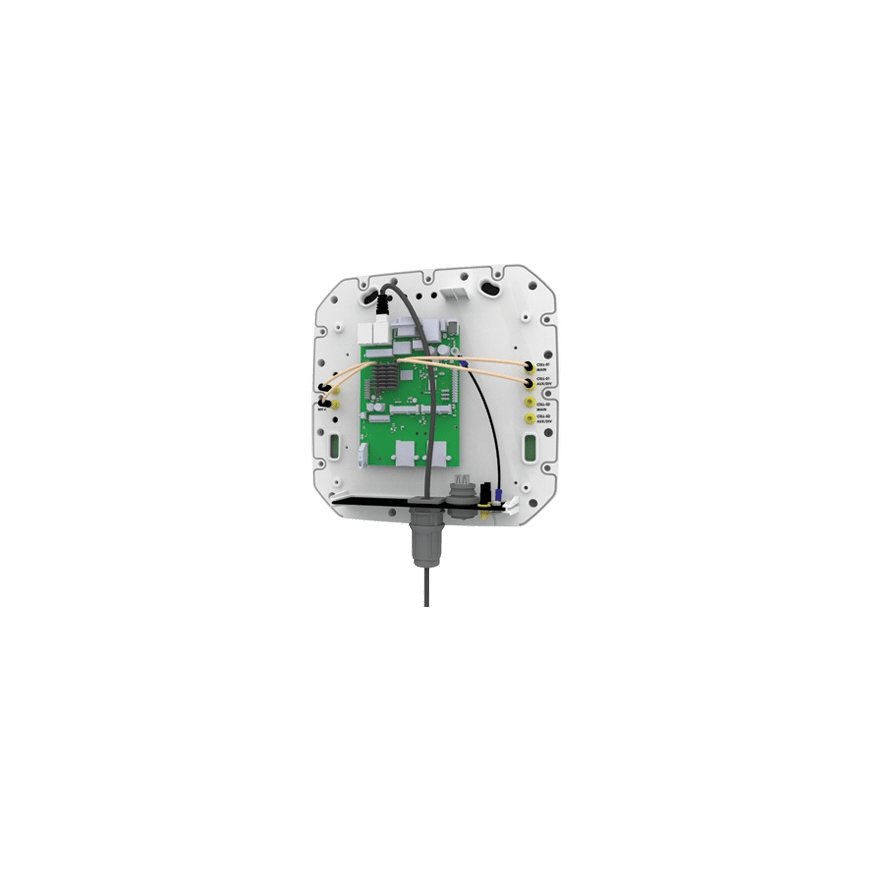

Poynting Antennas introduces the ePoynt series, an innovative antenna enclosure range designed to fit a variety of router modules, transforming the antenna enclosure into high-performance Customer Premises Equipment (CPE). The EPNT-2 enclosure supports routers up to 185 x 145 x 45 mm³, delivering enhanced signal stability and throughput.Advanced AMC Technology: Incorporates Artificial Magnetic Conductor (AMC) technology from the XPOL-2-5G antenna for superior performance.
Wideband Uni-Directional & Omni-Directional Antennas: Covers 617–960 MHz and 1710–4200 MHz, ideal for 4G & 5G implementations.
Optimised for 4x4 MIMO: Features four cross-polarised cellular antennas – two uni-directional antennas with 11 dBi peak gain and two omni-directional antennas with 5 dBi peak gain.
Integrated Dual-Band Wi-Fi: Includes two omni-directional Wi-Fi antennas covering 2.4 GHz & 5–6 GHz for 2x2 MIMO performance.
Superior Connectivity & Data Throughput: The combination of a high-gain XPOL-2-5G antenna with a world-class router ensures outstanding wireless performance.
Rugged & Weatherproof Design: IP65-rated enclosure ensures durability in harsh outdoor conditions.
The EPNT-2 is the perfect solution for LTE & 5G deployments, providing a powerful, all-in-one antenna and enclosure for superior connectivity and performance.
Design | |
| Product colour | White |
| International Protection (IP) code | IP65 |
Antenna | |
| Antenna connector type | SMA |
| Antenna gain level (max) | 11 dBi |
Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 0 - 98% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 260 mm |
| Depth | 168 mm |
| Height | 264 mm |
| Weight | 1.43 kg |
Packaging data | |
| Package width | 410 mm |
| Package depth | 177 mm |
| Package height | 280 mm |
| Package weight | 2.17 kg |
Other features | |
| Frequency band | 0.617 - 4.2 GHz |
| Cable length | 0.25 m |

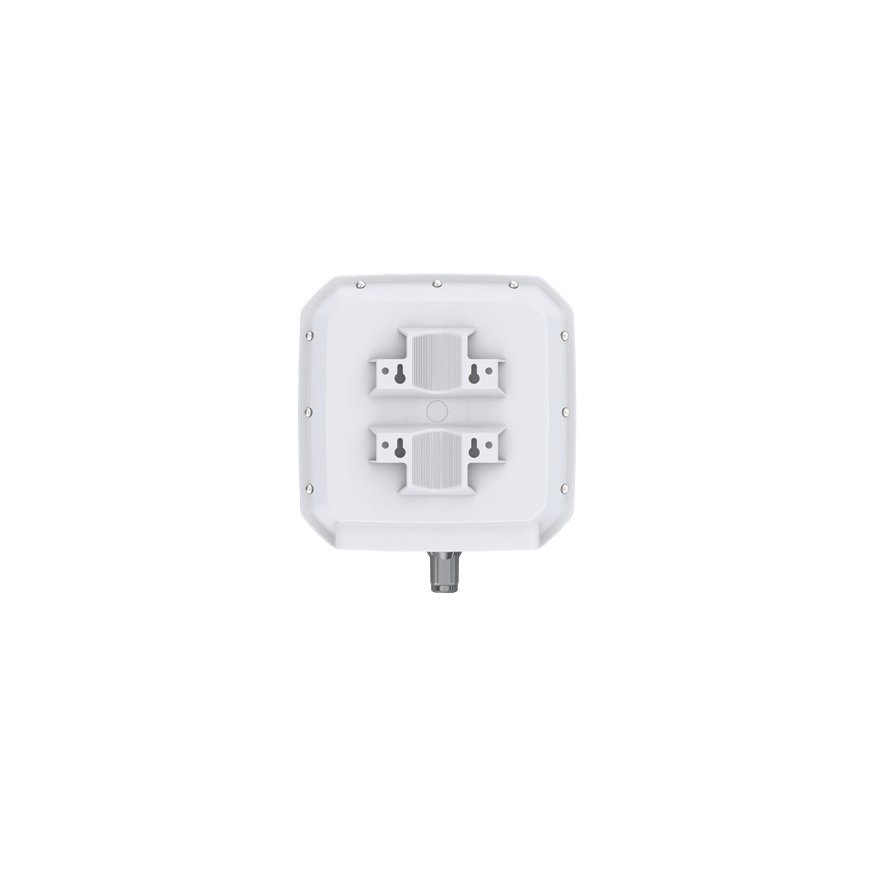

| Mounting | Wall/Pole |
Certificates | |
| Certification | MIL-STD 810G/ASTM B117 |
Technical details | |
| Compliance certificates | CE, RoHS |
Logistics data | |
| Quantity per pack | 1 pc(s) |
Sustainability | |
| Sustainability compliance | Yes |
