Seeed Studio Grove LED RGB module 20 diodes WS2813 Seeedstudio 104020170
20.75 €
3650030 AN-15554
5904422324001
Shipping 11-18 b.d.
You are interested in this product?
All about the product

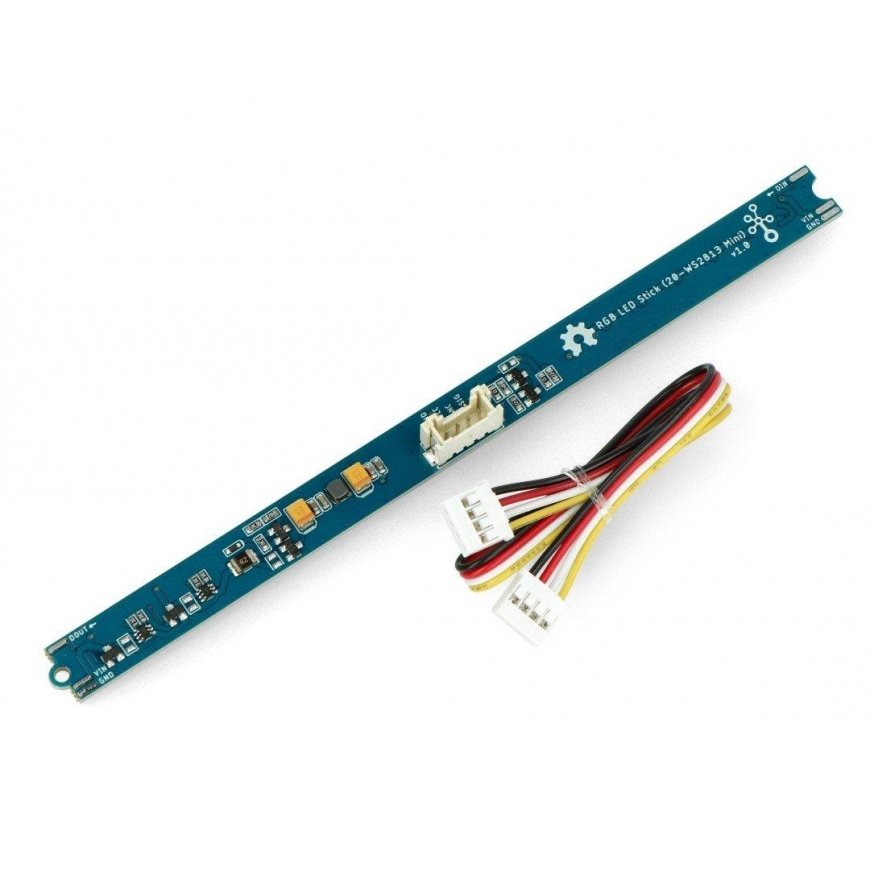

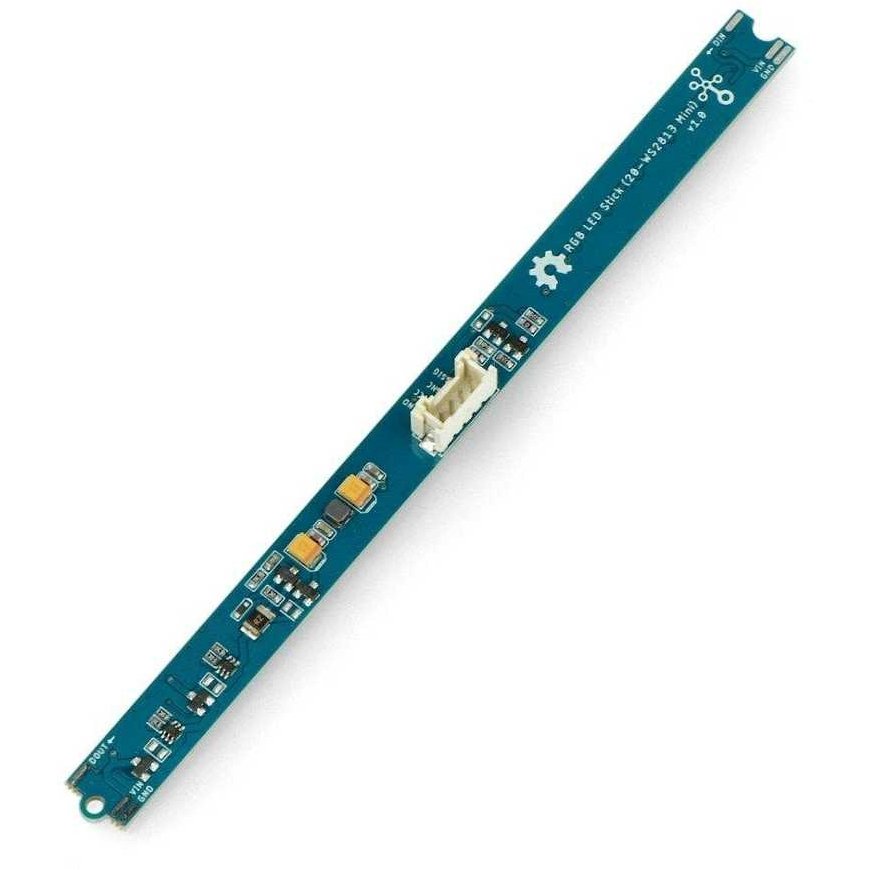

The module has 20 RGB WS2813 LEDs. The board has a Grove connector for easy connection to the motherboard. Each LED is addressed separately, and a single microcontroller pin is enough to control everything. The module is powered by 5V or 3.3V.
Main features:
- 256 gray levels, 256x256x256=16777216 displayable colors
- Built-in 3535 component control system
- Supports 3.3V and 5V power supply
- Wires with two signals, breaking one diode does not break the entire module
- Supply voltage: 3.3V or 5V
- Number of diodes: 20
- Diode type: WS2813
- Number of colors displayed: 16777216
- Dimensions: 147x10mm
