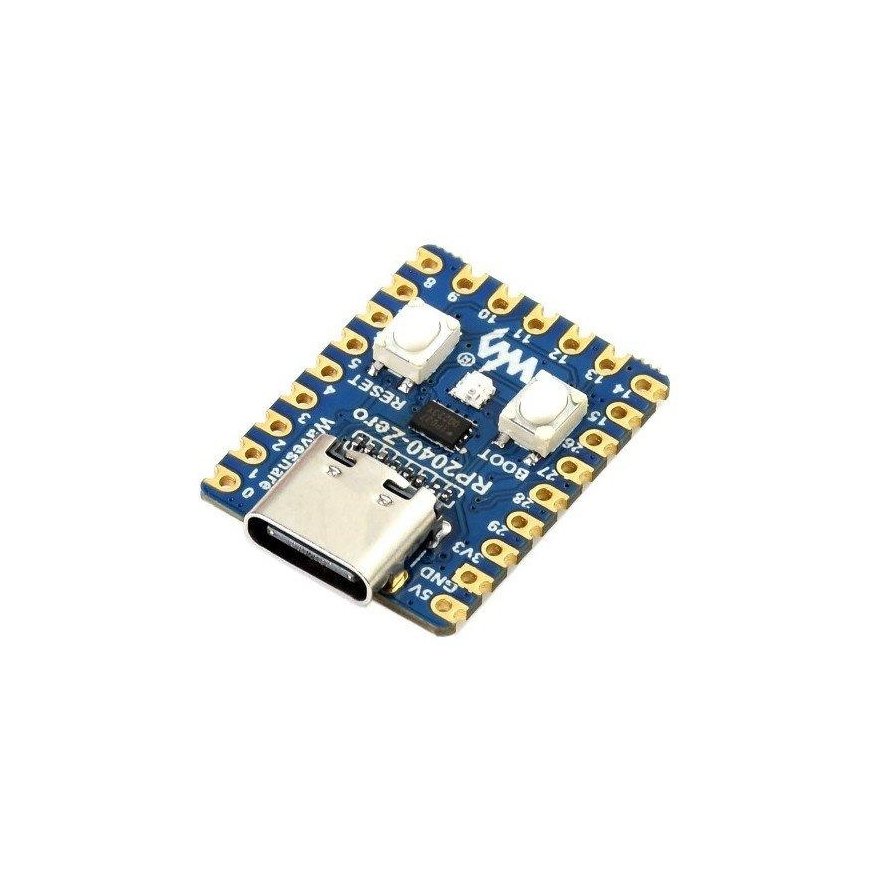

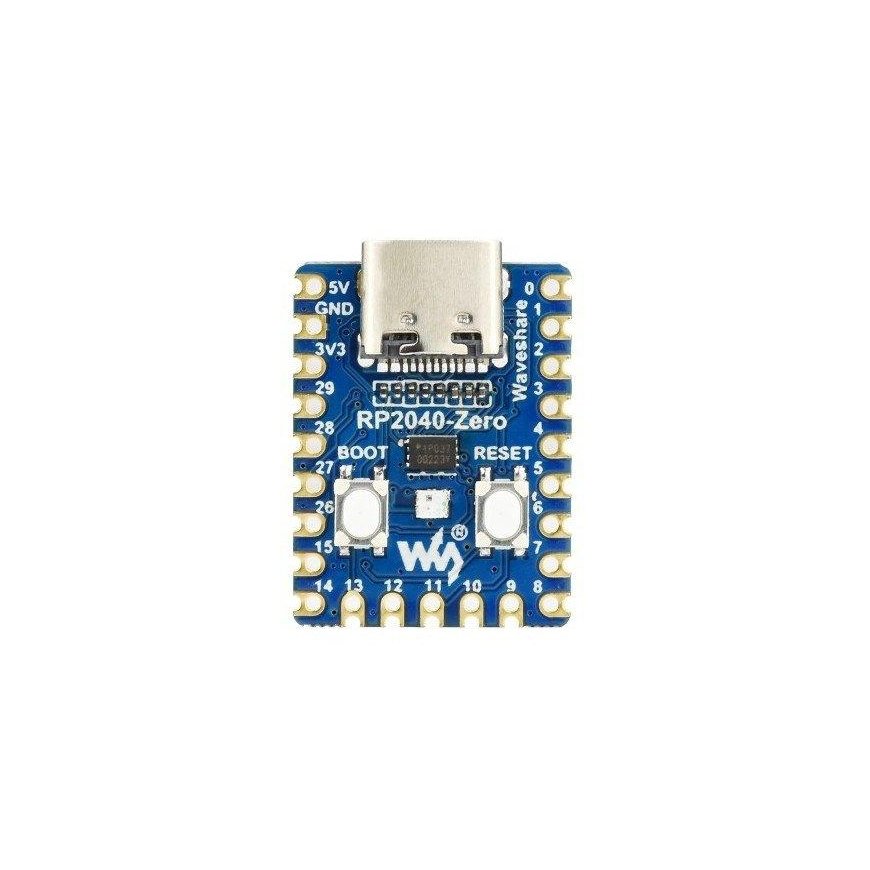

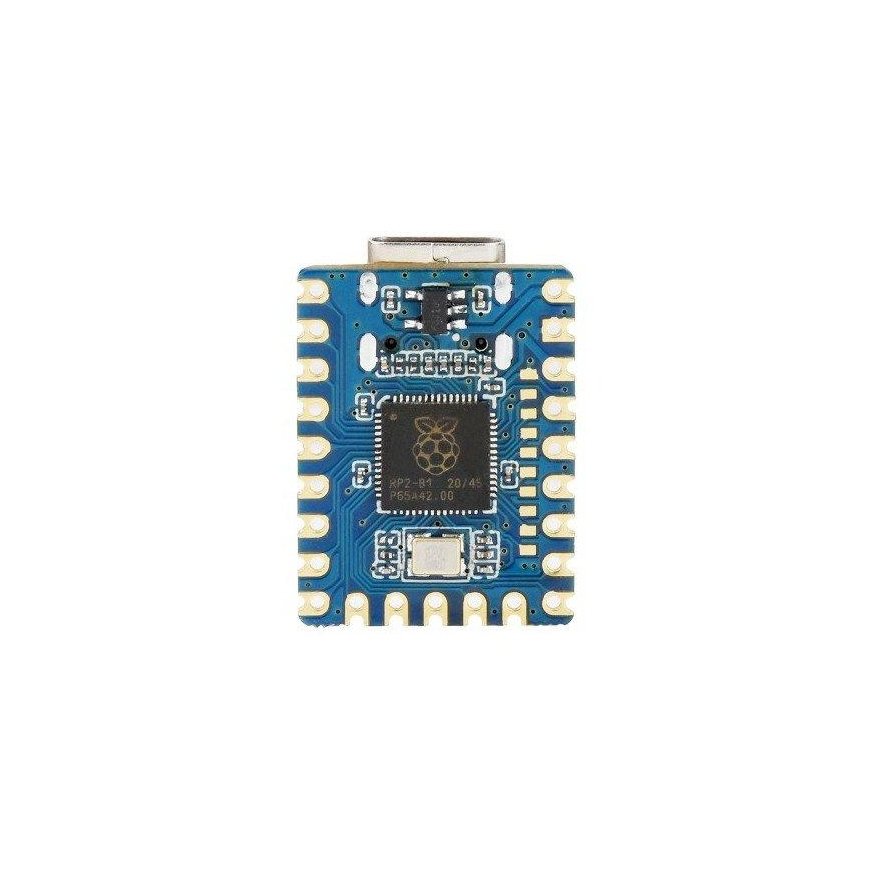

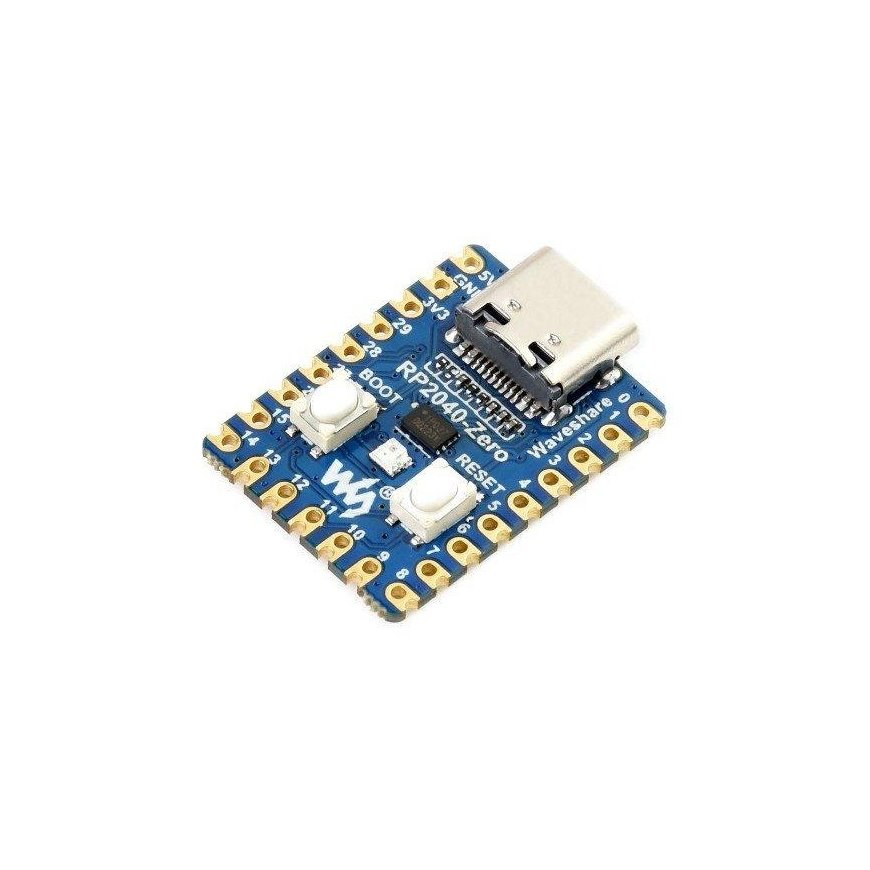

RP2040-Zero - RP2040 microcontroller board - mini version - Waveshare 20187
19.00 €
3646514 AN-20536
5904422381561
Shipping 9-14 b.d.
You are interested in this product?
All about the product
A compact mini Waveshare board with the Raspberry RP2040 microcontroller, which is also used in the popular Raspberry Pi Pico. The RP2040-Zero has a dual-core ARM Cortex-M0+ processor with a clock frequency of 133 MHz, 264 kB of integrated SRAM and 2 MB of Flash memory. The board is also equipped with a USB Type-C connector, through which the module is programmed. The platform supports the popular MicroPython, CircuitPython and C/C++ programming languages.Main features:
- Equipped with RP2040 microcontroller with dual-core ARM Cortex M0+ processor
- Drag and drop programming via USB flash drive
- 8x programmable input and output (PIO) channels to enable use of optional peripherals
- Mini version with compact dimensions: 23.5 x 18 mm
- USB 1.1 with device and host support
- 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, 16x PWM interfaces
- Built-in temperature sensor
- Programmable using Raspberry Pi C/C++ SDK or MicroPython
- Chip: Raspberry Pi RP2040
- Core: ARM Cortex-M0+ dual-core 133 MHz
- SRAM: 264KB
- Embedded Flash memory: 2 MB
- Interfaces: 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, 16x PWM
- LDO: ME6217 800mA
- Development environment: Raspberry Pi C/C++ SDK or MicroPython
- Power connector: USB Type-C connector
- Plate dimensions: 23.5 x 18 mm
