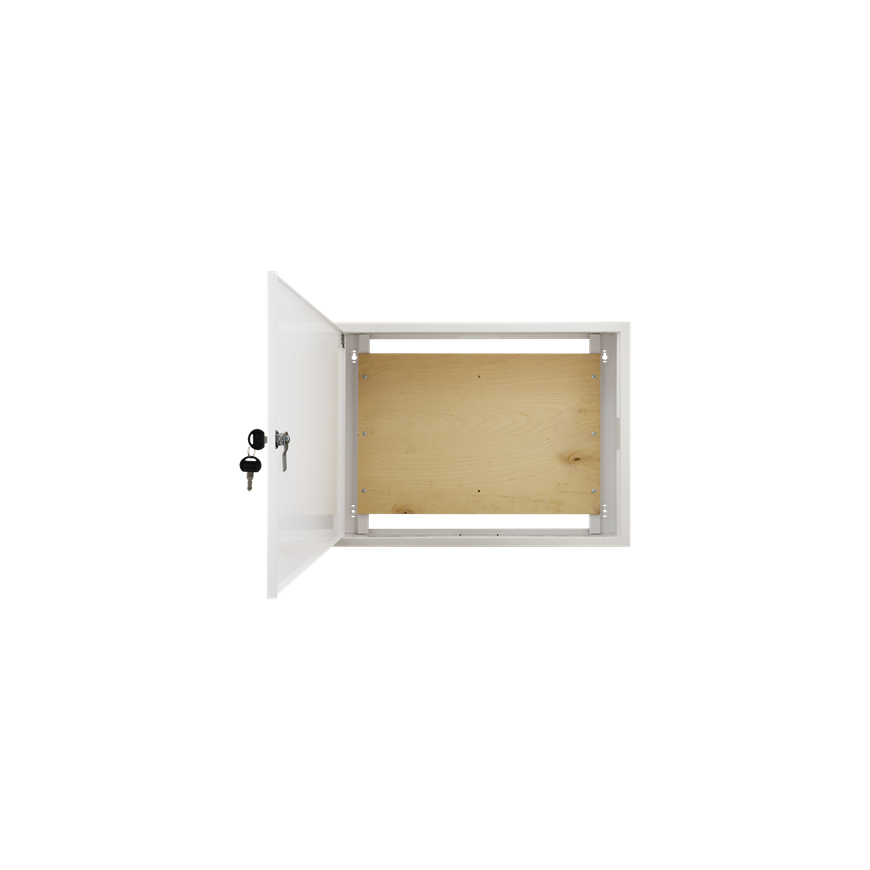

AWO656 universal TUN-6 housing 640x480x180 Application: Due to its design, the TUN-6 housing can be used as an integrated TV/SAT installation element (multiple switches, amplifier, distributors and taps), CCTV, AC, SSWiN, automation, etc. External dimensions: P=640 A=480 P=180+14 mm Dimensions plywood: WS=570 HS=380 DS=6 mm Maximum working area: WR=600 HR=440 DR=160 mm Materials: - electrolytically galvanized sheet DC01 - polyester paint - RAL9003 (white) - for industrial use Notes: - mounted housing - distance from the wall 14 mm - possibility of dismantling the distance - closing - lock with the same code - RAZB16 - possibility of sliding the door from left to right - knocked out imprints, top-bottom: 2 pcs. - ø32mm, 1 pc. - 40x90mm - waterproof plywood, possibility of dismantling the plywood TECHNICAL DATA: External dimensions: P=640, A=480, D=180+14 Plywood dimensions: WS=570 HS=380 DS=6 [mm, +/-2] Maximum working area: WR=600 HR=440 DR=160 mm Net/gross weight: 7.85 kg / 8.70 kg [+/-0.1 kg] Operating conditions: II environmental class, -10°C÷ 40°C Material: electrolytically galvanized sheet DC01, zinc coating 3 µm, Anti-corrosion protection: Polyester paint, for industrial use, color: RAL 9003 (white) Use: indoors / surface mounted Closure: lockable - lock with the same code - RAZB16 Notes: - the set includes a spacer from the wall (ground) 14 mm, possibility of installing the door as right- or left-handed Warranty: 36 months from the date of sale and from the date of manufacture
