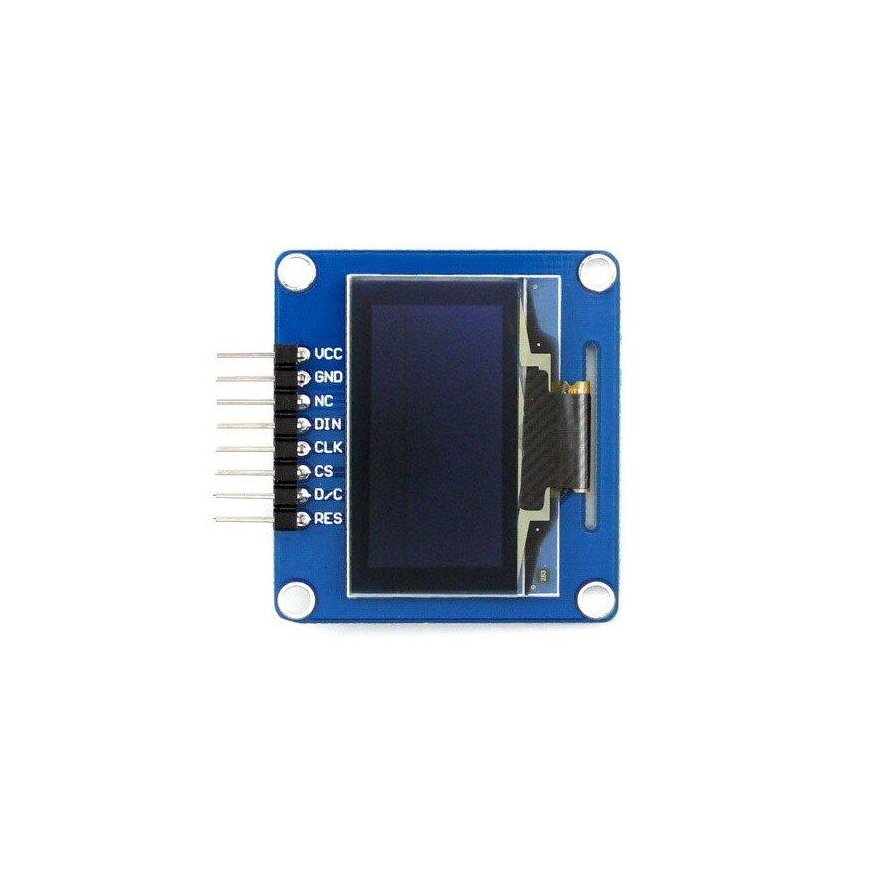

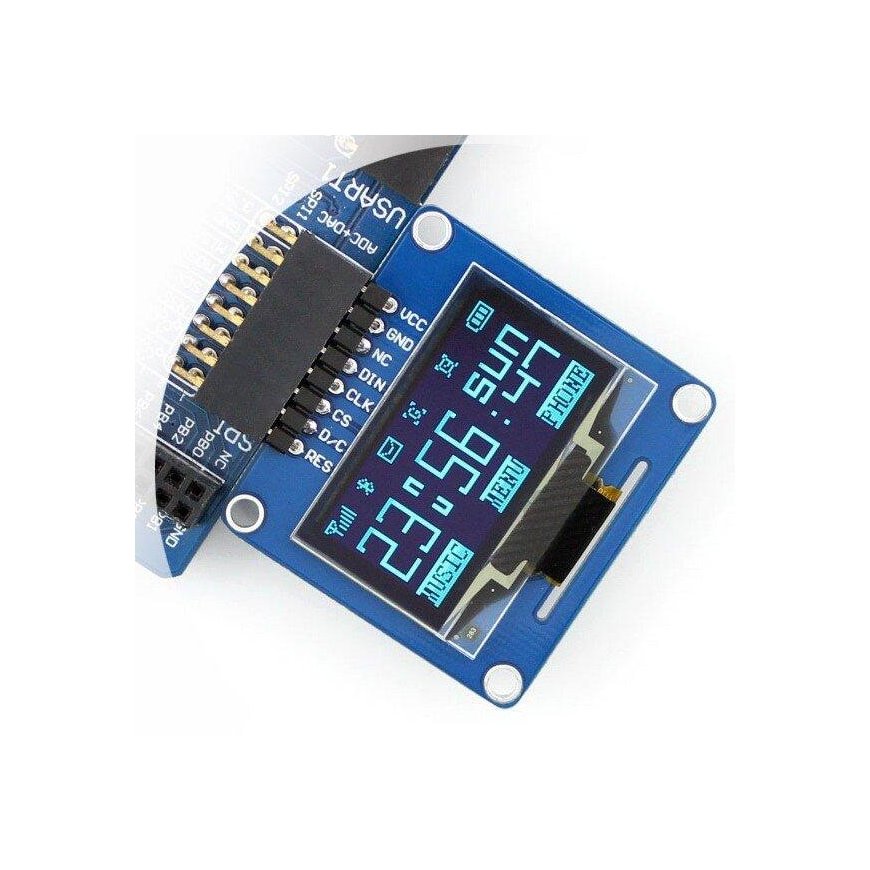

OLED blue display with a diagonal of 1.3" and a resolution of 128x64px. The display is based on the SH1106 controller, operates at 3.3 V and 5 V, interacts via SPI or I2C. It has soldered corner gold pin connectors.

Specifications:

  • Operating voltage: 3.3 V to 5.0 V
  • Controller: SH1106
  • Interface: SPI/I2C

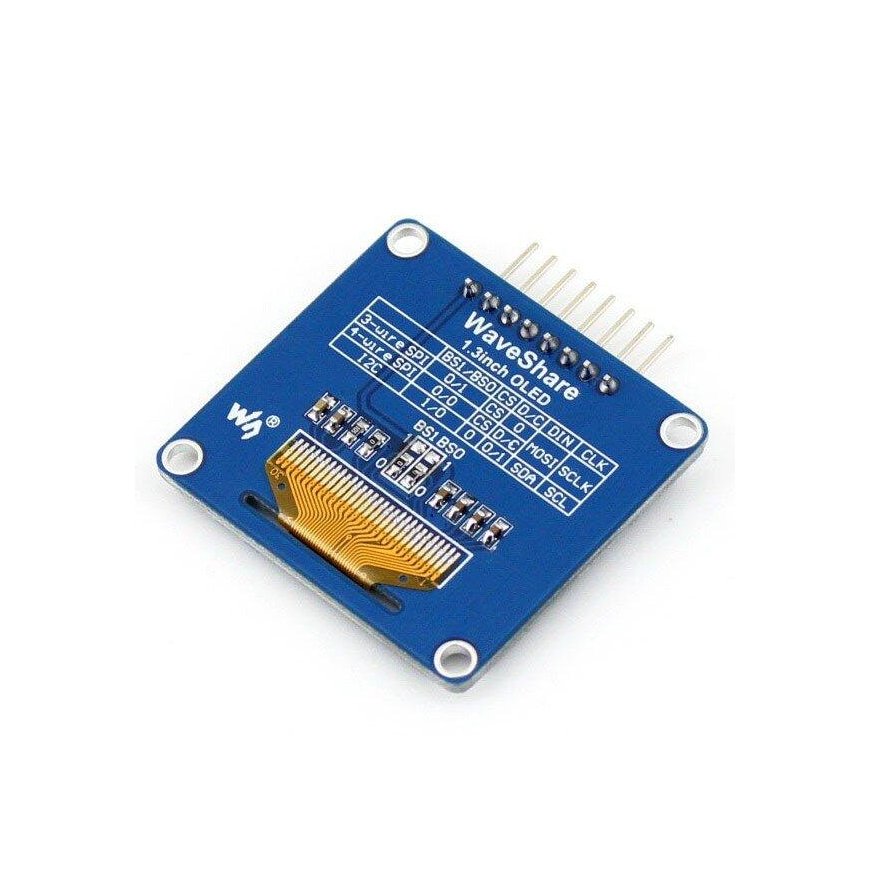

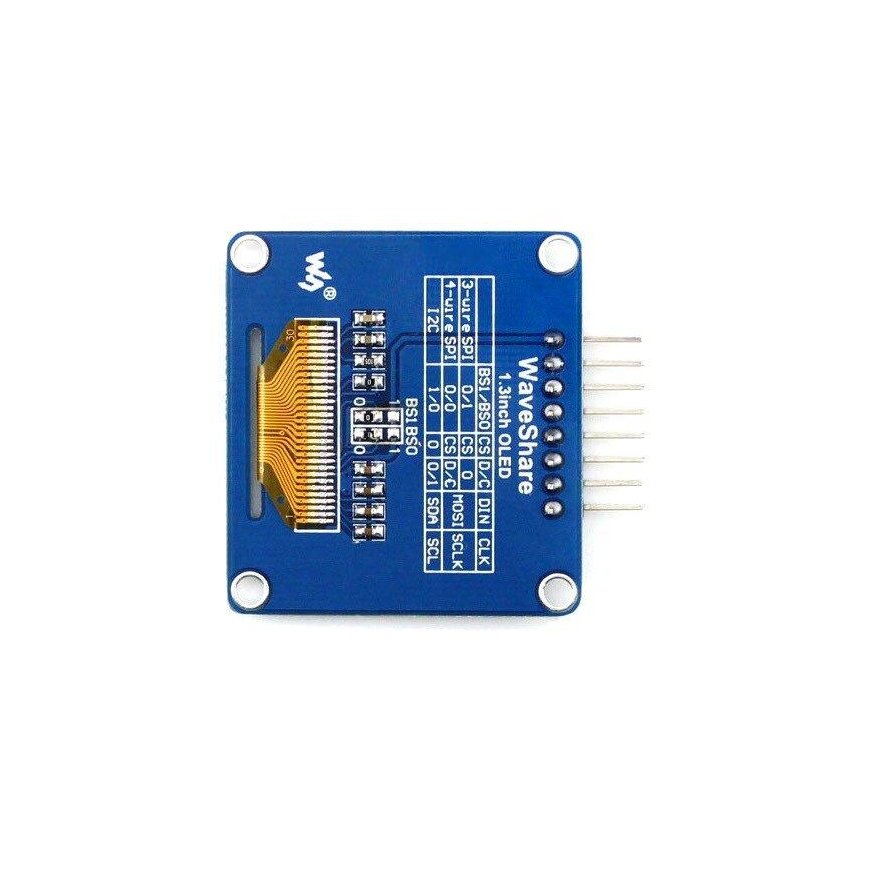

  • Operating mode selection using jumpers BS0 and BS1
  • Display type: OLED
  • Diagonal: 1.3"
  • Resolution: 128x64px
  • Color: blue
  • Viewing angle: over 160°
  • Operating temperature: -20 °C to 70 °C
  • Solder gold pin connectors - 2.54 mm

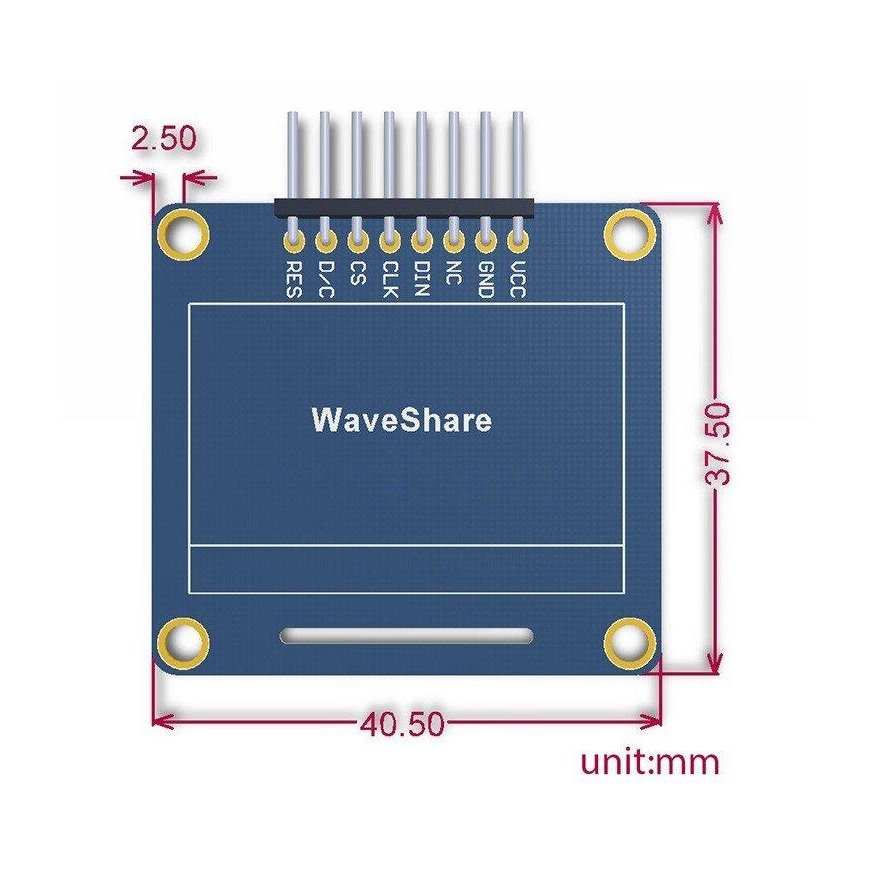

  • Dimensions: 40.5 x 37.5 mm
