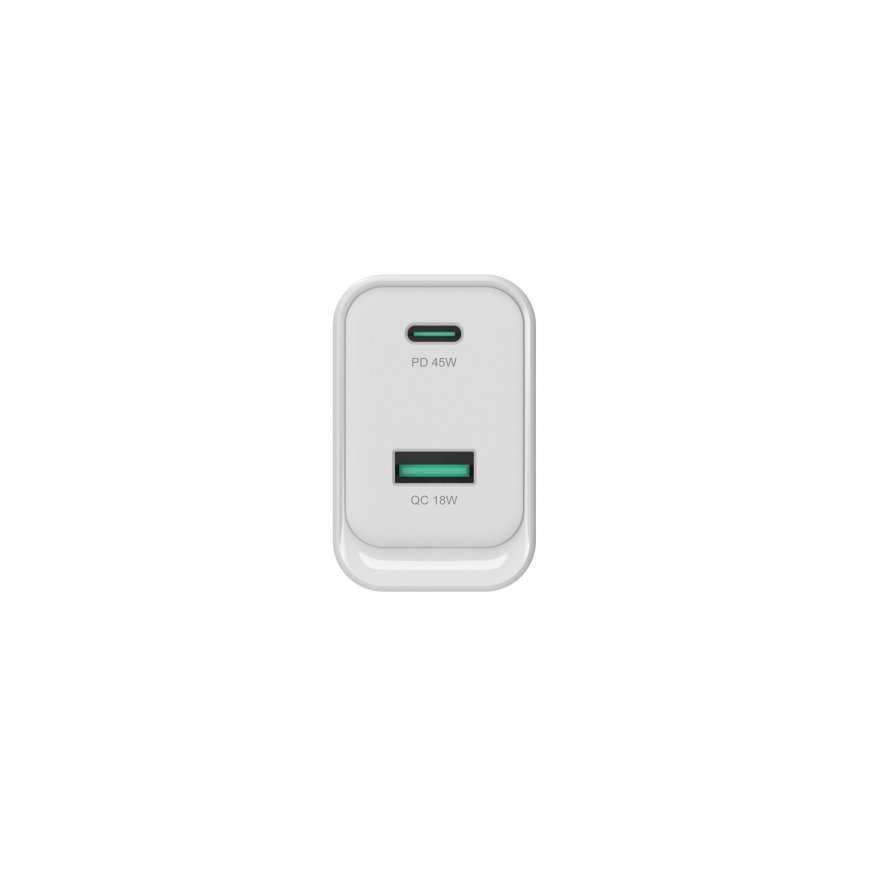

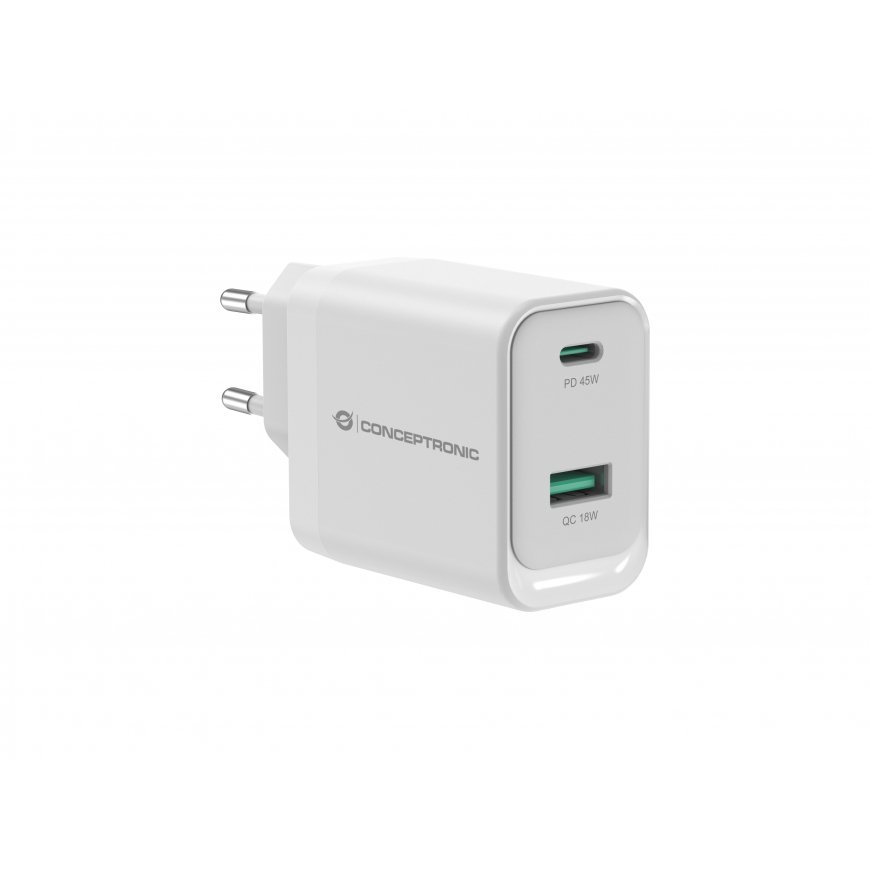

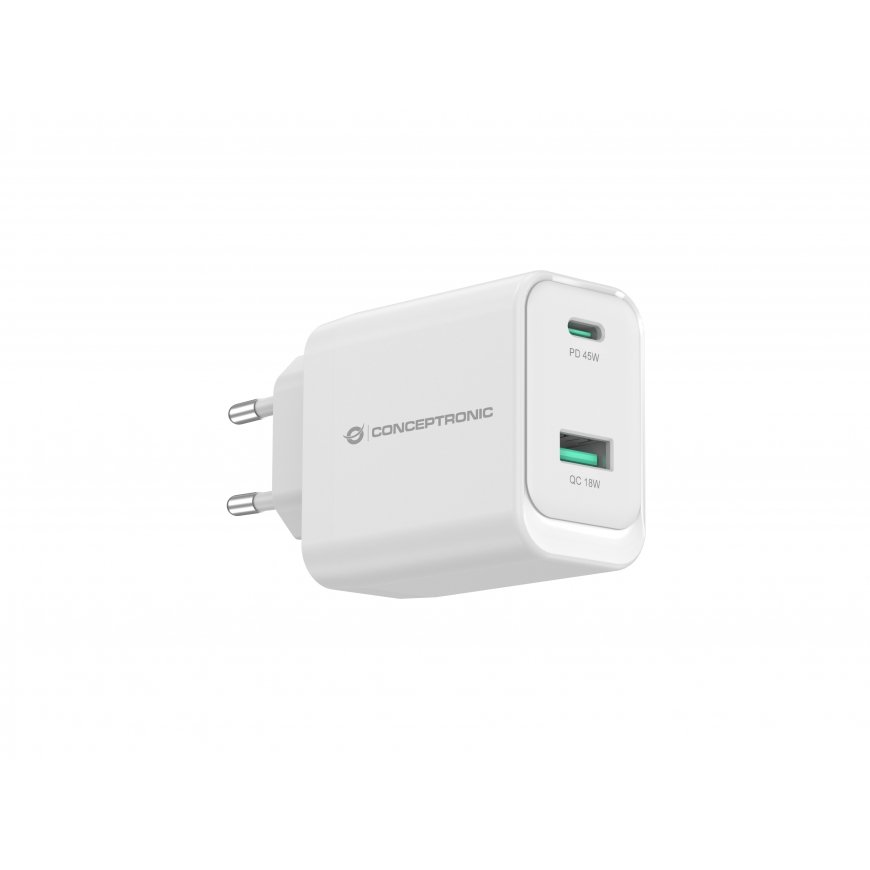

Conceptronic ALTHEA20W45 2-Port 45W GaN USB PD Charger, USB-C x 1, USB-A x 1, QC 3.0, PPS, PD 3.0
29.00 €
3643096 ALTHEA20W45
4015867240717
Shipping 4-6 b.d.
You are interested in this product?
All about the product
This charger leverages advanced Gallium Nitride (GaN) technology to provide up to 45W of total power, delivering faster and more efficient charging. It features a versatile port selection with 1 USB-C port supporting USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, allowing for simultaneous charging of multiple devices with different power needs. The charger supports a wide range of output options from 5.0V to 20.0V, ensuring compatibility with a variety of devices, including smartphones and laptops. Enhanced safety is ensured with built-in protections against overload, short circuiting, and overheating. Additionally, it incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, along with Programmable Power Supply (PPS) compliance to maximize efficiency and minimize heat generation.Performance | |
| Charger compatibility | Universal |
| Power source type | AC |
| Charger type | Indoor |
| Power protection features | Overload, Overheating, Short circuit |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Fast charging | Yes |
| Fast charging technology | Quick Charge 3.0, Power Delivery 3.0, Programmable Power Supply (PPS) |
| USB Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| Programmable power supply (PPS) | Yes |
| Number of simultaneously connected devices (max) | 2 |
Design | |
| Product colour | White |
| Gallium nitride (GaN) transistors | Yes |
| Housing material | Polycarbonate (PC) |
Power | |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Maximum power | 45 W |
| Input current | 1.2 A |
| Port 1 output current | 3 A |
| Port 2 output current | 3 A |
| Maximum output voltage | 20 V |
| Minimum output voltage | 5 V |
Packaging data | |
| Package weight | 134.5 g |
| Package depth | 84 mm |
| Package height | 35 mm |
| Package width | 127 mm |
| Package type | Hanging box |
Weight & dimensions | |
| Weight | 86.5 g |
| Depth | 51 mm |
| Height | 32 mm |
| Width | 57 mm |
Technical details | |
| Master (outer) cases per pallet | 32 pc(s) |
Packaging content | |
| Manual | Yes |
Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 80 pc(s) |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 272 mm |
| Master (outer) case height | 360 mm |
| Master (outer) case gross weight | 11.5 kg |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 159.2 cm |
| Customs product code (TARIC) | 8504408390 |
| Harmonized System (HS) code | 850440 |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Certificates | |
| Compliance certificates | CE, RoHS |
