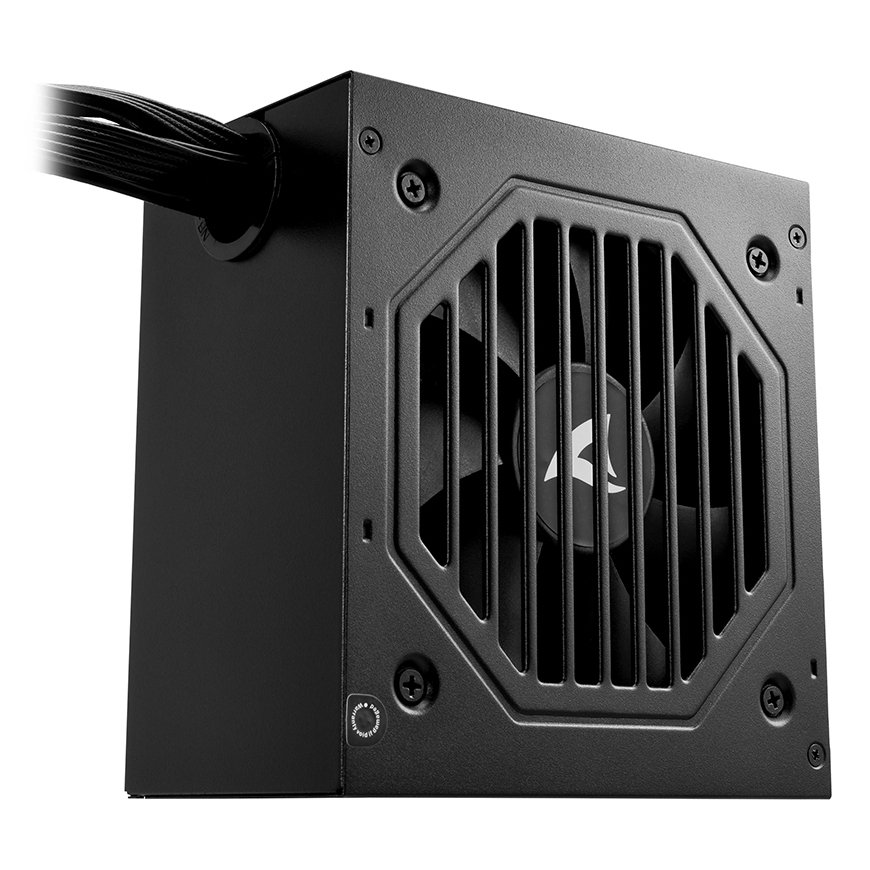

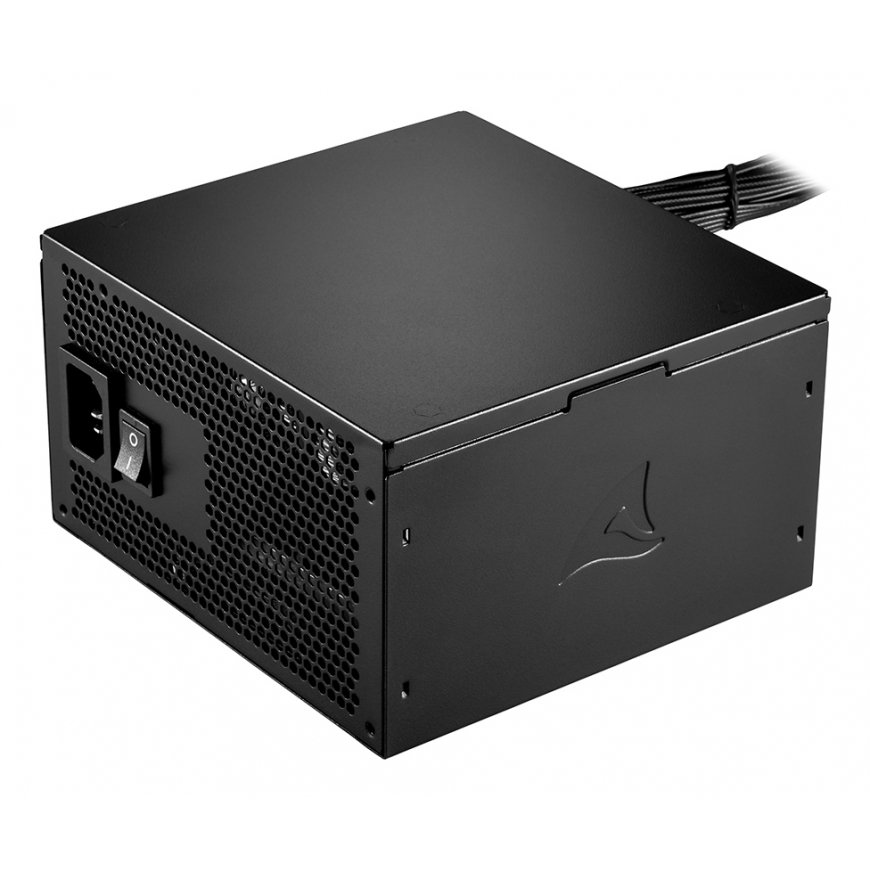

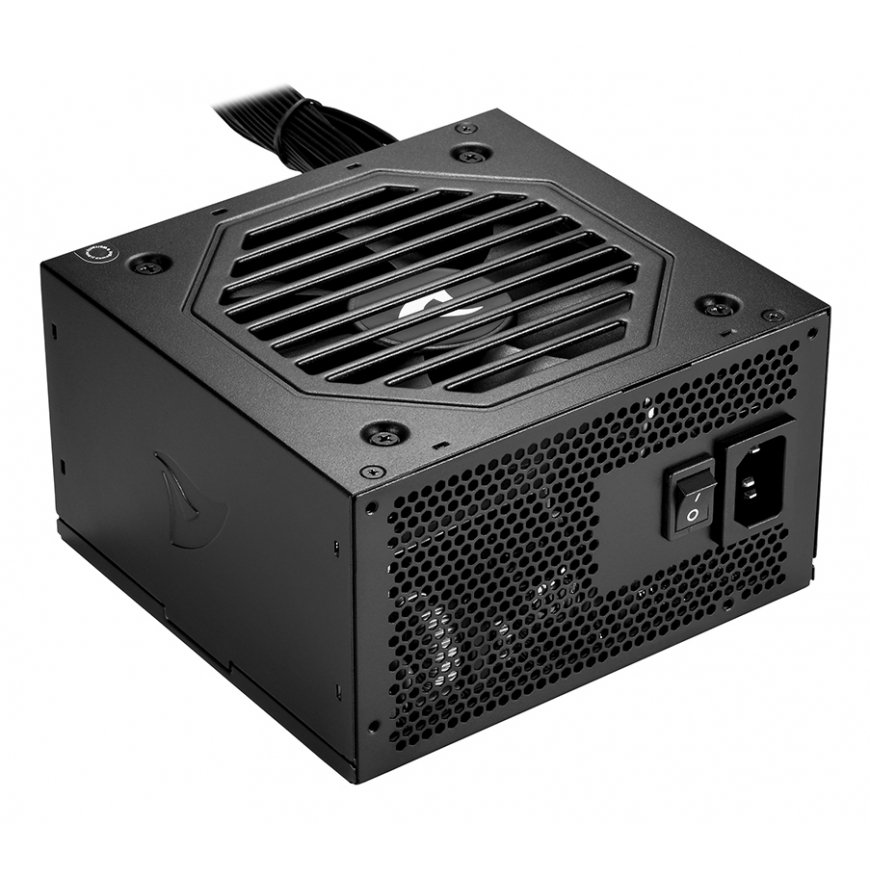

Sharkoon Rebel P10 power supply unit 650 W 24-pin ATX ATX Black
69.01 €
Monthly payment from 2,68 €
3641648 4044951043736
4044951043736
Shipping 12-13 b.d.
You are interested in this product?
All about the product
If you are looking for reliable and efficient performance for your PC, then the Rebel P10 is the right choice. This Cybenetics-certified power supply unit supports the new ATX 3.1 standard and has a 120 mm fan with a quiet sleeve bearing and flat cables for improved airflow. The PSU is thus optimally equipped for intensive gaming sessions and everything beyond.Certified by Cybenetics
The Rebel P10 has been tested by the independent laboratory and certified with an overall efficiency from 82% to 85% (115 V) and 87% (230 V) and with a 5 VSB efficiency of more than 73%. The 550-, 750- and 850-watt models all achieved the Silver certification. The 650-watt PSU achieved Bronze (115 V) and Silver (230 V).
Compatible with the Latest Graphics Cards
Thanks to its compatibility with ATX 3.1, the Rebel P10 supports the latest generation of graphics cards.
Certified Fan with Quiet Sleeve Bearing
The Rebel P10 is fitted with a 120 mm fan which, thanks to its sleeve bearing, complies with at least the Noise Standard + from Cybenetics, even at higher wattages.
Flat Cables for Improved Airflow

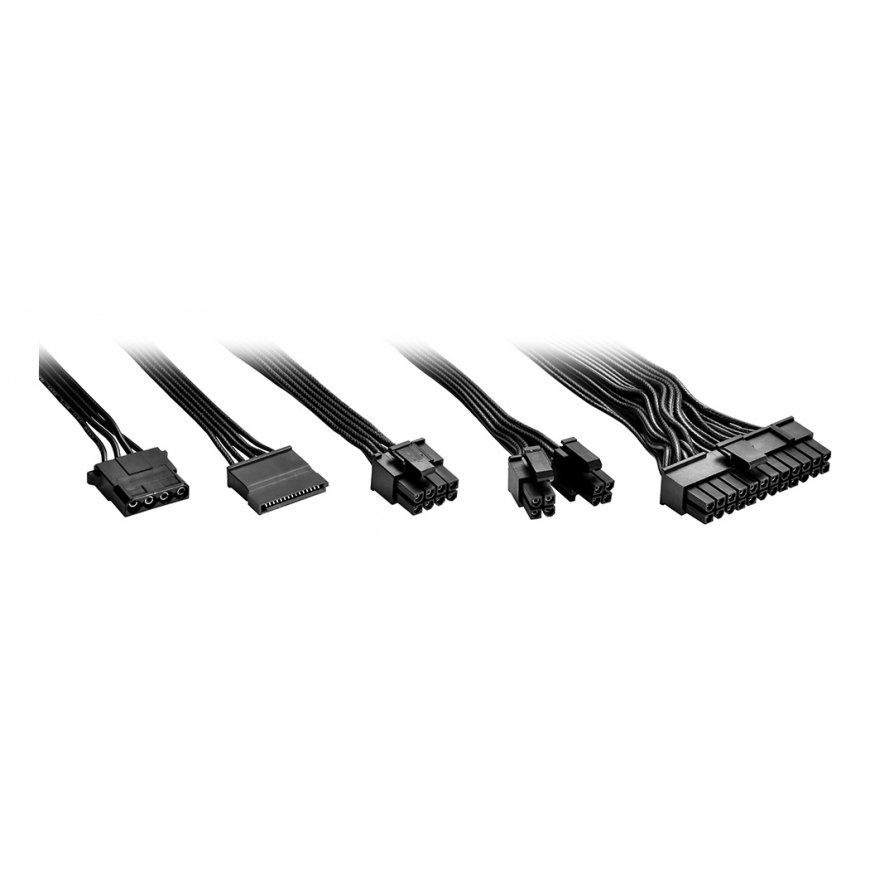

When it comes to connections, the permanently fixed cables of the Rebel P10 leave nothing to be desired. The cables are also kept extra flat for improved airflow in the PC case.
Optimum Voltage Regulation
Thanks to DC/DC technology, the Rebel P10 offers particularly precise voltage regulation for a flawless operation.
Full Protection
Whether its over-current protection or over-power protection: The Rebel P10 is equipped with all protective functions to ensure a continuously safe operation within the hardware system.
Power | |
| Input current | 8 / 4 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 549.6 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+5V) | 18 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 230 V |
| AC input frequency | 50/60 Hz |
| Max output current (+12V1) | 45.8 A |
| Total power | 650 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | No |
| Bearing technology | Sleeve |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| ATX Power connector (24-pin) | Yes |
| Number of SATA power connectors | 5 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| Motherboard power cable length | 55 cm |
| Peripheral (Molex) power cable length | 480 mm |
| PCI Express power cable length | 56 cm |
| CPU power cable length | 62 cm |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
| Weight | 1.47 kg |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Technical details | |
| Sustainability certificates | ErP |
Packaging content | |
| Cables included | AC |
Certificates | |
| Certification | CE, FCC, CB |
