Benewake Laser Distance Sensor Lidar TFMini-S UART/I2C - 12m
88.99 €
Monthly payment from 3,19 €
3641015 AN-15862
5903351249058
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Laser distance sensor that accurately measures from 0.1 m to 12 m with an accuracy of 0.06 m. The blind zone is reduced to 10 cm. The sensor communicates via UART and I2C interfaces. The supply voltage is 5 V, and the logic voltage is 3.3 V.Specifications:
- Supply voltage: 5V
- Logic voltage: 3.3 V
- Energy consumption:
- Average: approx. 140 mA
- Maximum: 200 mA
- Range: 0.1 to 12 m
- Accuracy:
- from 0.1 m to 6 m: ± 6 cm
- from 6 months to 12 months: 1%
- Resolution: 1 cm
- Operating frequency: 100 Hz
- Ambient light resistance: 70 klux
- Operating angle 2°
- Light source: VCSEL type laser
- Light beam length: 850 nm
- Housing: ABS + PC
- Operating temperature: 0 °C to 60 °C
- Storage temperature: -20 °C to 75 °C
- Interface: UART/I2C

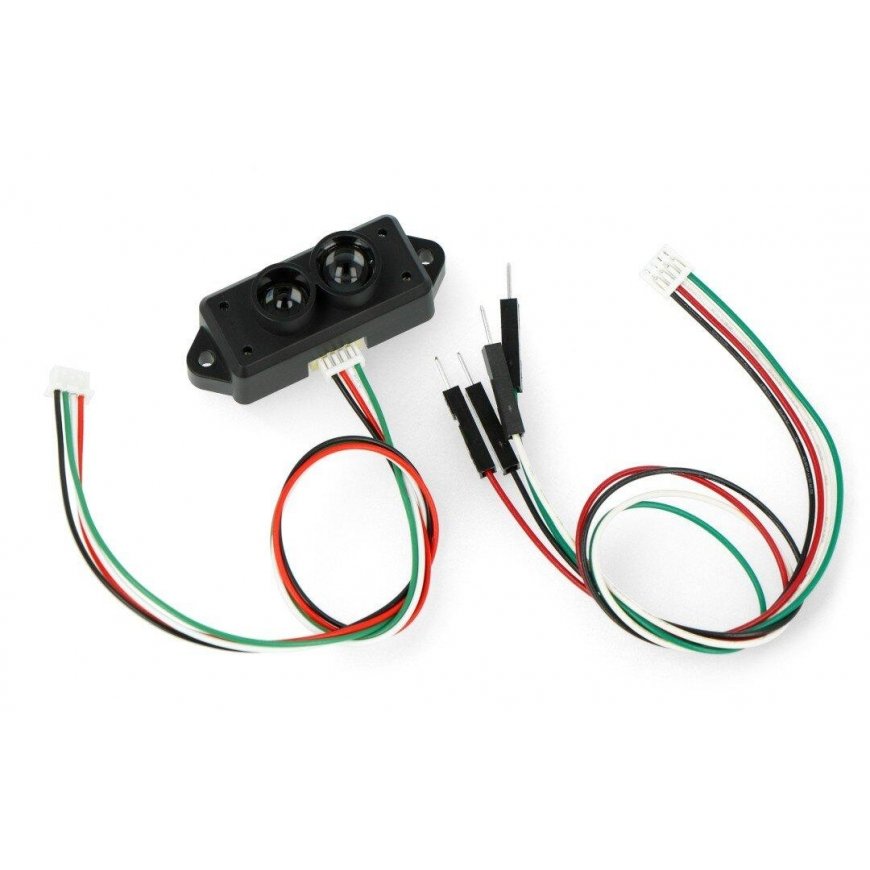

- The set includes a 4-pin connecting cable, pitch 1.27 mm, length 10 cm

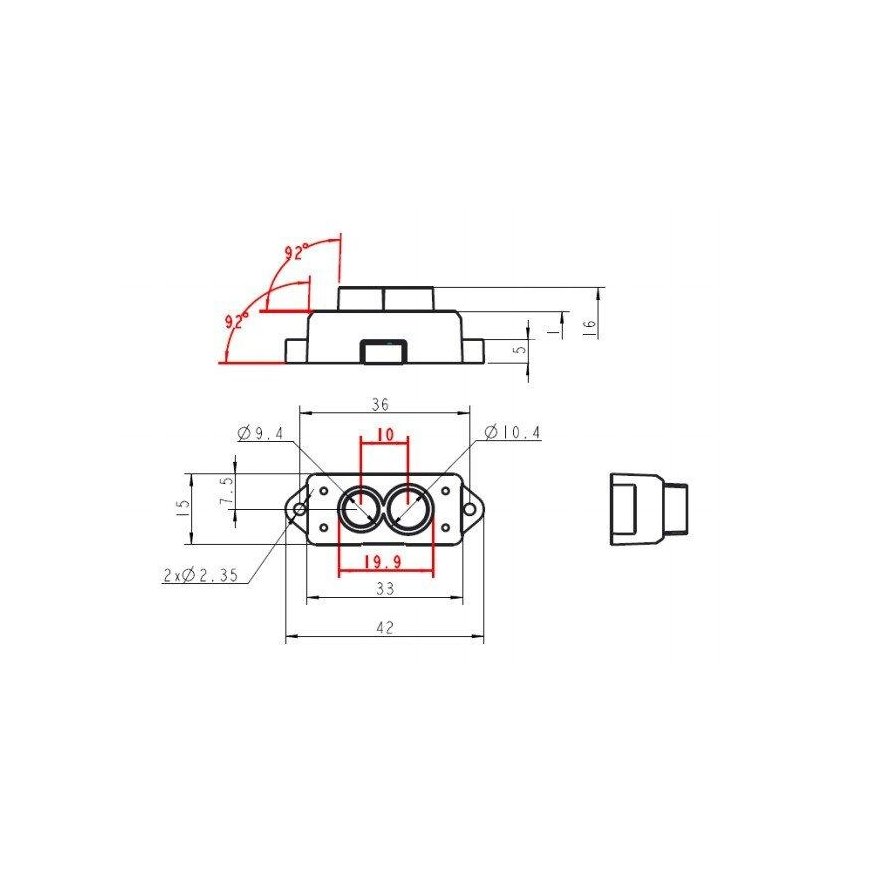

- Dimensions: 42 x 15 x 16 mm
- Weight: 5 g
