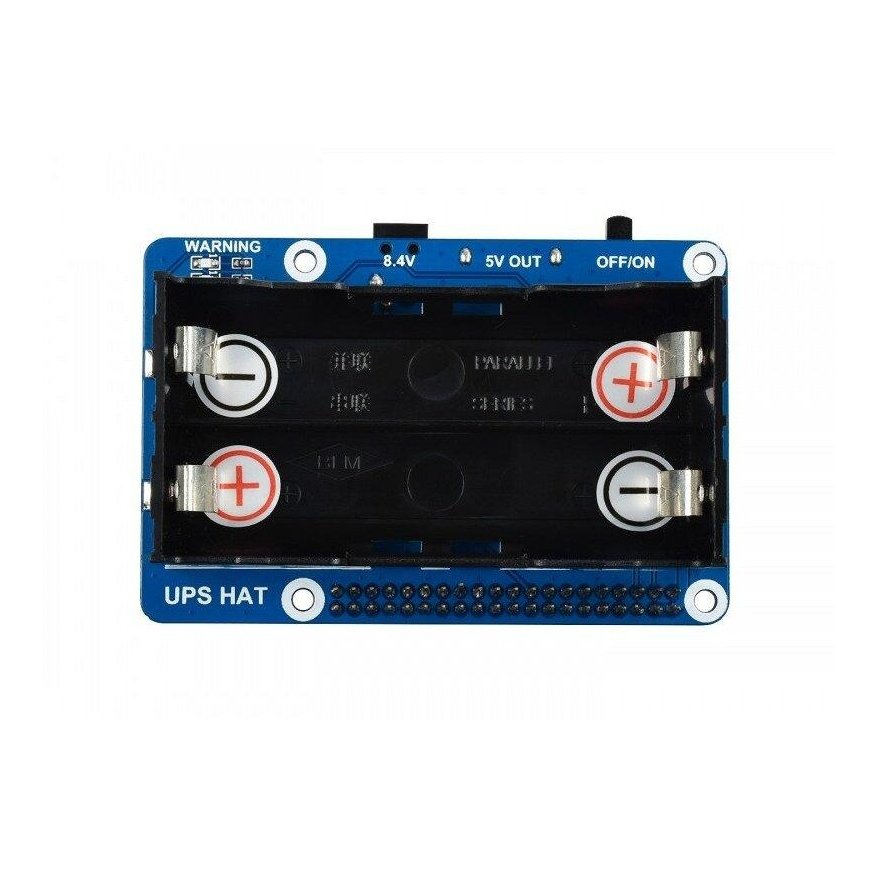

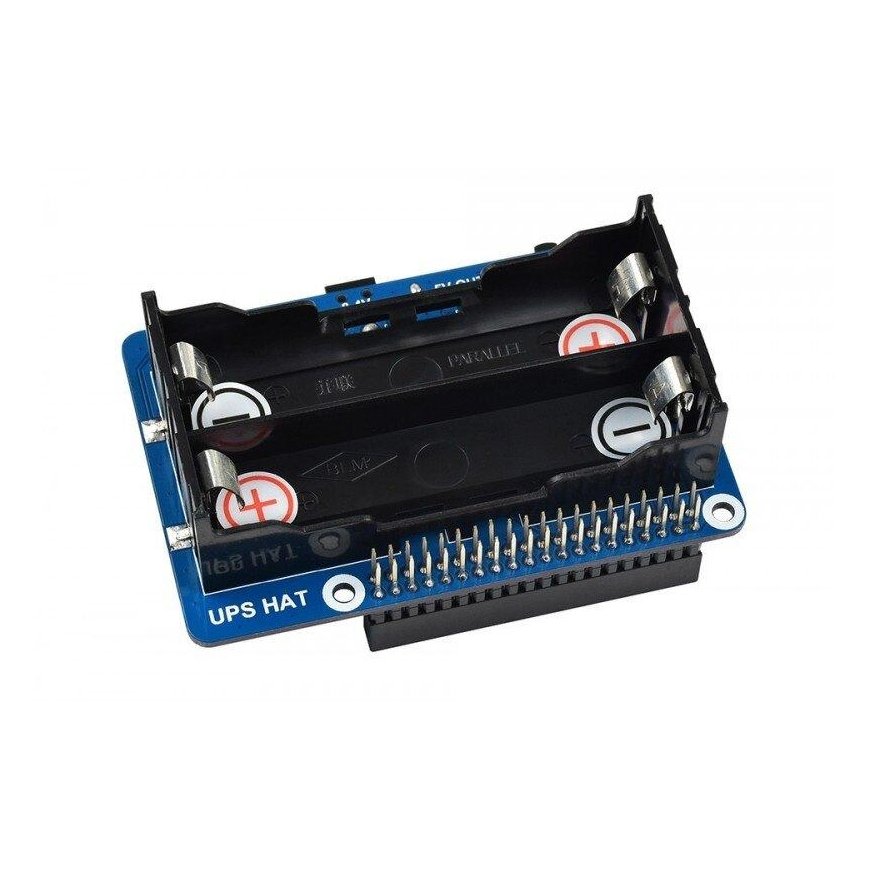

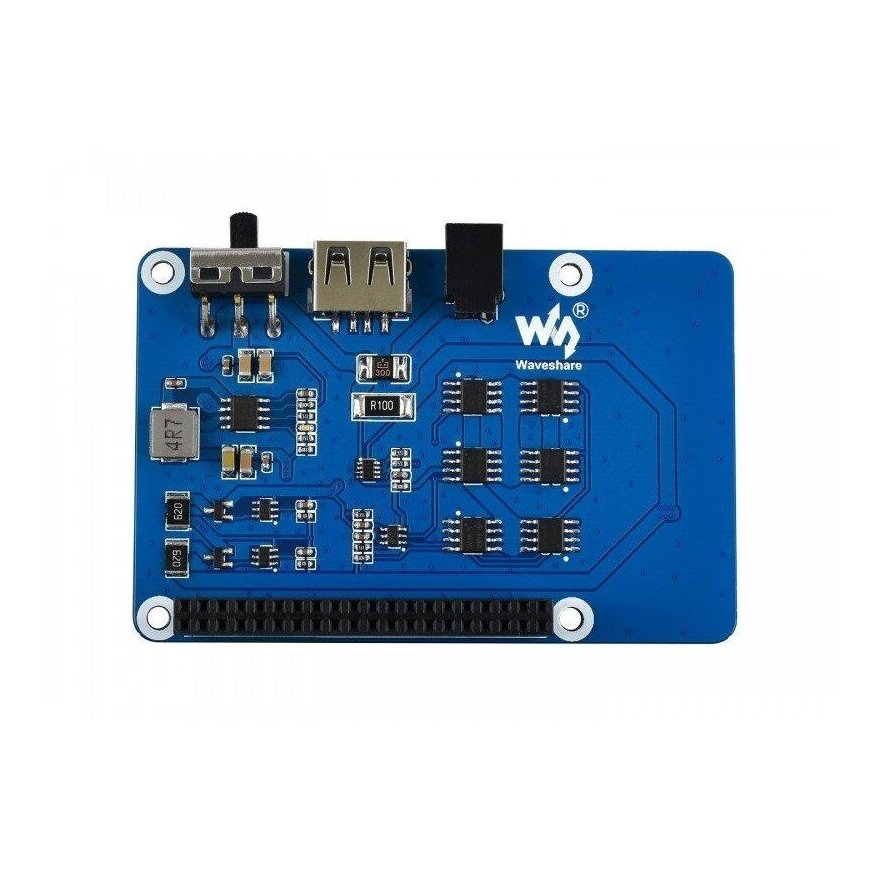

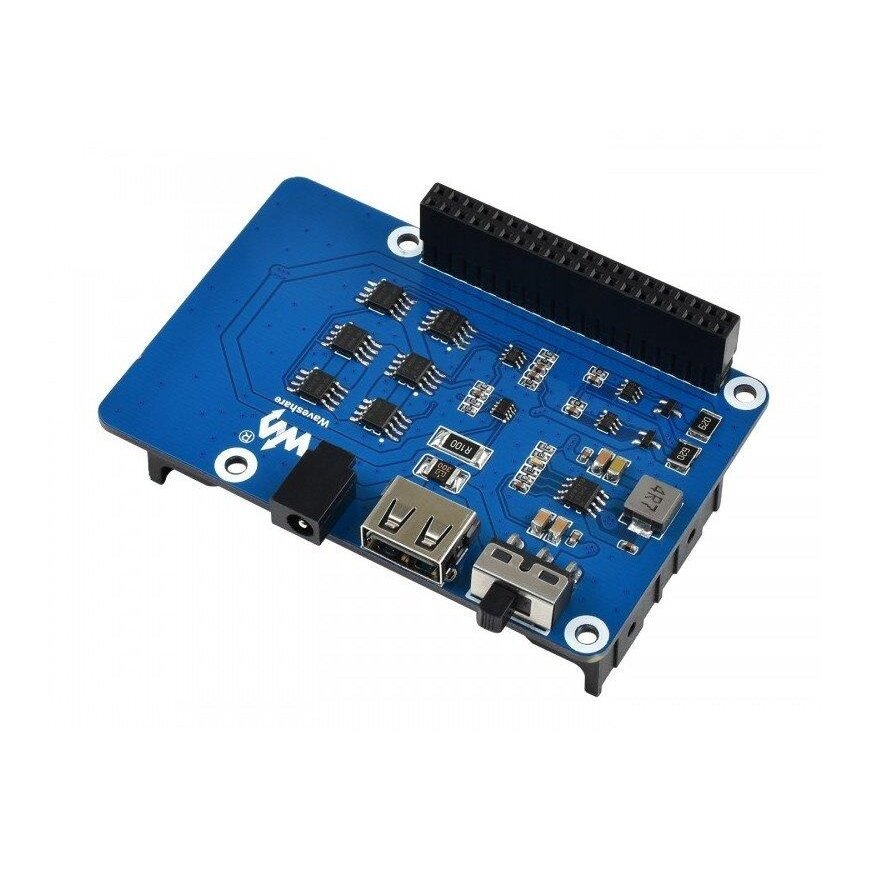

Uninterruptible power supply UPS, power adapter for Raspberry Pi, 5V, Waveshare 18306
39.00 €
Monthly payment from 1,90 €
3640626 AN-19046
5904422367039
Shipping 11-18 b.d.
You are interested in this product?
All about the product
A UPS power supply for the Raspberry Pi in the form of a power strip that provides additional power to the module during power outages or when traveling. It is powered by two 18650 lithium-ion batteries, has an additional on/off power button, and a USB Type-A port.Main features:
- Has GPIO connectors, compatible with Raspberry Pi
- Uses I2C bus for communication
- Allows real-time monitoring of voltage, current, energy and battery level
- The accessory includes overcharge and overdischarge protection, overcurrent protection, short circuit protection, reverse battery protection, and equalization charging function
- Built-in 5V regulator

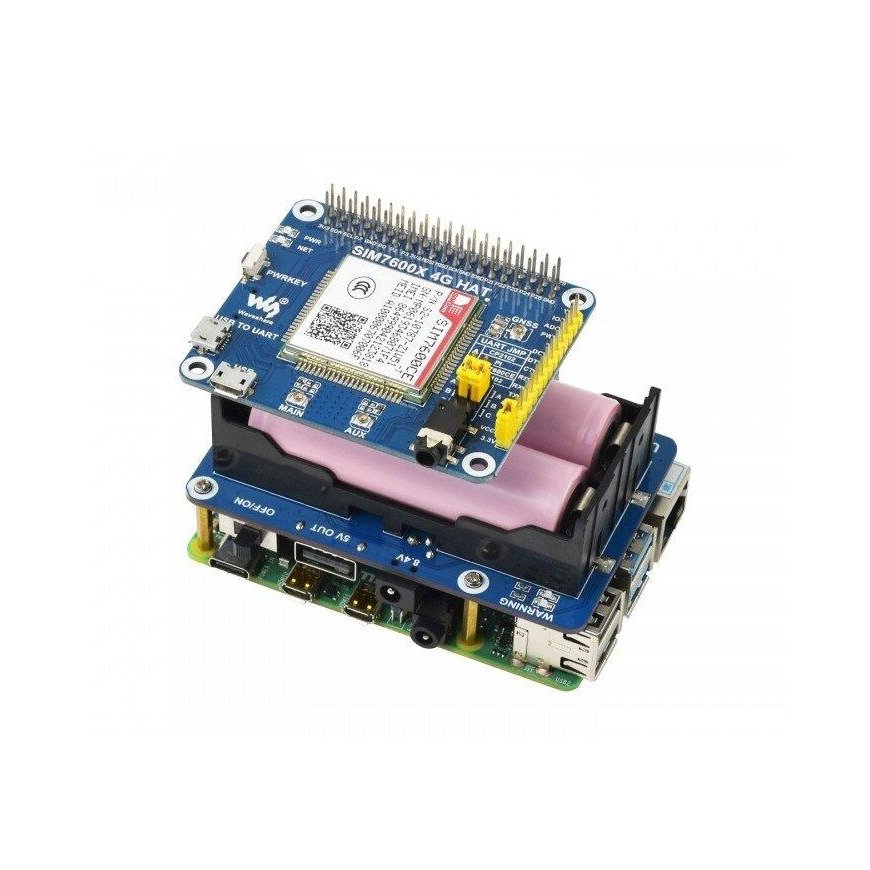

- Equipped with a USB connector that allows you to conveniently power other boards, not just the Raspberry Pi
- The panel has an on/off power button for manual control of the set-top box
- The kit includes the necessary programming resources and a user guide
- Output voltage: 5V
- Power supply parameters: 8.4 V / 2 A
- Interface: I2C
- Supported battery: 18650 lithium-ion (not included)
- Number of elements: 2
- Pinouts: GPIO connectors compatible with Raspberry Pi
- Port: USB Type A
- Dimensions: 56 x 85 mm
- Mounting hole diameter: 3 mm
