Oem OLED blue graphic display 1.3" 128x64px I2C v2 - blue symbols
19.00 €
3640280 AN-08246
5904422311339
Shipping 11-18 b.d.
You are interested in this product?
All about the product

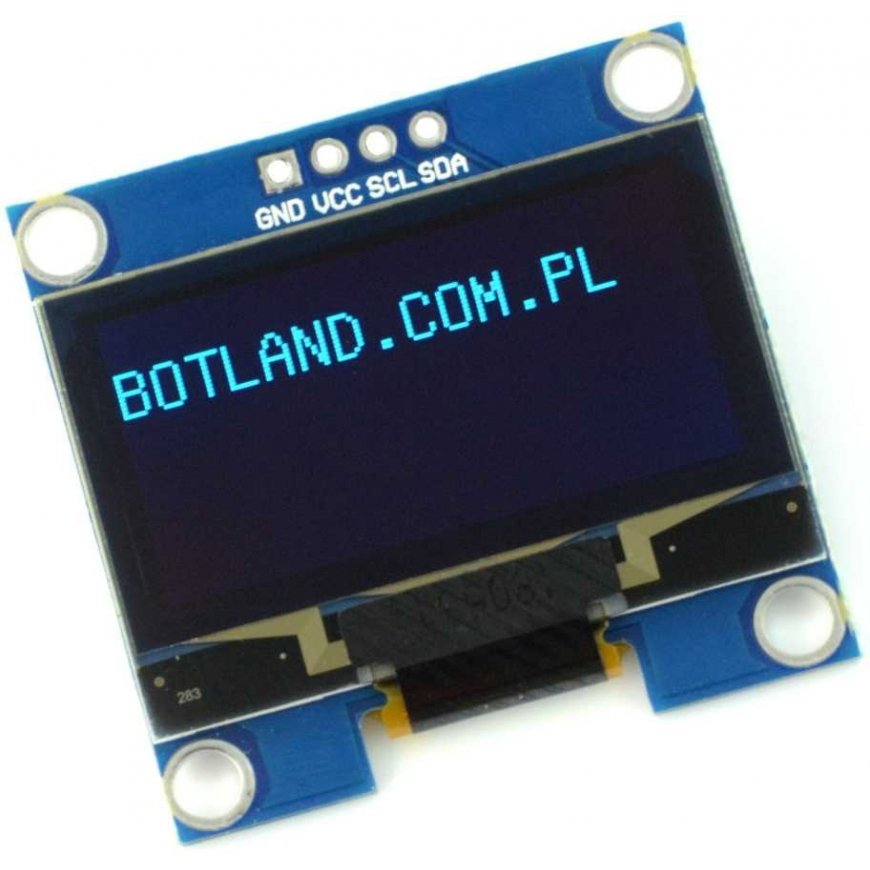

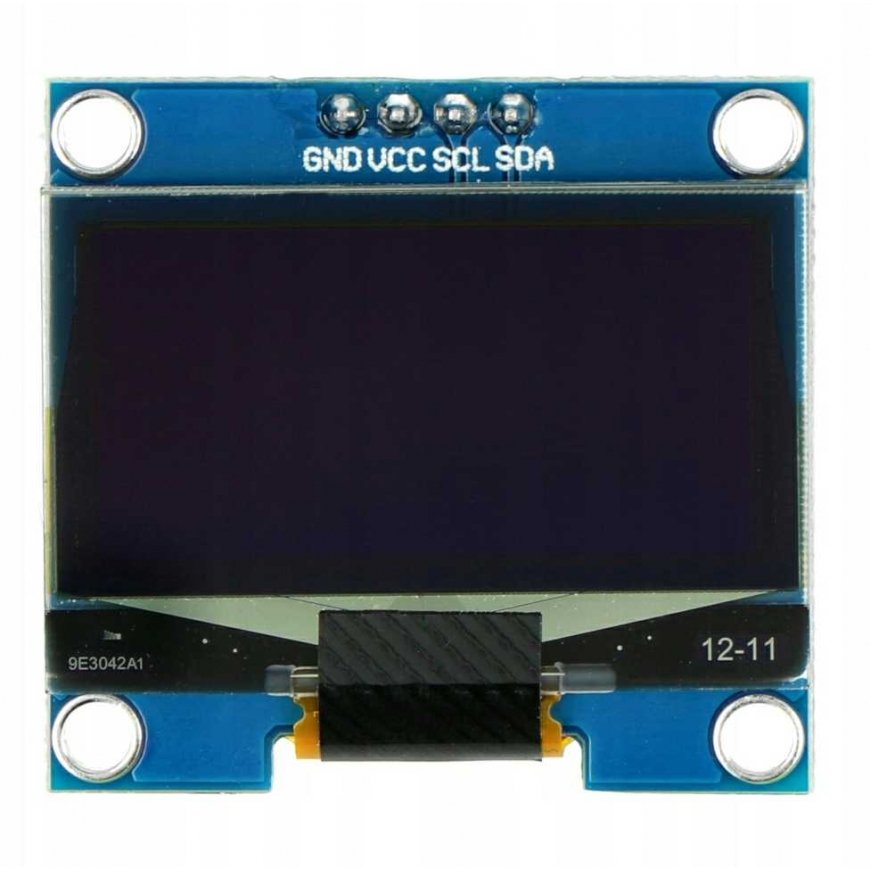

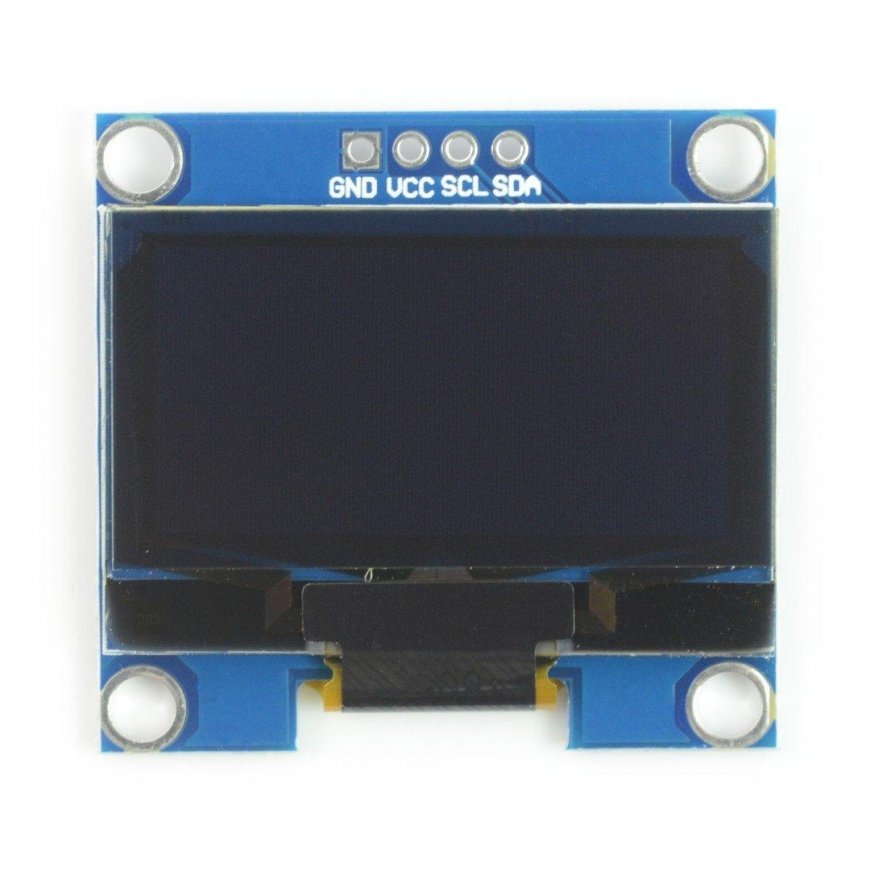

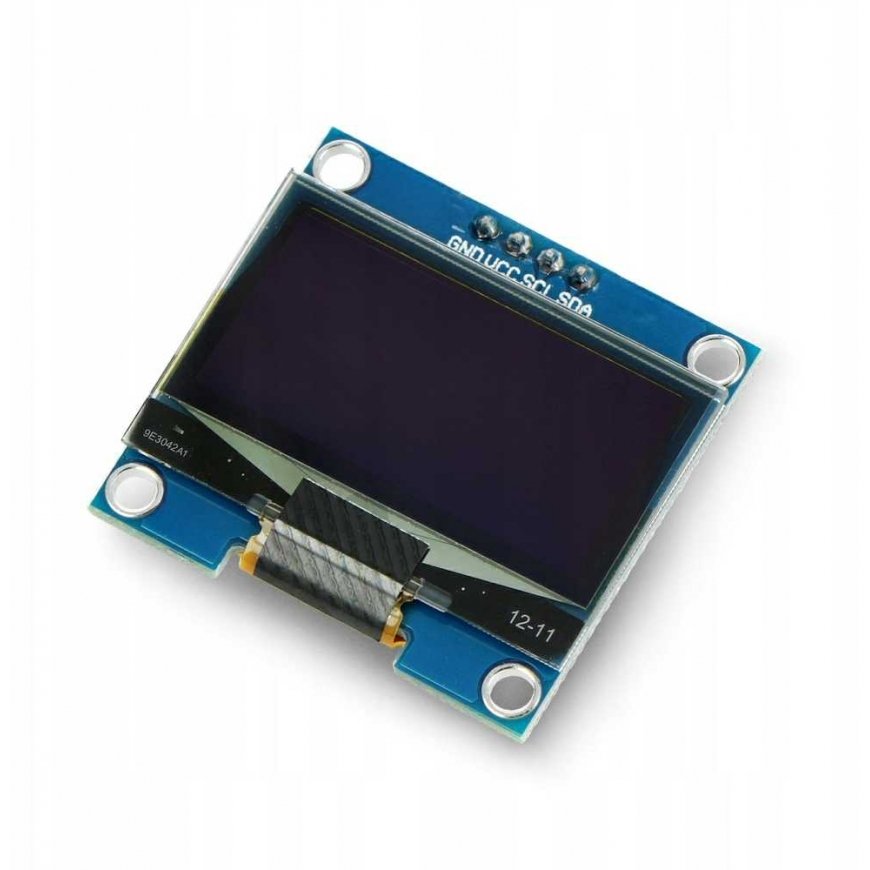

Blue OLED display with a diagonal of 1.3" and a resolution of 128x64px. The display is based on the SH1106 controller, operates at 3.3 V and 5 V, supports an interface via I2C. It primarily interacts with Arduino boards. The symbols are displayed in blue.
Specifications:
- Operating voltage: 3.3 V to 5.0 V
- Controller: SH1106
- Interface: I2C

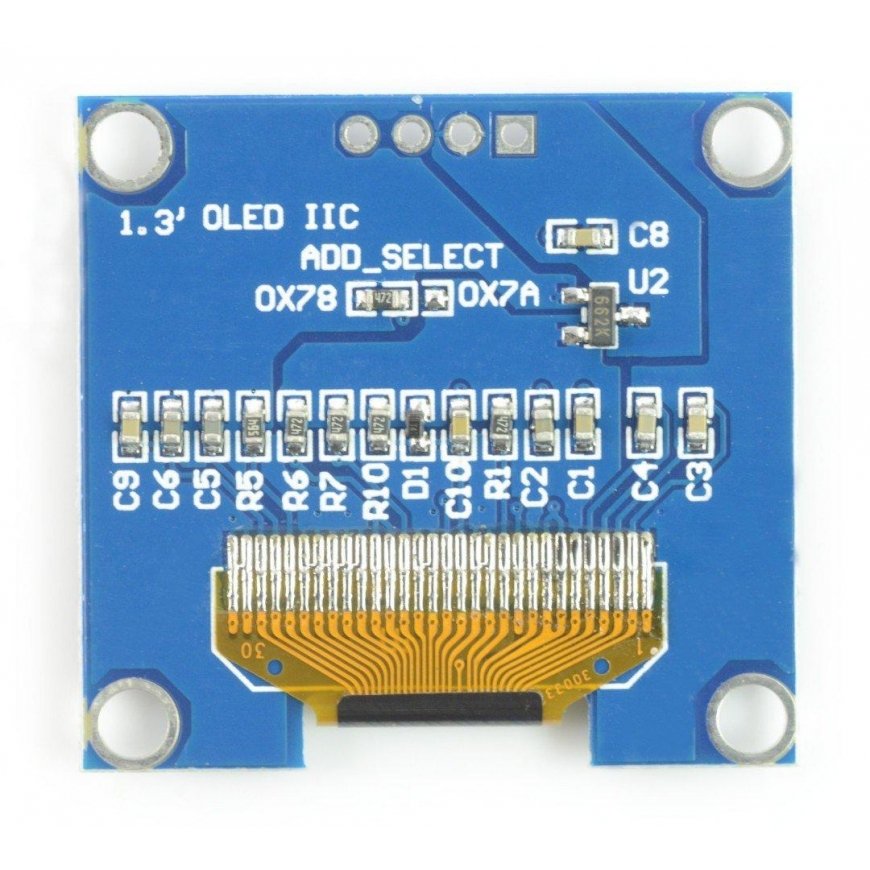

- I2C address: 0x78, 0x7A
- Display type: OLED
- Diagonal: 1.3”
- Resolution: 128x64px
- Colors: blue, blue symbols
- Backlight: blue
- Viewing angle over 160°
- Operating temperature: -20 °C to 70 °C
- Soldered gold pin connectors - 2.54 mm pitch
- Dimensions: 35 x 33 mm
