DFRobot module W5500 Ethernet + PoE, compatible with Arduino
79.00 €
Monthly payment from 2,93 €
3639186 AN-04278
4779044510252
Shipping 11-18 b.d.
You are interested in this product?
All about the product
DFRobot module with AVR Atmega32U4 microcontroller. It has 20 digital inputs/outputs, of which 7 are PWM channels, 6 analog and interfaces: UART, SPI, I2C, USB. This version has a W5500 Ethernet network controller and a slot for microSD cards.Specifications:
- Supply voltage from 7 V to 12 V
- PoE input voltage: 48 V AC/DC (standard 802.3 af)
- Microcontroller: ATmega32u4
- Number of digital pins: 20
- Number of PWM channels: 7
- Number of analog inputs: 6
- Clock frequency: 16 MHz
- Memory: 32 KB (4 KB is reserved for the boot program)
- SRAM: 2.5 KB
- EEPROM: 1 KB
- Ethernet controller: W5500
- Integrated reader for microSD memory cards

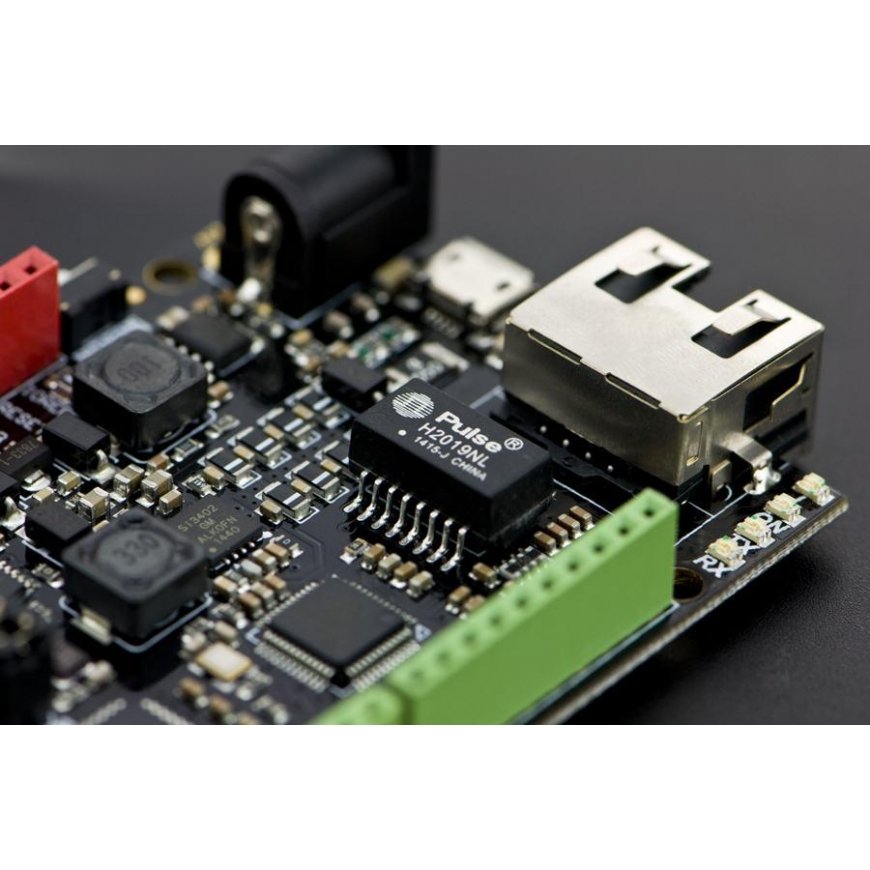

- Built-in RJ45 connector
- Status LEDs

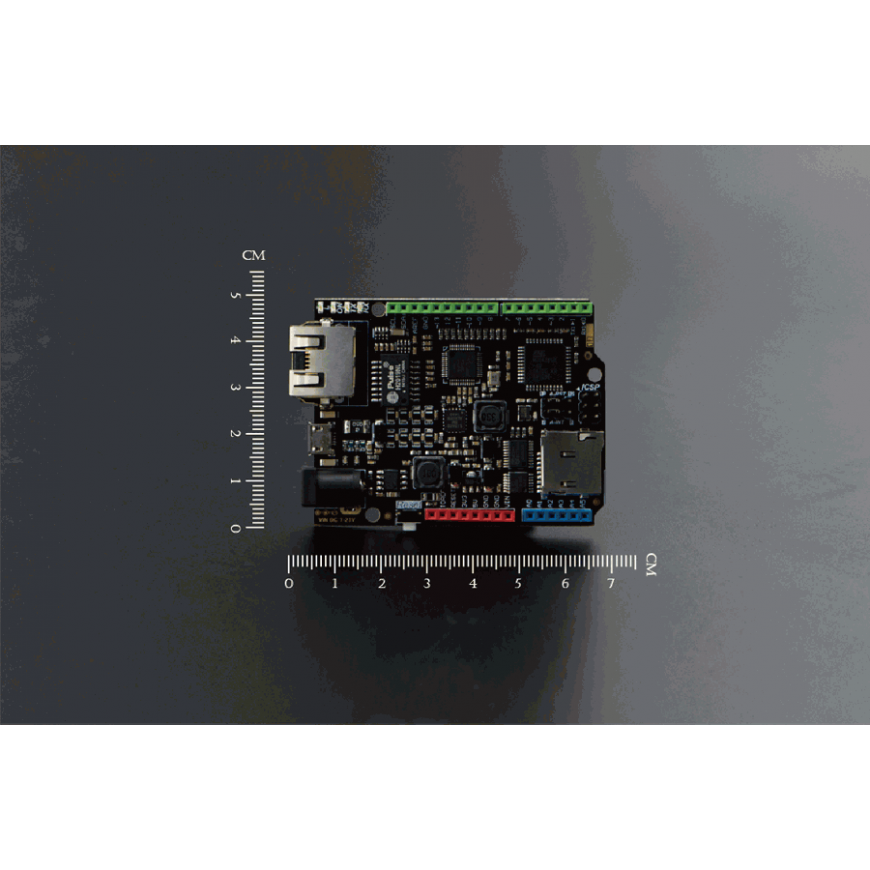

- Board dimensions: 73.5 x 53.5 x 15 mm
- Green safety sign made of acrylic
- Nylon screw fixing
