Device expansion in the form of an Ethernet communication module with a PoE port (Power Over Ethernet) – designed for M5Stack development modules. It has an integrated ESP32-WROOM-32U dual-core microcontroller, but does not support WiFi and Bluetooth wireless communication. It can connect to the server with simple AT commands via the UART serial port, realizing data transmission and remote control functions. The default firmware from ESP-AT supports TCP, MQTT and HTTP.Main features:
- ESP32 controller installed
- IP101G transceiver model
- IEEE 802.3/802.3u standard
- PoE IEEE802.3 AF standard, supporting maximum 6W load power
- RJ45 10/100 Mbps network port
- The default firmware is ESP-AT
- Support for TCP/MQTT/HTTP/CoAP and other protocols
- Connecting to the server with simple AT commands via the UART serial port
- Microcontroller: ESP32-WROOM-32U/D
- dual cores with a clock frequency of 240 MHz and 600 DMIPS
- 520 KB SRAM memory (without integrated 3D antenna)
- does not support WiFi and Bluetooth wireless communication functions
- Flash memory: 4MB

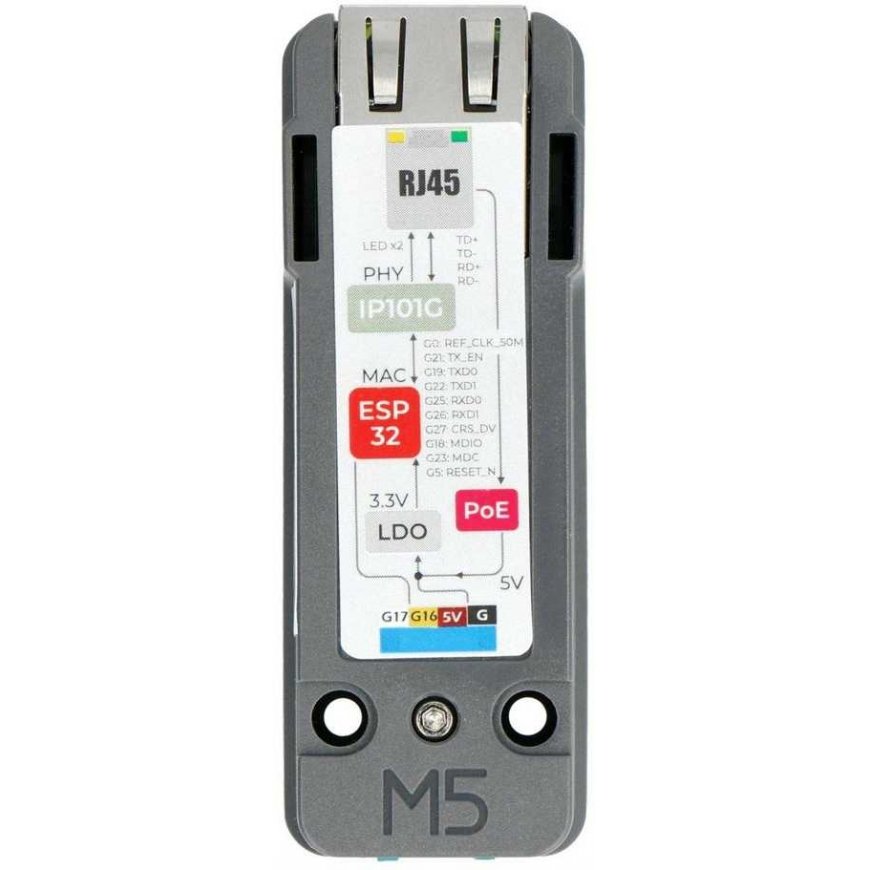

- PHY: IP101G IEEE 802.3 / 802.3u
- MAC-PHY interface type: RMII
- PoE standard: PoE IEEE802.3 AF
- Maximum power: 6 W

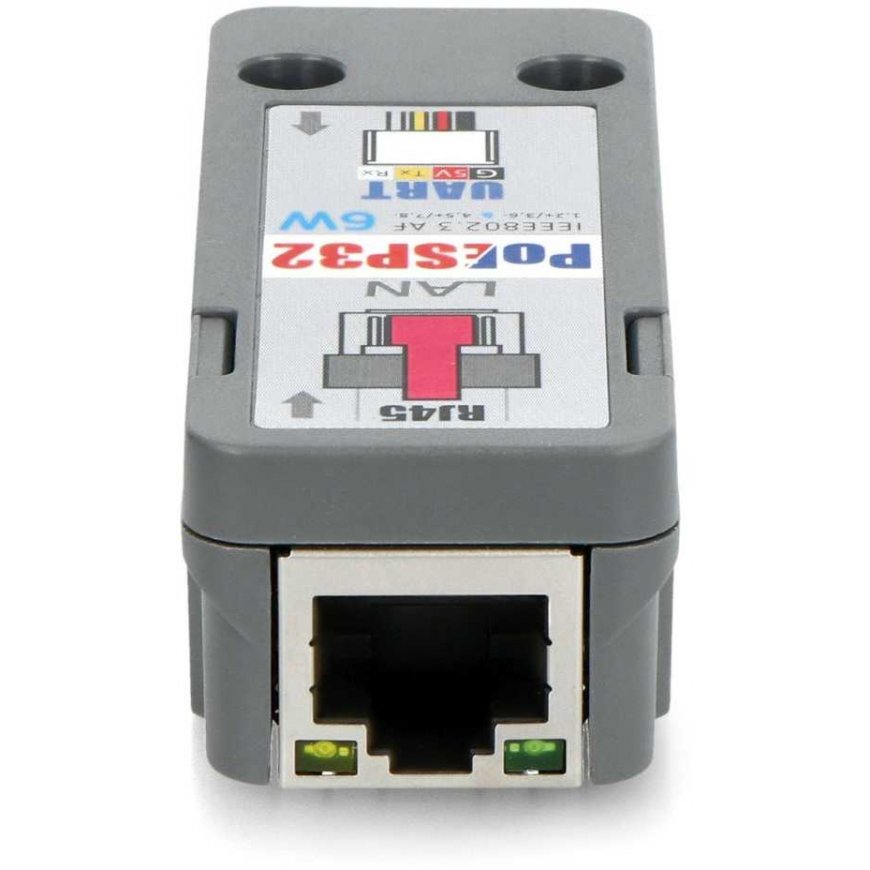

- Ethernet standard: RJ45 10/100 Mbps
- Interface: UART command control 9600 bps 8N1 AT
- Logic power supply: 3.3 V
- Module dimensions: 72 x 26 x 19.2 mm
- Weight: 26.2g

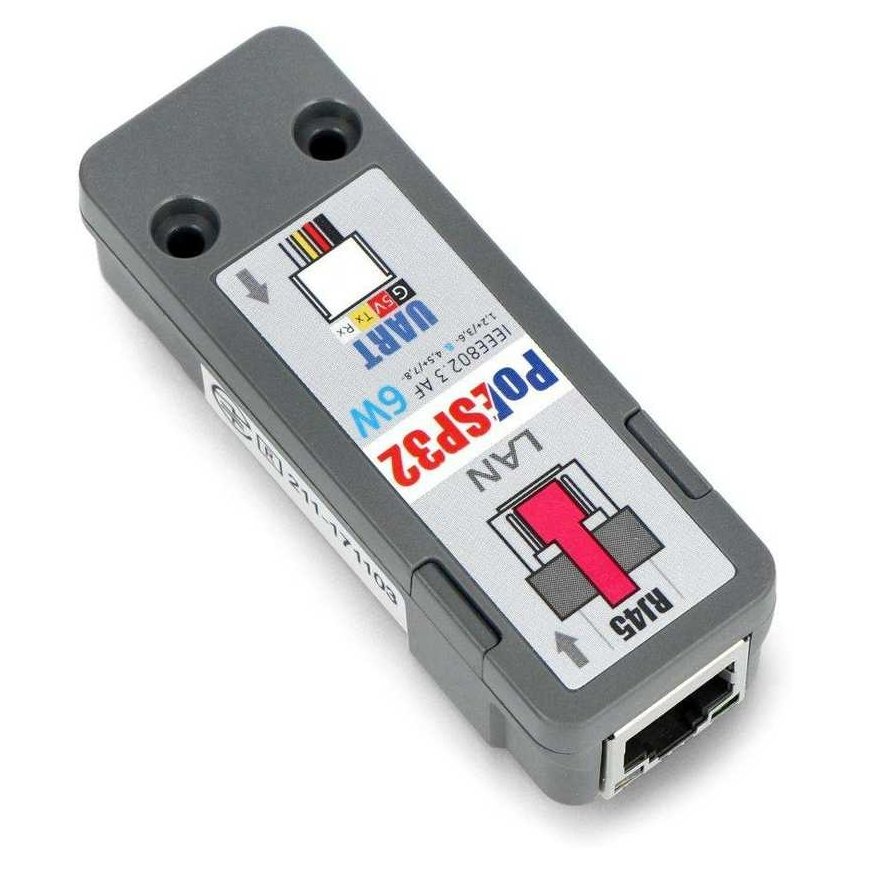

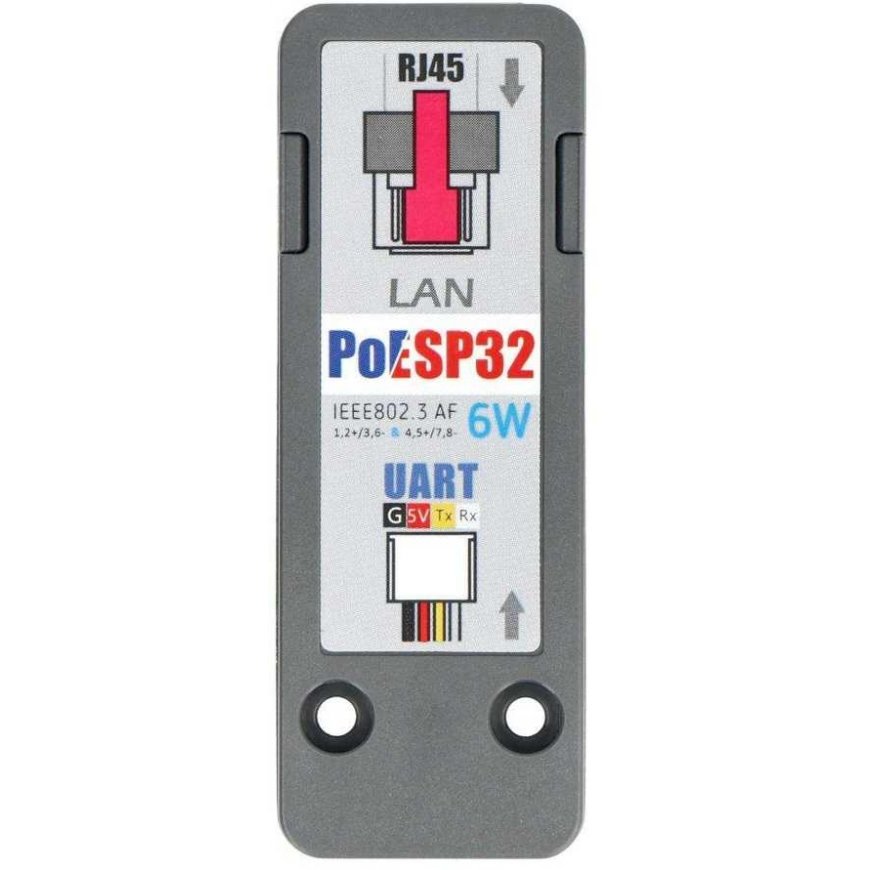

- Ethernet communication module with PoE port - ESP32 - M5Stack development module expansion block

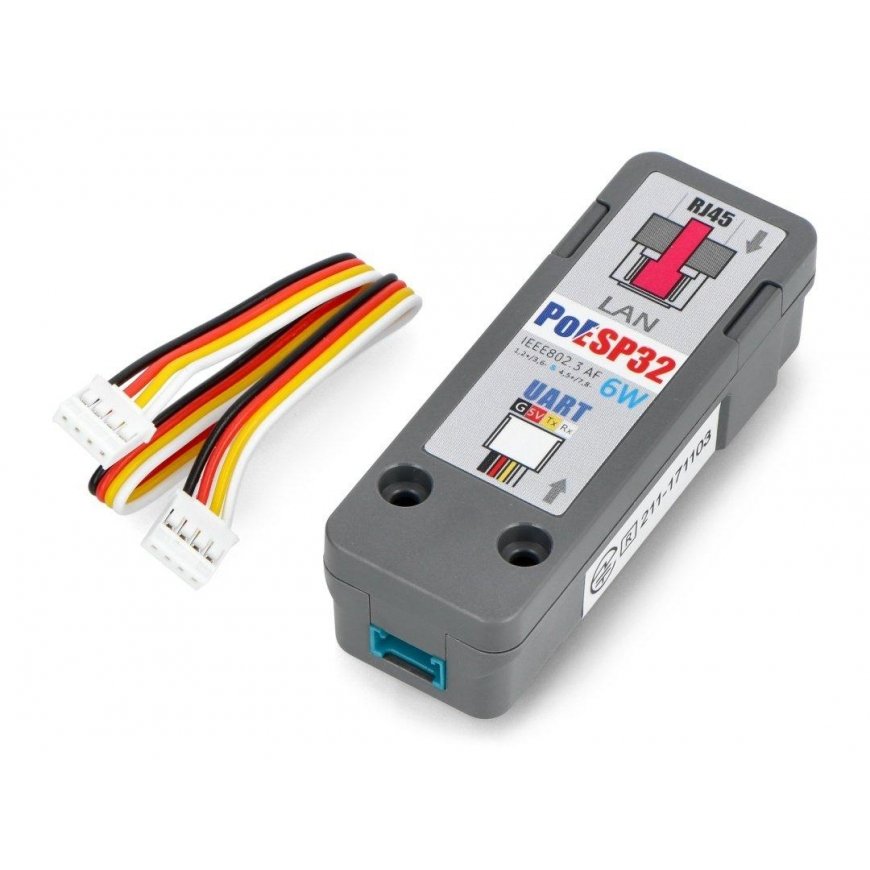

- Connecting cable 20 cm
