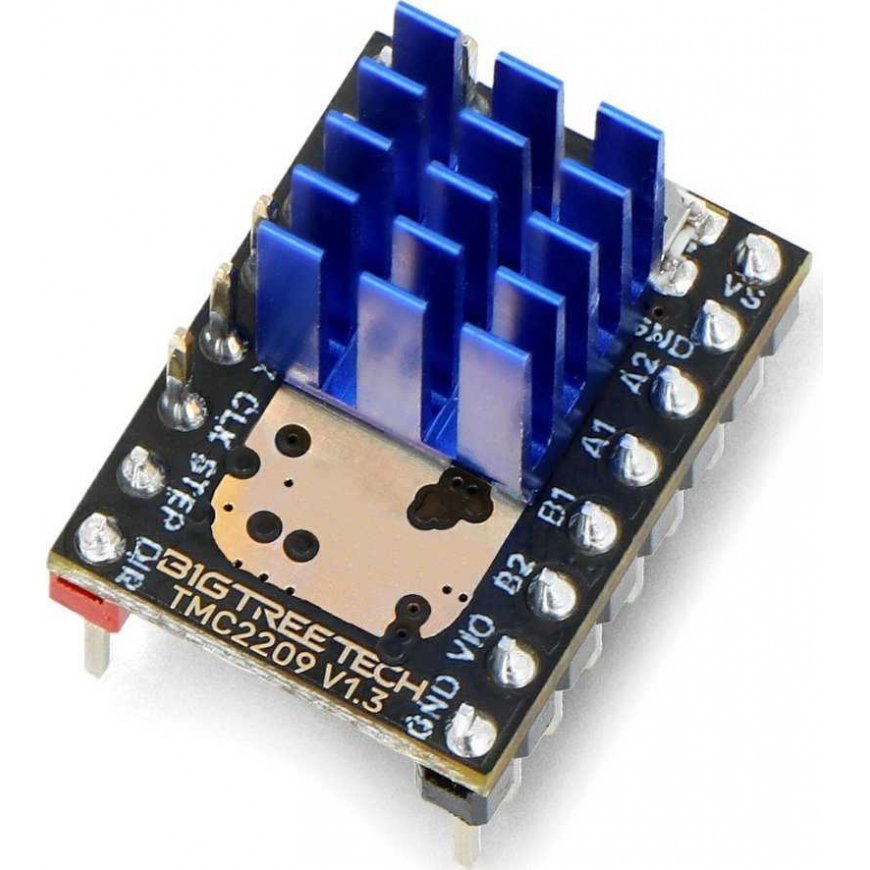

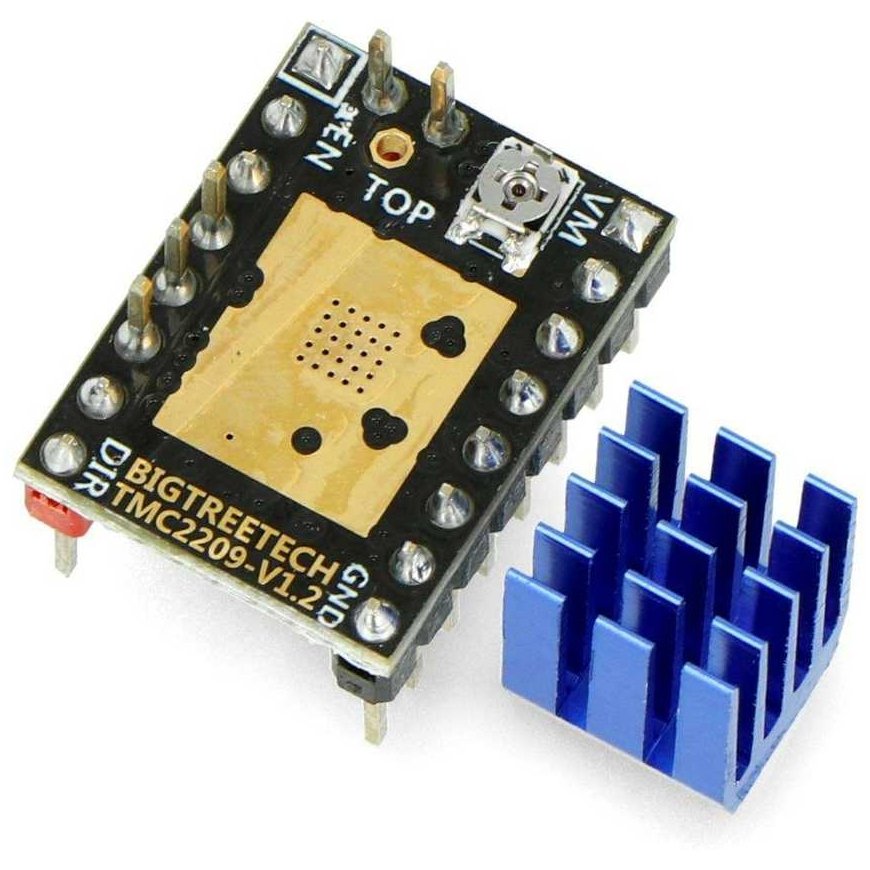

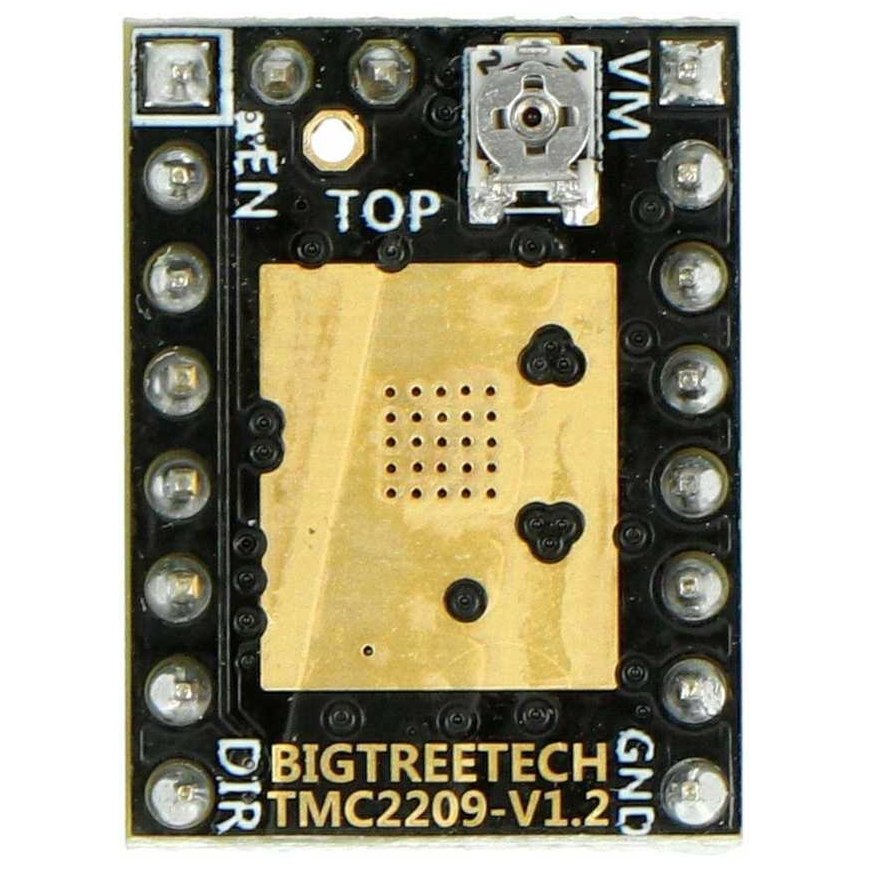

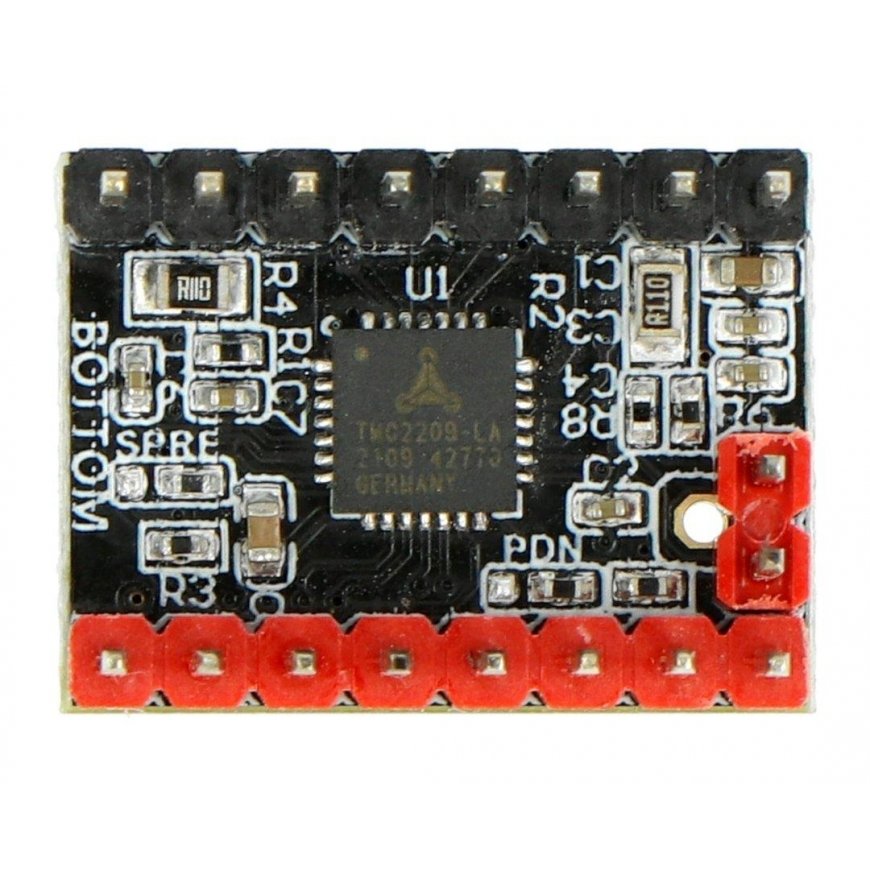

Bigtreetech TMC2209 v1.2 stepper motor controller
19.44 €
3631521 AN-19883
5904422379667
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Stepper motor controller with a supply voltage ranging from 4.75 V to 28 V DC. The maximum current consumption per coil is 2 A (RMS). The controller can operate in two modes: step/dir or UART. The Flexible microPlyer interpolation unit can perform up to 256 microsteps. Bigtreetech TMC2209 V1.2 uses Stallguard locked motor test. Dynamic Coolstep control allows you to save up to 75% energy.Main features:
- SpreadCycle support helps to avoid lost steps and the phenomenon of jitter that occurs during printer operation. Jitter is the unevenness on the finished model
- Increased heat dissipation area of the controller prevents overheating
- StealthChop ensures quiet operation (about 10 dB)
- CoolStep support with power management to save energy (requires up to 75% less energy)
- Compatible with StallGuard sensorless engine load detection
- Supply voltage: 4.74 V to 28 V DC
- Current consumption per coil (RMS value): 2 A
- Maximum number of micro steps: 256
- Overall dimensions: 20.32 x 15.24 mm

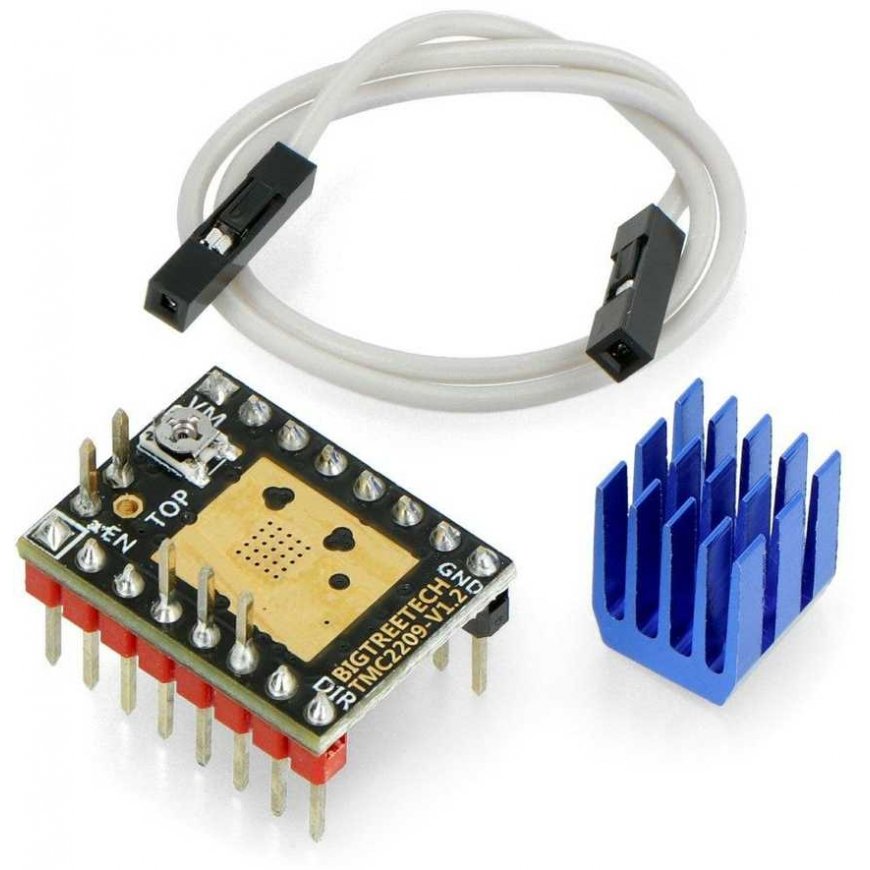

- Bigtreetech TMC2209 v1.2 stepper motor controller
- Additional radiator
- Connecting cable
