The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

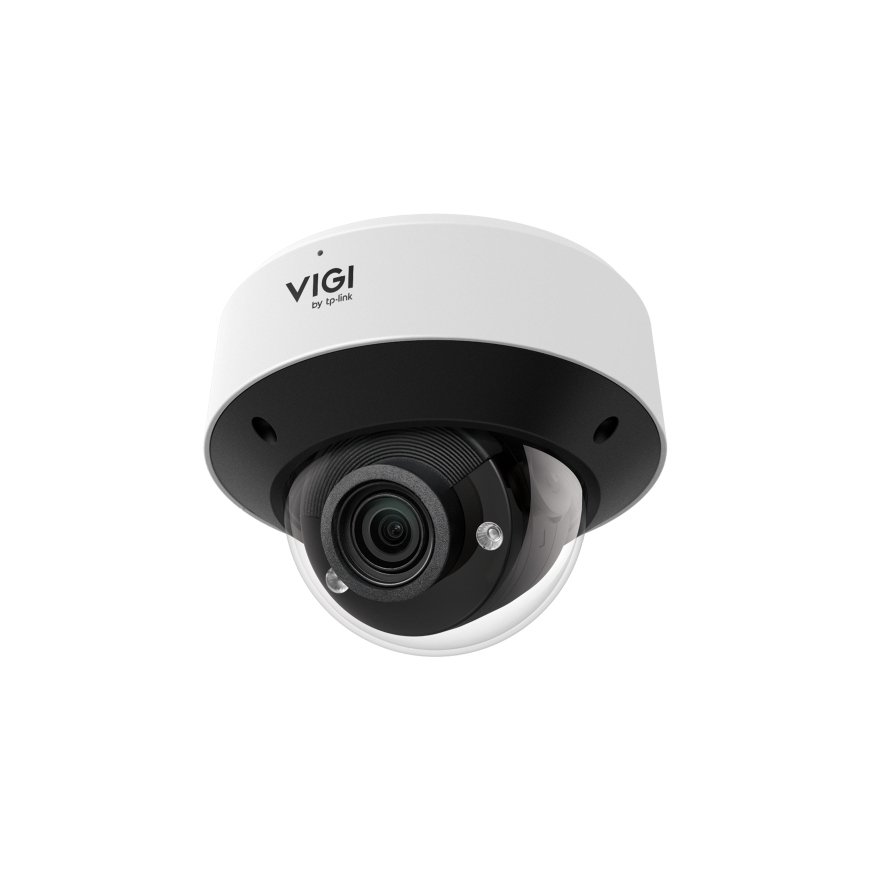

TP-Link VIGI InSight S245ZI Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling
234.68 €
Monthly payment from 6,94 €
3630672 INSIGHT S245ZI(UN)
8885020623598
Shipping 5-7 days
You are interested in this product?
All about the product
Motorized VarifocalBy adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Features
| Wi-Fi | No |
| Bluetooth | No |
| Product colour | White |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Auto focus | Yes |
| Form factor | Dome |
| International Protection (IP) code | IP67 |
| Audio formats supported | G.711 A-law |
| Weight | 775 g |
| Width | 129.9 mm |
| Depth | 129.9 mm |
| Height | 102.5 mm |
| Type | IP security camera |
| Package type | Box |
| Maximum resolution | 2688 x 1520 pixels |
| Connectivity technology | Wired |
| Manual | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720); 1920 x 1080 (HD 1080); 2560 x 1440; 2048 x 1280; 2688 x 1520; 2304 x 1296 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Networking standards | IEEE 802.3af; IEEE 802.3at |
| Housing material | Metal |
| Built-in speaker(s) | Yes |
| Protection features | Weather resistant |
| Audio output channels | 1.0 channels |
| Mounting type | Ceiling |
| Power source type | DC; PoE |
| Power consumption (max) | 10.8 W |
| Optical zoom | 5x |
| Placement supported | Outdoor |
| Tilt angle range | 0 - 75° |
| Web browser | Yes |
| Storage relative humidity (H-H) | 0 - 95% |
| Built-in microphone | Yes |
| Audio system | 2-way |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Maximum operating distance | 200 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| IK code | IK10 |
| Camera shutter speed | 1/3 to 1/10000 |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Video compression formats | H.264; H.265; H.264+; H.265+ |
| Audio input channels | 1.0 channels |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Detection distance | 200 m |
| Alert notification type | Push notification |
| Intelligent Video Surveillance (IVS) system features | Intrusion; Scene change; Crossing line; Human detection; Vehicle detection; Abnormal sound detection; Region entrance detection; Region exiting detection; Moving object; Line crossing detection |
| Human and vehicle targets classification | Yes |
| DC output voltage | 12 |
| Number of cameras | 1 |
| Number of microphones | 1 |
| Mirror | Yes |
| Reset button | Yes |
| Web-based management | Yes |
| Focus | Motorized |
| Sample rate | 8 kHz |
| Minimum illumination | 0 lx |
| Motion sensor | Yes |
| Video recording | Yes |
| Total megapixels | 4 MP |
| Live view | Yes |
| Remote viewing | Yes |
| Weatherproof | Yes |
| Night vision | Yes |
| LED type | IR/White |
| Maximum aperture number | 1.6 |
| Dynamic range | 120 dB |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Cloud-managed | Yes |
| Infrared (IR) cut-off filter | Yes |
| Progressive scan | Yes |
| Power consumption (Power over Ethernet (PoE)) | 12 W |
| Detect distance | 200 m |
| Observe distance | 84 m |
| Recognize distance | 40 m |
| Identify distance | 21 m |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264 |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness; Contrast; Saturation; Sharpness; Mirror |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Built-in siren | Yes |
| Bit rate range | 0 - 64 Kbit/s |
| Digest authentication | Yes |
| Lens viewing angle, diagonal | 34.1 - 122.8° |
| Lens viewing angle, horizontal | 29.6 - 102° |
| Lens viewing angle, vertical | 16.8 - 53.8° |
Performance | |
| Maximum operating distance | 200 m |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Dynamic range | 120 dB |
Design | |
| Housing material | Metal |
| Mounting type | Ceiling |
| International Protection (IP) code | IP67 |
| Protection features | Water resistant |
| Product colour | White |
| Form factor | Dome |
| Weatherproof | Yes |
| IK code | IK10 |
Camera | |
| Minimum illumination | 0 lx |
| Camera shutter speed | 1/3 to 1/10000 |
| Tilt angle range | 0 - 75° |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 29.6 - 102° |
| Lens viewing angle, vertical | 16.8 - 53.8° |
| Lens viewing angle, diagonal | 34.1 - 122.8° |
Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Progressive scan | Yes |
Lens system | |
| Optical zoom | 5x |
| Auto focus | Yes |
| Maximum aperture number | 1.6 |
| Detect distance | 200 m |
| Observe distance | 84 m |
| Recognize distance | 40 m |
| Identify distance | 21 m |
| Focus | Motorized |
Video | |
| Maximum resolution | 2688 x 1520 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2048 x 1280, 2688 x 1520, 2304 x 1296 |
| Video compression formats | H.264, H.265, H.264+, H.265+ |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness, Mirror |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264 |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Total megapixels | 4 MP |
| Video recording | Yes |
Audio | |
| Audio formats supported | G.711 A-law |
| Built-in microphone | Yes |
| Audio system | 2-way |
| Sample rate | 8 kHz |
| Built-in speaker(s) | Yes |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Bit rate range | 0 - 64 Kbit/s |
| Number of microphones | 1 |
Network | |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Bluetooth | No |
| Live view | Yes |
Storage | |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Ports & interfaces | |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Security | |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Detection distance | 200 m |
| Alert notification type | Push notification |
| Intelligent Video Surveillance (IVS) system features | Intrusion, Scene change, Crossing line, Human detection, Vehicle detection, Abnormal sound detection, Region entrance detection, Region exiting detection, Moving object, Line crossing detection |
| Motion sensor | Yes |
| Mirror | Yes |
| Password protection | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Built-in siren | Yes |
Power | |
| DC output voltage | 12 |
| Power consumption (max) | 10.8 W |
| Power consumption (Power over Ethernet (PoE)) | 12 W |
| Power source type | DC, PoE |
Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
| Weight | 775 g |
| Width | 129.9 mm |
| Depth | 129.9 mm |
| Height | 102.5 mm |
Packaging content | |
| Manual | Yes |
| Number of cameras | 1 |
Night vision | |
| Night vision | Yes |
| LED type | IR/White |
Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Web browser | Yes |
| Cloud-managed | Yes |
Packaging data | |
| Package type | Box |
