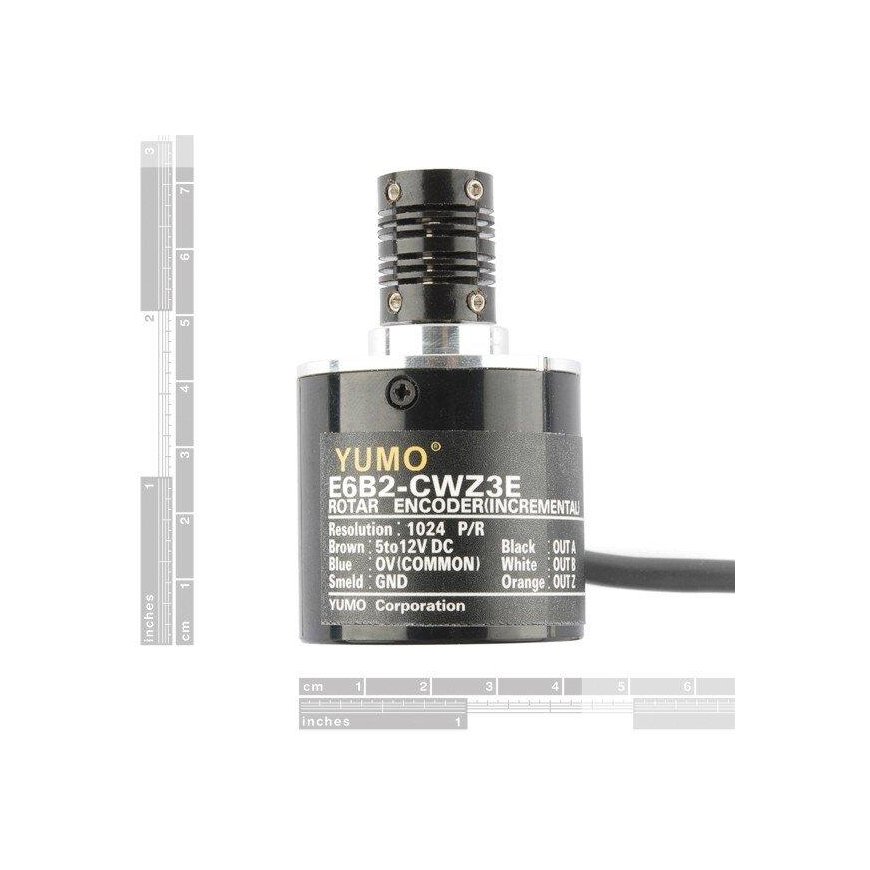

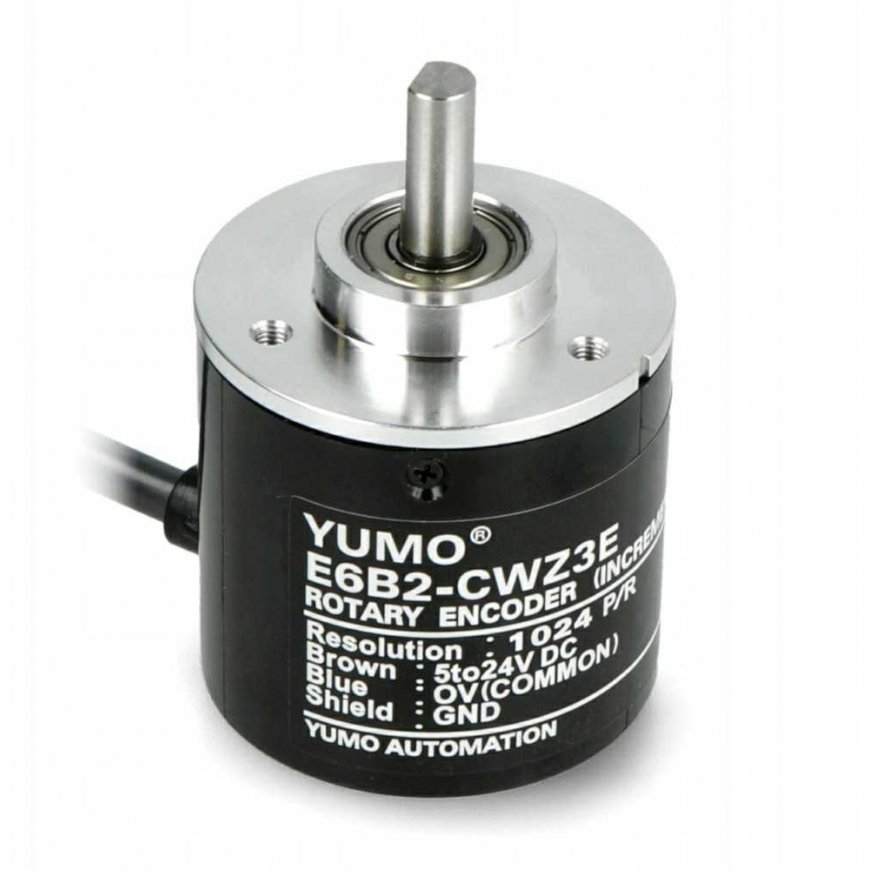

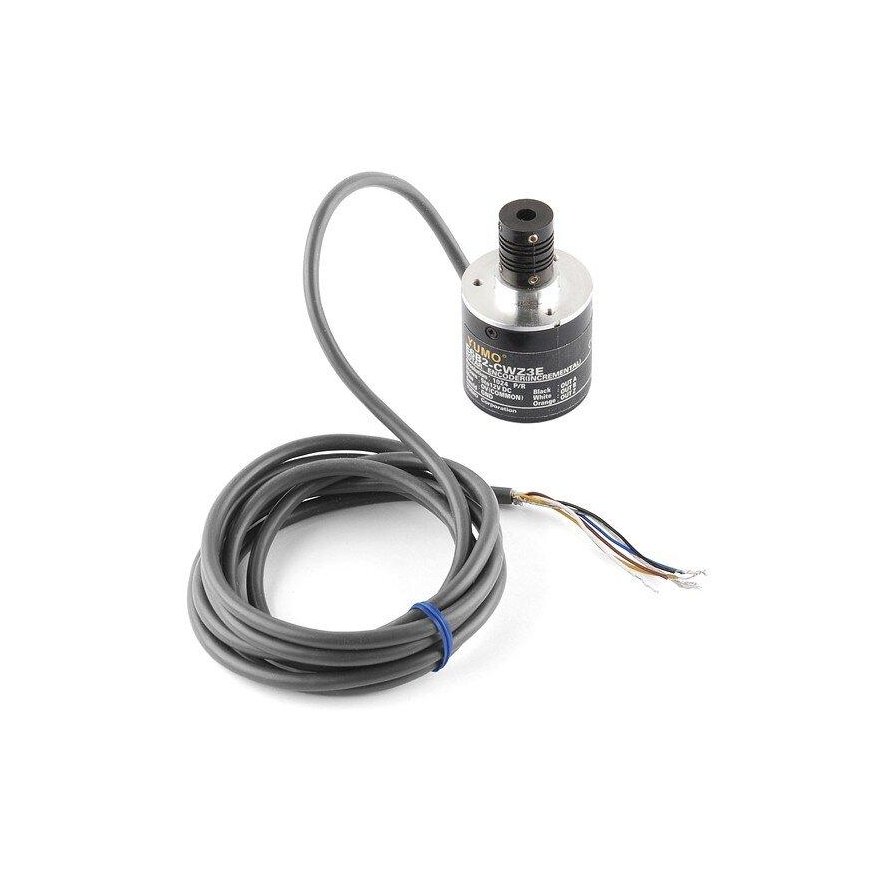

Encoder for measuring revolutions, 1024 P/R, SparkFun COM-11102

109.00 €
Monthly payment from 3,71 €
3630294

AN-11192

5904422352172

Shipping 8-15 b.d.

You are interested in this product?
(Read terms of service)

All about the product

The encoder generates a signal in Gray code, which you can interpret using a microcontroller, such as Arduino, and read the direction and speed of the rotating shaft. Allows you to add feedback to motor control systems. Such encoders are often used in balancing robots, and can also be used as a very precise knob. Resolution 1024 pulses per revolution. Maximum rotation speed 6000 rpm.

Specifications:

  • Supply voltage: 5 V to 24 V
  • Resolution: 1024 PPI
  • Maximum speed: 6000 rpm
  • Permissible radial load: 5 N
  • Permissible axial load: 3 N
  • Shaft diameter: 6 mm

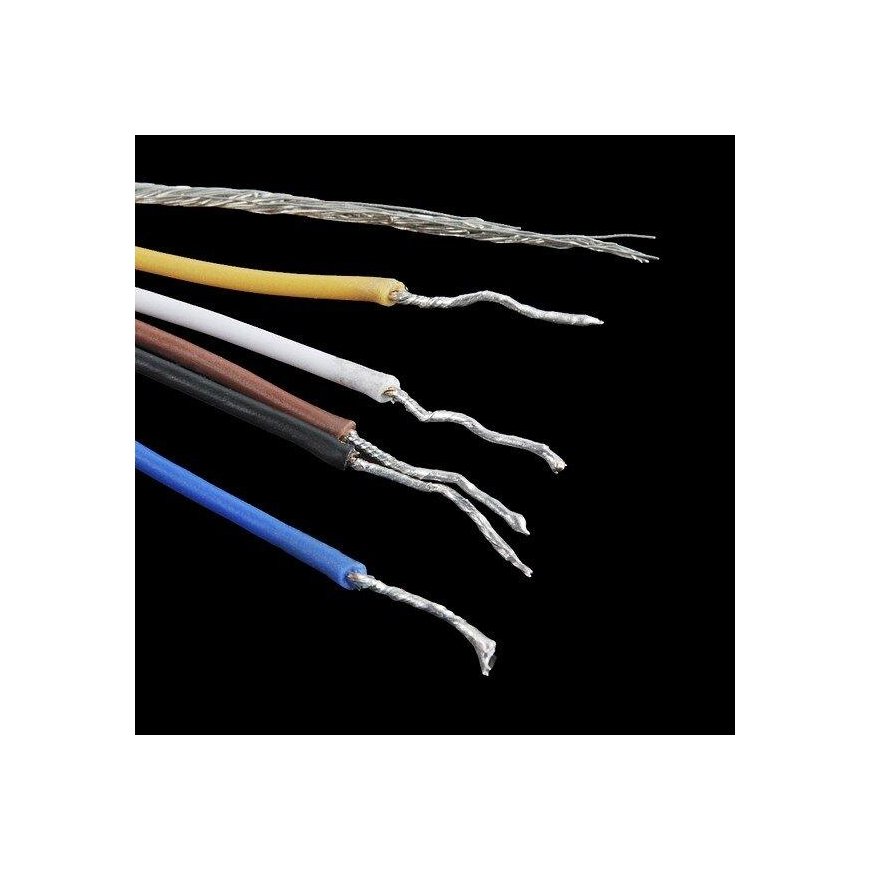

  • Cable length: 50 cm
