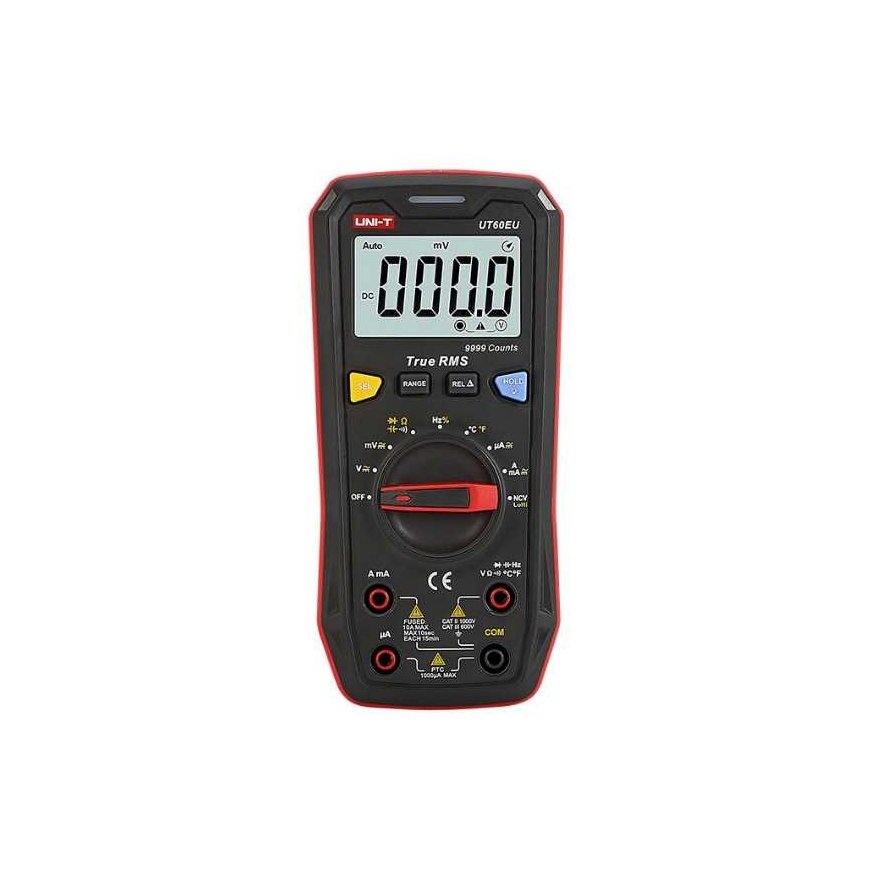

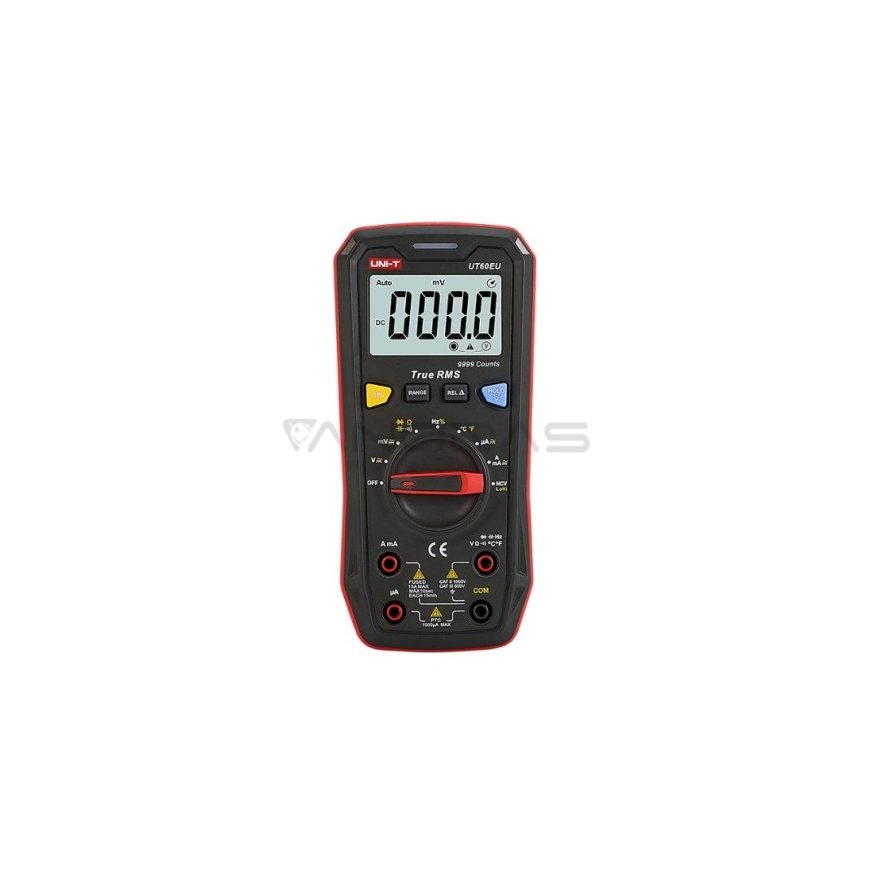

Uni-t Digital multimeter UT60EU, CAT II 1000V/CAT III 600V, TRMS
3628554 UT60EU
6935750560242
Shipping 3-5 b.d.
UT60 Series Digital Multimeters
The UT60 series digital multimeters provide True-RMS measurement, 9999-digit measurement range, non-contact voltage detection and many convenient functions necessary for taking measurements. These automatic meters can measure up to 1000 V AC/DC voltage, 10 A AC/DC current and up to 100 MΩ resistance. Convenient The backlit interface allows you to quickly locate equipment even in dark areas. This CE certified meter meets CAT II 1000V / CAT III 600V safety class and has a robust double-cast housing.
UT60 series models: UT60EU, UT60BT, UT60S
Features of UT60 series digital multimeters
Certificates: CE, UKCA, cETLus
● 9999 numbers
● True RMS value
● Bluetooth, BT version only
● Duty cycle
● Diode/Continuity Test
● Temperature
● Non-contact voltage
● Analog tape (UT60S) / measurement data retention
● Backlight/relative mode
● Auto/manual range
● Low battery indication
● Three-color LED indicator
UT60 Series Digital Multimeter Specifications
Specification | Range | UT60EU | UT60BT | UT60S |
Constant voltage | 9.999mV/99.99mV/999.9mV/ | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
AC voltage | 9.999mV/99.99mV/999.9mV/ | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
Direct current | 999.9uA/999.9mA/9.999A/10A | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
Alternating current | 999.9uA/999.9mA/9.999A/10A | ±(1.0%+3) | ±(1.0%+3) | ±(1.0%+3) |
Resistance | 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) |
Capacitor | 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/9.99mF (UT60EU/UT60BT)/99.9mF(UT60S) | ±(4.0%+5) | ±(4.0%+5) | ±(4.0%+5) |
Frequency | 99.99Hz ～ 9.999MHz | ±(0.1%+5) | ±(0.1%+5) | ±(0.1%+5) |
Duty cycle | 0.1 ～ 99.9% | ±(3%+5) | ±(3%+5) | ±(3%+5) |
Temperature | -40℃ ～ 1000℃ /-40F ° ～ 1832°F | ±4 / 5℃ ± ℉ | ±4 / 5℃ ± ℉ | ±4 / 5℃ ± ℉ |
Features | ||||
Bluetooth | √ | |||
Show number | 9999 | 9999 | 9999 | |
Automatic range | √ | √ | √ | |
REL | √ | √ | √ | |
NCV | √ | √ | √ | |
Diode | √ | √ | √ | |
Continuity test | √ | √ | √ | |
Acoustic-optical indication (NCV / continuity / battery power) | √ | √ | √ | |
Battery discharge indication | ≤3.6V | √ | √ | √ |
Data retention | √ | √ | √ | |
Automatic power off | 15 minutes | √ | √ | √ |
Operating temperature | 0℃ ～ 40℃ | |||
Safety | CAT II 1000V/CAT III CAT. 600V | |||
General characteristics | ||||
Battery | 1.5V AAA x 3 | |||
Product color | Red and gray | |||
Product net weight | 290g | |||
Product size | 169mm x 81mm x 46mm | |||
Standard individual packaging | Gift box, manual, thermocouples | |||
Standard quantity per box | 20 pcs. | |||
Standard box size | 420mm x 320mm x 300mm | |||
