M5Stack ATOM HUB DIY Proto Board Kit - prototyping kit for the M5Atom development module
21.74 €
3628547 AN-18724
5904422363611
Shipping 11-18 b.d.
You are interested in this product?
All about the product

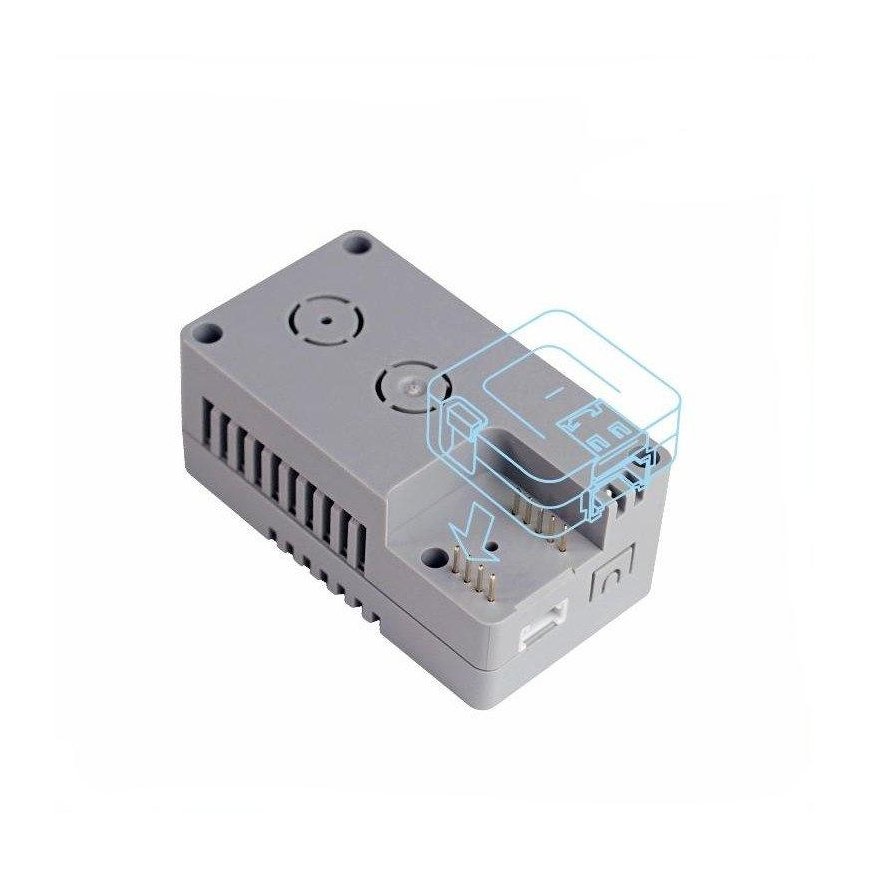

The ATOM HUB DIY Proto Board Kit allows you to conveniently prototype projects using the M5Atom development module. It allows users to design circuits and connect additional peripherals - all according to individual needs and scenarios. The prototyping board is equipped with a Grove connector, and the kit also includes VH - 3.96 mm 4-pin and 3-pin connectors or DC power connectors. In addition, the housing is designed to facilitate the arrangement of the wires used.Main features:
- The kit is compatible with M5Atom Matrix / M5Atom Lite
- Compact design
- Also suitable for industrial use
- Equipped with many wires and interfaces that expand the capabilities of the prototyping module
- The component design also includes convenient mounting holes
- Working with ATOM HUB DIY Proto Board Kit creates creative DIY and allows you to build your own projects using the M5Stack module
- Pins:
- VH - 3.96 mm 4-pin connector - 1 pc.
- VH - 3.96 mm 3-pin connector - 6 pcs
- DC 5 V power input - 1 pc.
- Grove connector - 1 pc.
- Housing material: plastic (PC)
- Equipped with convenient mounting holes
- Location for M5Atom development module
- Body color: gray
- Assembled kit dimensions: 72 x 40 x 30 mm
- Weight: 93 g

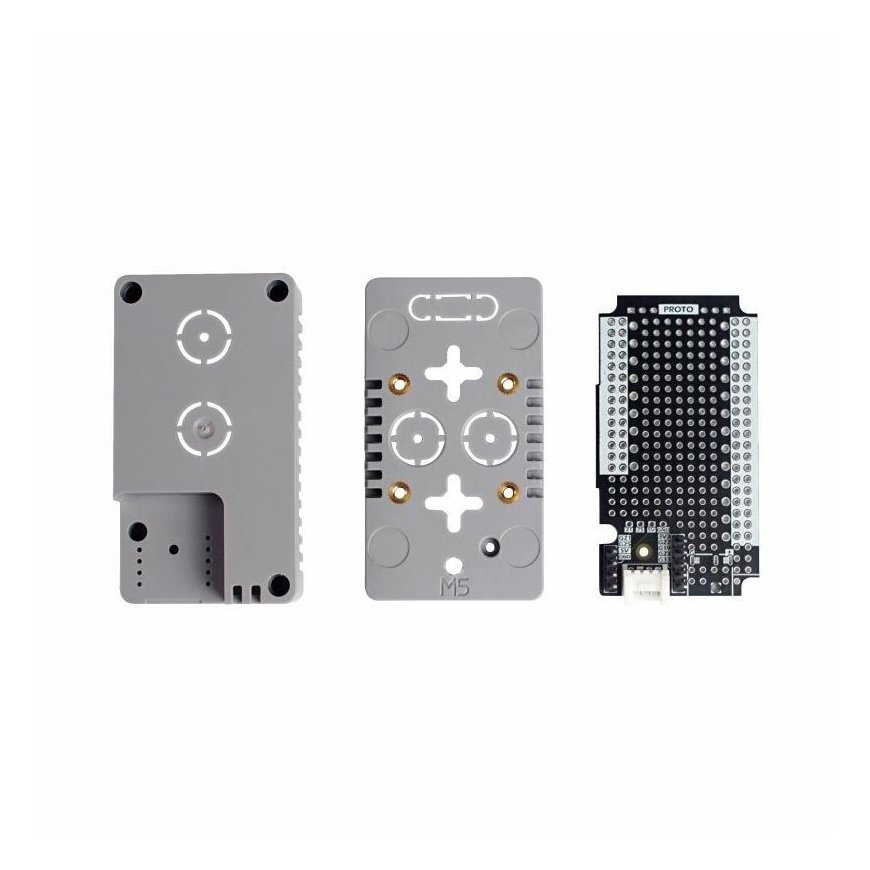

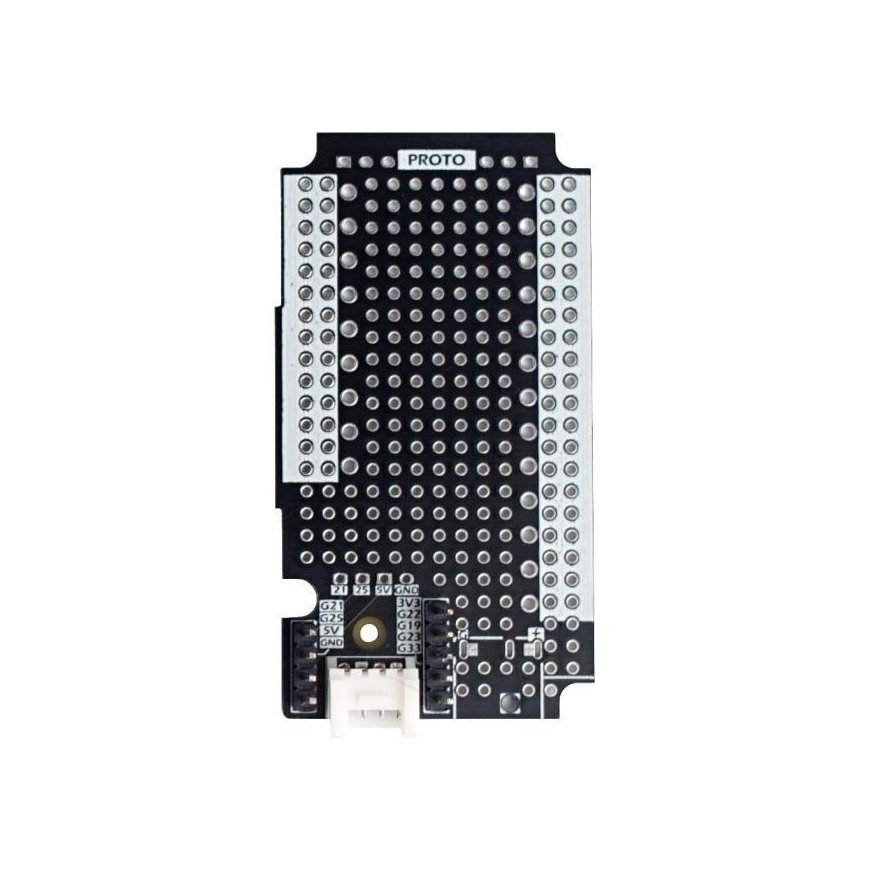

- Prototyping board with Grove connector

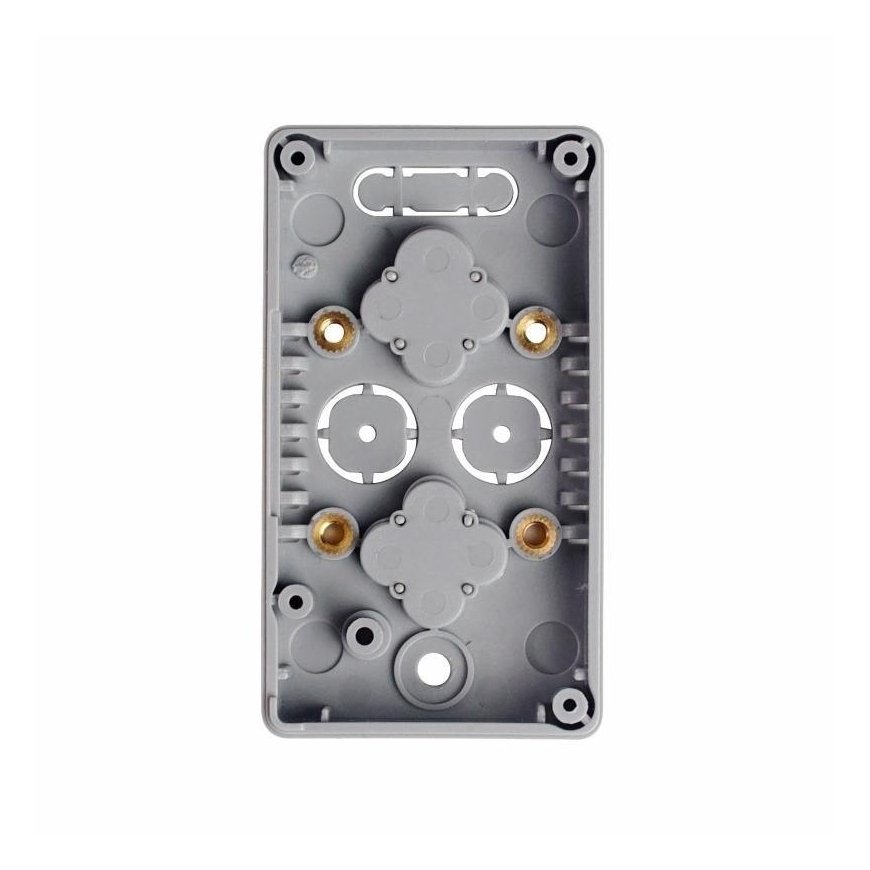

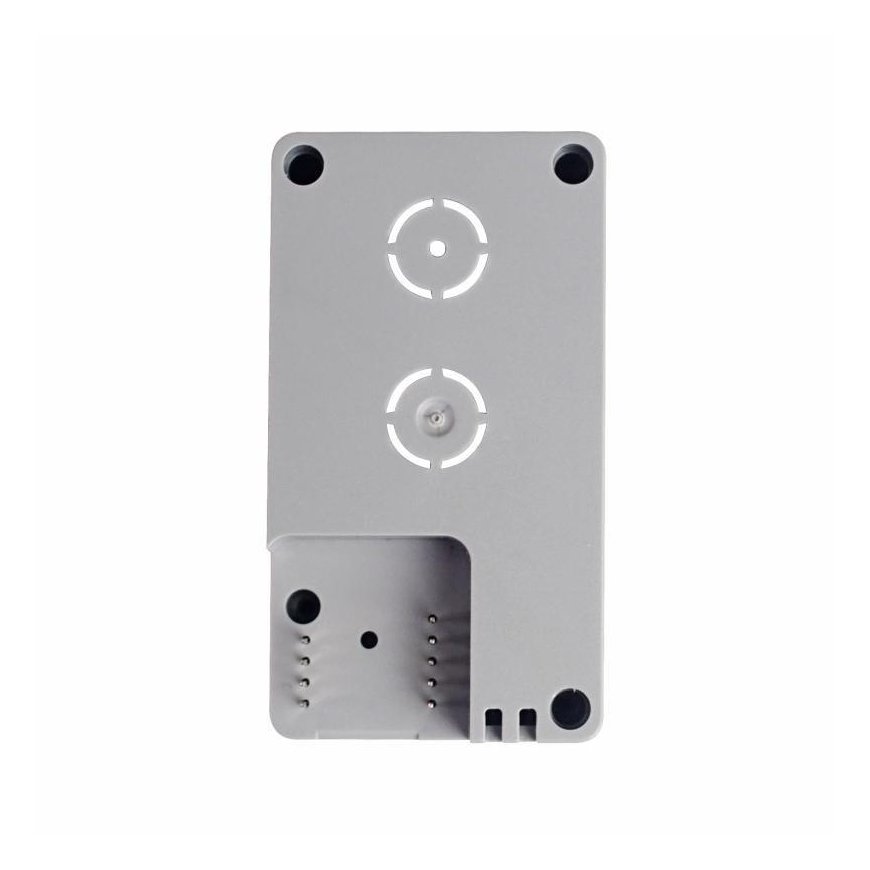

- Housing in the form of a front and back cover
- DIN rail with M4 mounting holes
- VH - 3.96 mm 4-pin connector - 1 pc (plug + socket)
- Connector VH - 3.96 mm 3 pins - 6 pcs (socket + plug)
- Power socket DC 5 V
- Dust protection - 4 pcs.
- Plastic cover for holes - 2 pcs.
- Double-sided magnetic tape - 4 pcs.
- Non-slip rubber feet - 4 pcs.
- Cylindrical magnets - 4 pcs.
- Self-tapping hexagon screw M2 x 6 mm - 4 pcs.
- Hexagon head screws M4 x 10 mm - 2 pcs.
- Hexagonal machine screw with hexagonal socket M2 x 20 mm - 1 pc.
- Wrench M2 and M4
