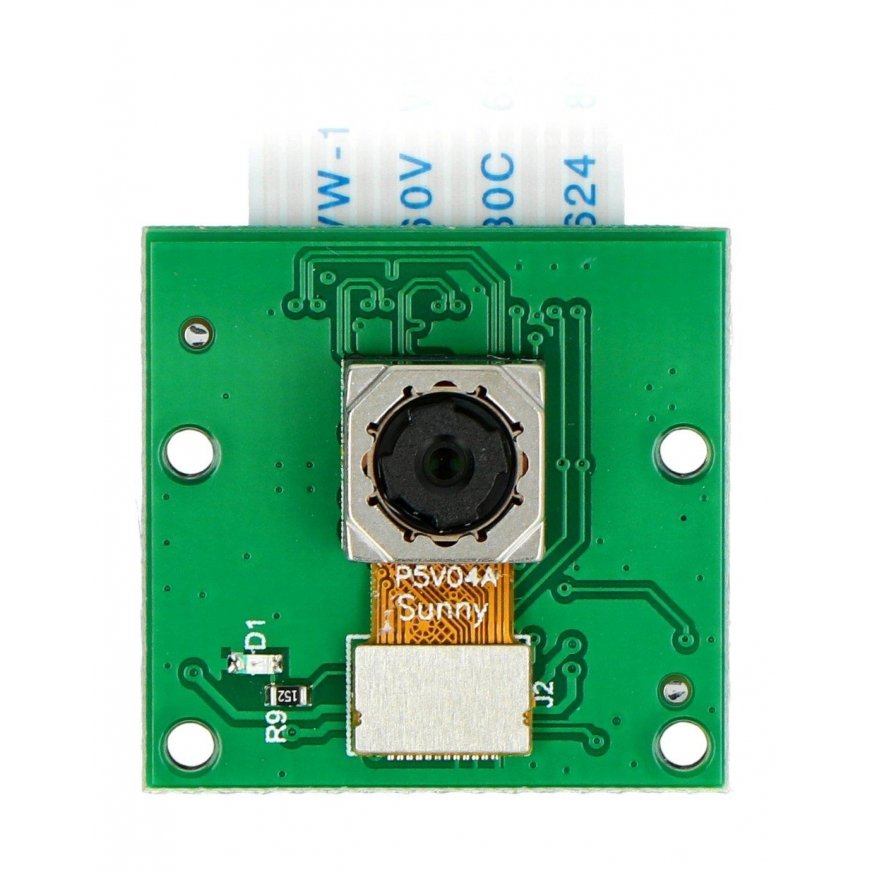

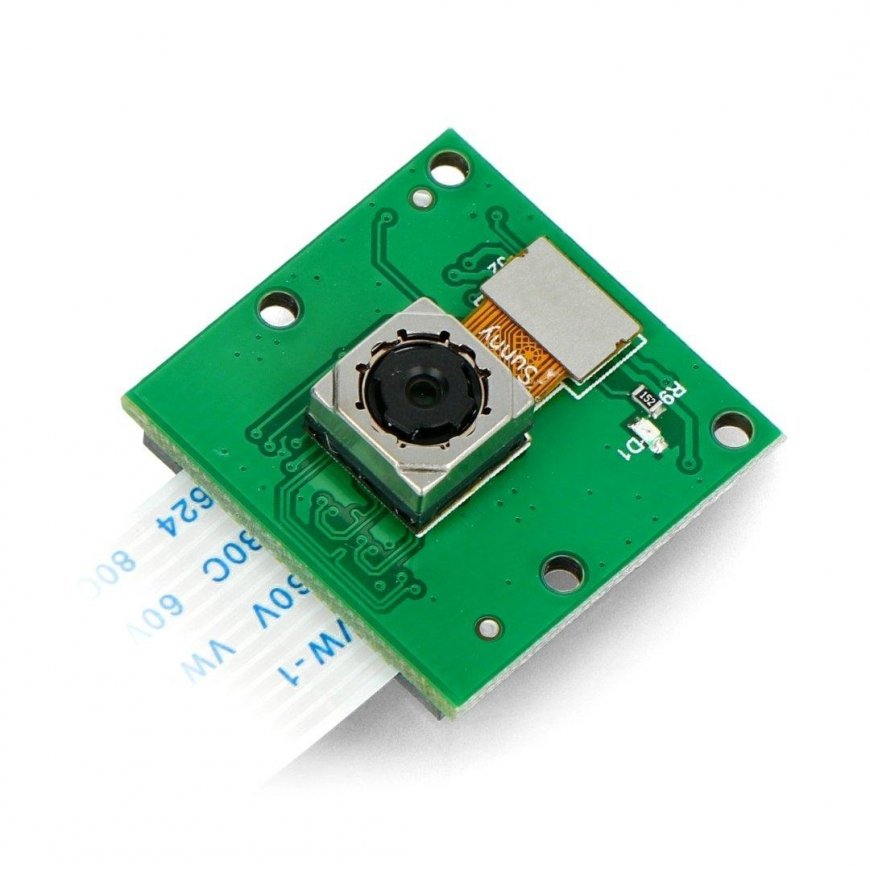

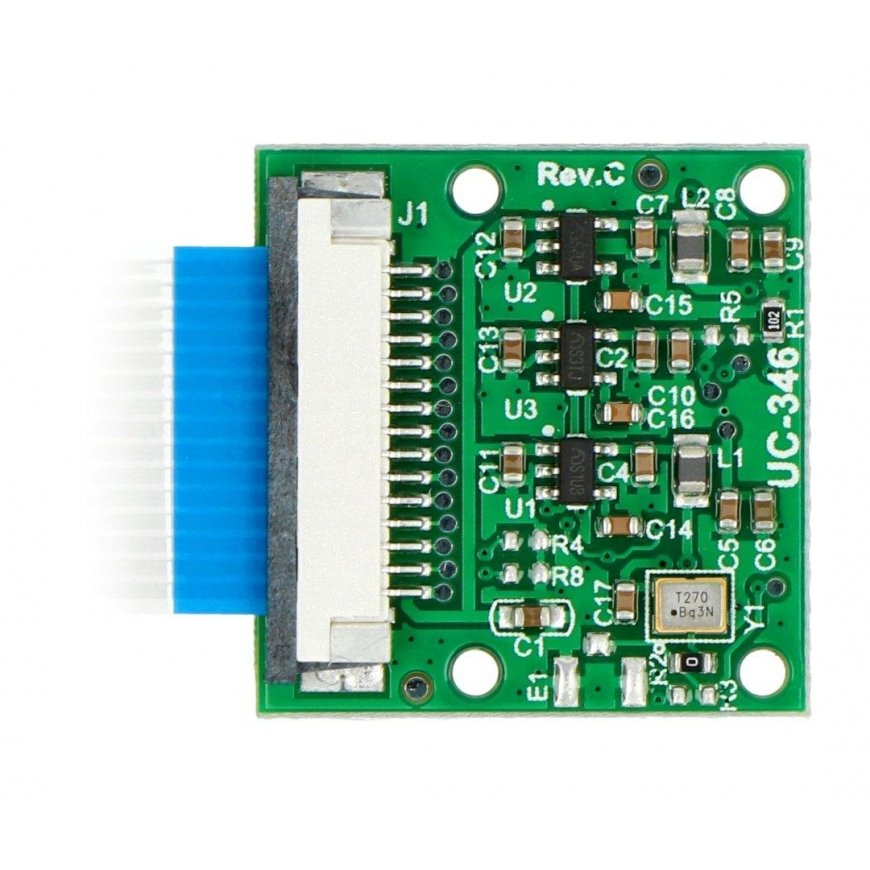

ArduCam Pi camera - for remote Octoprint/Octopi monitoring from Raspberry Pi - ArduCam B0176R
39.00 €
Monthly payment from 1,90 €
3626772 AN-20605
5904422381844
Shipping 8-15 b.d.
You are interested in this product?
All about the product
Native ArduCam Pi camera with high native resolution. Designed for remote viewing of 3D prints using the Octoprint/Octopi system on Raspberry Pi. The kit includes two FFC strips: 1 x 5.9” 15 cm long and 1 x 39.4” 100 cm long. The maximum resolution of the camera is 2592x1944px, and its FOV angle: 54° x 44° (H x V). Its use is especially important for remote monitoring of the progress of the 3D printer. In addition, the camera is compatible with 3D printing software - you just need to install the appropriate drivers and configure it according to the instructions.Main features:
- Compatible with Raspberry Pi 4B / 3B+ / 3B. In addition, ArduCam has solved the problems of installing and configuring OctoPi
- Allows for better magnification and continuous focus. Minimum focus distance is approximately 5 cm
- Innovative camera focus control is enabled by the OctoPrint Control card, which uses custom commands to focus during printing
- Designed to monitor the progress of the 3D printer
- Sensor: 5 Mpx OV5647
- Maximum resolution: 2592x1944px
- IR sensitivity: built-in IR filter, visible light only
- Focus type: motorized focus
- Field of view: 54° x 44° (H x V)
- Focal length: 2''
- PCB dimensions: 25 x 24 mm
- ArduCam Pi camera for remote viewing of Octoprint/Octopi from Raspberry Pi - ArduCam B0176R

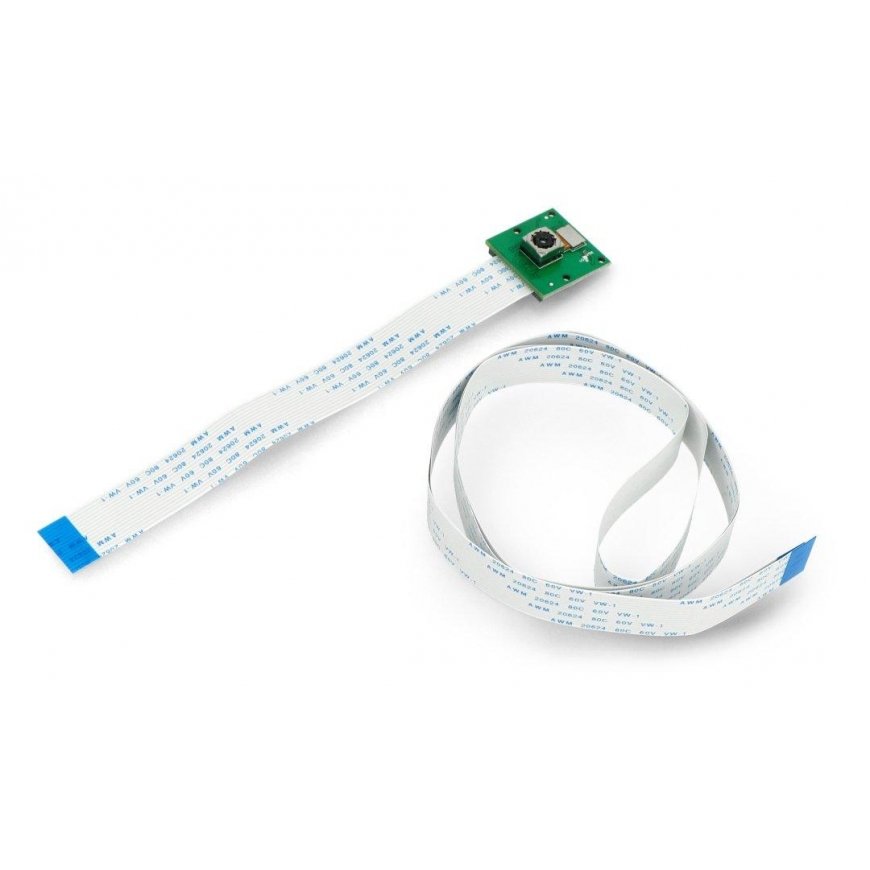

- 1 x 5.9” (15 cm) FFC ribbon for Raspberry Pi
- 1 x 39.4" (100 cm) FFC ribbon for Raspberry Pi
