The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

M5Stack Kmeter Isolation Unit Thermal sensor Multicolour, White

39.00 €
Monthly payment from 1,90 €
3625135

U133-V11

6972934174109

Shipping 11-18 b.d.

You are interested in this product?
(Read terms of service)

All about the product

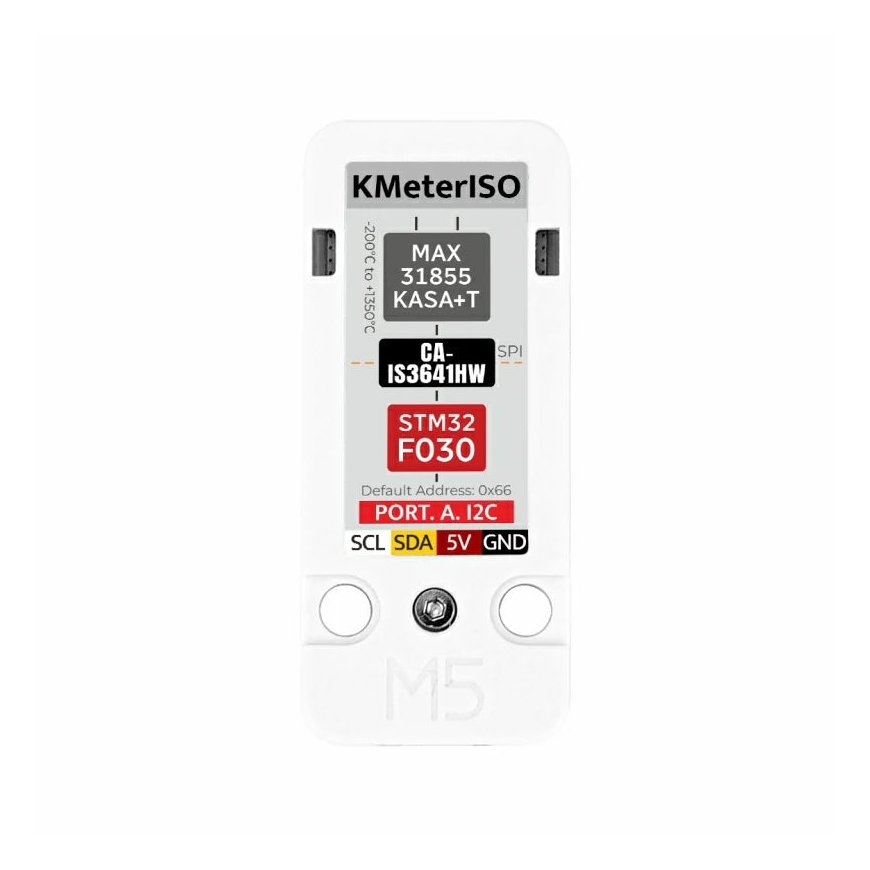

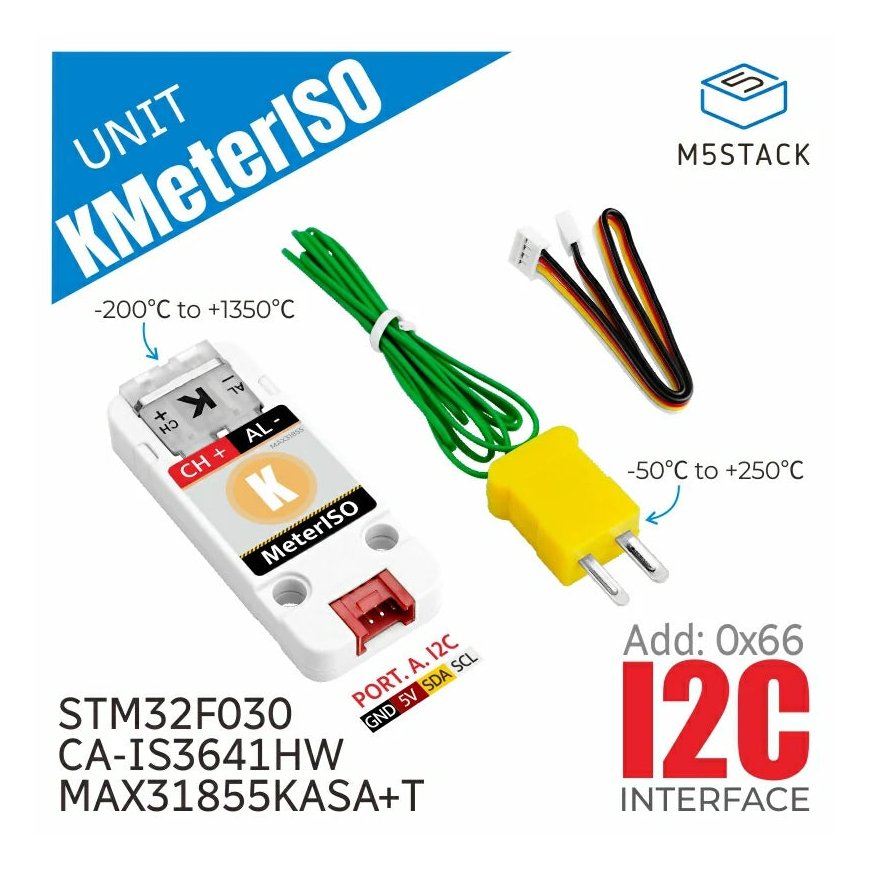

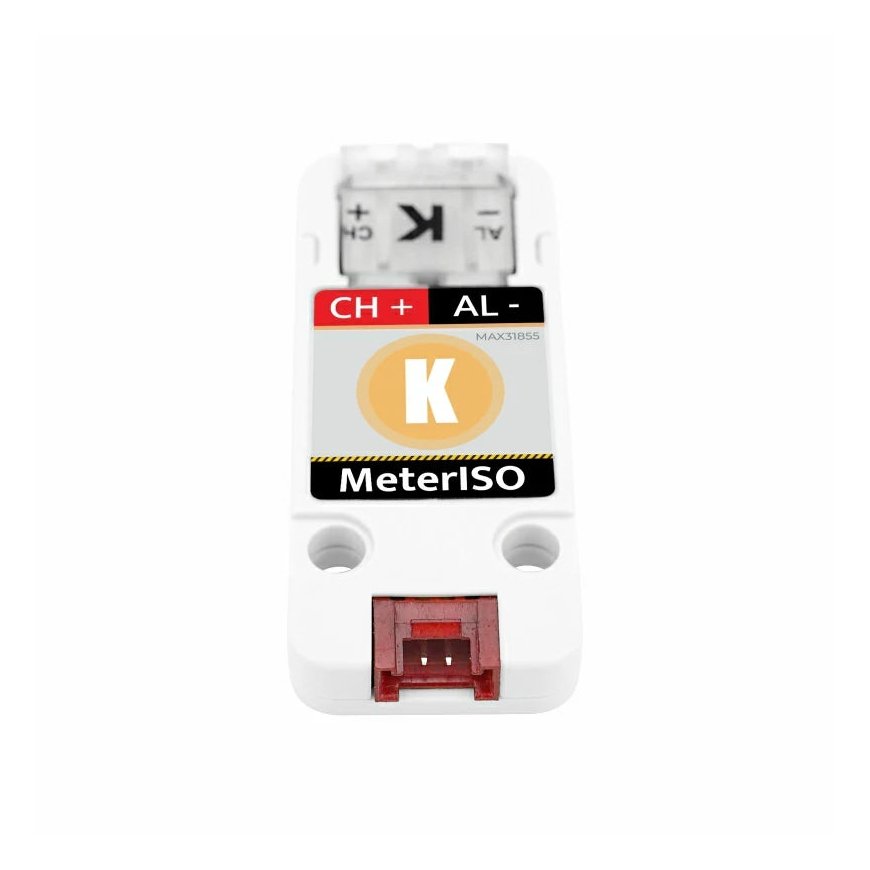

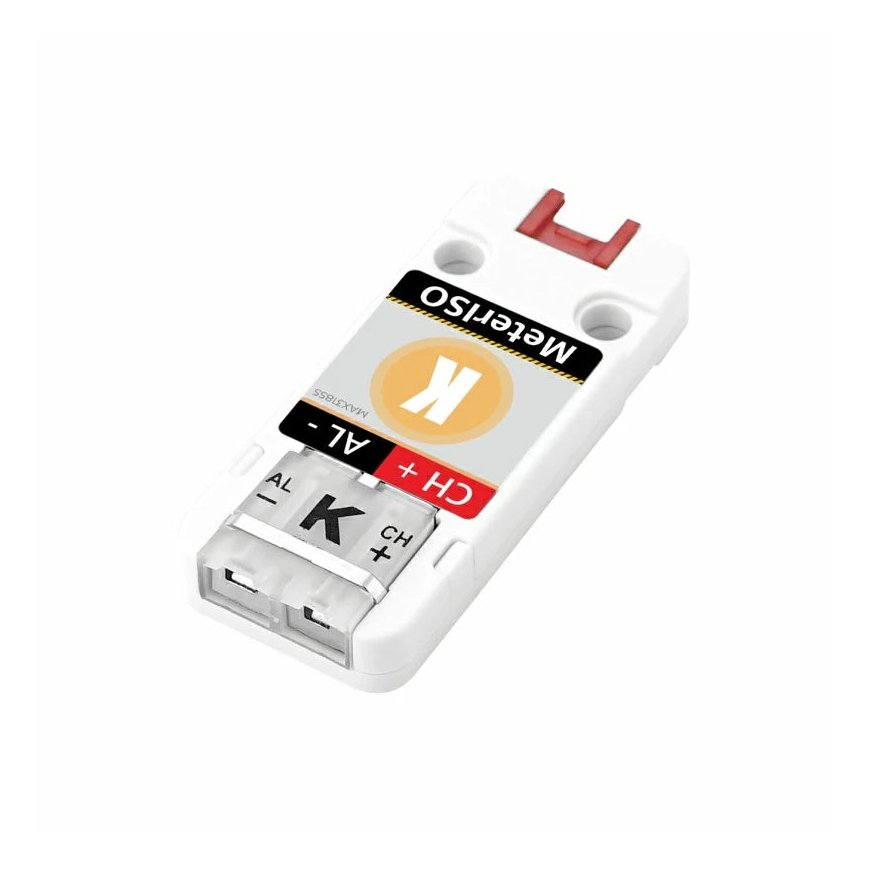

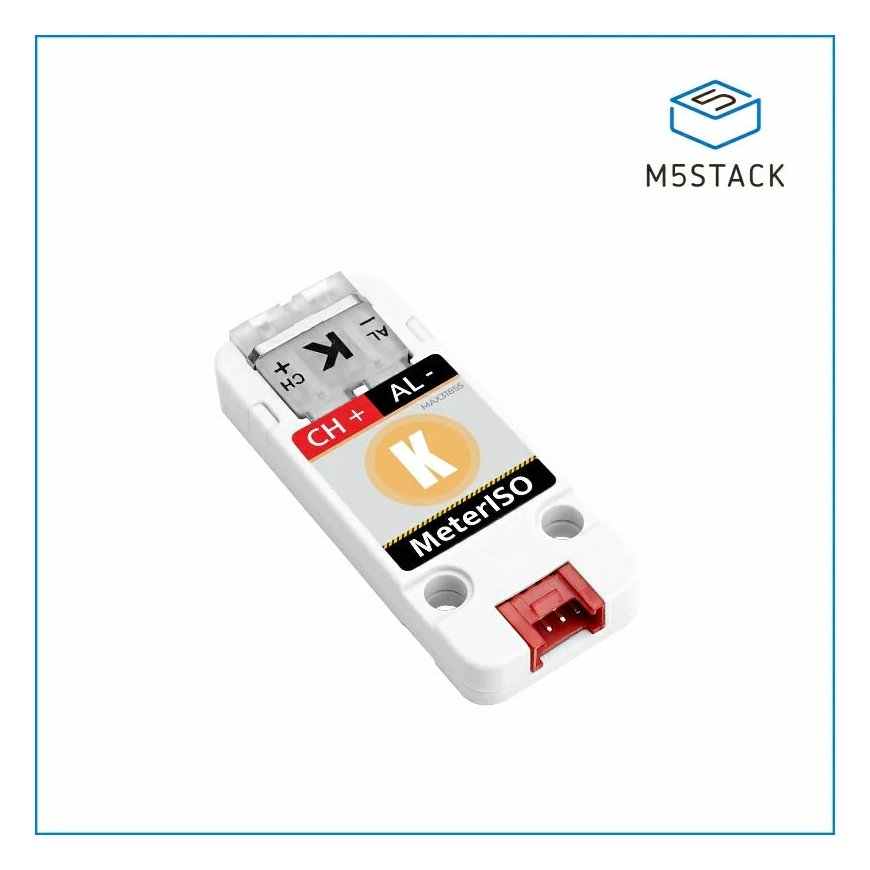

KMeterISO unitis an integrated K-type thermocouple sensor unit that integrates the functions of "acquisition + isolation + communication", using STM32F030+MAX31855KASA+T 14bit thermocouple digital conversion chip scheme to achieve high-precision temperature acquisition and conversion, MCU using STM32F030 to realize data acquisition and I2C communication interface, using CA-IS3641HW as a signal isolator. The unit supports access to thermocouple probes with a measurement range of -200°C to 1350°C, and adopts a universal standard K-type flat interface, which is convenient for subsequent replacement of different measuring probes to match different needs. This module is widely used in application scenarios such as temperature collection, control, and monitoring in industrial automation, instrumentation, power and electrical, heat treatment and other fields.

Features

Product colourMulticolour; White
Weight9.3 g
Width24 mm
Depth9.6 mm
Height56 mm
Package width93 mm
Package height138 mm
Package weight21 g
Brand compatibilityM5Stack
Product typeThermal sensor
I2C interfaceYes
