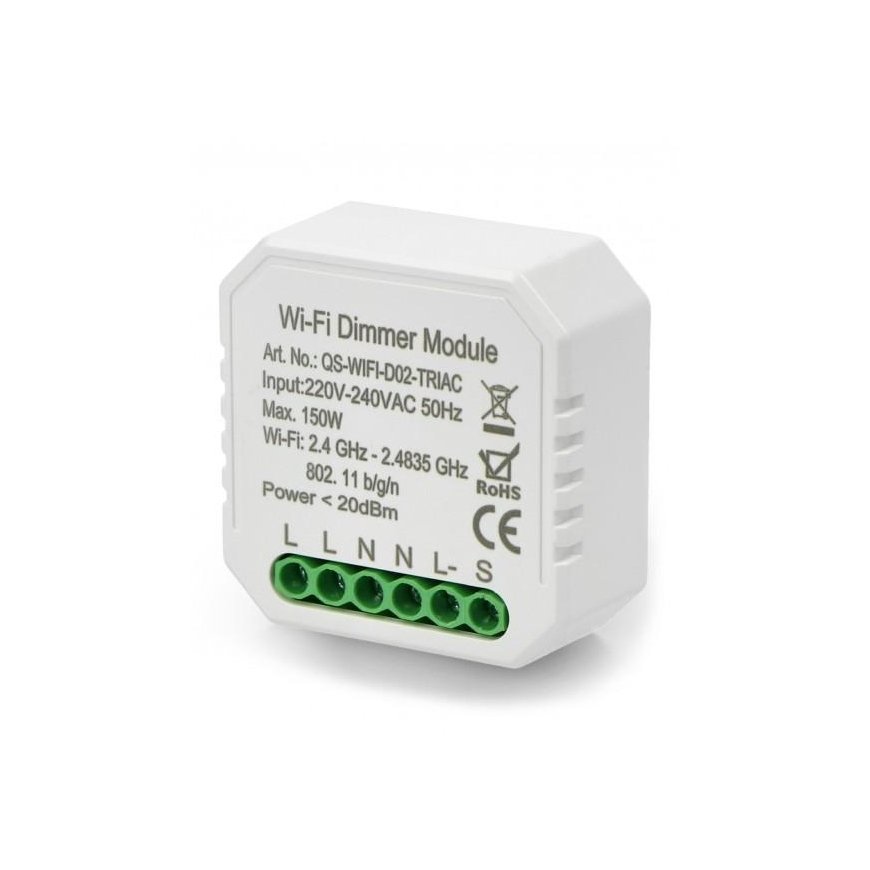

Lighting controller module Tuya Dimmer WiFi 230V
30.85 €
3624617 AN-16920
5903794120273
Shipping 8-12 b.d.
You are interested in this product?
All about the product
230 V lighting controller module Tuya Dimmer WiF. The module allows you to turn on / off the light circuit and change the brightness of the light source. The maximum power of the controlled device is 150 W. The free application allows you to control the device from anywhere in the world.
Technical data:
- Supply voltage: 85 V to 265 V AC / 50 Hz to 60 Hz
- Load power: 150W
- Number of channels: 1
- 2.4GHz WiFi connection
- WiFi range: up to 30 m (depending on environmental conditions)
- Operating temperature: 0°C to 50°C
- Dimensions: 53 x 48 x 18 mm
- Weight: 72 g

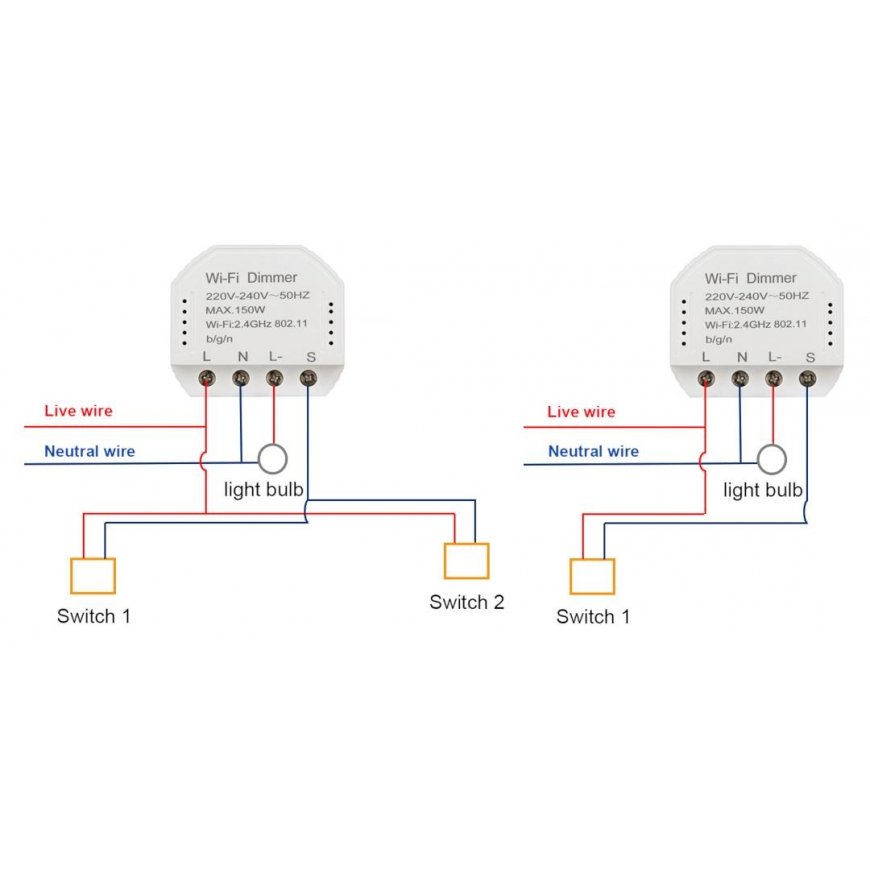

Connection diagram

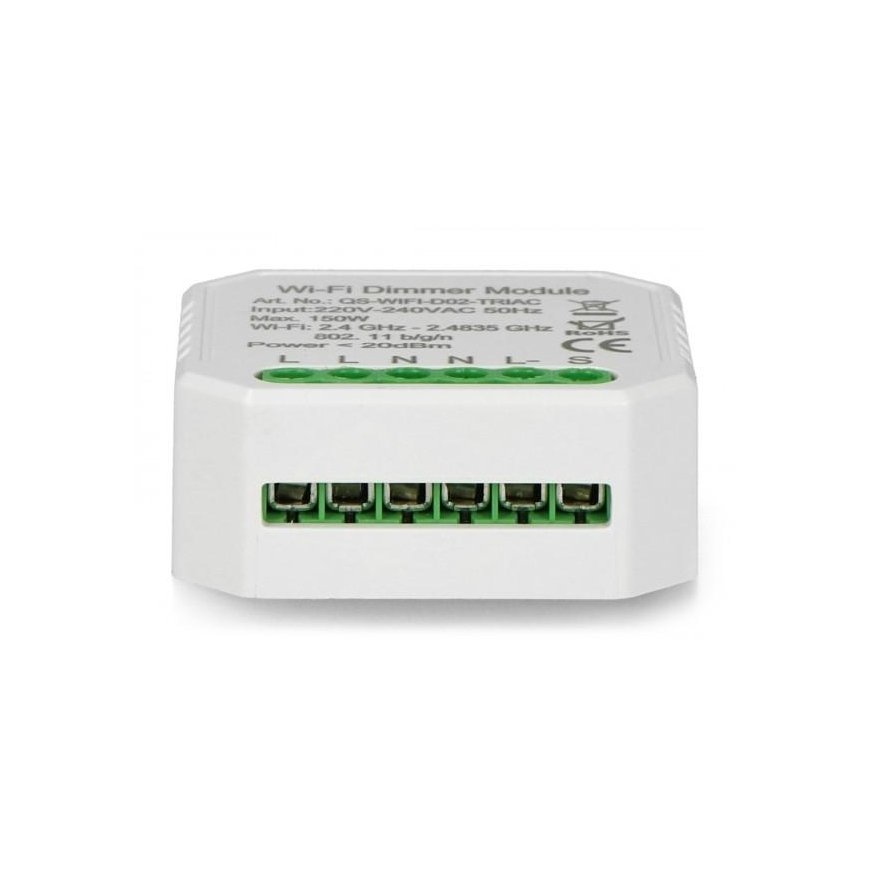

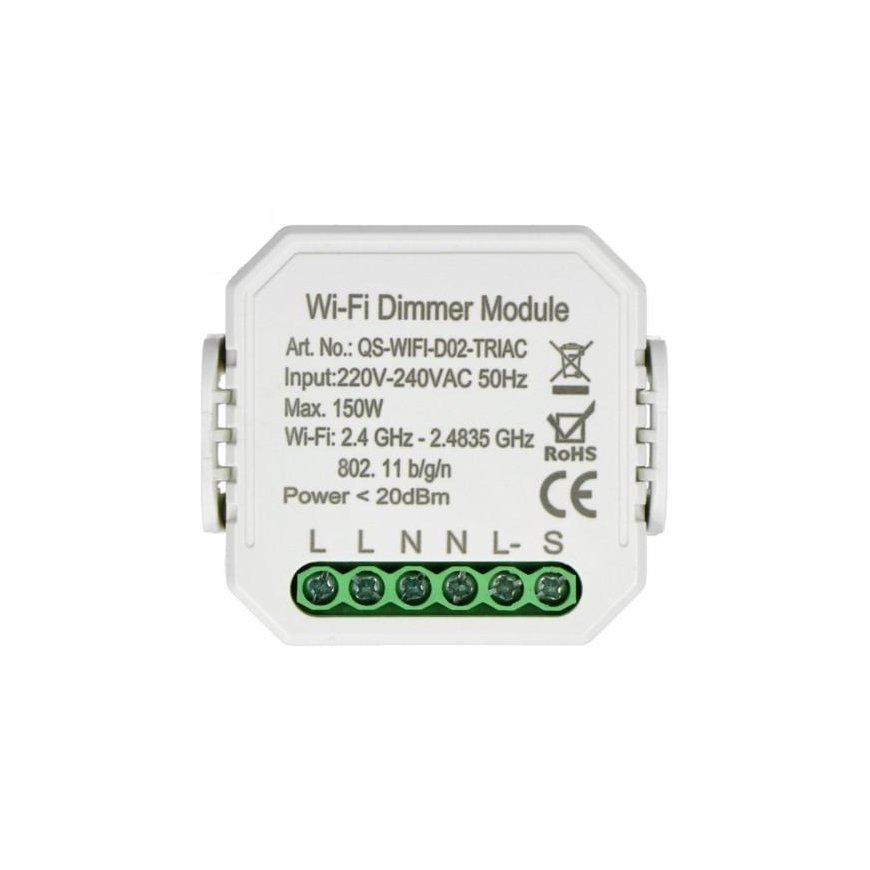

The module has four inputs :
- L - power supply 230 V, positive pole.
- N - power, neutral wire - grounding.
- L- - power supply for the controlled light source.
- S - the ability to connect an external button to the L output, the second line of the button should be connected to the phase line marked with the symbol L.
