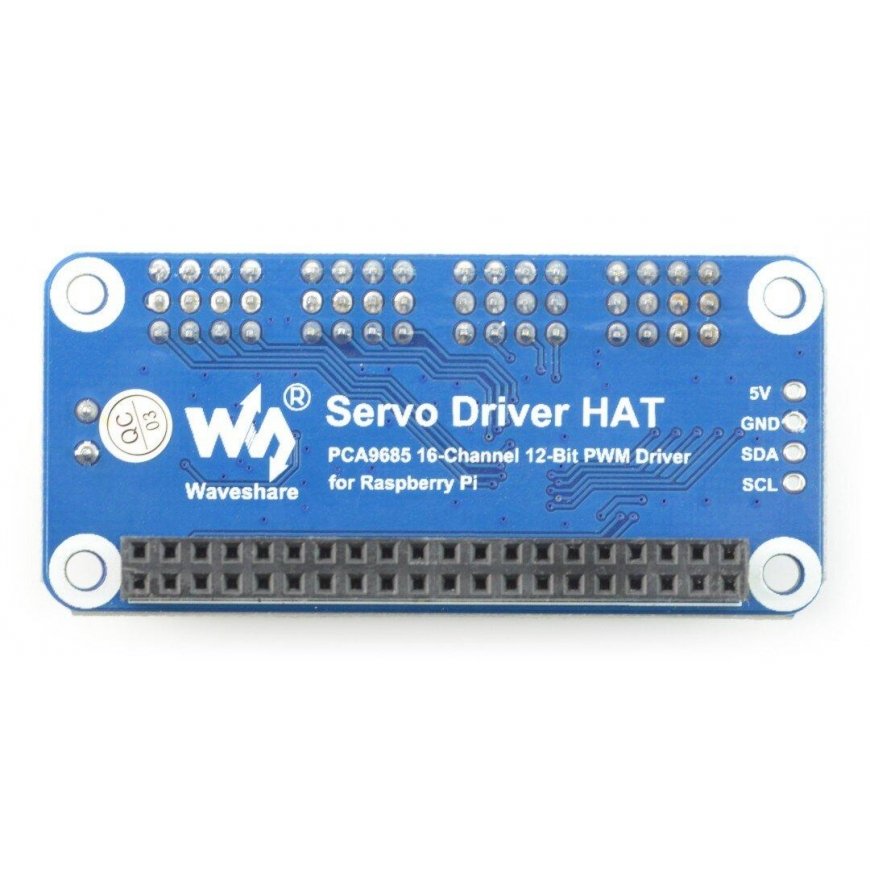

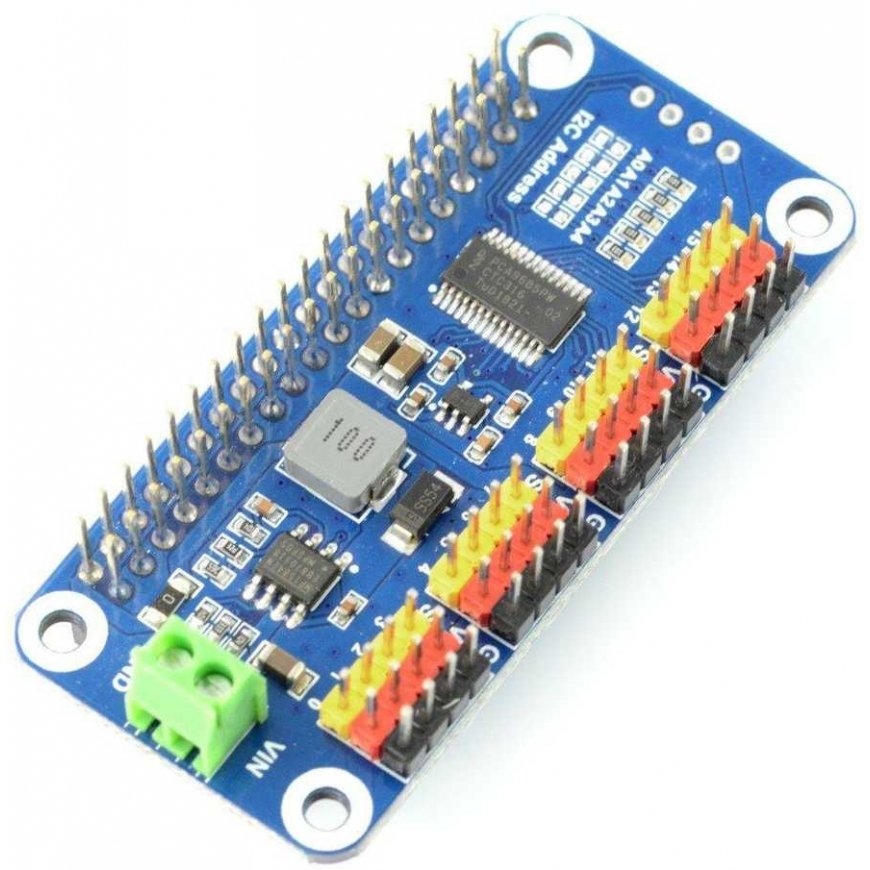

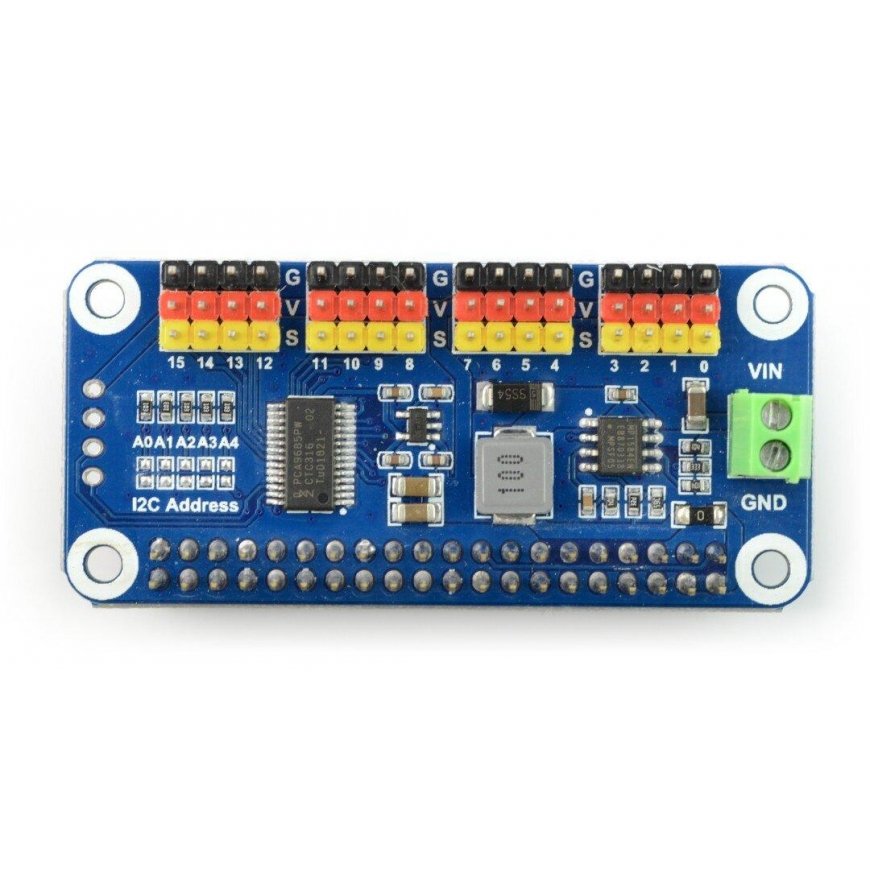

Servo controller board for Raspberry Pi, 16 channels, 12 bits, I2C, Waveshare 15275
3623921 AN-13309
5904422320478
Shipping 11-18 b.d.
All about the product

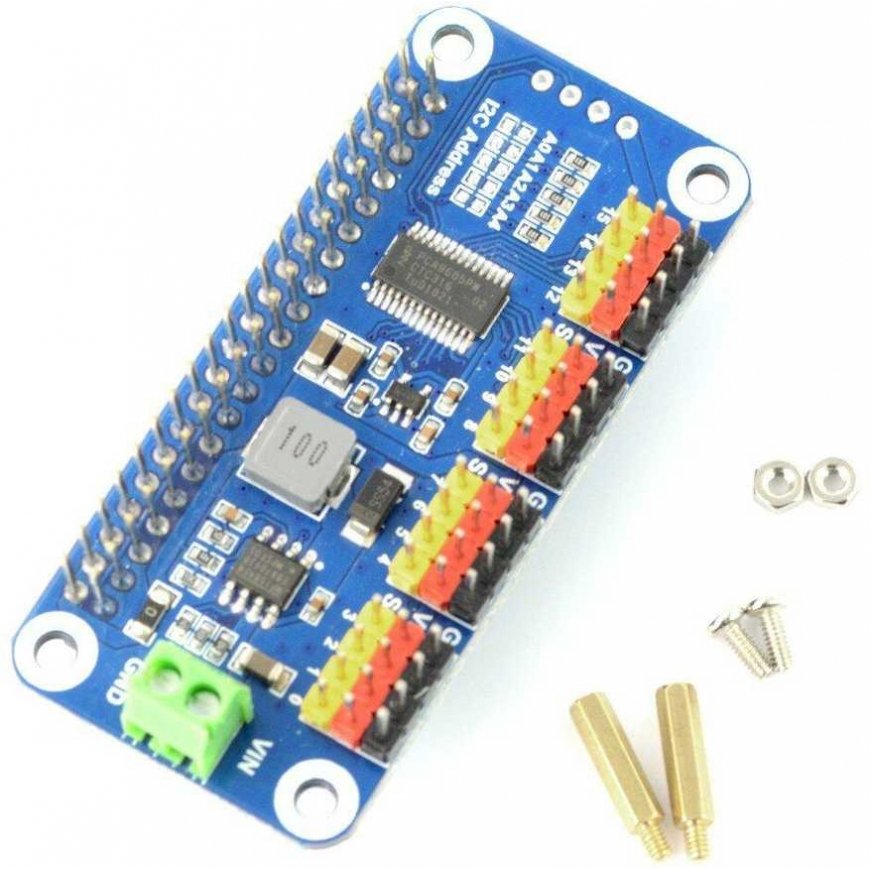

Raspberry Pi 3/2/B+/Zero/Zero W add-on, allowing you to control up to 16 servo motors. Interacts via I2C interface, is based on PCA9685 system. Servos are powered by 5 V voltage, the logic part operates at 3.3 V, the maximum current that the module can provide is 3 A. The board consumes current directly from the 5 V pin of the Raspberry Pi, but to support the servos we recommend connecting an additional power supply from 6 V to 12 V via the dual ARK connector. The kit includes metal spacers with screws for mounting.
Specifications:
- System: PCA9685
- Power source:
- 5V directly from the RPI
- from 6 V to 12 V via ARK connector
- Interface: I2C (2 pins)
- Connection: directly to Raspberry GPIO
- Ability to connect up to 16 servos
- Resolution: 12 bits per channel
- Servo power supply voltage: 5 V
- Servo logic voltage: 3.3 V
- Maximum current: 3 A
- Dimensions: 65 x 30 mm
