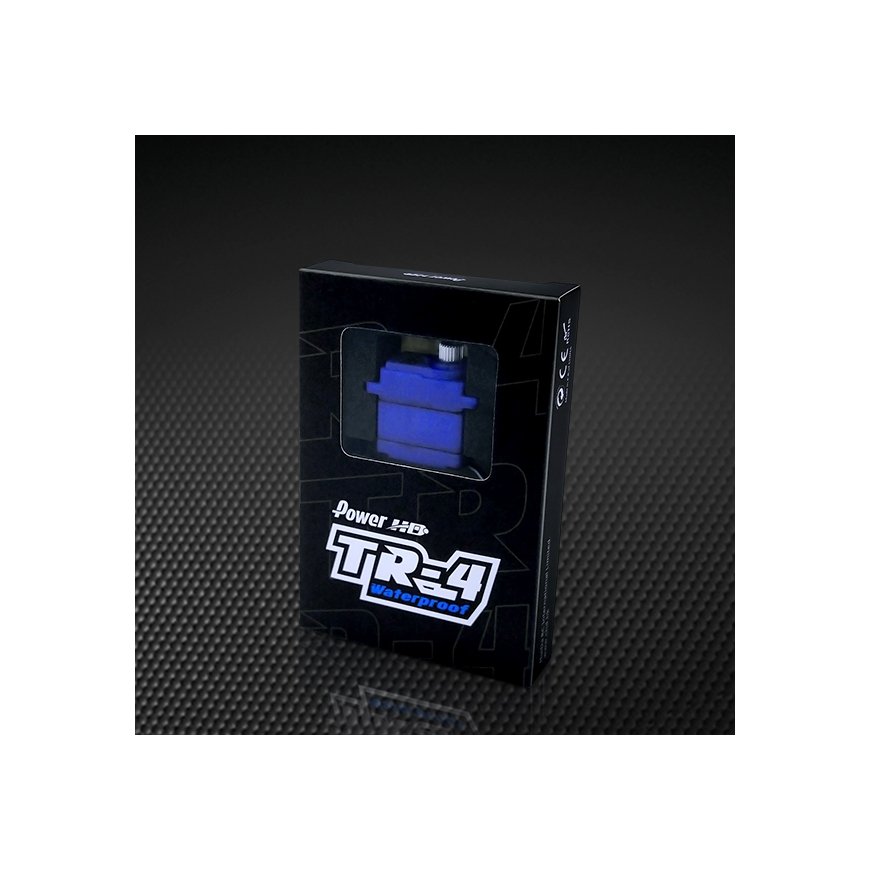

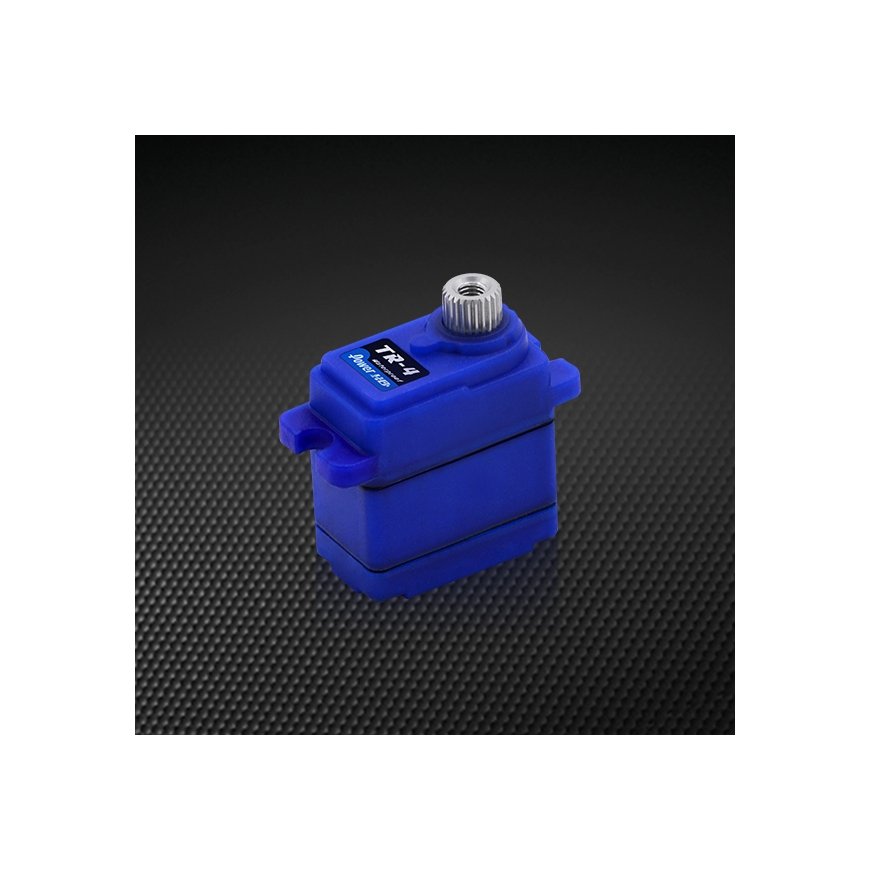

PowerHD TR-4 Radio-Controlled (RC) model part/accessory Servo
33.11 €
3622024 TR-4
6929138004008
Shipping 11-18 b.d.
You are interested in this product?
All about the product
PowerHD TR-4. Product type: Servo, Product colour: BlueFeatures
| Product colour | Blue |
| Weight | 16 g |
| Width | 22.5 mm |
| Depth | 12.5 mm |
| Height | 24 mm |
| Quantity per pack | 1 pc(s) |
| Type | Radio-Controlled (RC) Model Parts |
| Operating temperature (T-T) | -20 - 60 °C |
| Product type | Servo |
| Proper use | Car; Boat |
| Voltage | 4.8 / 6 / 7.4 V |
| Rotating direction | Left |

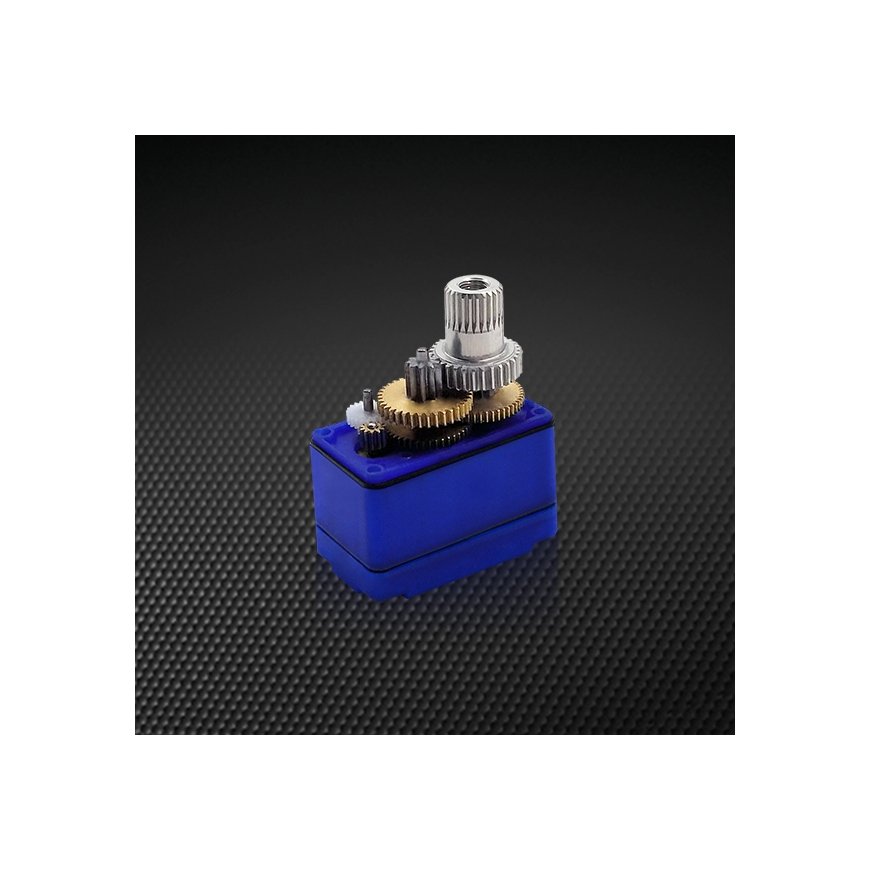

| Other features | Working frequence: 1520μs / 50Hz; Copper & Alu Gear |
| Torque (@6 V) | 2.2 kg/cm |
| Speed (@60°, 6 V) | 0.12 s |
| Torque (@7.4 V) | 2.6 kg/cm |
| Speed (@60°, 7.4 V) | 0.1 s |
| Torque (@4.8 V) | 1.8 kg/cm |
| Speed (@60°, 4.8 V) | 0.15 s |
| Limit angle | 220° |
| Neutral position | 1500 µs |
| Dead bandwidth | 5 µs |
| Running current (@6.0 V) | 60 mA |
| Stall current (@6.0 V) | 550 mA |
| Idle current (@6.0 V) | 5 mA |
