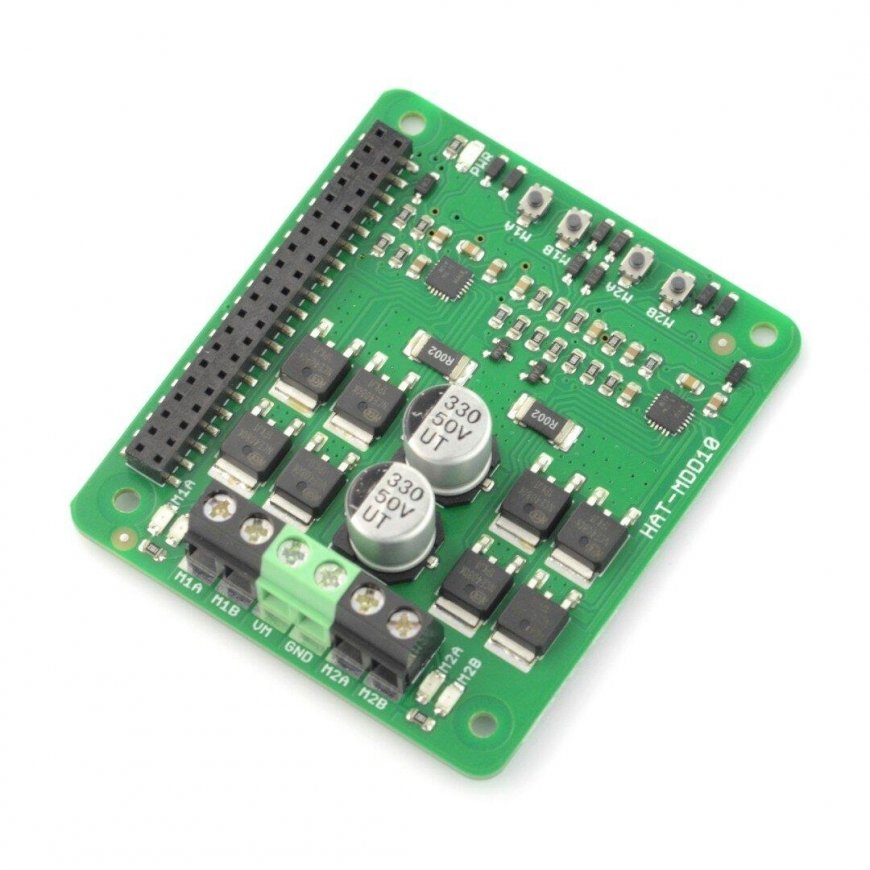

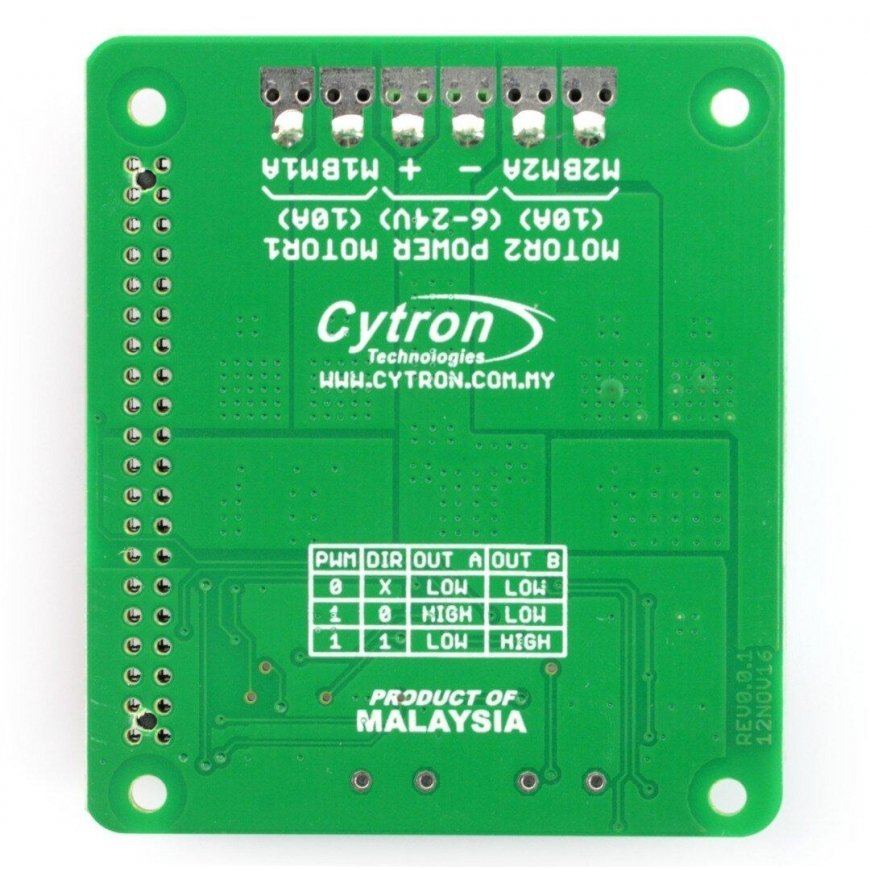

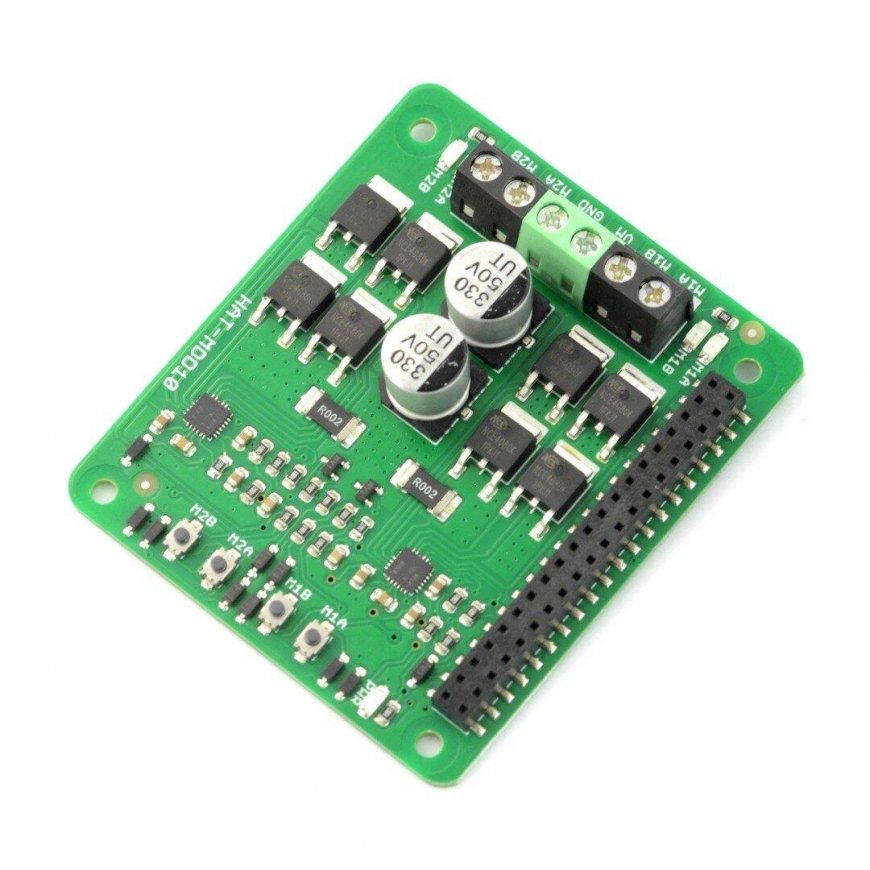

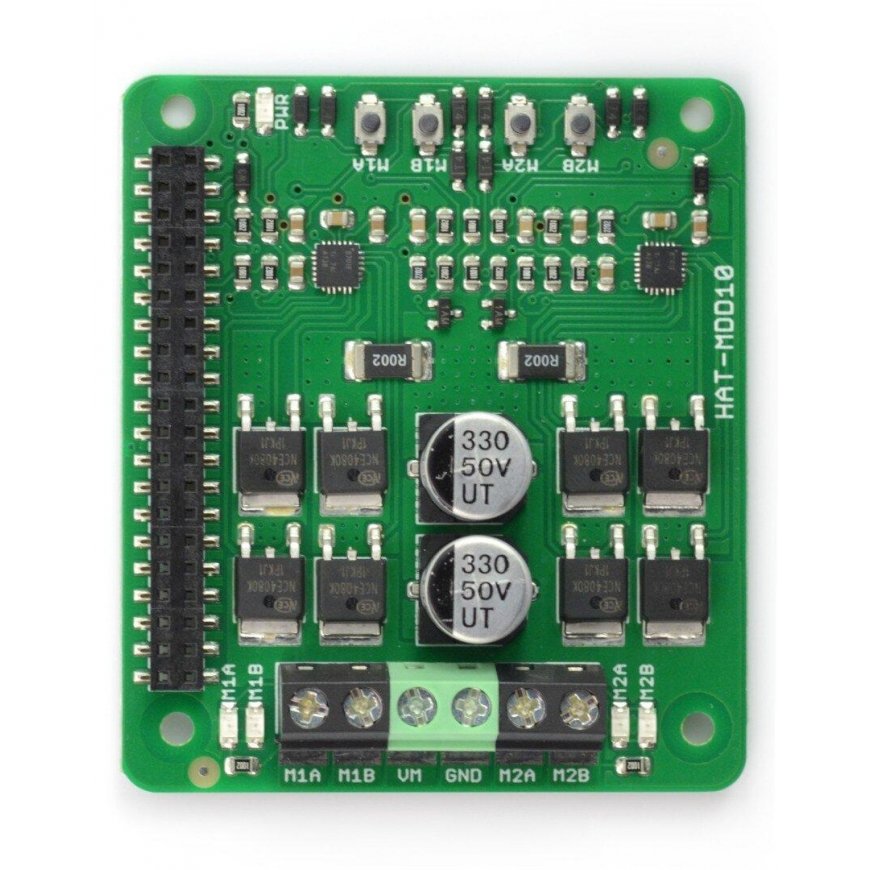

Cytron HAT-MDD10 - two-channel DC motor controller 24V/10A - Raspberry Pi add-on
49.00 €
Monthly payment from 2,16 €
3621370 AN-12413
5904422319199
Shipping 8-15 b.d.
You are interested in this product?
All about the product

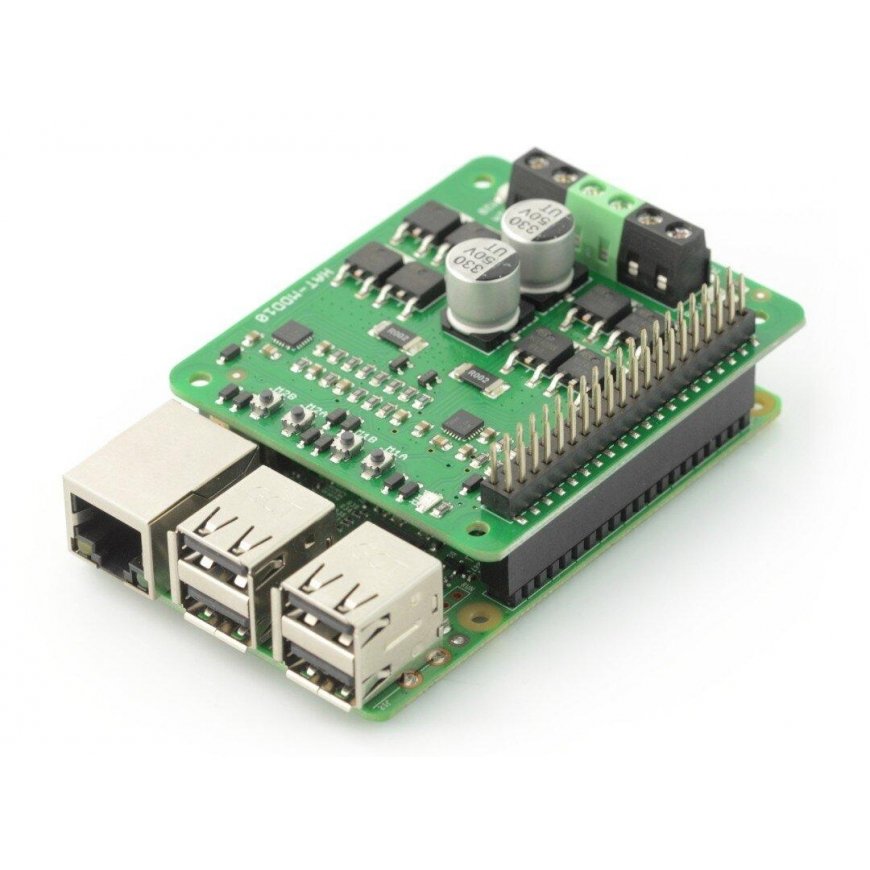

A two-channel controller for motors operating from 6 V to 24 V and up to 10 A per channel (max. 30). The system can be connected directly to the Raspberry Pi minicomputer via the 3+, 3, 2, B+ and A+ GPIO connectors.Specifications:
- Supply voltage: 6 V to 24 V
- Average current per channel: 10 A (up to 25 °C without using a heat sink)
- Short-term current: up to 30 A (up to 10s)
- Made of NMOS H-Bridge transistors
- Built-in LEDs for each channel
- PWM speed control frequency: 20 KHz
- Buttons for manual motor control
- Connector compatible with: Raspberry Pi 3+, 3, 2, B+, A+
- Supports TTL PWM from microcontroller
- Overcurrent protection
- Dimensions: 67.5 x 59 mm
- HAT-MDD10 set-top box
- Extended 25mm gold pin strip
