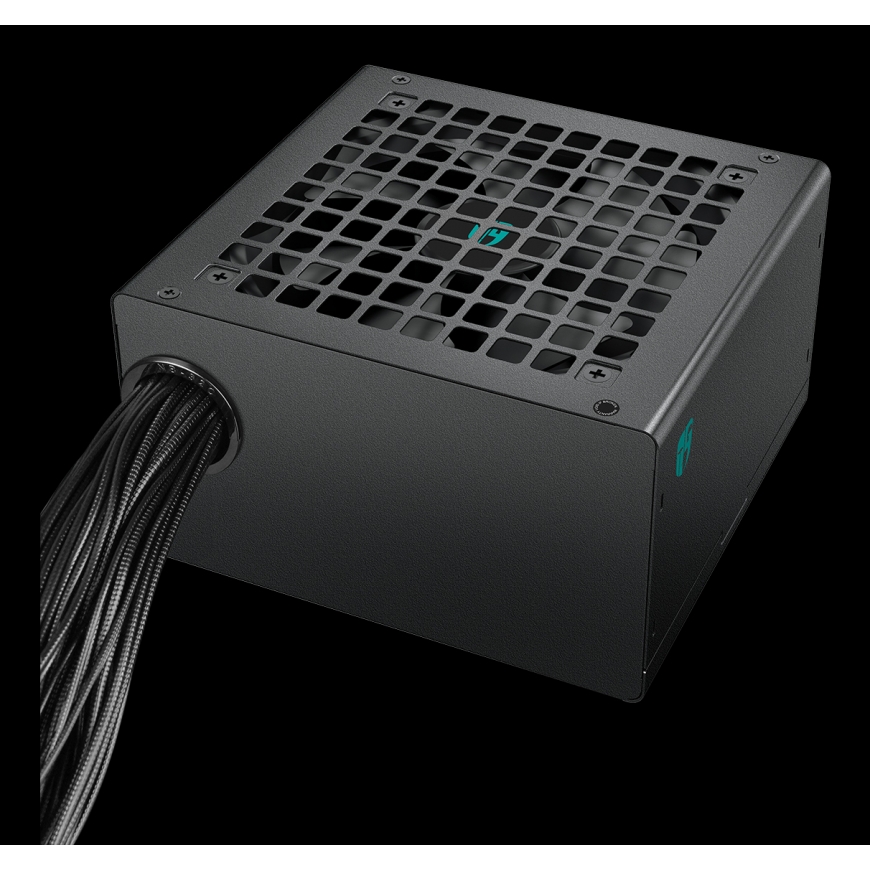

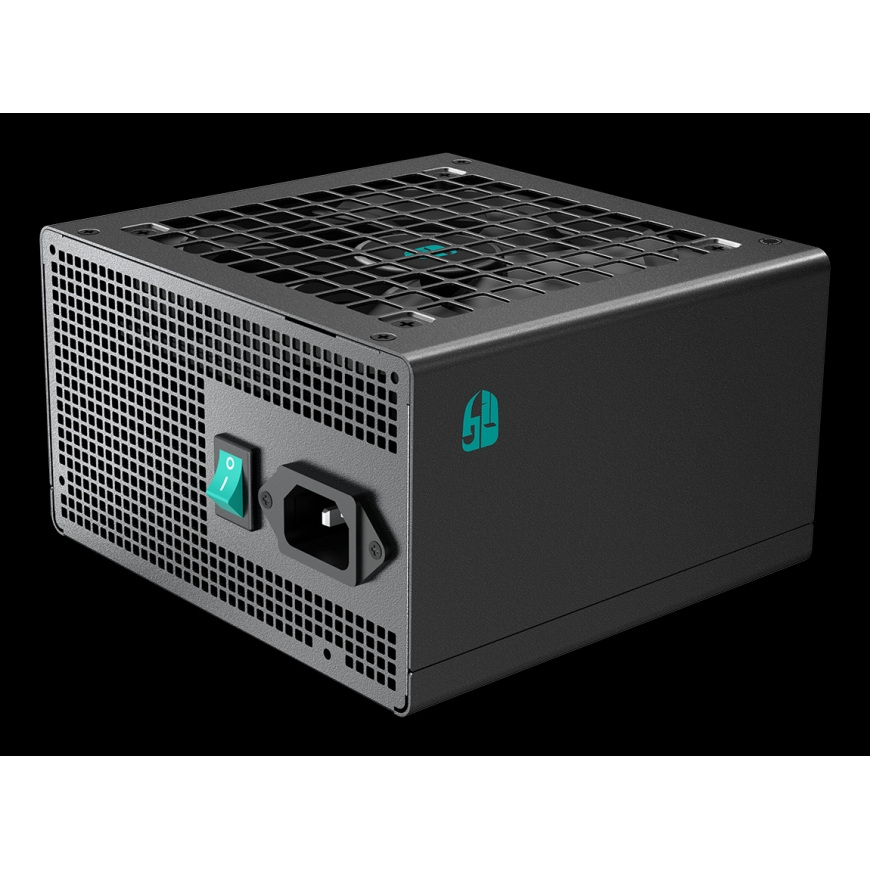

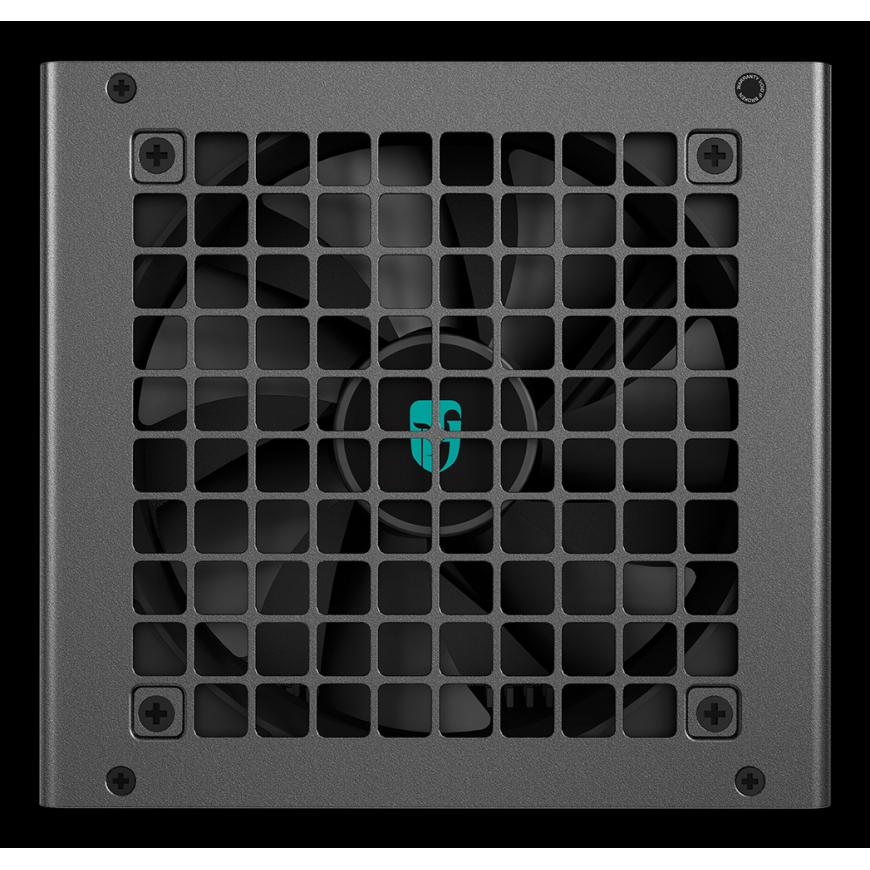

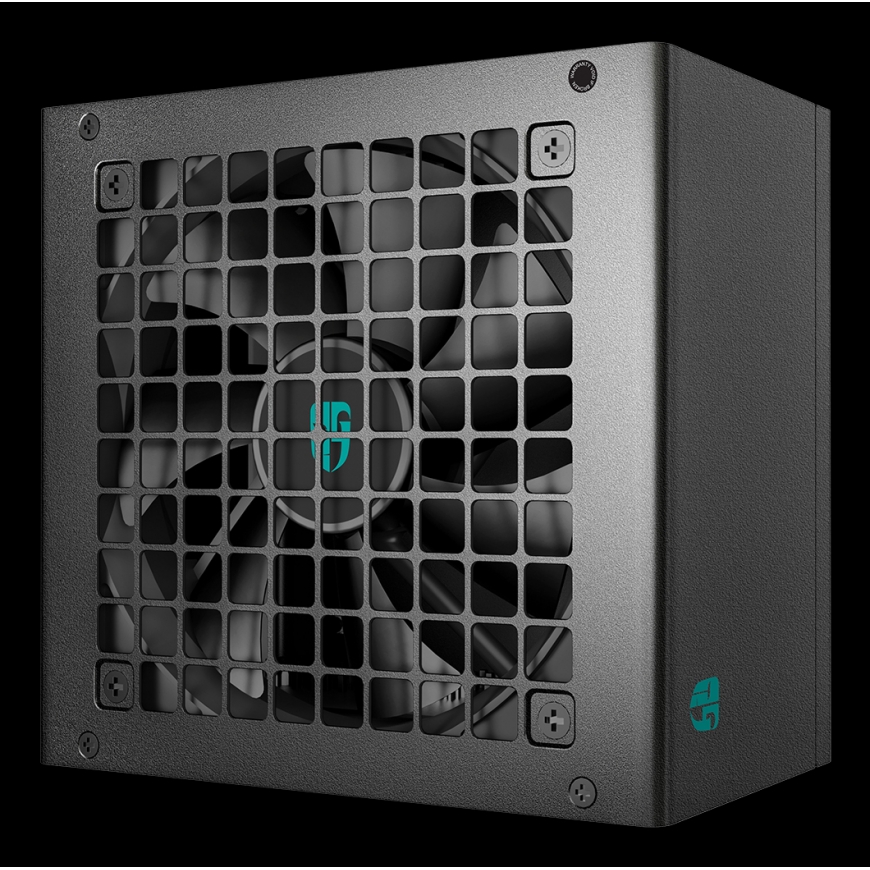

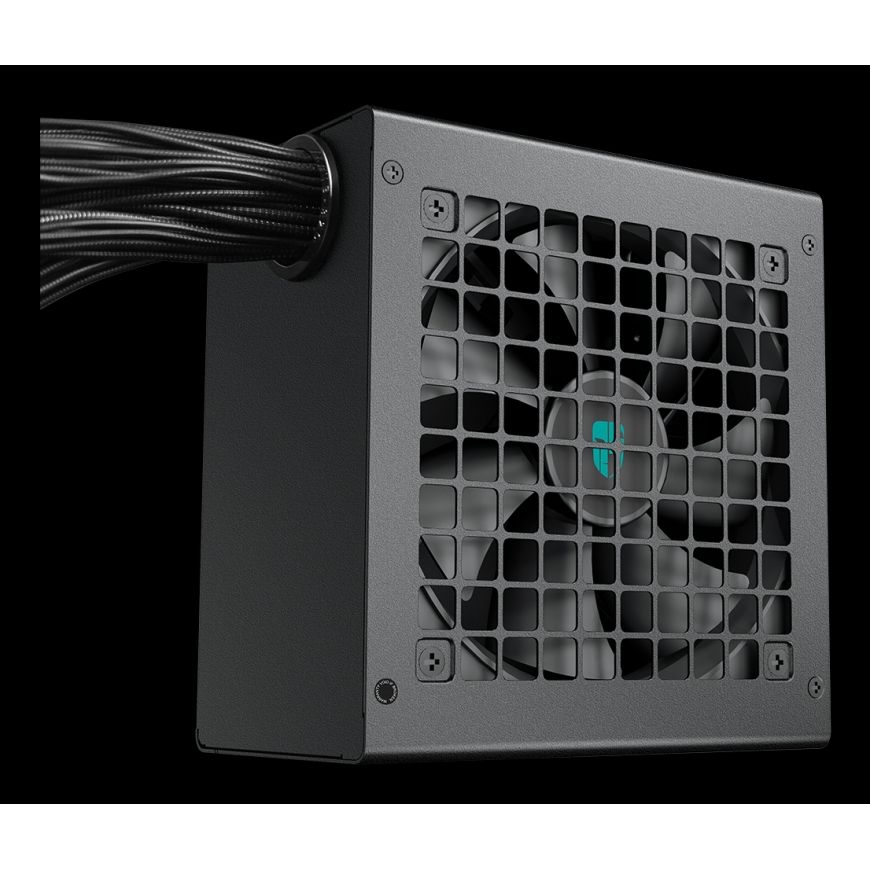

Gamer Storm PN650D power supply unit 650 W 20+4 pin ATX ATX Black
79.00 €
Monthly payment from 2,93 €
3621164 R-PN650D-FC0B-JGEU-V2
6933412741732
This product is no longer in stock
You are interested in this product?
All about the product
POWER YOU CAN TRUSTThrough the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN650D can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core sleeved 12V-2x6 cable, the PN650D provides up to 450W for modern GPUs.
SLEEVED CABLES
The PN650D has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.
DYNAMIC HYDRO BEARING FAN
The PN650D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.
HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN650D will operate at altitudes up to 5000 meters above sea level.
PEACE OF MIND
The PN650D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
EXCELLENT COVERAGE
The PN650D is engineered and manufactured at such a high level that is offering a lengthy 10 years of trouble-free limited warranty coverage.
Power | |
| Hold time | 16 ms |
| Efficiency | 90% |
| Input current | 10.0 - 5.0 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage, Surge and inrush, No load operation |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Total power | 650 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | Hydro bearing |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 450, 120 |
| Peripheral (Molex) power cable length | 120 mm |
| PCI Express power cable length | 55 cm |
| CPU power cable length | 70 cm |
| Number of SATA power cables | 2 |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Technical details | |
| Sustainability certificates | ErP, Triman |
Packaging data | |
| Package type | Box |
Other features | |
| Screws included | Yes |
| Cable ties included | Yes |
Logistics data | |
| Warranty period | 10 year(s) |
Packaging content | |
| Cables included | AC |
Certificates | |
| Certification | P65 |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC), EAC, TÜV mark, RCM, CCC |
