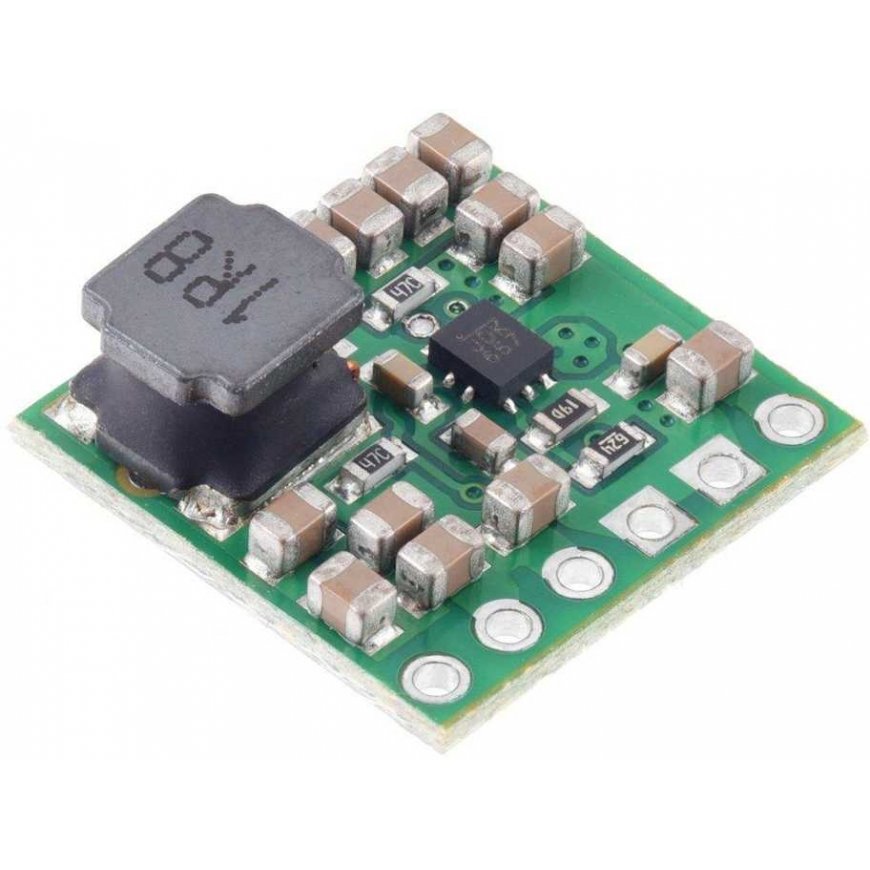

Step-Up Voltage Regulator U3V40F9 – 9V, 3.5A – Pololu 4015
21.32 €
3619424 AN-20743
5904422382391
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Pololu brand step-up converter with an output voltage of 9 V and a capacity of 3.5 A. The supply voltage ranges from 1.3 V to 9 V (starting voltage is 2.7 V). Typical converter efficiency ranges from 90% to 95%, depending on the input voltage and load. The module has temperature protection, it will turn off if the temperature threshold is exceeded.Specifications:
- Input voltage: 1.3 V to 9 V (minimum voltage for circuit operation is 2.7 V)
- Output voltage: 9 V (4% accuracy)
- Typical efficiency: 90% to 95%, depending on input voltage and load
- Switching frequency: ~600 Hz at high load
- Energy saving mode
- Typical idle current is less than 2 mA
- The 9.5 amp switch allows:
- Instantaneous input current up to 9.5 A
- Up to 4.5 A input current for a few seconds
- Up to 4 A input current for extended periods
- Integrated protection:
- Overtemperature shutdown
- Soft start function limits inrush current and gradually increases output voltage
- Output overvoltage protection (typically 16.5V)
- input current limiting cycle up to 9.5 A

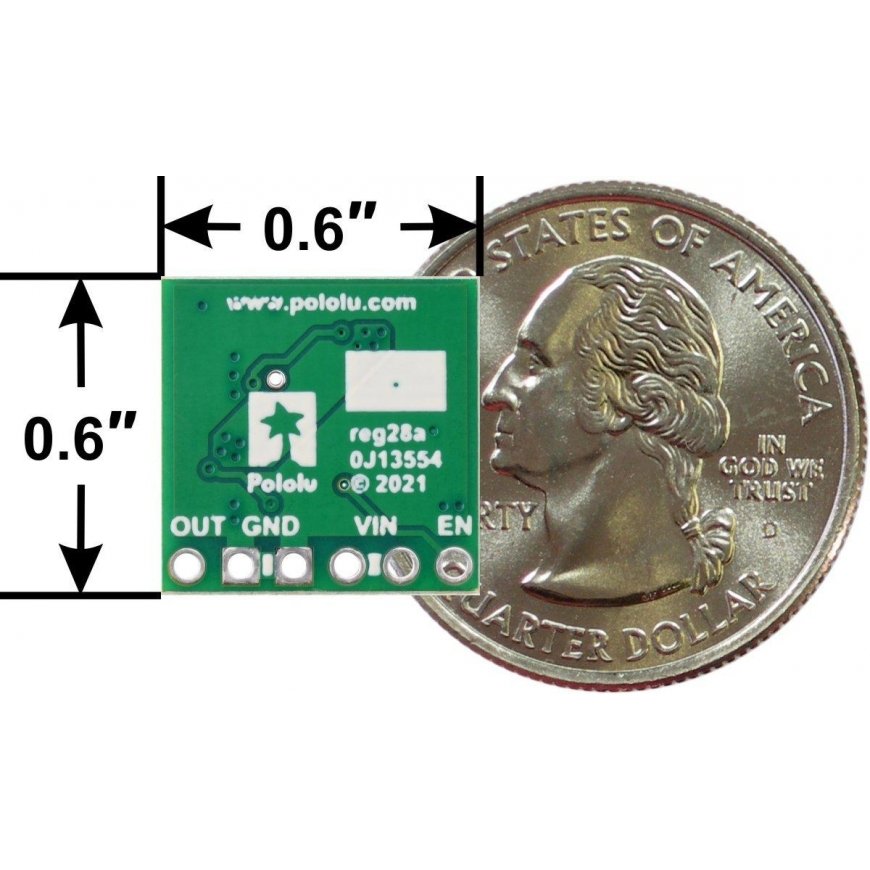

- Dimensions: 15.2 x 15.2 x 5.6 mm
- Weight: 1.5 g
