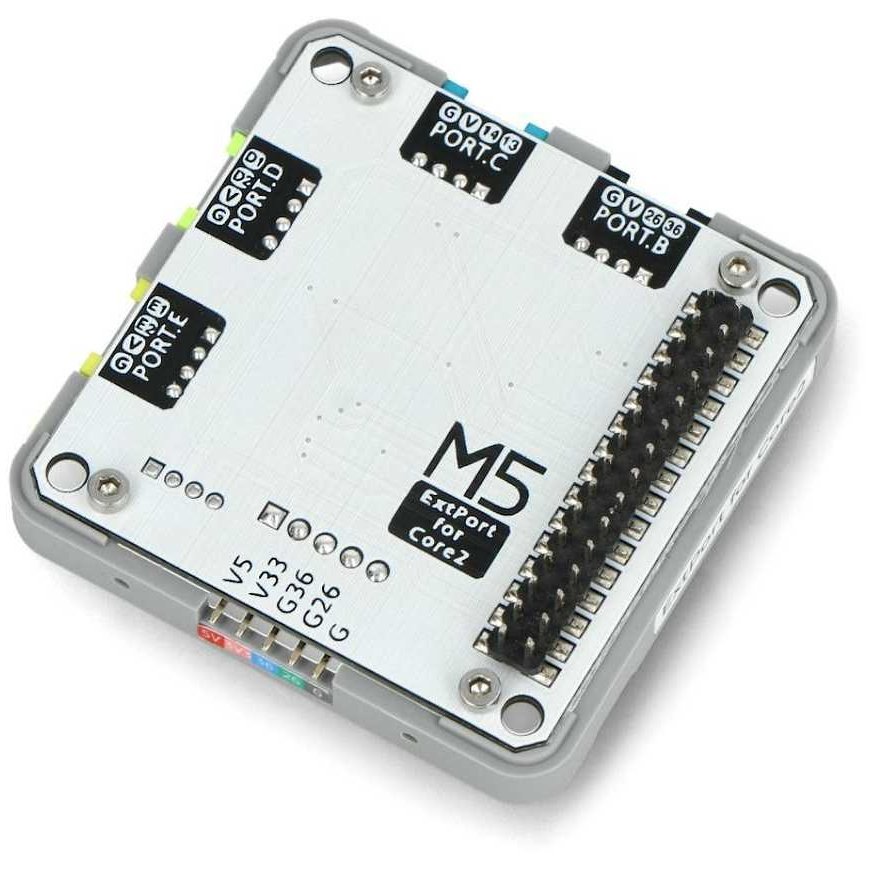

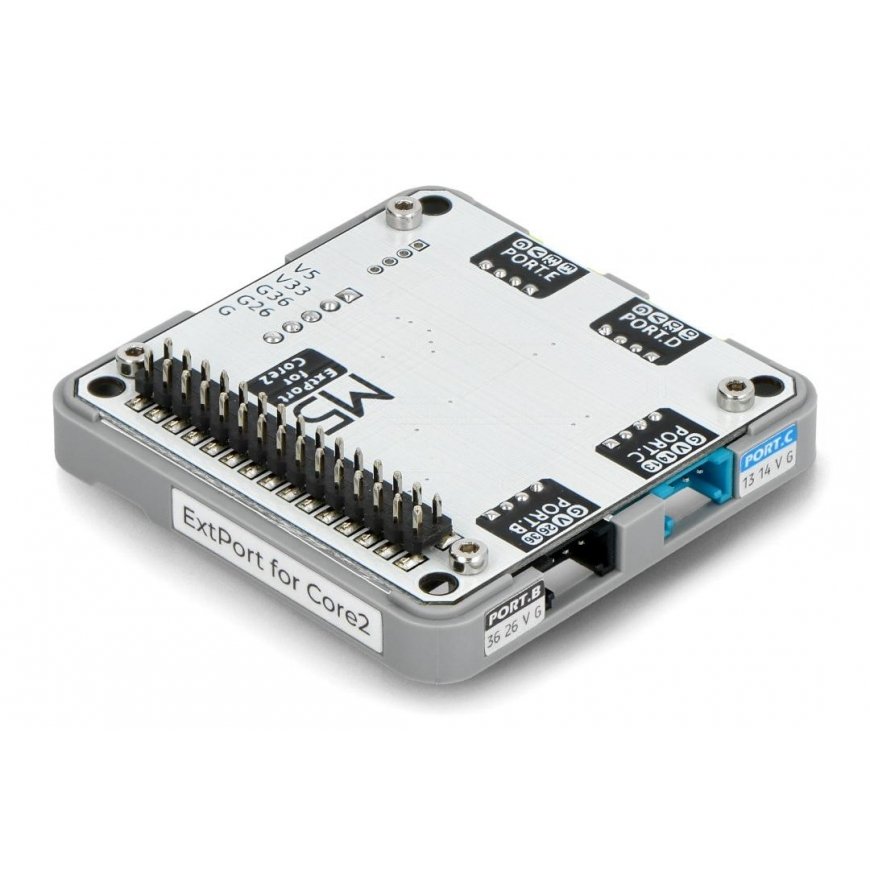

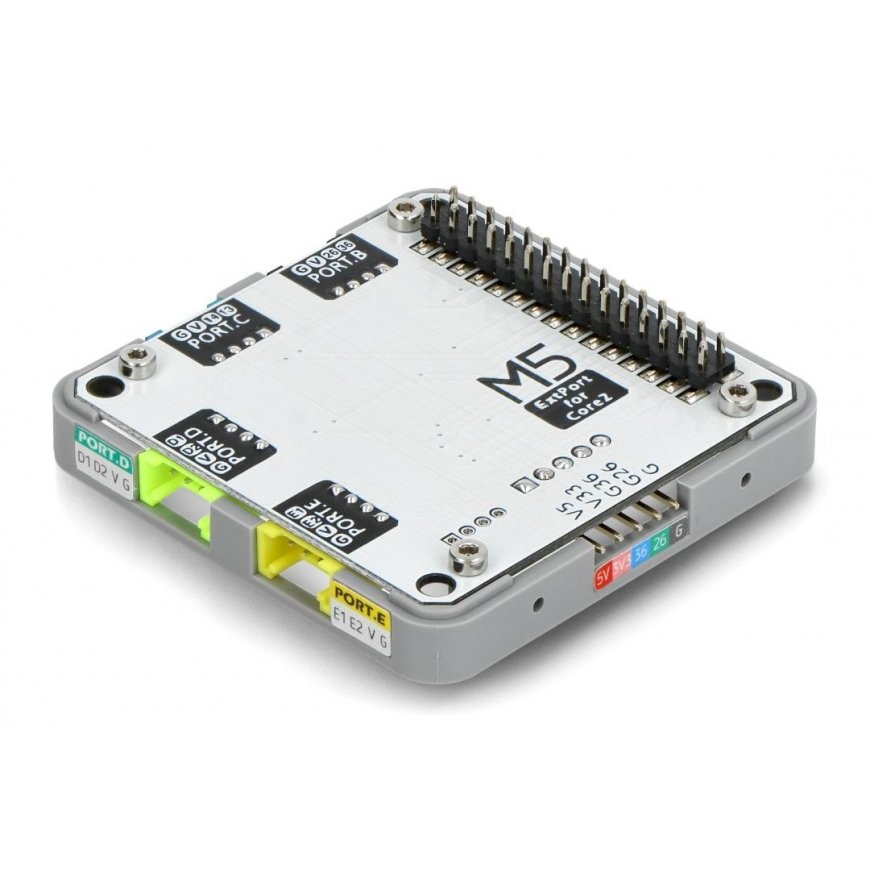

Expansion module for M5Stack Core2 - M5Stack M123
19.77 €
3618656 AN-21898
6972934173690
Shipping 8-15 b.d.
You are interested in this product?
All about the product

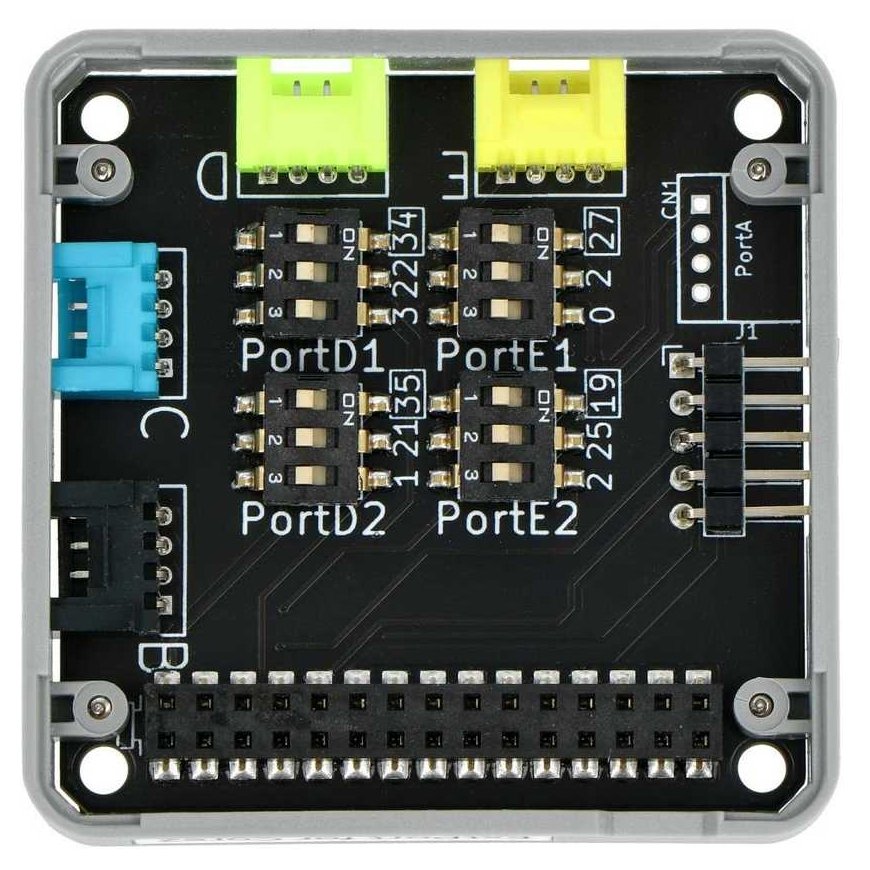

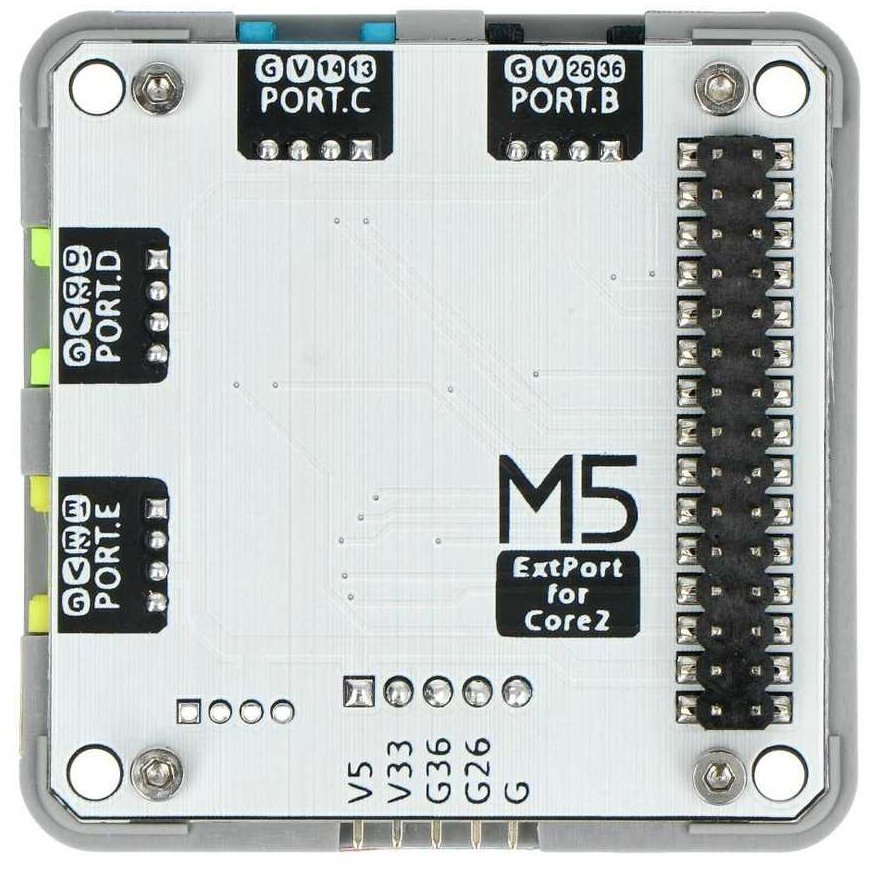

M5Stack Core2 pin expansion as an add-on. It has four Grove connectors and four DIP switches that allow you to connect additional peripherals to the development module and thus increase the functionality of the project. In addition, the expansion has 4 gold-plated outputs with a 2.54 mm pitch.Specifications:
- Purpose: For M5Stack Core2 development module
- Expansion ports: 4x connectors with Grove interface
- Pin designations: Port B, Port C, Port D, Port E
- DIP switches: 4x 3-pin integrated switches
- Switch marking: D1, D2, E1, E2
- Additional pins: gold 1x5 pins with 2.54 mm pitch
- Dimensions: 54 x 54 x 13 mm
- Weight: 24 g
