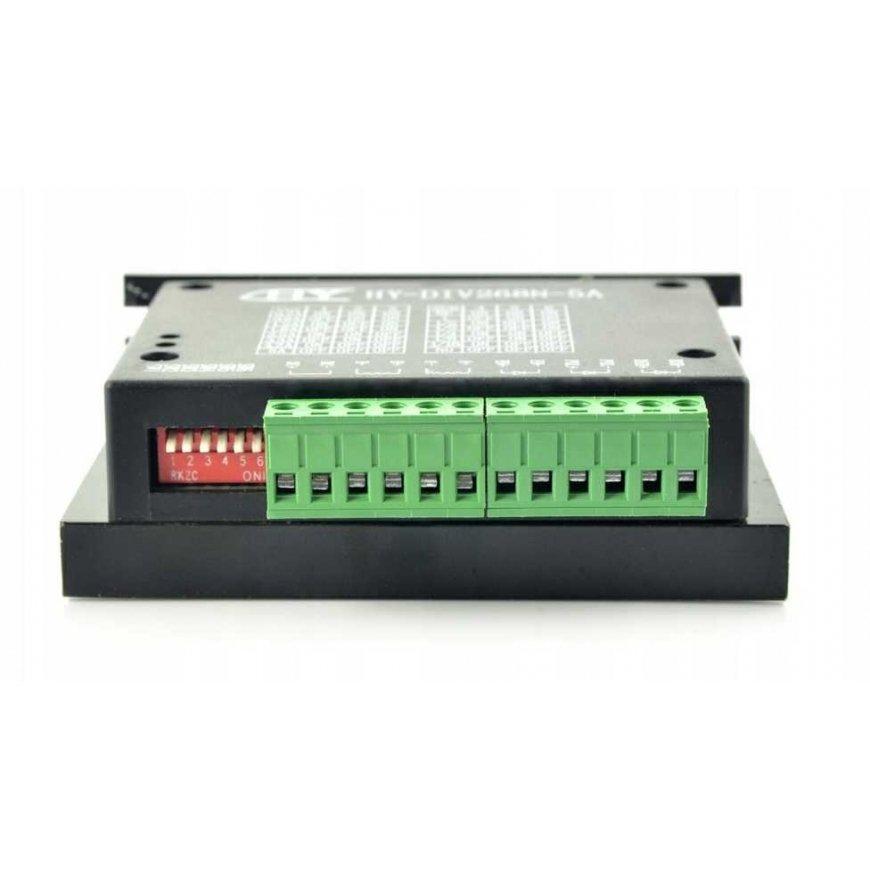

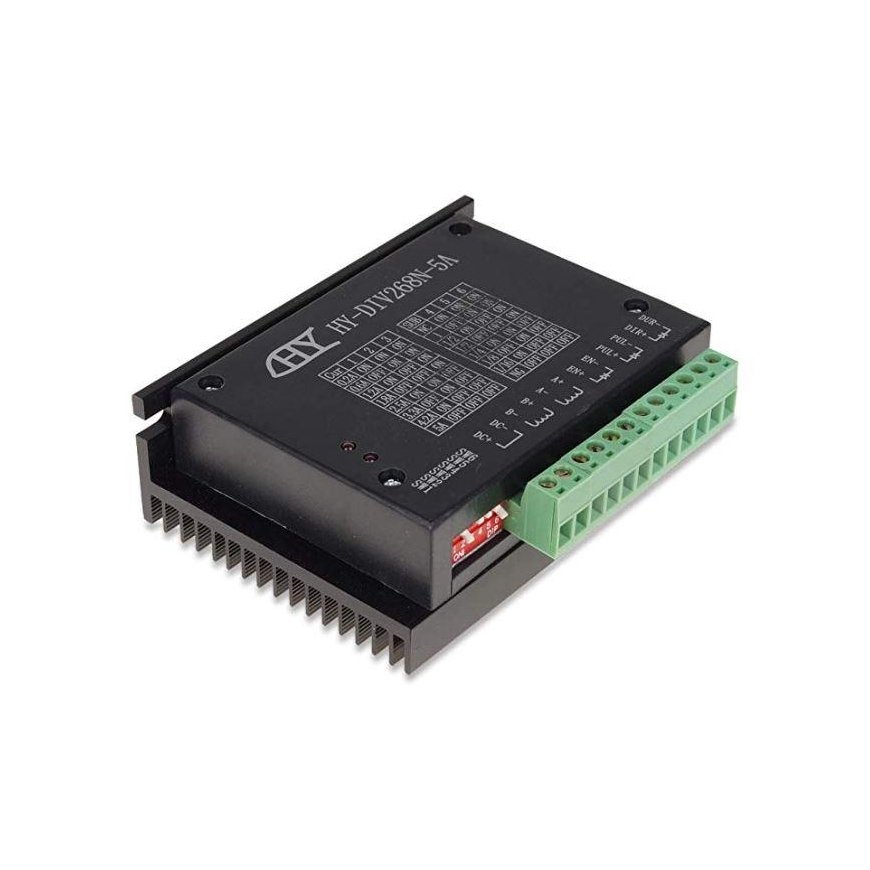

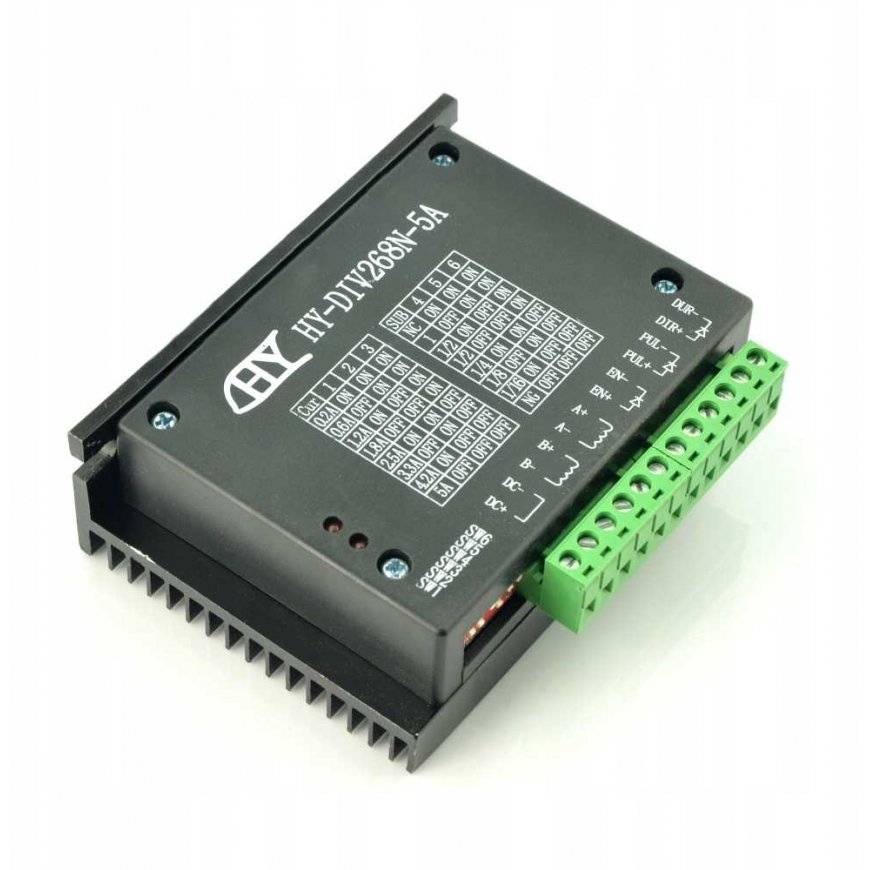

Oem Stepper Motor Driver TB6600 0.2-5A HY-DIV268N-5A
39.00 €
Monthly payment from 1,90 €
3618339 AN0214-77
5904422310097
Shipping 8-12 b.d.
You are interested in this product?
All about the product
The stepper motor controller based on the TB6600 system allows you to control a motor with a current consumption of up to 5 A (adjustable range from 0.2A to 5A) per coil when powered by a voltage of 12V to 48V. has six control modes: full step, non-circular 1/2, 1/2, 1/4, 1/8 and 1/16.
Specifications:
- Supply voltage: from 12V to 48V
- Constant current in the coil: adjustable from 0.2 A to 5A
- Optically isolated inputs
- Security:
- Against too high voltage
- Against too low voltage
- Against excessive current
- Short circuit
- Resolution: 1, non-circular 1/2, 1/2, 1/4, 1/8 and 1/16 steps
- Operating temperature: -10 °C to 45 °C
- Dimensions: 116x86x33mm (with connectors)
- Weight: 220g

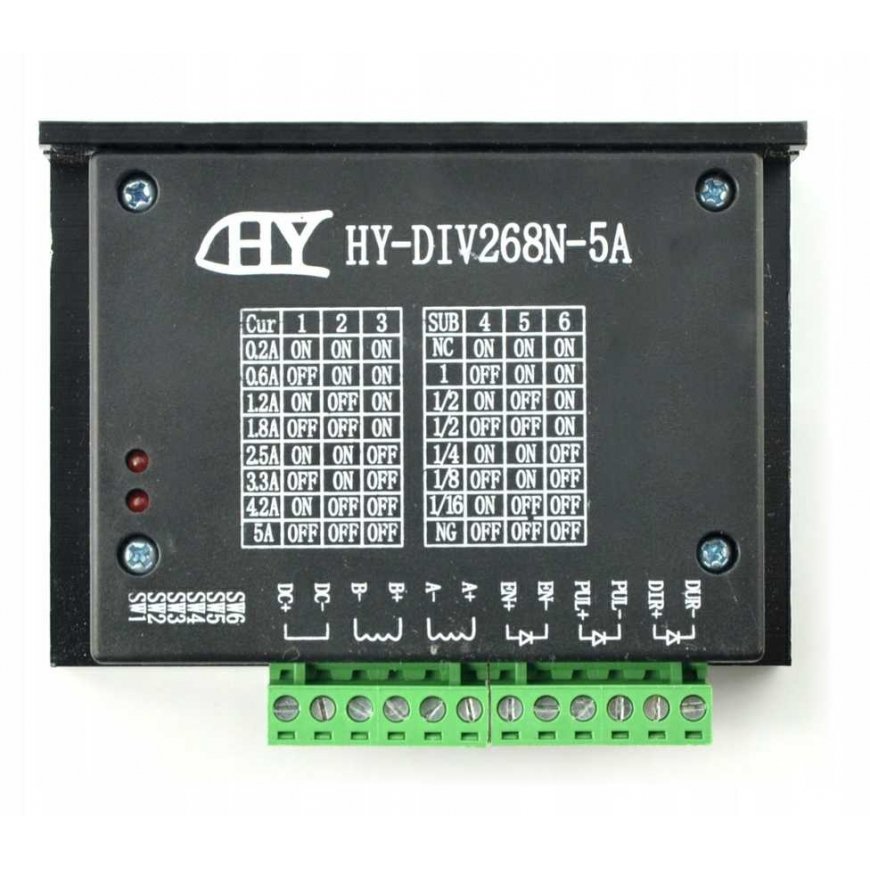

Connectors:
- DC +DC- : Supply voltage from 12V to 48V.
- B + B- First motor coil
- A + A- Second motor coil.
- EN + An- Controller startup
- PUL + PUL- Pulse inputs for controlling tasks. One pulse performs one step of the motor in the selected direction, providing the corresponding logic state to the DIR contact.
- DIR + DIR- Selection of rotation direction.
