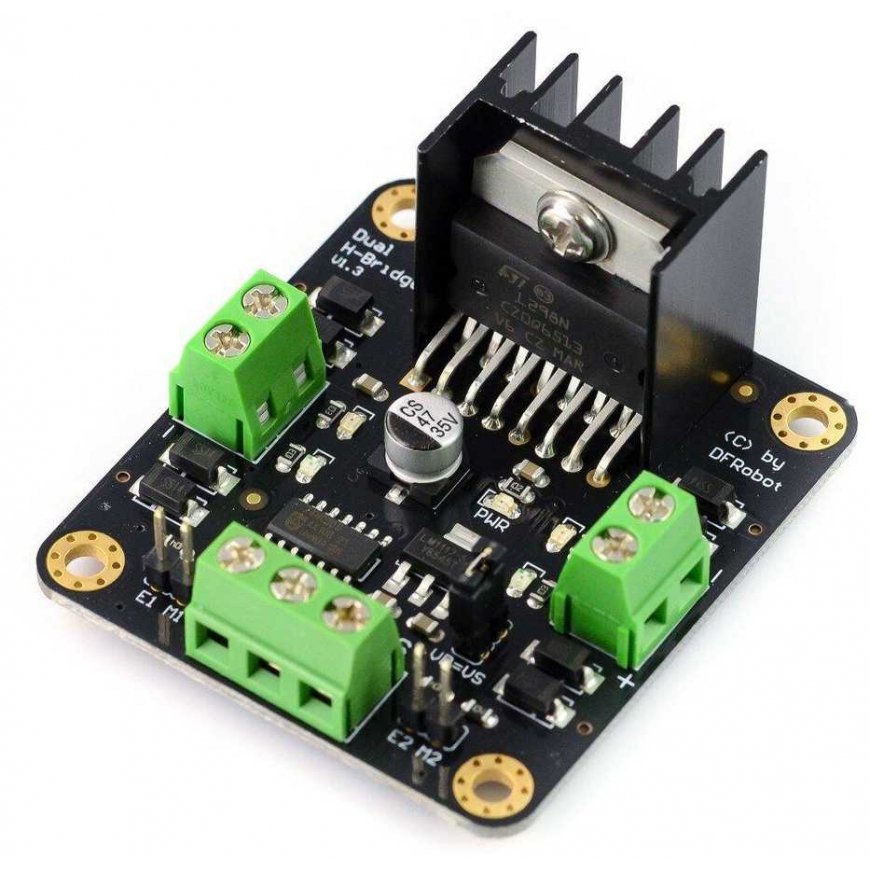

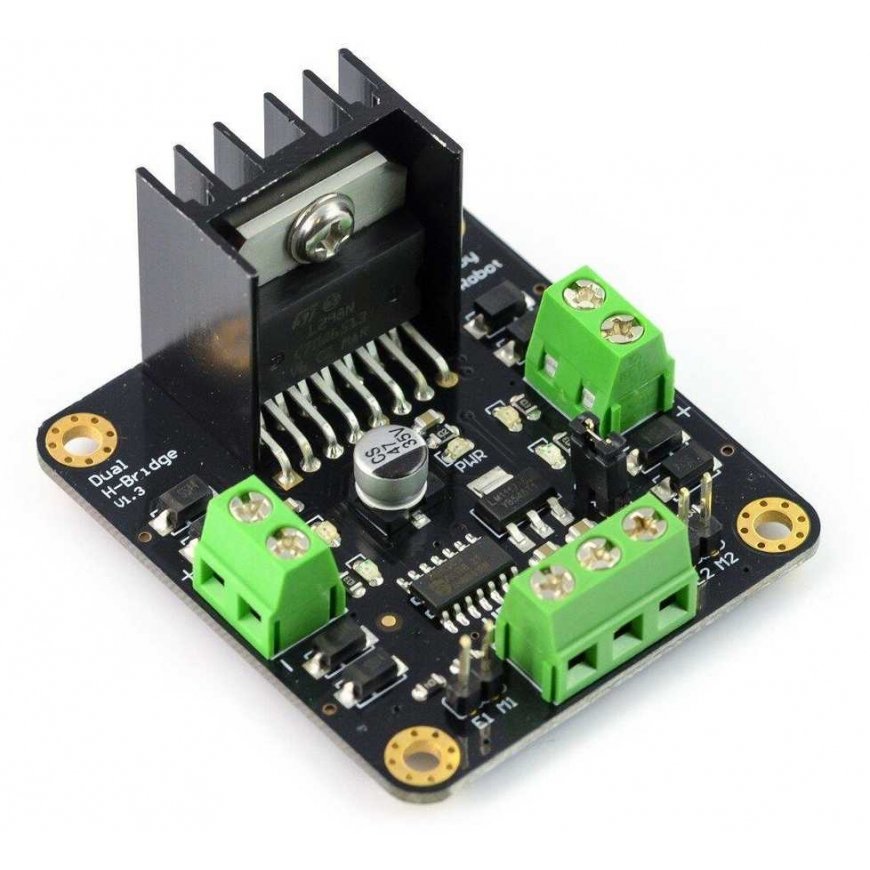

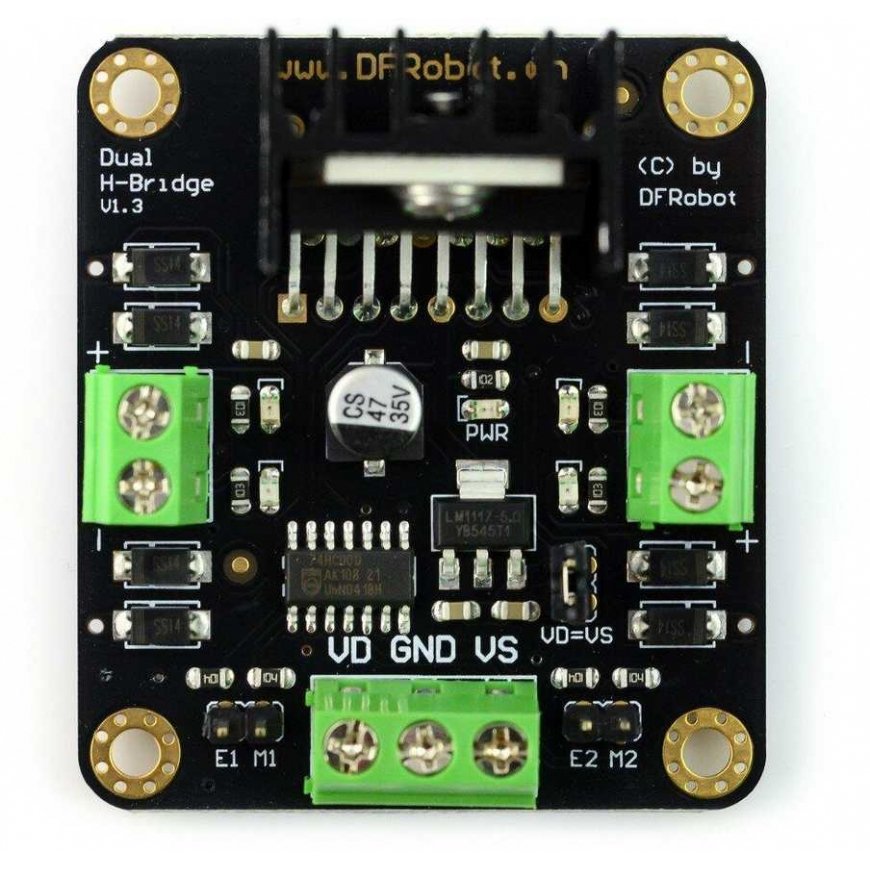

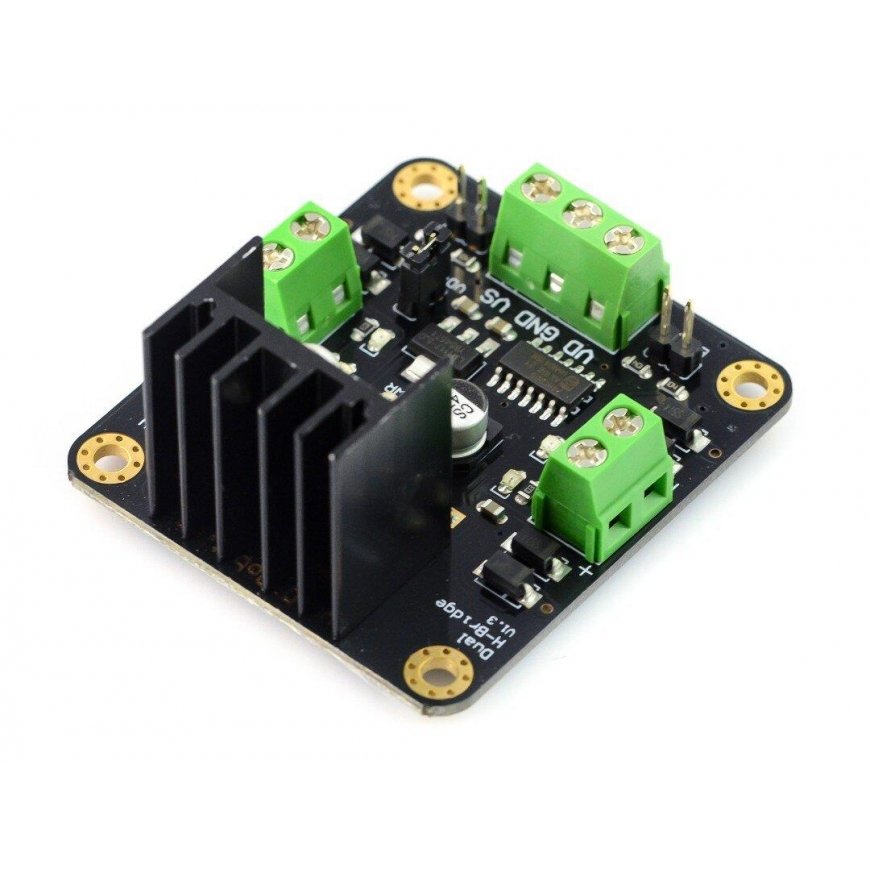

DFRobot L298N, dual-channel DC motor controller, 12 V / 2 A
29.00 €
3617766 AN-13754
5904422321338
Shipping 11-18 b.d.
You are interested in this product?
All about the product
A two-channel DC motor controller based on the L298N system that allows you to control the direction and speed of rotation. Thanks to the ARK screws and connectors, the power supply and the motors themselves can be easily connected by unscrewing the wires with a screwdriver. Control signals are output to popular gold-pin connectors, which allow the system to be connected to starter boards, e.g. Arduino.
Specifications:
- Logic part voltage supply: 6 V to 12 V
- Motor supply voltage: from 4.8 V to 46 V
- Maximum logic current: 36 mA
- Maximum channel current: 2 A
- Maximum power: 25 W
- Control output signal level:
- High state: 2.3 V = Vin = Vss
- Low state: 0.3 V = Vin = 1.5 V
- Operating temperature: -25 °C to 130 °C
- Controller type: double bridge H
- Dimensions: 47 x 53 mm
- Weight: approx. 29 g
