Pimoroni Pico LiPo 4MB - board with RP2040 microcontroller - Pimoroni PIM578
29.00 €
3616945 AN-20145
0769894019825
Shipping 11-18 b.d.
You are interested in this product?
All about the product

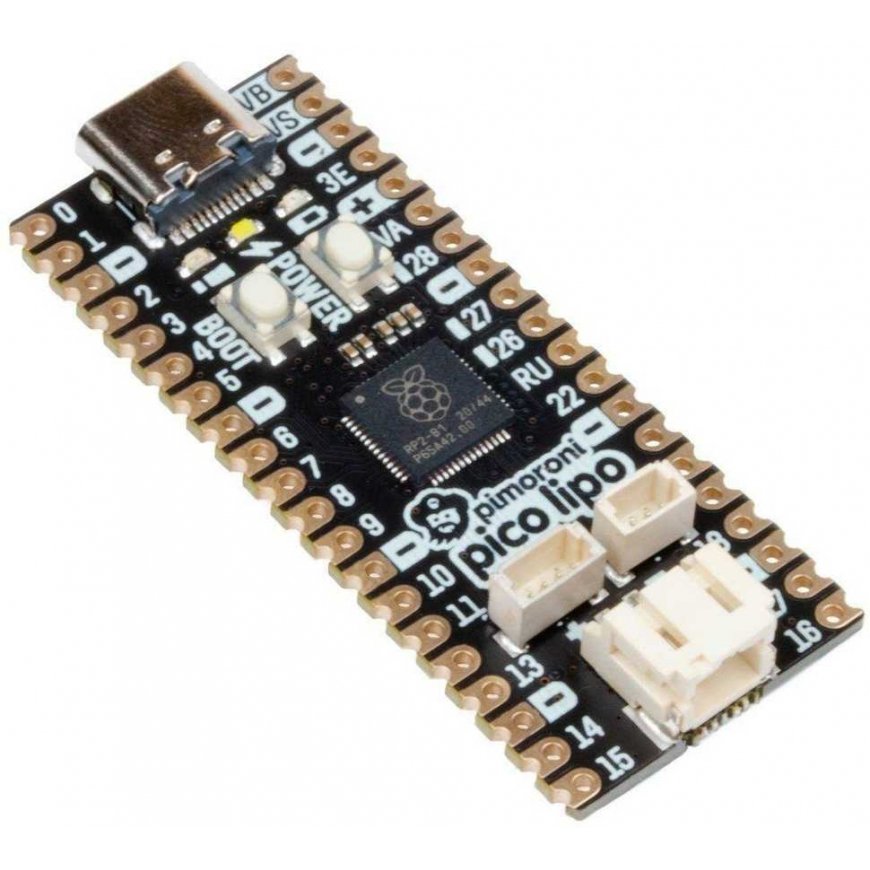

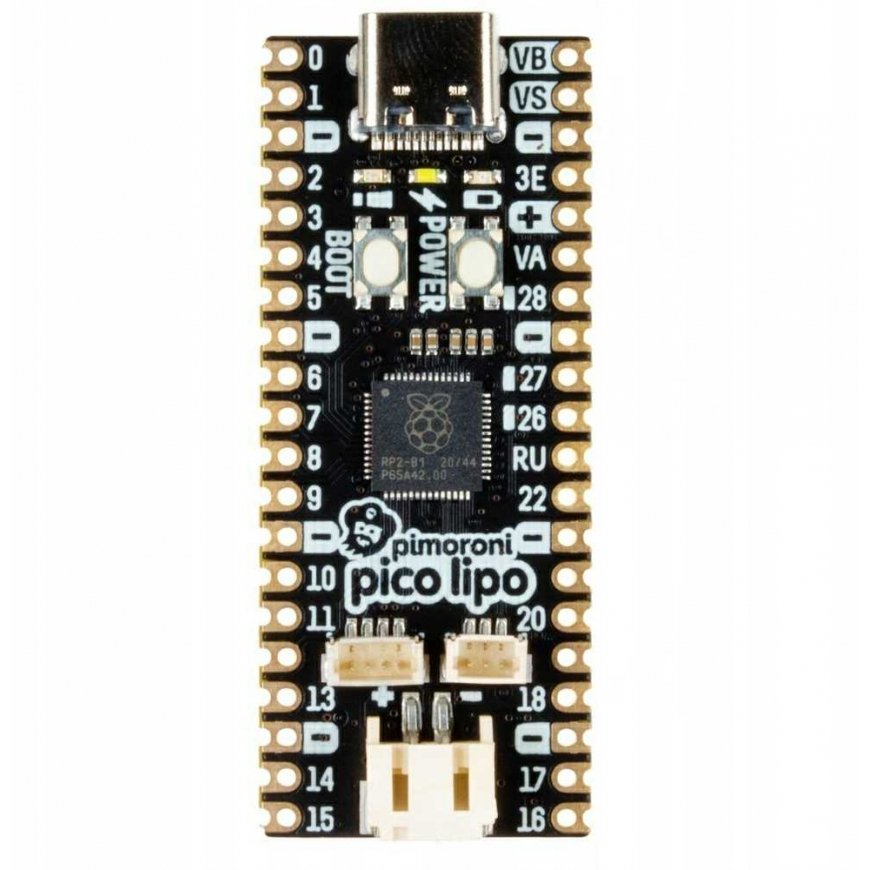

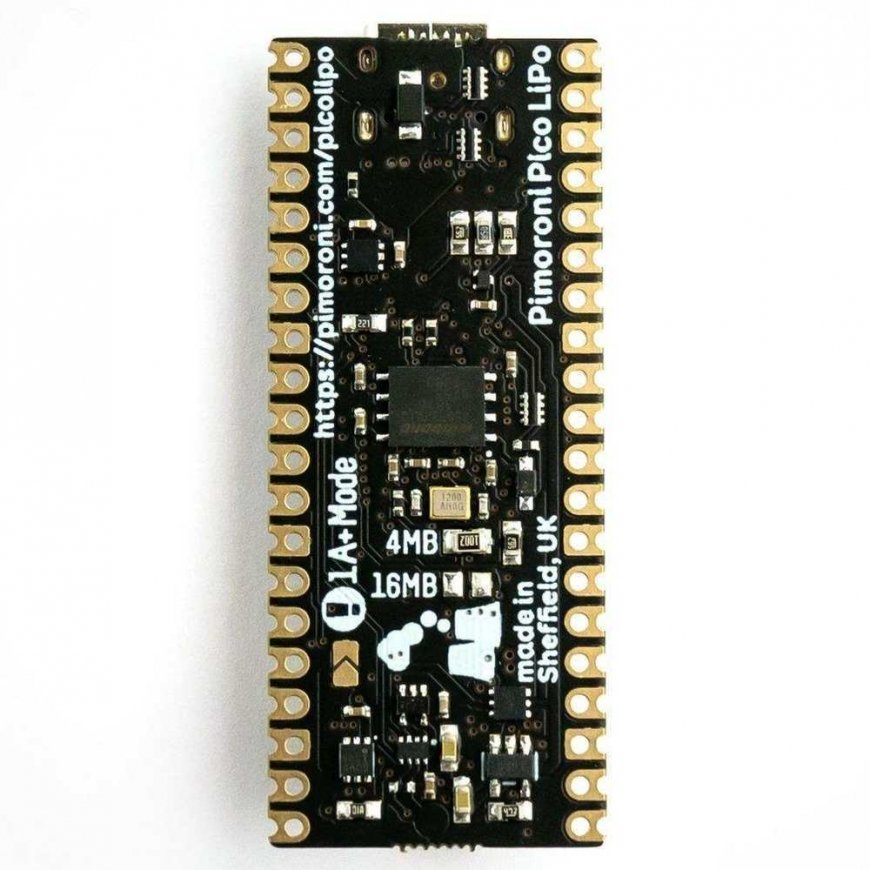

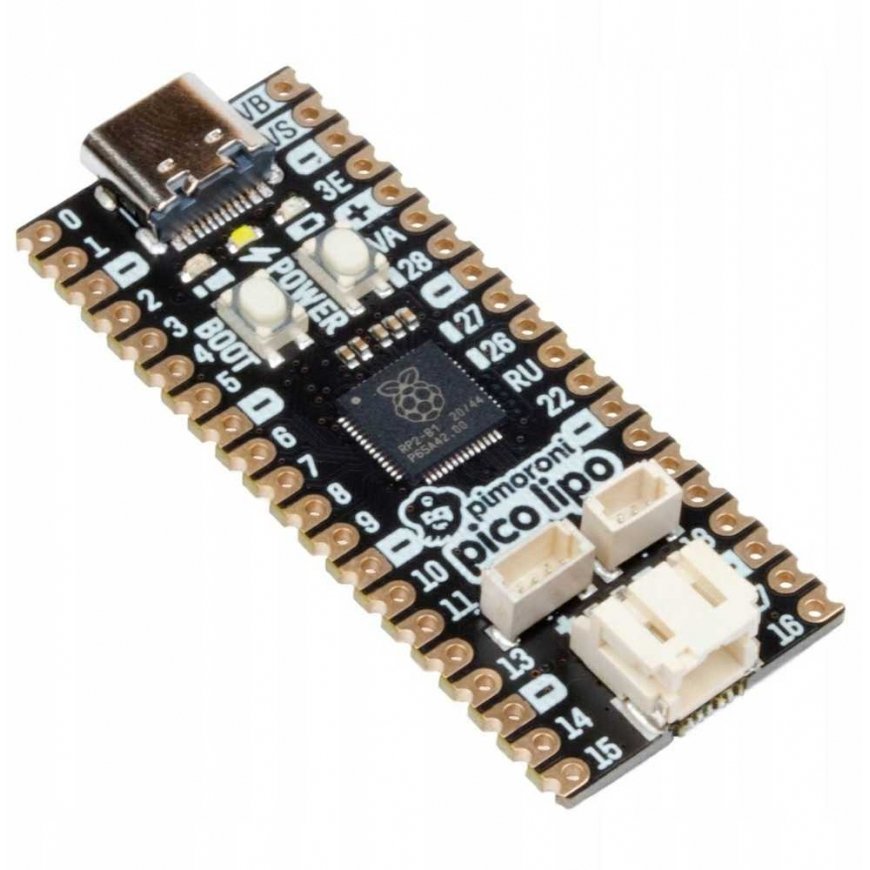

Pico Lipo is a board manufactured by Pimoroni with a high-end Raspberry Pi RP2040 microcontroller. Pico LiPo offers a lot of flash memory (4 MB), USB Type-C, STEMMA, QT/Qwiic connectors, as well as a debug connector (JST-SH) and a built-in Li-Pol battery charger chip.Specifications:
- Powered by RP2040 microcontroller
- Processor: Dual ARM Cortex M0+, operating at up to 133 MHz
- 264 kB SRAM memory
- 4 MB QSPI flash memory with XiP support
- Battery charger MCP73831 with 215 mA charging current
- Battery protection: XB6096I2S
- USB-C connector for power, programming and data transfer
- 4-pin Qw-ST connector (Qwiic / STEMMA QT)
- 3-pin matching connector (JST-SH)
- 2-pin JST PH battery connector with polarity marked on the board
- Primary input switch (acts as DFU selection during startup)
- Power button
- Power, charging and user LED indicators
- Built-in 3.3 V regulator (maximum output current 600 mA)
- Input voltage range from 3 V to 5.5 V
- Compatible with add-ons for Raspberry Pi Pico
- Dimensions: approx. 53 mm x 21 mm x 8 mm (length x width x height, including connectors)
