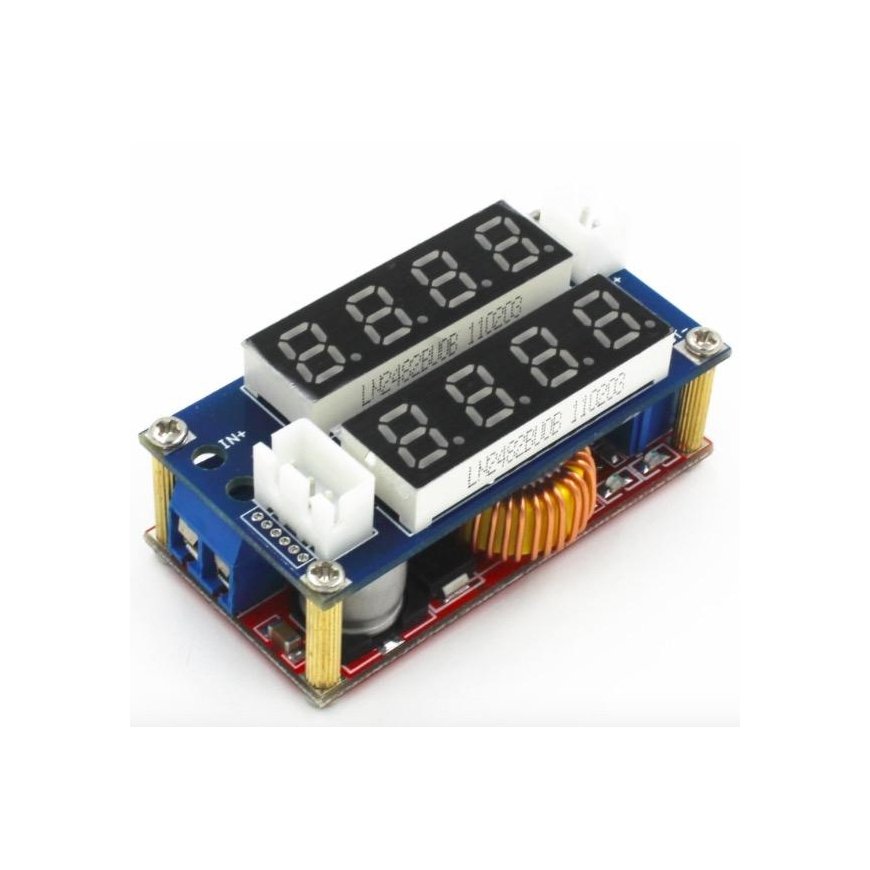

DC/DC voltage converter from 5V-30V to 0.8V-29V 5A + Volt/ampere (STEP DOWN)
3611305 AS0121
4779044511648
Shipping 12-19 b.d.
All about the product
Item Description:
- 100% Brand new and high quality.
- non-isolated constant current and voltage module
- Rectification: non-synchronous rectification
- Input voltage: 5V-30V
- Output voltage: 0.8V-29V
- Output current: adjustable maximum 5A
- Conversion efficiency: 95% (the highest)
- Switching frequency: 300KHz
- Output ripple: 50mV (max) 20M bandwidth
- Load Regulation: ± 0.5%
- Voltage Regulation: ± 2.5%
- Operating Temperature: -40℃ to +85℃
- Size: 51 * 26.3 * 14 (L * W * H) (mm)
Voltmeter Ammeter:
- Measurement accuracy: 0.1%
- Refresh rate: about 200ms / times
- Display: 0.28" digital tube
- Current Range 0A-5A
-Voltage range 5V-30V
- Display Color Red
- Storage Temperature: -10℃ to +65℃
- Input impedance: 50 milliohms
