FireBeetle ESP32-E, IoT WiFi, Bluetooth, Compatible with Arduino, DFRobot DFR0654
29.00 €
3611298 AN-19015
5904422361525
Shipping 11-18 b.d.
You are interested in this product?
All about the product

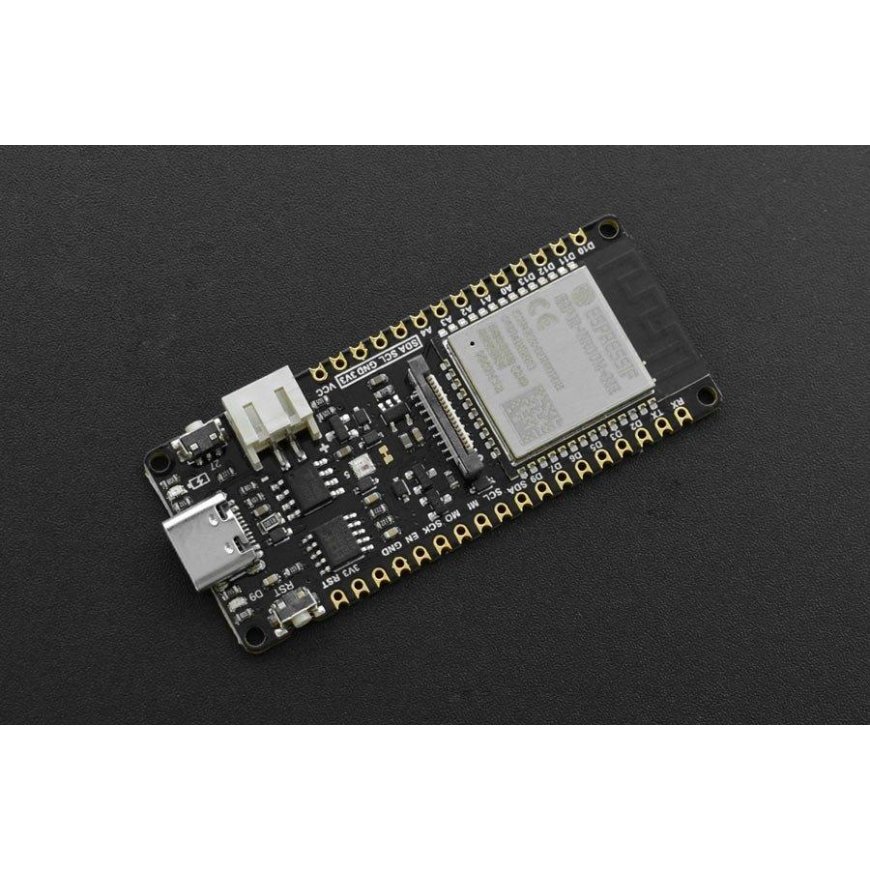

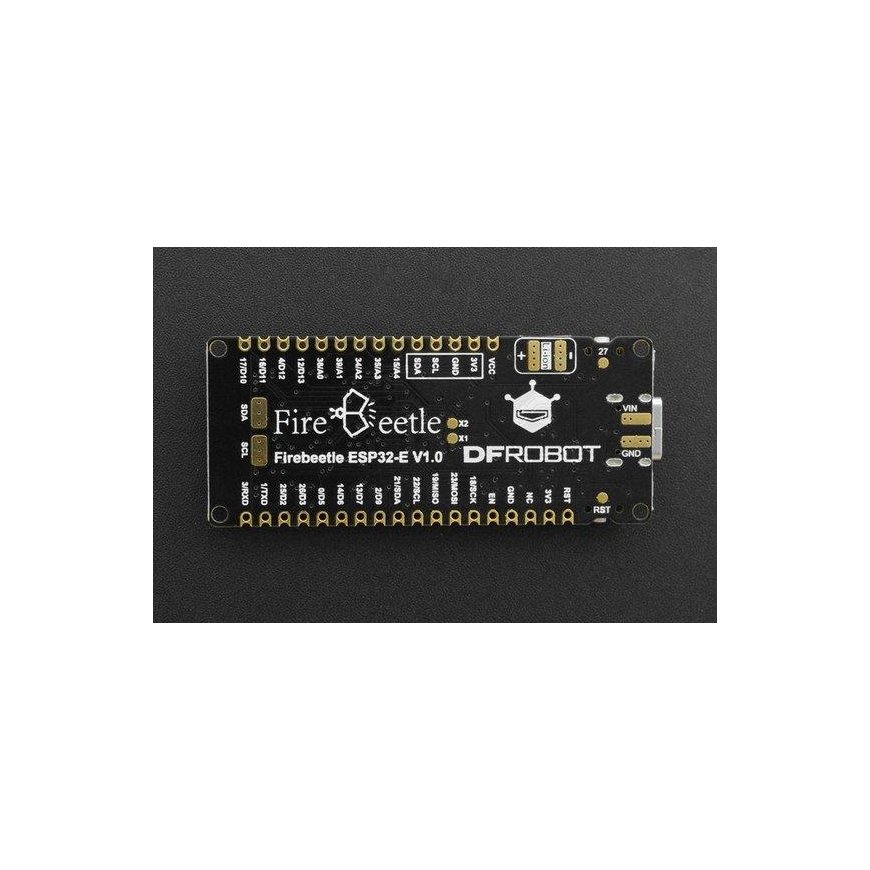

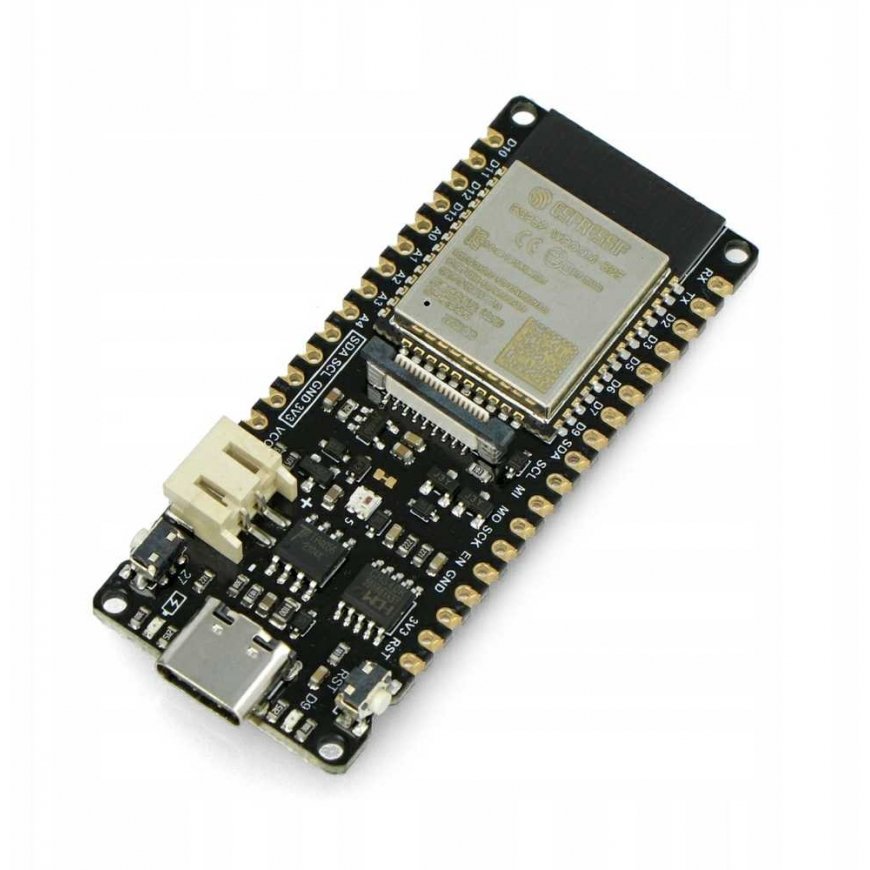

The FireBeetle ESP32-E microcontroller is compatible with the FireBeetle V2 series modules and the Arduino board. It integrates a dual-core ESP-WROOM-32 module that supports MCU, WiFi and Bluetooth communication. The processor clock is 240 MHz, the Flash memory is 4 MB, and the SRAM memory is 520 kB. Also, a USB Type-C connector and a GDI connector have been added to the board to connect a display. The operating status of the FireBeetle ESP32-E is indicated by built-in RGB LEDs.Main features:
- Compatible with the FireFeetle V2 product series from DFRobot
- Works with Arduino board
- Equipped with a dual-core ESP32-E processor
- GDPI connector for convenient display connection
- Chip: ESP-WROOM-32
- Processor:
- Tensilica LX6 dual core
- Clock speed: 240 MHz
- Flash memory: 4MB
- SRAM memory: 520 kB
- WiFi standard: 802.11 b/g/n/d/e/i/k/r
- Supported frequency range: 2.4 GHz to 2.5 GHz
- Bluetooth protocol: compliant with Bluetooth v4.2 BR/EDR and BLE standards
- Connector: USB Type-C
- USB charging supported
- USB to UART converter: CH340K
- Supply voltage: 3.3V/5V
- Power consumption: 10 µA
- Pinouts:
- Analog pins - x5
- Digital pins - x10
- UART - x1
- I2C - x1
- SPI - x1
- GDI - x1

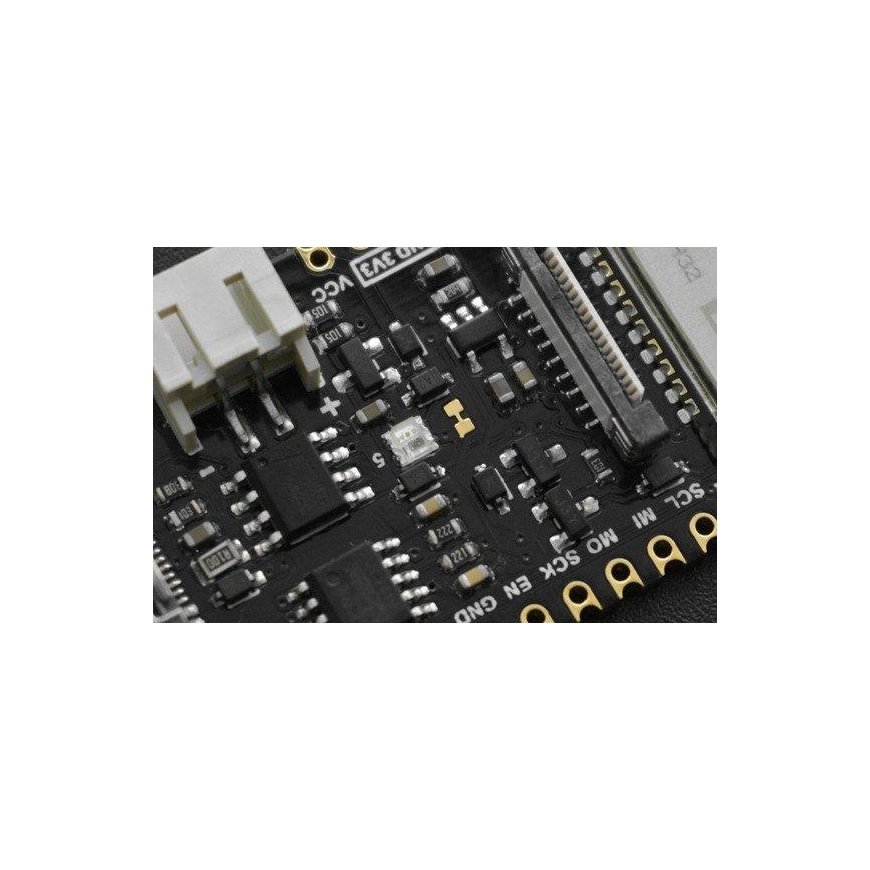

- Signaling: built-in RGB LEDs
- Connectors compatible with FireBeetle V2 series
- Operating temperature range: -40°C to 85°C
- Mounting hole size: 2 mm
- PCB dimensions: 25.4 x 60 mm
- Weight: 23 g

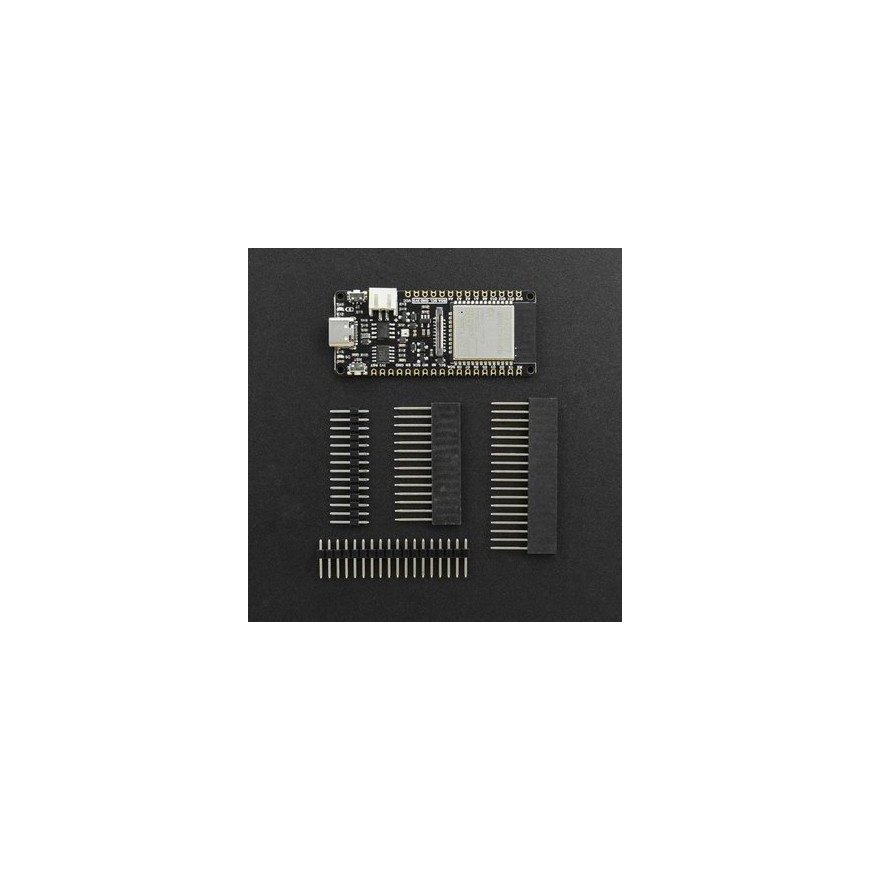

- FireBeetle ESP32-E board
- 1x14 pin straight socket - 2.54 mm
- 1x18 pin straight socket - 2.54 mm
- 1x14 pin connector - 2.54 mm
- 1x18 pin connector - 2.54 mm
