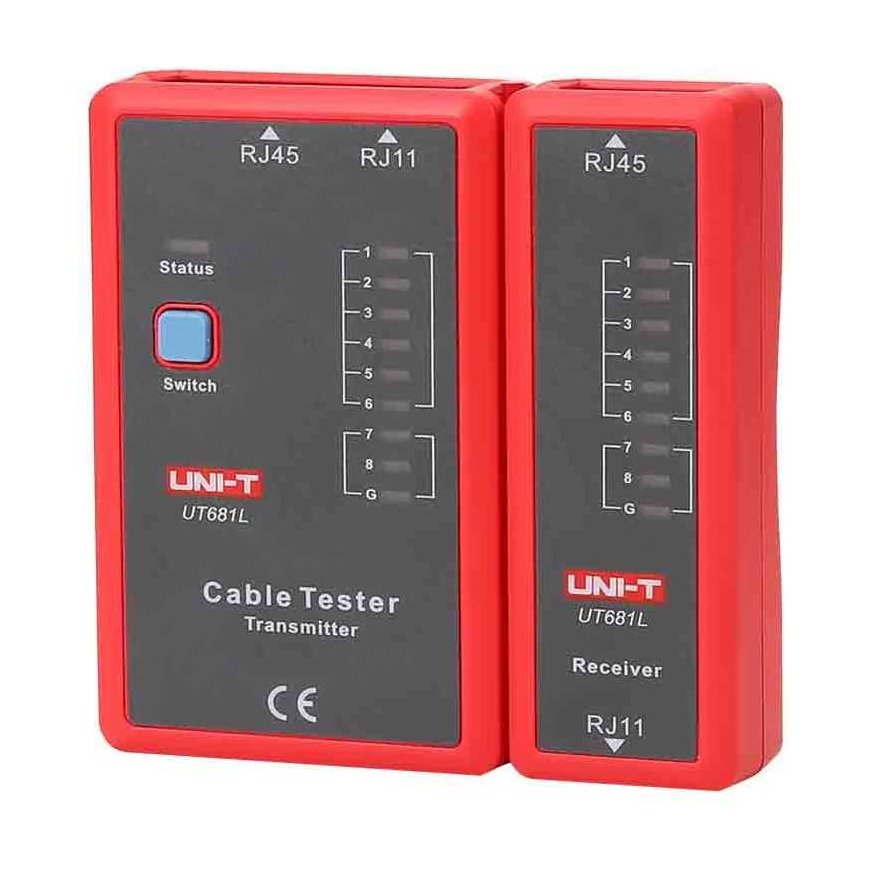

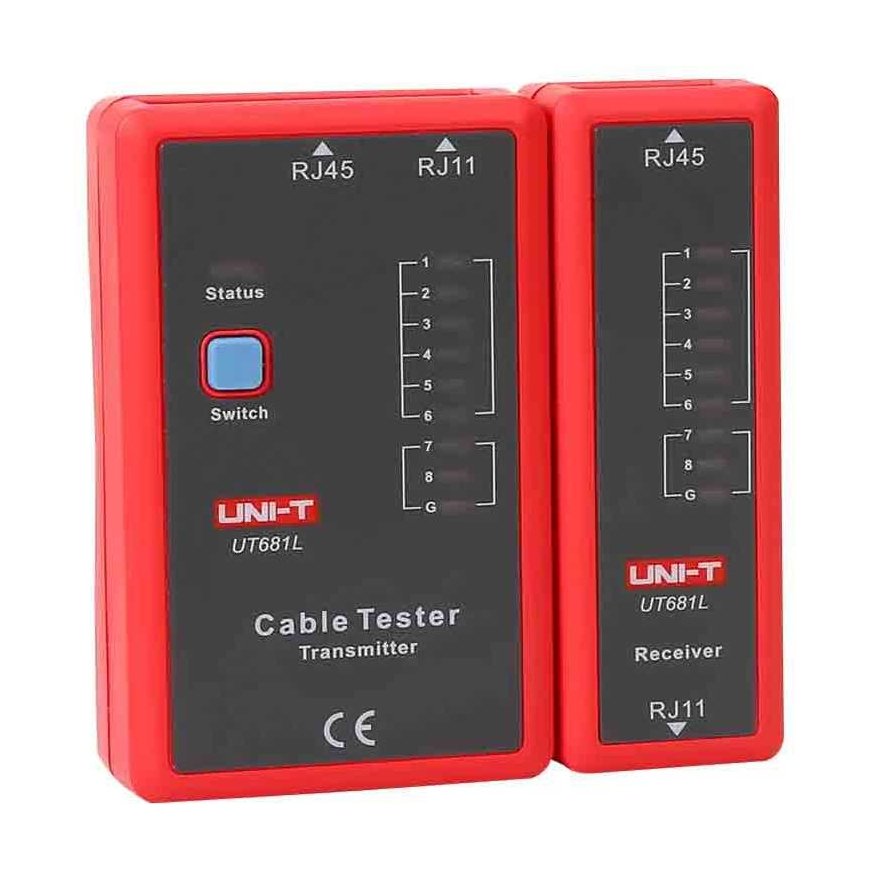

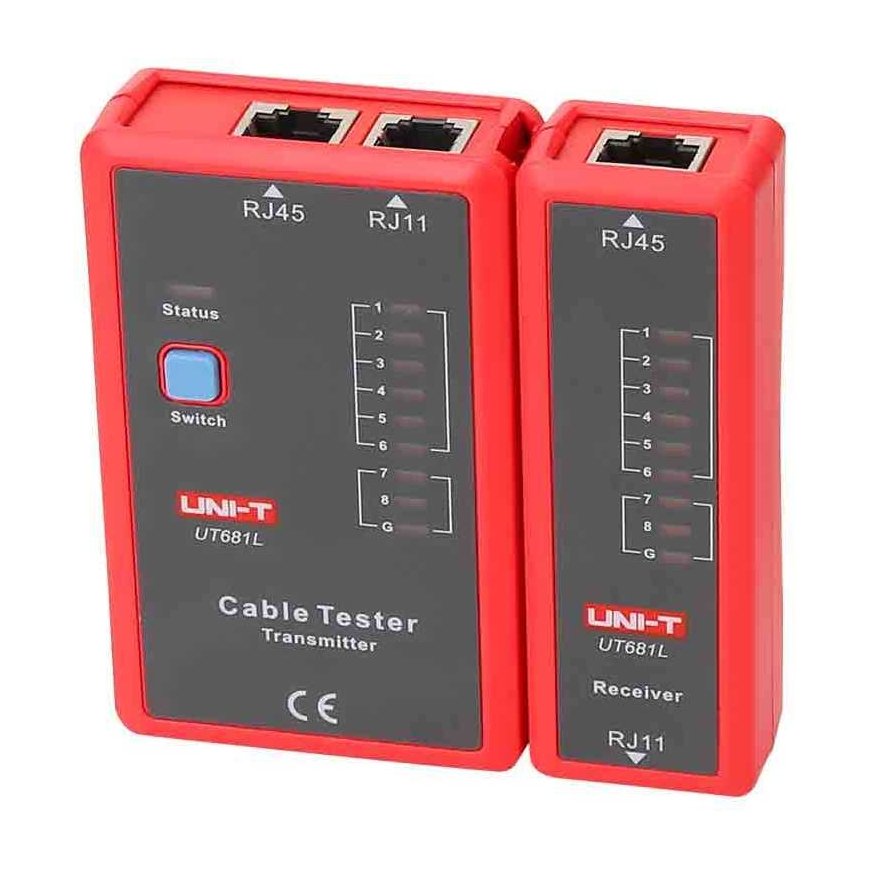

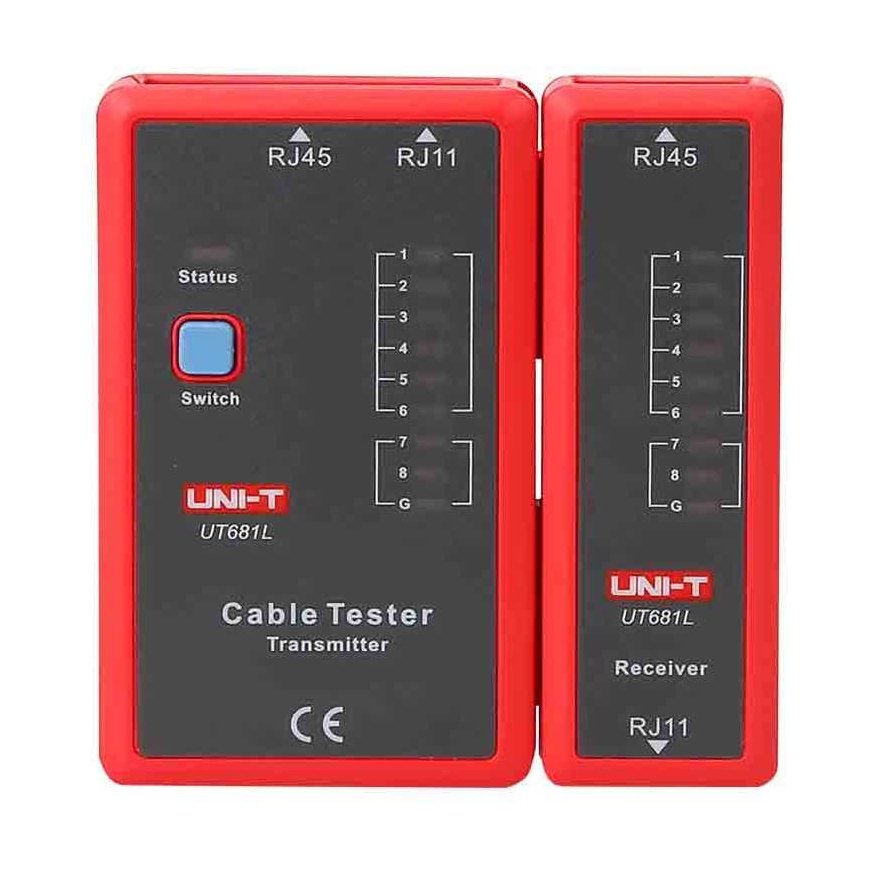

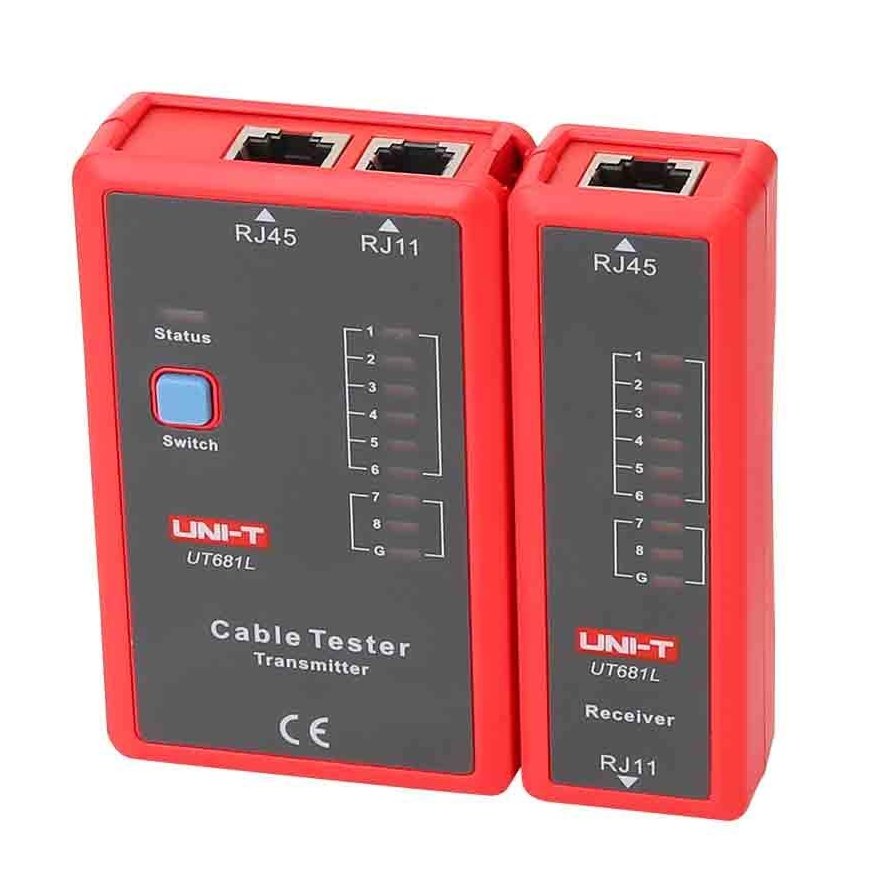

Computer network cable tester RJ45+RJ11 UT681L UNI-T
3611157 UT681L
6935750568132
Shipping 3-5 b.d.
UT681 Series Cable Testers
UT681 series handheld cable testers can quickly check Ethernet/telephone/NC/HDMI cables for continuity, short circuit, cross-over or open circuit. They are ideal tools for technicians who want to install, maintain and test low current circuits.
UT681 series models: UT681L, UT681C, UT681HDMI
Features of UT681 series cable testers
Certificates: CE, UKCA
● LED status display
● Automatic open/short/cross circuit checking
● One-key operation
● Manual/automatic power off (after 10 minutes of inactivity)
● Low battery indication
● Powered by 9V battery
UT681 Series Cable Tester Specifications
Specifications | Range | UT681L | UT681C | UT681HDMI | Description |
Test function | Explore: RJ45/RJ11 | √ | |||
Explore: RJ45/RJ11/BNC | √ | Need to use RJ45 to BNC adapter | |||
Explore: HDMI/MINI-HDMI | √ | ||||
Quick test mode | √ | √ | LED1~LED8, LED_G | ||
Slow test mode | √ | √ | LED1~LED8, LED_G | ||
Scan test mode | √ | LED1~LED19, LED_S | |||
Full screen test mode | √ | LED1~LED19, LED_S | |||
Check for short circuits, cross connections, open circuits, etc. | √ | √ | √ | ||
Ethernet cable: shielded/unshielded test | √ | √ | √ | ||
Manual shutdown function | √ | √ | √ | ||
Auto power off function | √ | √ | √ | If the device is not used for 10 minutes, it will automatically turn off. | |
One-key control | √ | √ | √ | ||
Power source: 9V battery | √ | √ | √ | ||
Low battery detection | √ | √ | √ | Less than 7.2V | |
Application environment | Operating temperature: 0~40℃ | √ | √ | √ | |
Storage temperature: -10 ~ 50℃ | √ | √ | √ | ||
Operating humidity: 20 ~ 80% RH | √ | √ | √ | ||
Storage humidity: 10 ~ 90% RH | √ | √ | √ | ||
Altitude: ≤2000 meters | √ | √ | √ | ||
Safety standard | CE EN61326-1: 2013; EN61326-2-2: 2013 | √ | √ | √ | |
General characteristics | |||||
Product color | Red and gray | ||||
Product net weight | Transmitter: 87g; Receiver: 51g | ||||
Product size | Transmitter: 102 mm x 62 mm x 28 mm; Receiver: 102 mm x 37 mm x 28 mm | ||||
Standard accessories | 9 V battery, BNC and RJ45 adapter (UT681C) | ||||
Standard individual packaging | Gift box, English manual | ||||
Standard quantity per box | 40 pcs. | ||||
Standard cardboard box measurement | 455mm x 410mm x 225mm | ||||
Standard gross weight of a carton box | UT681L: 6.4 kg; UT681C: 8.7 kg; UT681HDMI: 9.5 kg | ||||
