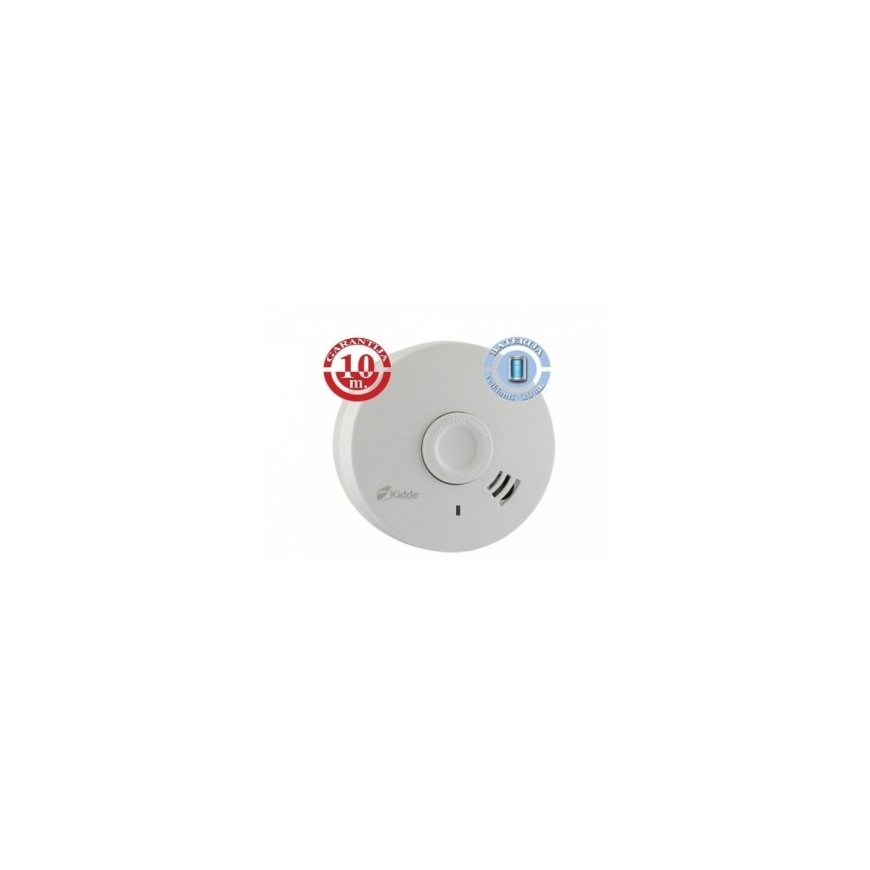

Kidde 10Y29 Fire and Smoke Detector
3610963 Kidde-10Y29
0047871298365
Shipping 12-16 b.d.
All about the product
Kidde 10Y29 Fire and Smoke Detector with 10 Year Warranty
Optical (photoelectric) smoke and fire detector, powered by a lithium battery (built-in, non-replaceable), which guarantees power supply to the device for more than 10 years.
This fire alarm has been designed with a small, compact and modern design. The detector has a combined button with the TEST & HUSH™ function, which is designed to both test and verify that the device is working properly, and to temporarily silence the detector in the event of a false alarm. The device's sensor is designed to constantly monitor the air for smoke. Thanks to the innovative photoelectric detection technology and the use of a NANOWAX conformal layer, which protects the device's electronics even in very humid environments, the detector can be installed near the kitchen or bathroom.
5 steps to safety
Loud alarm clock!
In the event of a fire, the detector automatically activates a loud 85 dB siren signal , accompanied by a flashing red LED, signaling a fire alarm.
When the combination button is pressed during the alarm, the HUSH function (temporary alarm sound silencing) is activated for approximately 10 minutes . After the time interval has elapsed, the detector will fully automatically reset to its original settings to monitor the fire hazard.
10-year lifespan
Battery operation allows for quick and easy installation and ensures proper smoke and fire alarm operation for 10 years from activation . The power battery is activated after the detector is first inserted into the mounting bracket.
After 10 years of protection and with 30 days remaining, the device will warn of the end of its service life and automatically alert you to the need to replace it.
The fire detector is equipped with a special lock that protects against unwanted disassembly of the device by children or third parties .
Approval of new buildings
The Kidde 10Y29 fire detector uses modern photoelectric (optical) sensing technology and is independently tested to meet all European standards. Of course, both the CE certificate and approval according to the ČSN EN 14604:2009 standard for installations according to Decree 268/2011 Coll. (formerly No. 23/2008 Sb.), on technical conditions for fire safety in buildings , which stipulates that each new building and designated building must be equipped with autonomous detection and alarm equipment.
At least one smoke detector should be installed on each floor of the house, in front of each sleeping area or right next to the bedrooms.
A working fire detector immediately warns of smoke or fire in the home, doubling the chances of each resident of the home surviving a fire.
Detector testing
The best way to test and maintain a functioning fire alarm sensor is with SAFE 220 spray test gas. This spray test gas checks that fire and smoke alarm circuits and systems are working reliably and actively searches for any smoke particles.
Advantages of the device
Kidde photoelectric (optical) smoke detection technology
Small and compact fire and smoke detector
Easy to install and operate
Wall or ceiling installation
TEST function – to check and verify that the device is working properly
HUSH function – temporarily silence the detector in case of alarm
Loud acoustic alarm with a volume of 85 dB
Battery life 10 years
Integrated lithium battery – no need to replace, the battery will provide power for the entire life of the device
Device end of life alarm
Minimal operating costs
10-year warranty on the device, including the power batteries
Product technical parameters
Sensor technology: Kidde optical (photoelectric) detection technology
NANOWAX coating protects the device's electronics from moisture
Power supply: 3V DC, one lithium battery (built-in)
Installation method: on the ceiling or wall (screws included)
Signaling: acoustic (85 dB siren) and optical (red LED indicator)
Operating temperature: from 0°C to +40°C
Operating humidity: up to 93% relative humidity, non-condensing
Storage conditions:
Temperature: -20°C - +60°C
Humidity: 5% - 95% RH non-condensing
Dimensions: diameter 104 mm, height 42 mm (with mounting bracket)
Weight with batteries: 0.20 kg
Approval: ČSN-EN 14604:2009
Markings: CE 2797-CPR-535595
Warranty: 10 years (device and battery)
