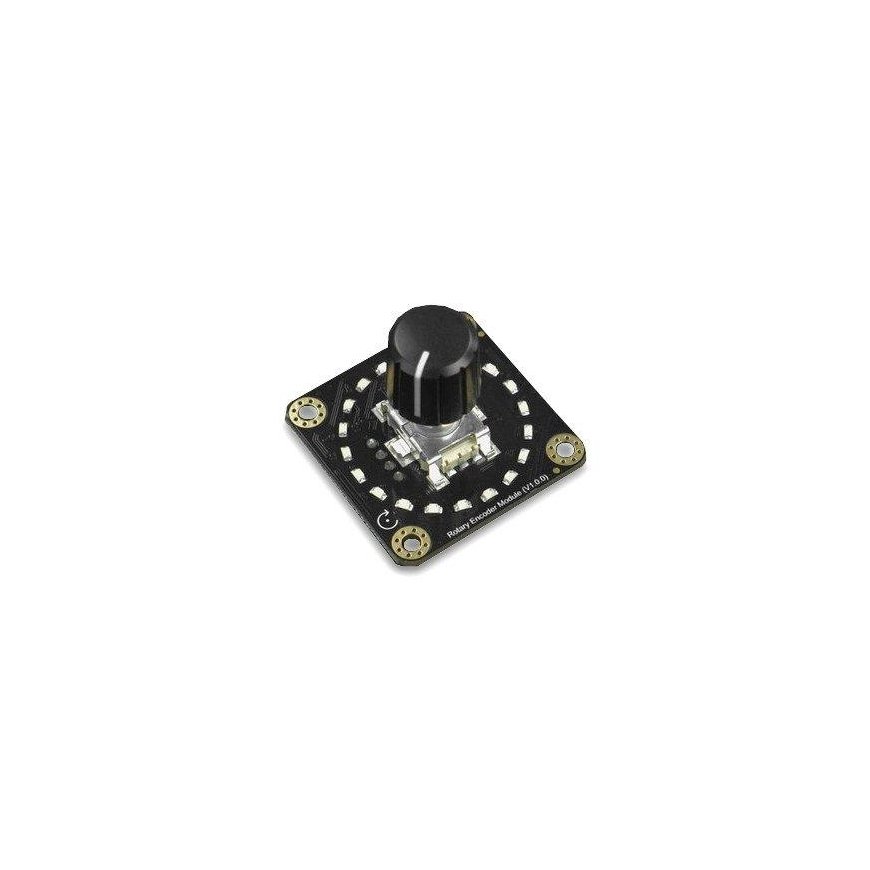

Gravity - 360 Degree Rotating Encoder Module - DFRobot SEN0502
23.55 €
3610757 AN-21480
6959420922277
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The DFRobot Gravity series product is in the form of a 360° rotating encoder module. The encoder resolution is 20 pulses per revolution, each pulse corresponds to one cycle. The board also has LEDs assigned to each encoding stroke, allowing you to visualize the encoding status in real time. The modules can be cascaded. For communication, they use an I2C interface with configurable precision from 1 to 51 for each encoding stroke.Main features:
- Cascade connection possible
- I2C data output
- Integrated LED indicator
- Support for 4 different I2C addresses
- Operating voltage: 3.3V to 5V
- Total rotation angle: 360°
- Number of pulses per revolution: 20
- Interface: two Gravity I2C connectors
- Maximum number of cascaded devices: 4
- Service life: 30000 ± 200 cycles
- Contact resistance: less than 100 mΩ
- Insulation resistance: above 100 MΩ
- Vibration: less than 10ms
- Operating temperature: -30 °C to 80 °C
- Accuracy: 1 to 51
- Minimum value set: 1 (1 LED lights up in 2.5 turns)
- Maximum set value: 51 (one LED lights up for 1 revolution)
- Memory: 0 to 1023

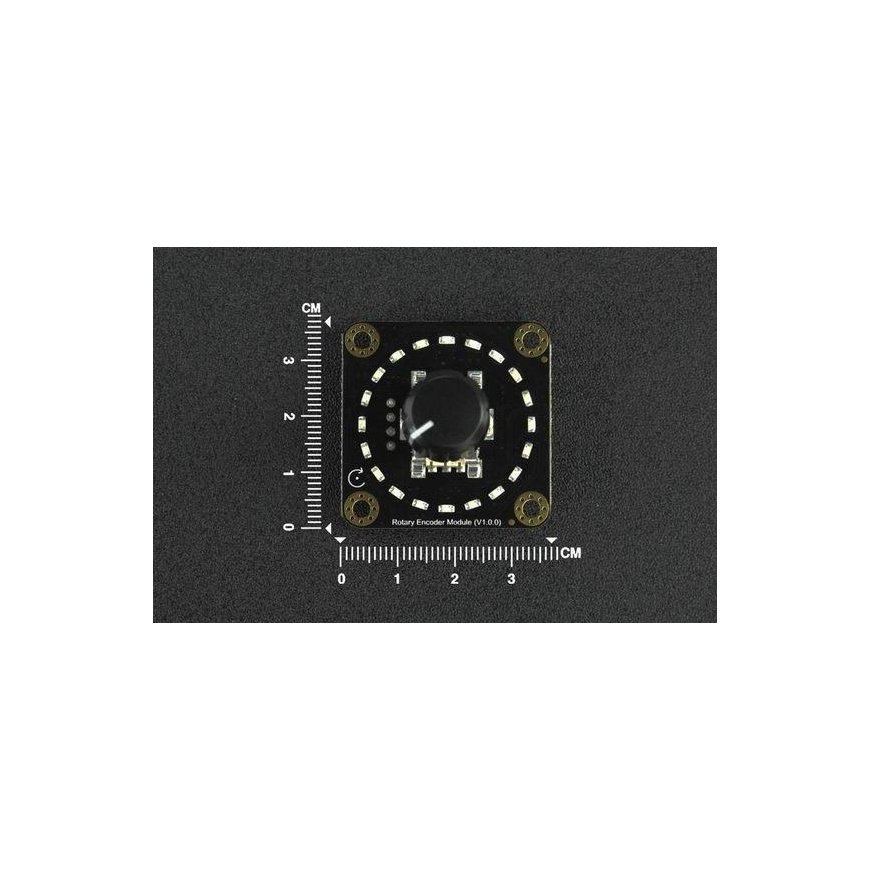

- Dimensions: 37 x 37 mm

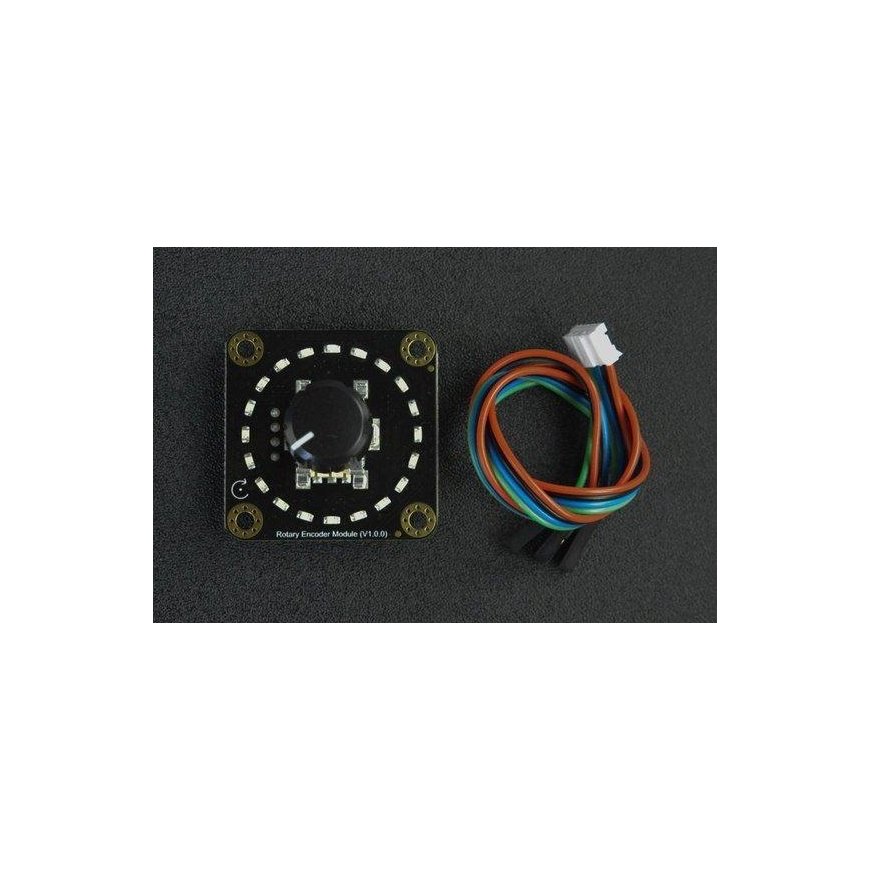

- 1x Gravity - 360 degree rotary encoder - DFRobot SEN0502
- 1x Gravity I2C/UART cable
