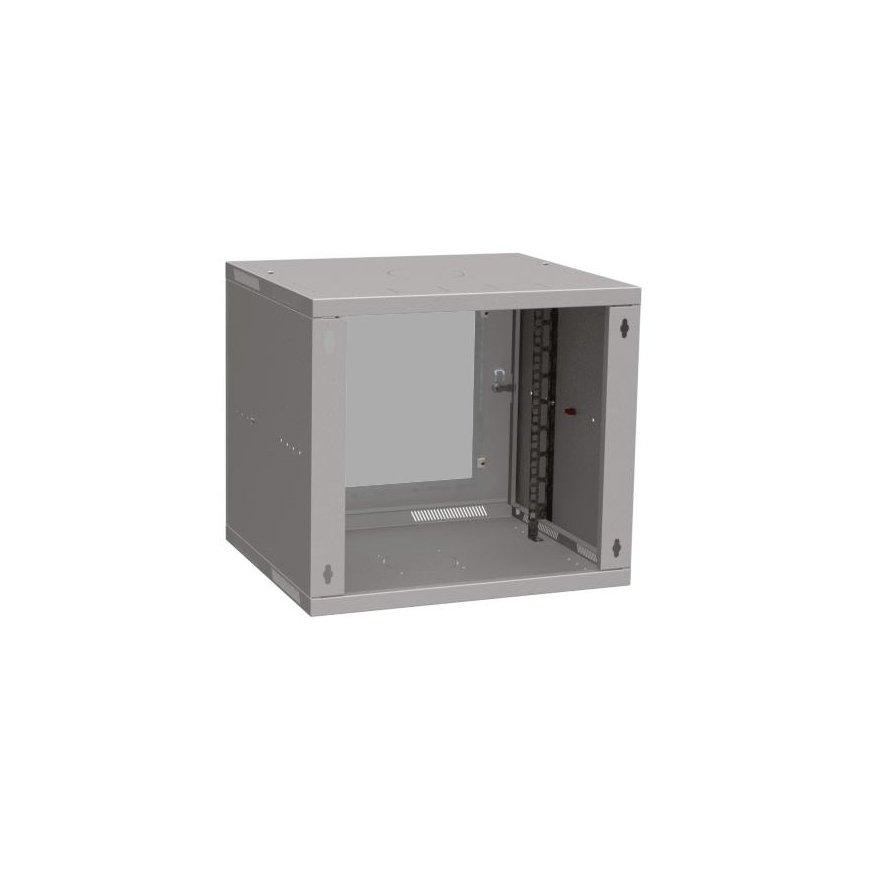

Solarix folding wall cabinet SENSA LITE 9U 450mm, glass door, RAL 7035 SENSA-L-9U-545-11-G
3609720 83000103
8595684713886
Shipping 9-13 b.d.
All about the product
Solarix SENSA-L-9U-545-11-G
Wall cabinet folding SENSA LITE 9U 450mm, glass doors, RAL 7035
Wall-mounted SENSA 9U folding cabinet with glass doors, depth 450 mm.
SENSA LITE distribution boards are foldable wall-mounted distribution boards, delivered disassembled. They are designed for the installation of data and telecommunications equipment, especially with mounting in a 19" plane. We have reduced the number of screw-on components to a minimum, which makes the cabinet assembly easy and fast. The cabinet body consists of an assembled frame, which consists of a perforated lid, bottom and two side parts. The door has a lock with two keys and hidden hinges. The upper and lower covers of the cabinet have perforations for easy ventilation of the internal equipment and for the possible installation of a separate fan. Cable entries, covered with knockout plugs, are located in the cabinet lid and bottom. The cabinet frame and all detachable parts are connected using the connecting grounding cables included in the kit.
Technical parameters:
| Height: | 9U |
| Height: | 490mm |
| Width: | 520mm |
| Depth: | 450mm |
| Mass: | 7 kg |
| Color: | RAL 7035 |
Available variants:
- Height: 6, 9, 12U
- Width: 520 mm
- Depth: 450 mm
Construction:
- folded skeleton with perforation
- doors made of sheet metal or with safety tempered glass (EN 12150-1)
- The door opens at an angle of 180°, the hinges are hidden, and you can choose to open it on the right or left side.
- cable openings in the lower and upper parts of the switchboard
- 19-inch vertical bars with the ability to position them in one of four depth levels in 30 mm increments
- 4 holes prepared on the back for mounting the switchboard to the wall
- grounding kit with grounding point
- load capacity 35 kg (with uniform static load)
- protection degree IP20
Color design:
- powder paint light gray RAL 7035
Standard configuration:
- one pair of sliding 19-inch vertical rails
- door with lock and hidden curtains
- perforations in the upper and lower parts of the body for easy ventilation
- prepared cable entries in the form of knockouts in the ceiling, bottom and sides of the cabinet
- The delivery includes a set of connecting and grounding materials and assembly instructions
Accessories:
A wide range of accessories can be ordered for the cabinet, such as opening panels, binding panels and many others, including special accessories according to the customer's request.
