DFRobot Gravity non-contact liquid level sensor
29.00 €
3609047 AN-06931
5903351243384
Shipping 11-18 b.d.
You are interested in this product?
All about the product

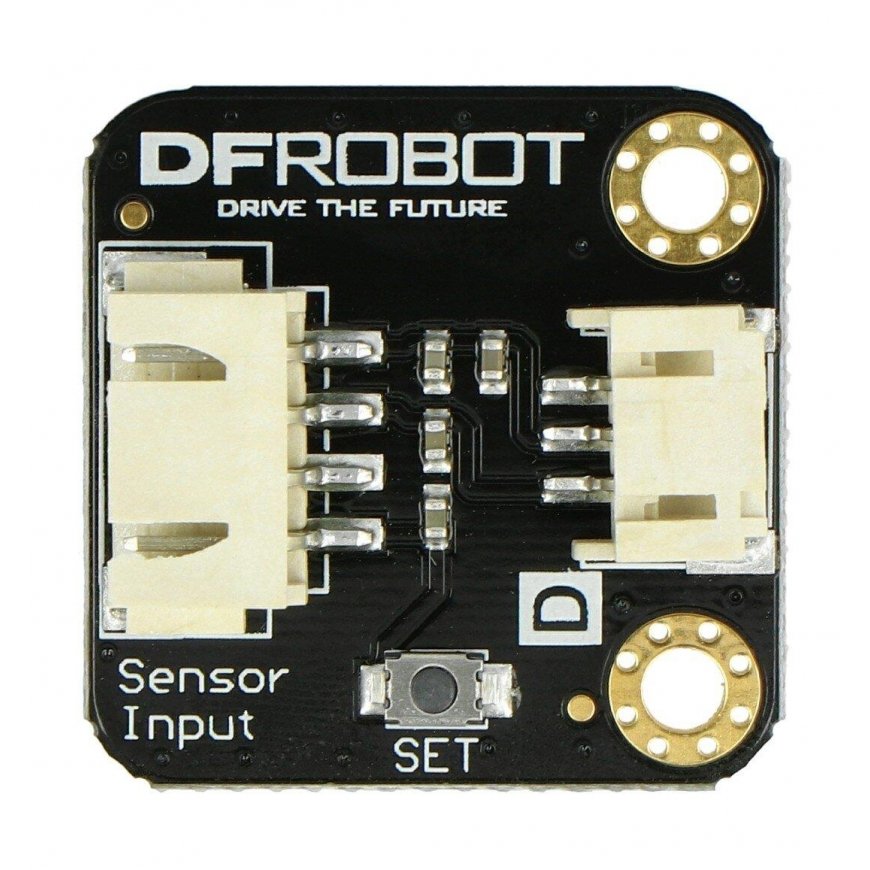

The sensor detects the liquid level without being in the liquid itself. Since it does not have contact with the liquid, the sensor is suitable for working with hazardous materials, such as acid or other toxic substances, as well as high-pressure containers. It has 4 configurable sensitivity levels, which are set using the SET button.
Specifications:

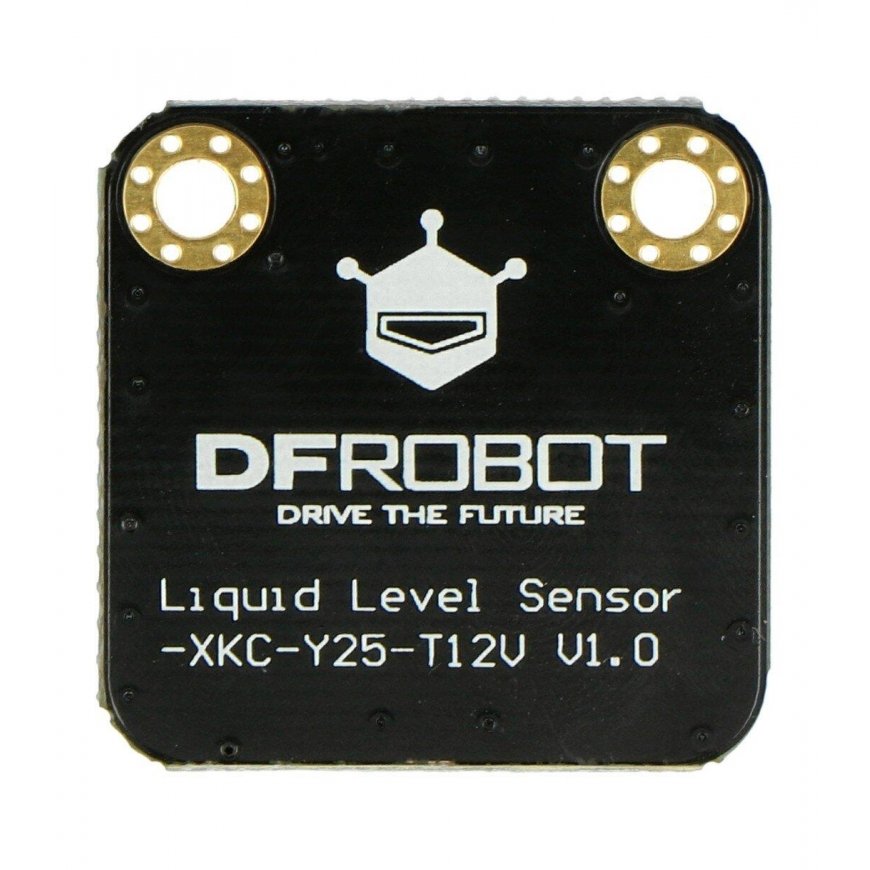

- Chip: XKC-Y25-T12V
- Supply voltage: 5 V to 24 V
- Output current: 50 mA
- Operating temperature: -25 °C to 105 °C
- Low level output: 0 V
- High level output: VCC
- Response time: 500 ms
- Material: ABS
- Induction measurement range: 0 mm to 13 mm
- Cable length: 450 mm
- Communication: digital signal 0/1
- Dimensions: 28 x 28 mm

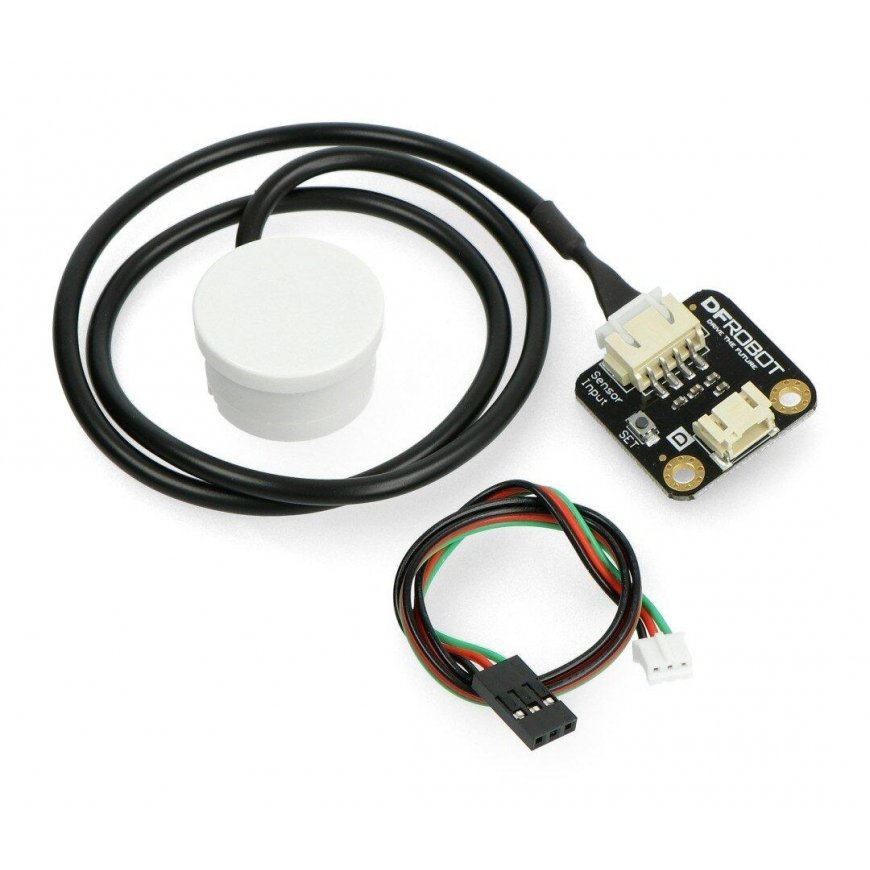

In the package:
- Probe x1
- Connecting cable x1
