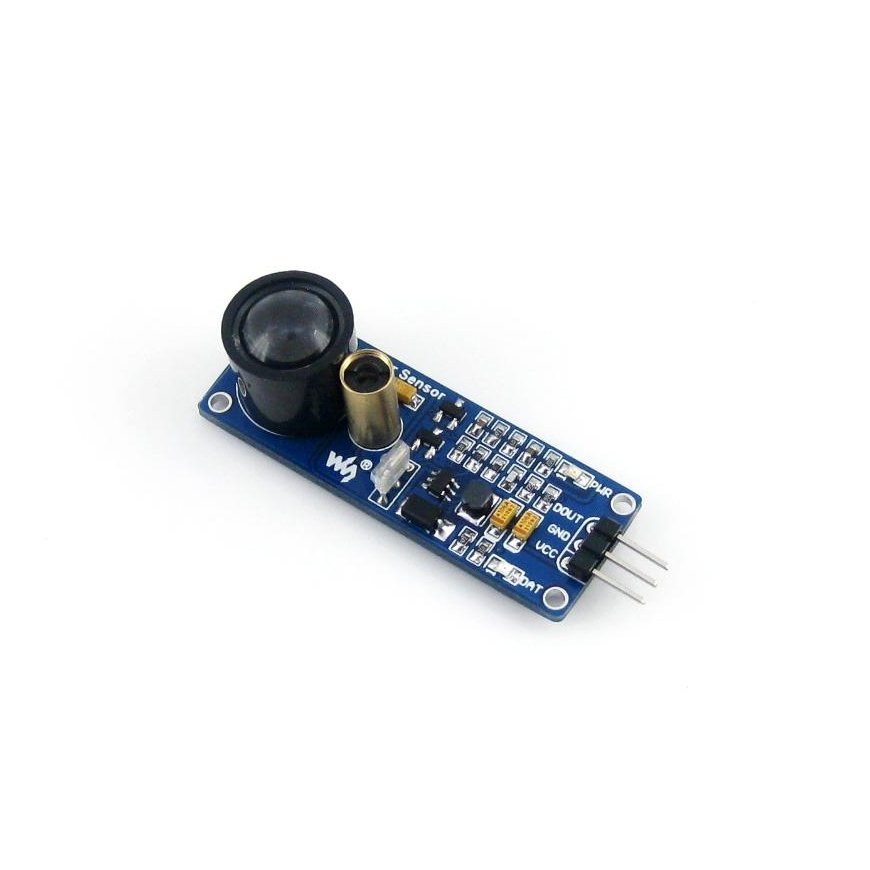

Waveshare Laser Sensor
3608438 AN-04454
5904422365820
Shipping 11-18 b.d.
All about the product
Laser obstacle detection module. Laser beams exit the module's transmitter, bounce off the surface, and return to the receiver. The signal is activated when a surface reflecting the laser beams appears within the measured distance, and the indicator light on the module lights up.
Technical data:
● Measuring distance: 0.8 m (typ.), 1.5 m (max.)
● Supply voltage: 2.5V ~ 5.0V
● Dimensions: 47.7mm * 17.9mm
● Mounting hole size: 2.0mm
● Signal type: digital
● Connectors: VCC, GND, signal
References and application:
● Obstacle-avoiding robot
● Line walking robot
● Wiki page
