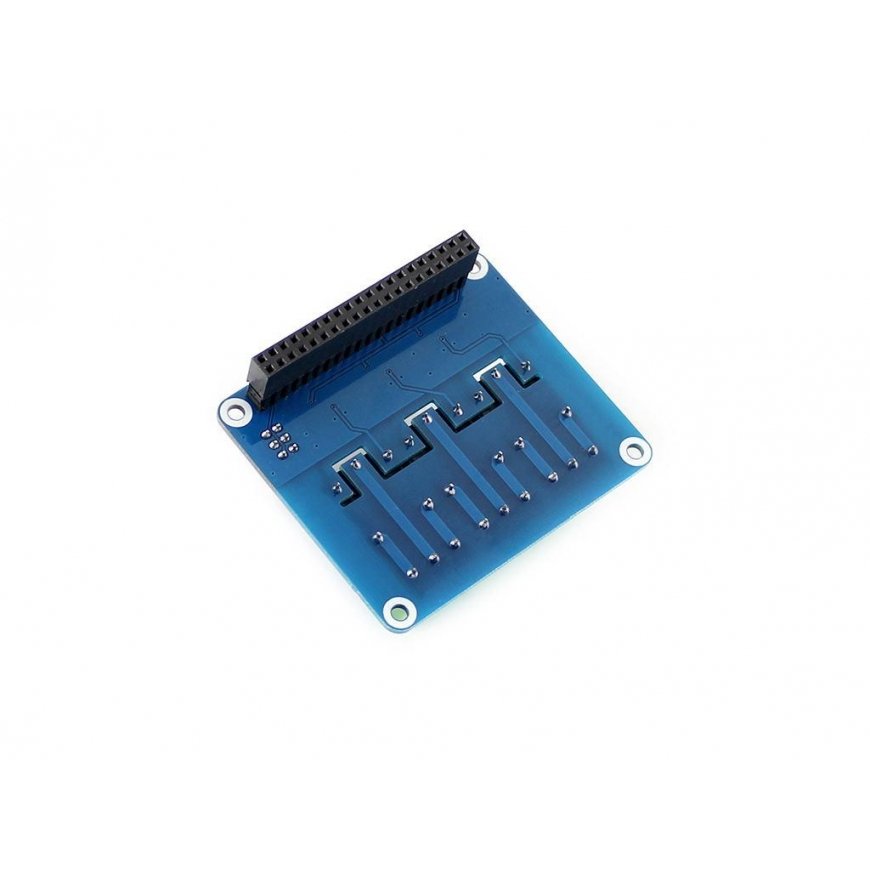

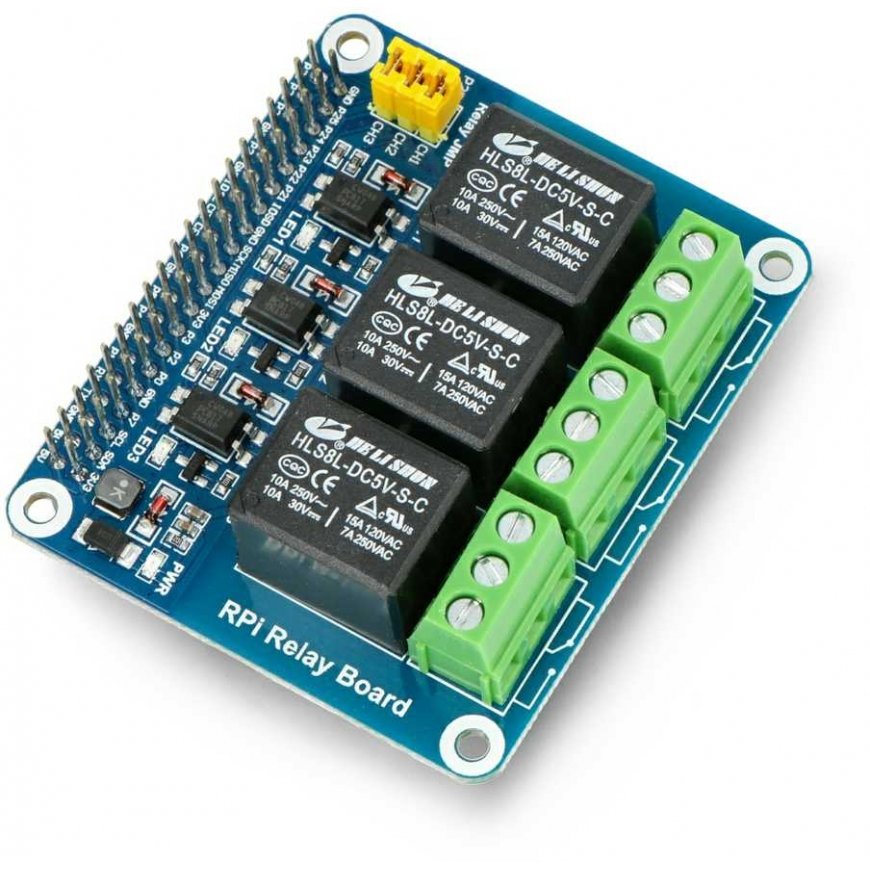

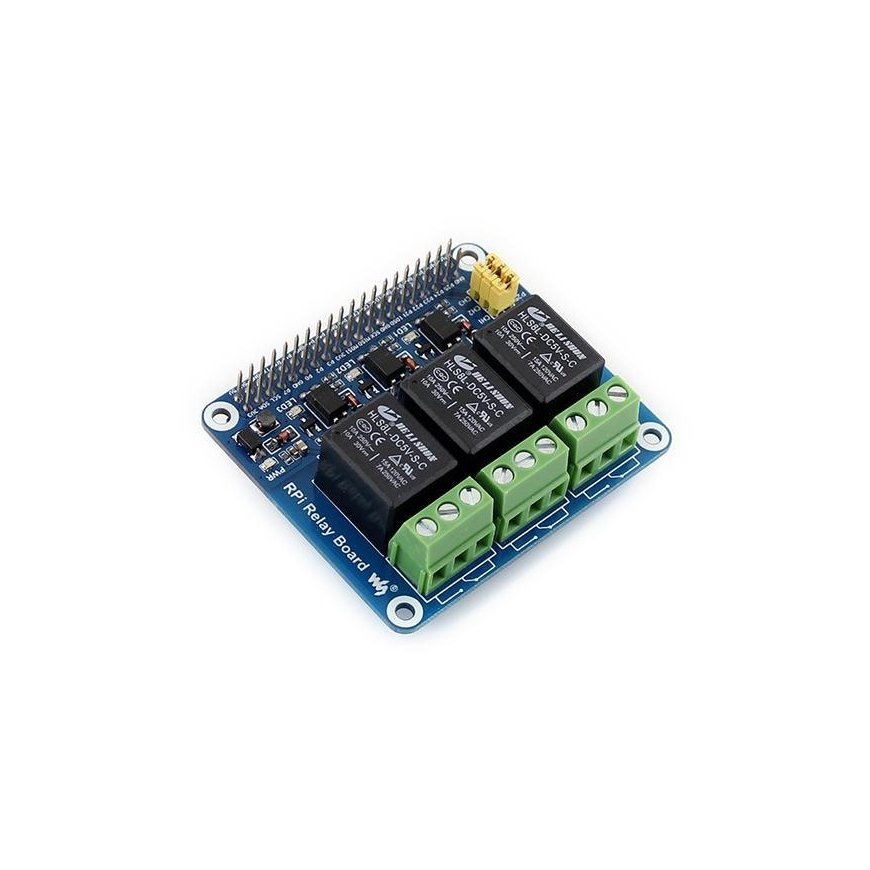

Waveshare Raspberry Pi Relay Board - 3 Channels
3605012 AN-06804
5904422371753
Shipping 11-18 b.d.
All about the product
Do you want to control your home electrical appliances using Raspberry PI? With the Raspberry Pi Relay Board - 3-channel relay module, you can do just that and automate your home. It is suitable for Raspberry PI microcontrollers, the module uses high-quality electrical components, so it can control high-current and high-voltage home electrical appliances.
The module has many additional functions: LED lights indicate the operating status of the relays and the board, physical connections (jumpers) allow you to change which Raspberry digital signal connection (pin) changes the state of the relay, the control board is specially isolated from the noise caused by the alternating current passing through the relays, so the Raspberry PI control signal will be stable.
The user manual contains many examples of control code: wiringPi, bcm2835, python, python-bottle, crontab.
Technical data:

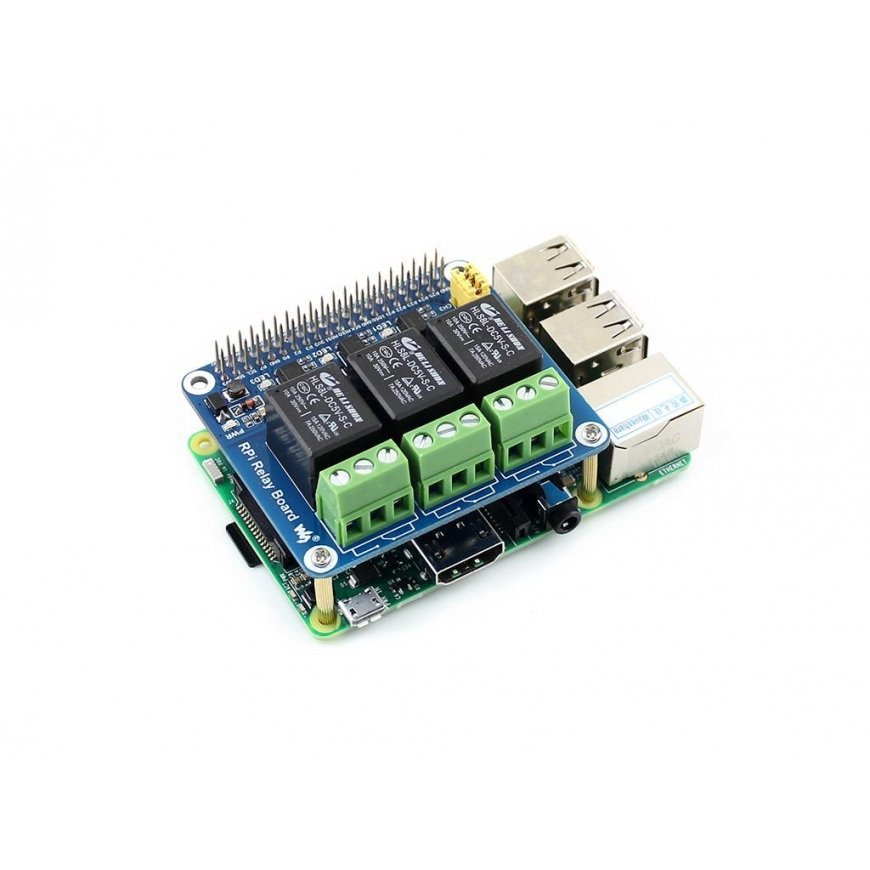

● Suitable for Raspberry PI A+/B+/2B/3B/4
● Relay controlled current: up to 250V 5A AC, or 30V 5A DC
● 3 relay channels
References and application:

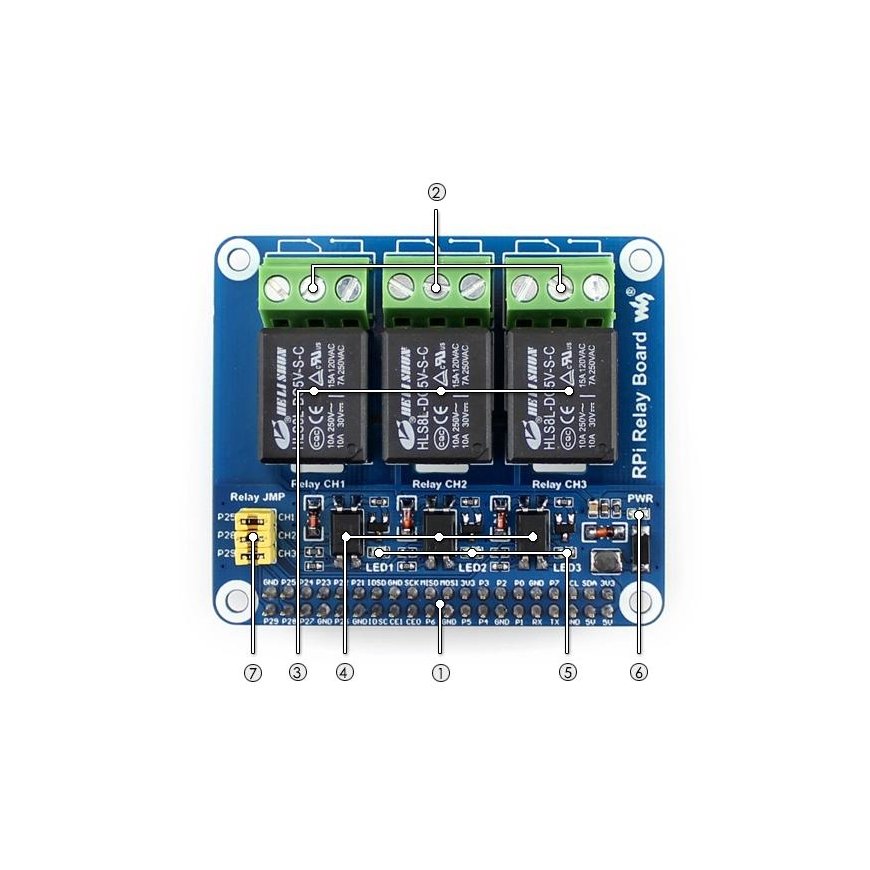

● Connector layout
● Control code example
● Device Wiki
