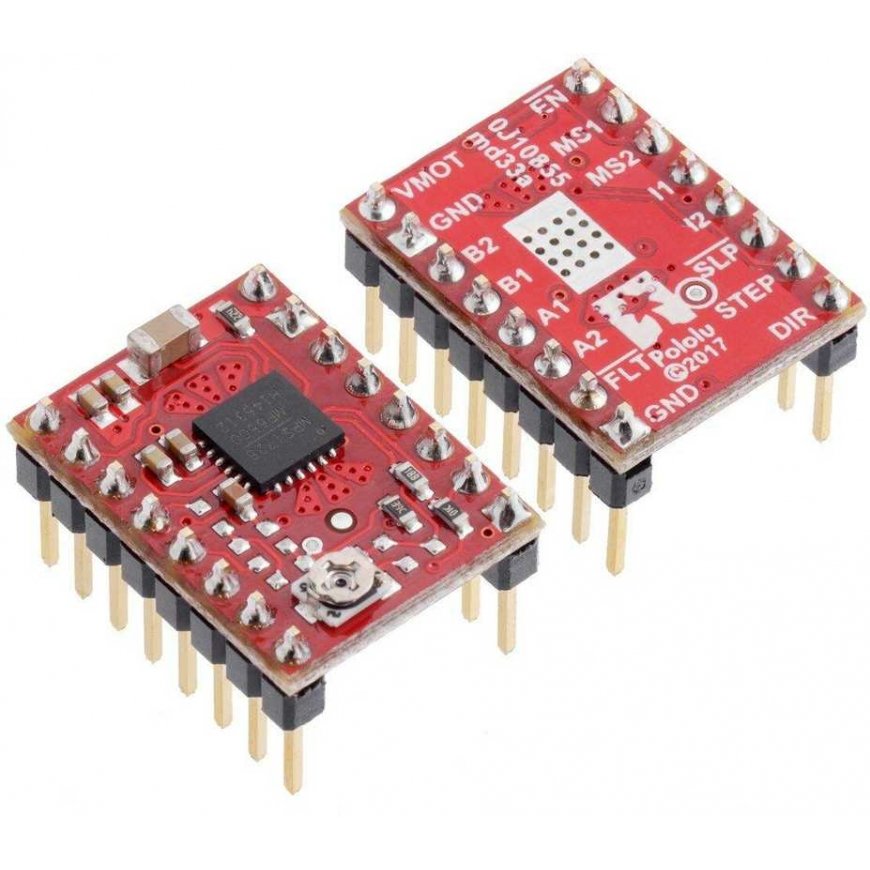

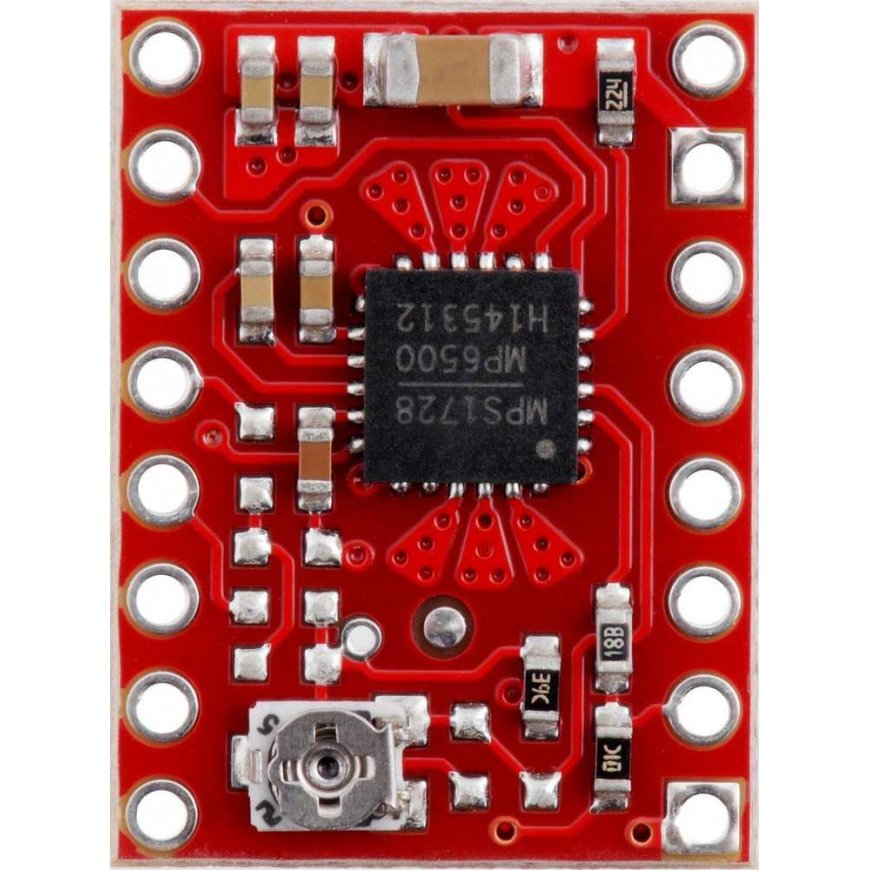

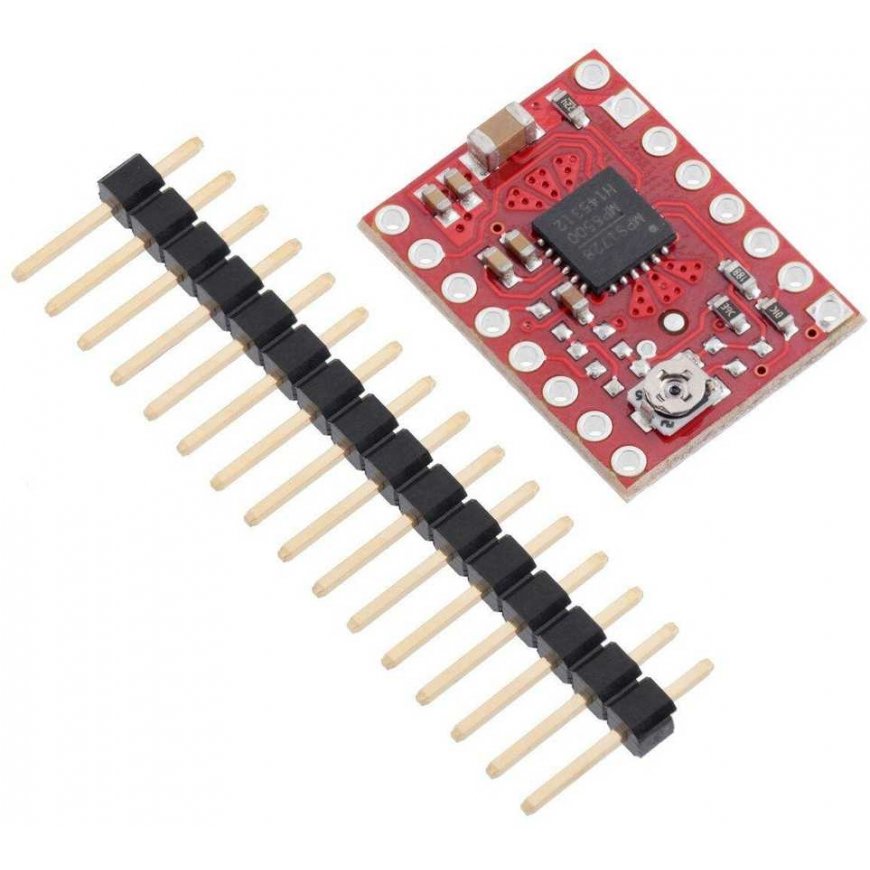

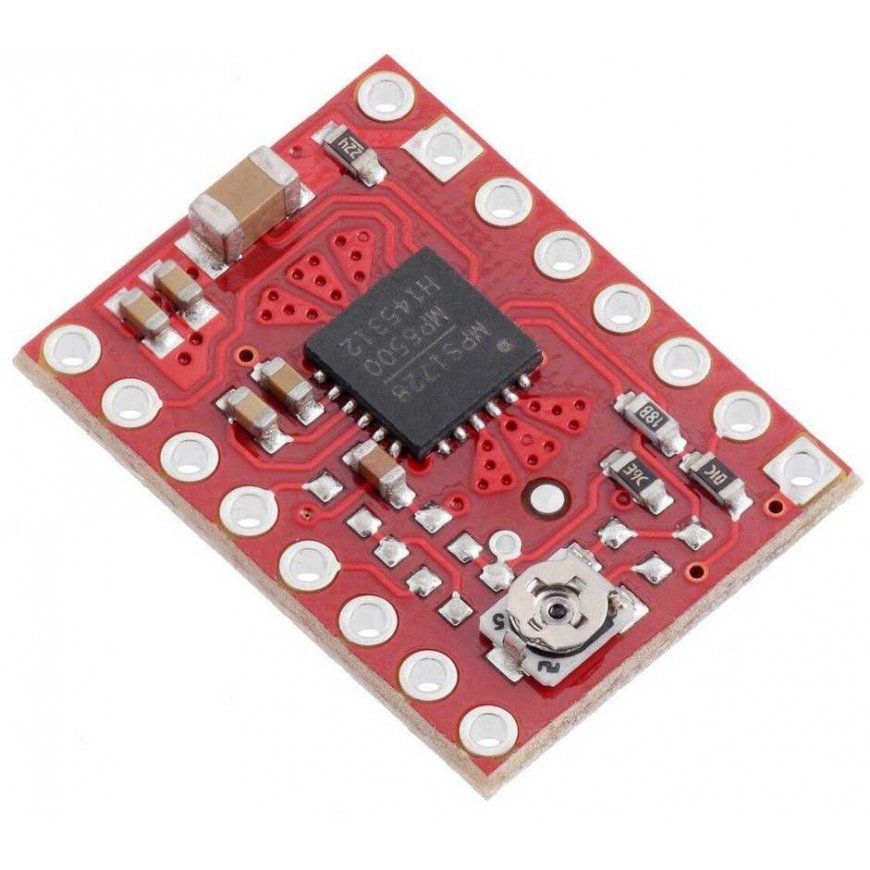

MP6500 stepper motor controller, digital current control, Pololu 2966
19.21 €
3603934 AN-10881
5904422316976
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Stepper motor controller based on the MP6500 system. Powered from 4.5 - 35 V, with a maximum coil current of 2.5 A. Maximum resolution: 1/8 step. The module allows up to 1.8 A current flow without a heat sink. The current is controlled by a potentiometer.
Specifications:
- Motor supply voltage: from 4.5 V to 35 V
- Current: max. 1.8 A coil (with cooling down to 2.5 A)
- Logic supply voltage: 3.3 V to 5 V
- Simple control interface
- Operates in 4 different modes: full step, 1/2, 1/4 and 1/8
- Possibility to adjust the motor current with a potentiometer
- System overheating protection

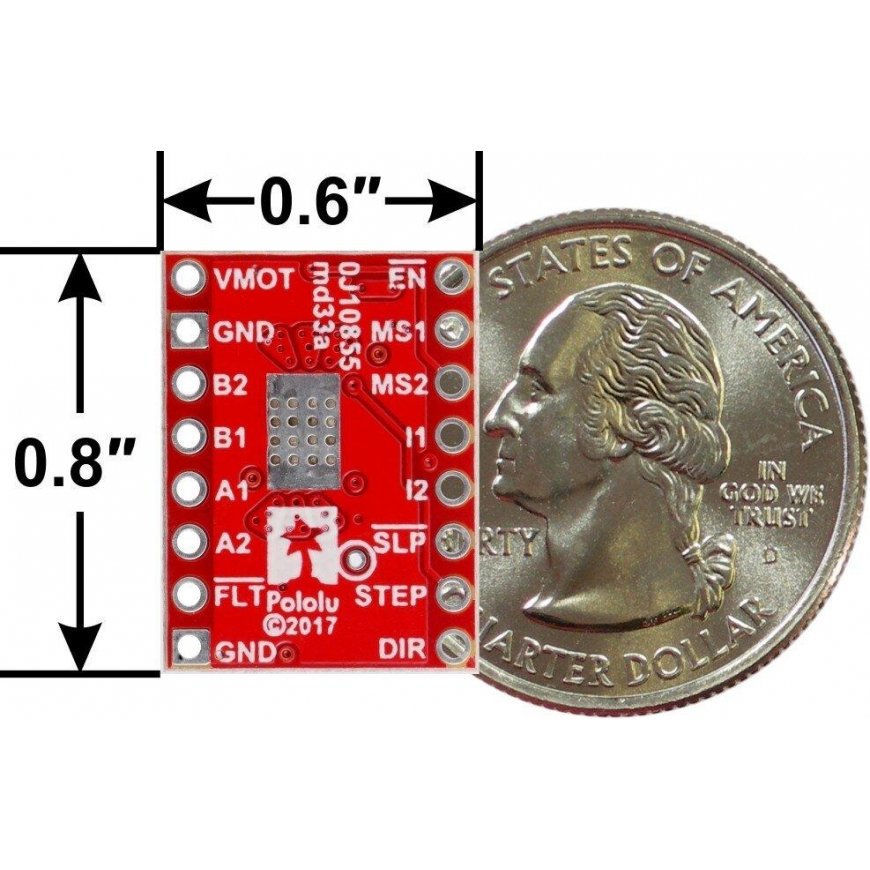

- Module dimensions: 20 x 15 mm
