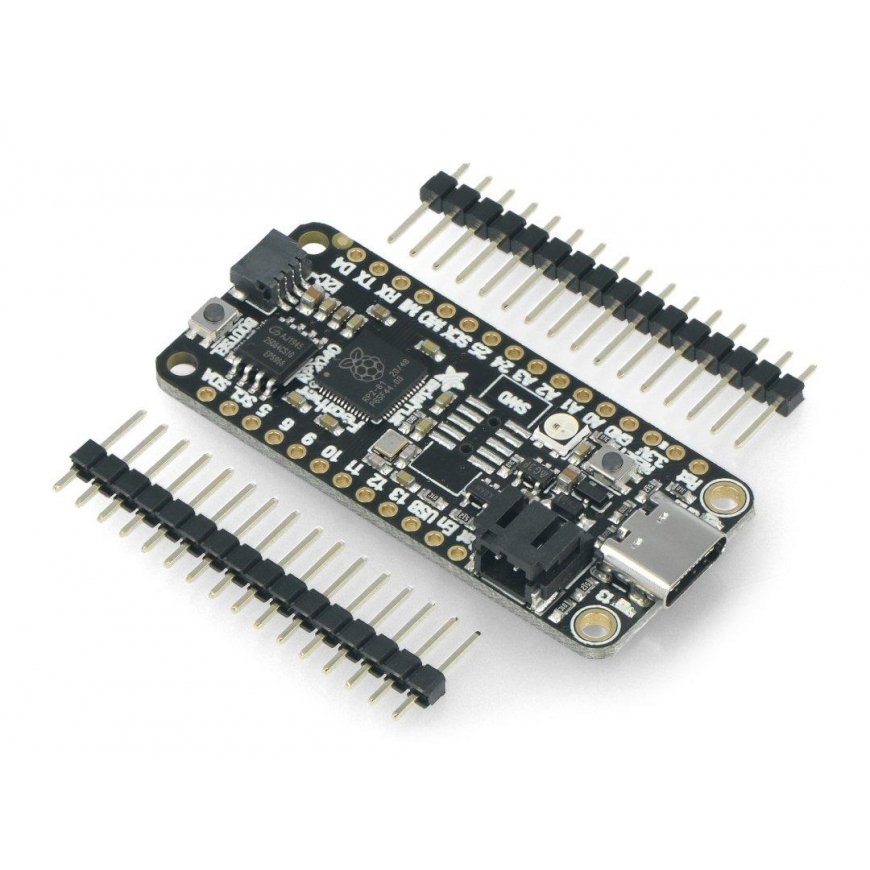

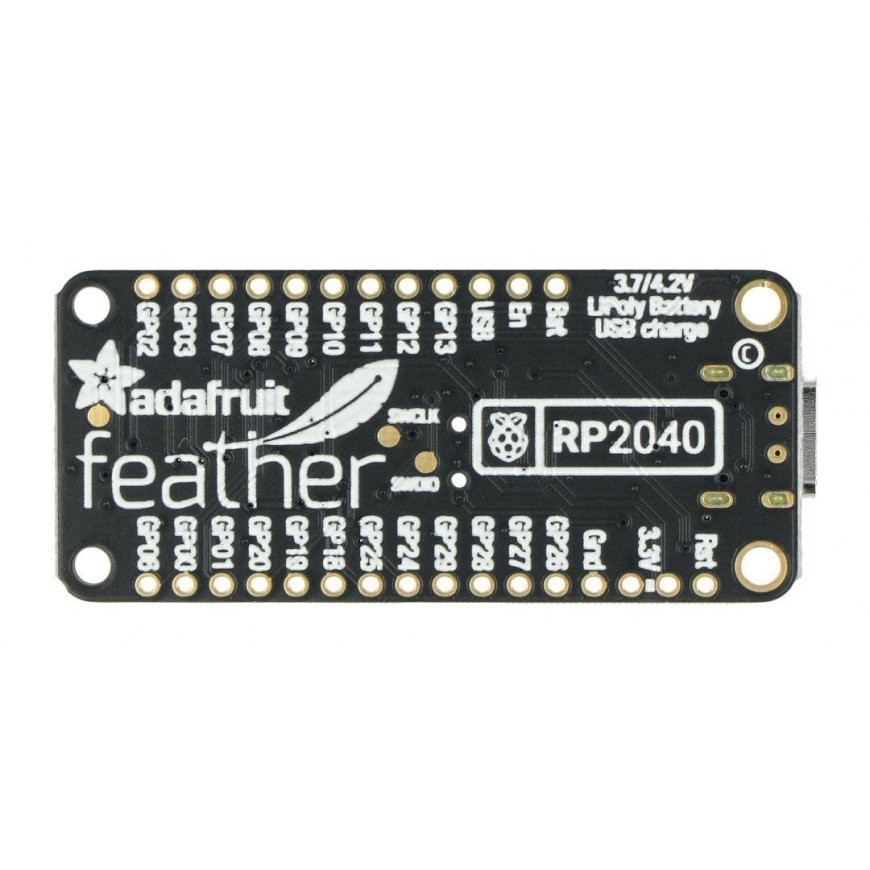

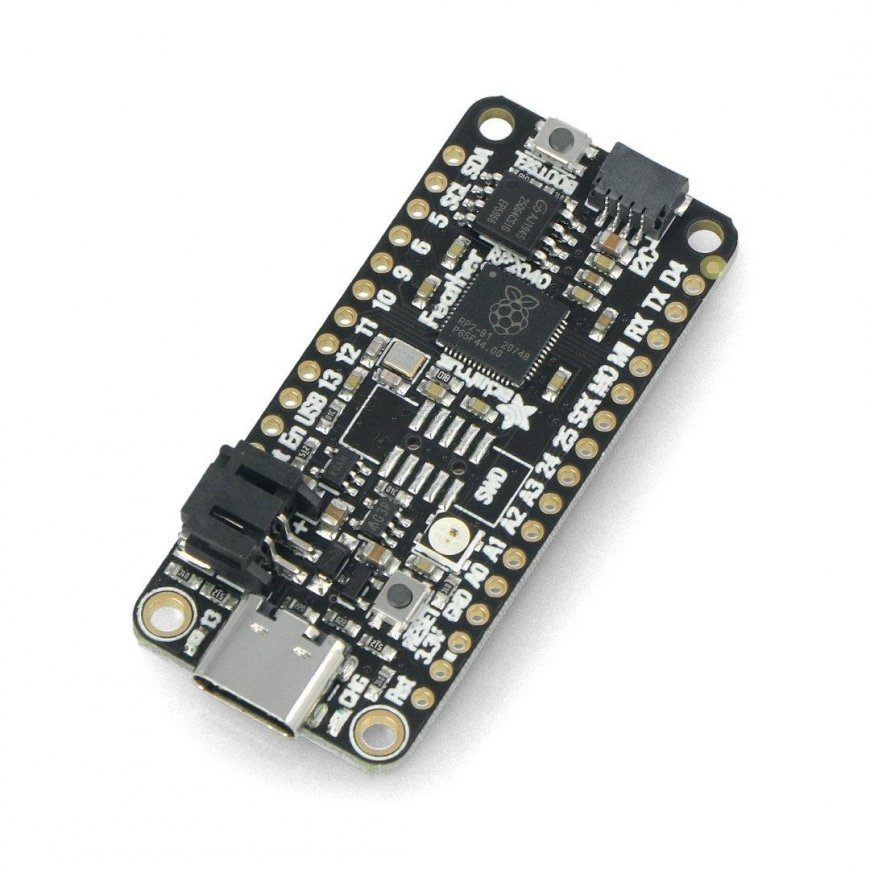

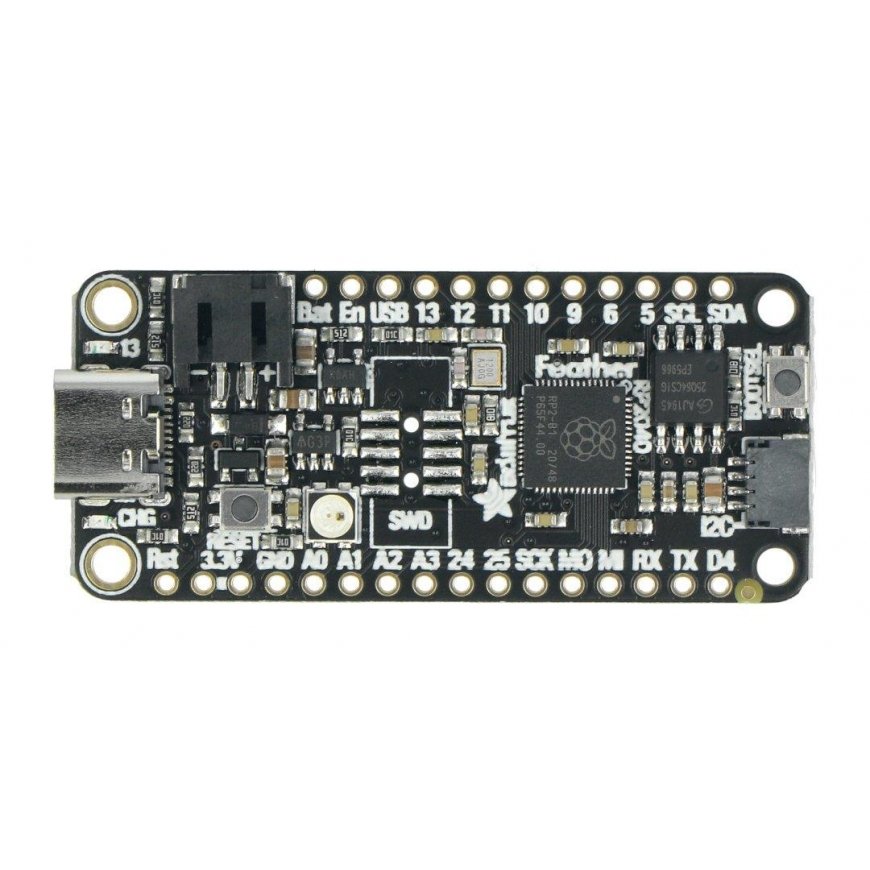

Adafruit Feather RP2040, board with RP2040 microcontroller
31.10 €
3602131 AN-19312
5904422346423
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The Adafruit Feather RP2040 is a board with the RP2040 microcontroller. The chip has two ARM Cortex M0+ cores operating at up to 133 MHz, 264 kB RAM, 8 MB of external memory connected via the QSPI interface. The board does not have integrated FLASH memory. It has 2x I2C, 2x SPI and 2x UART interfaces and 16 PWM channels.Main features:
- Two ARM Cortex-M0+ cores running at up to 133 MHz
- 264 kB on-chip SRAM
- Supports up to 16 MB of external Flash memory via QSPI bus
- DMA controller
- Fully connected AHB crossbar
- Peripherals with interpolator and integer divider
- Programmable LDO chip for voltage generation
- 2 on-chip PLLs for clock generation, USB and kernel
- 30 GPIO pins (4 of which can be used as analog inputs)
- Interface:
- 2x UARTs
- 2x SPI
- 2x I2C
- 16 PWM channels
- USB 1.1 and PHY controller supporting host and device
- 8 PIO state machines
- Microcontroller RP2040
- 32-bit dual-core Cortex M0+
- Supply voltage: 3.3V
- 264KB RAM
- 8 MB external FLASH memory
- No EEPROM memory
- 21x GPIOs:
- 4x 12-bit ADCs
- 2x I2C, 2x SPI and 2x UART, (1 marked as the main interface in standard Feather
- places)
- 16x PWM outputs - for servos, LEDs, etc.
- 8 digital GPIOs
- 200 mA Li-Pol battery power connector with LED charging status indicator
- LED and RGB NeoPixel
- STEMMA QT connector compatible with Qwiic, STEMMA QT, Grove
- SWD interface connector
- Reset button and Bootloader button
- Voltage regulator 3.3 V / 500 mA
- USB-C connector
- 4 mounting holes
- Supported programming languages: MicroPython, CircuitPython and C/C++
- Product dimensions: 51 x 23 x 7.5 mm
- Net product weight: 5 g
- Feather RP2040 - Adafruit 4884
- 2x gold-plated pin connectors 2x16 pitch 2.54 mm
