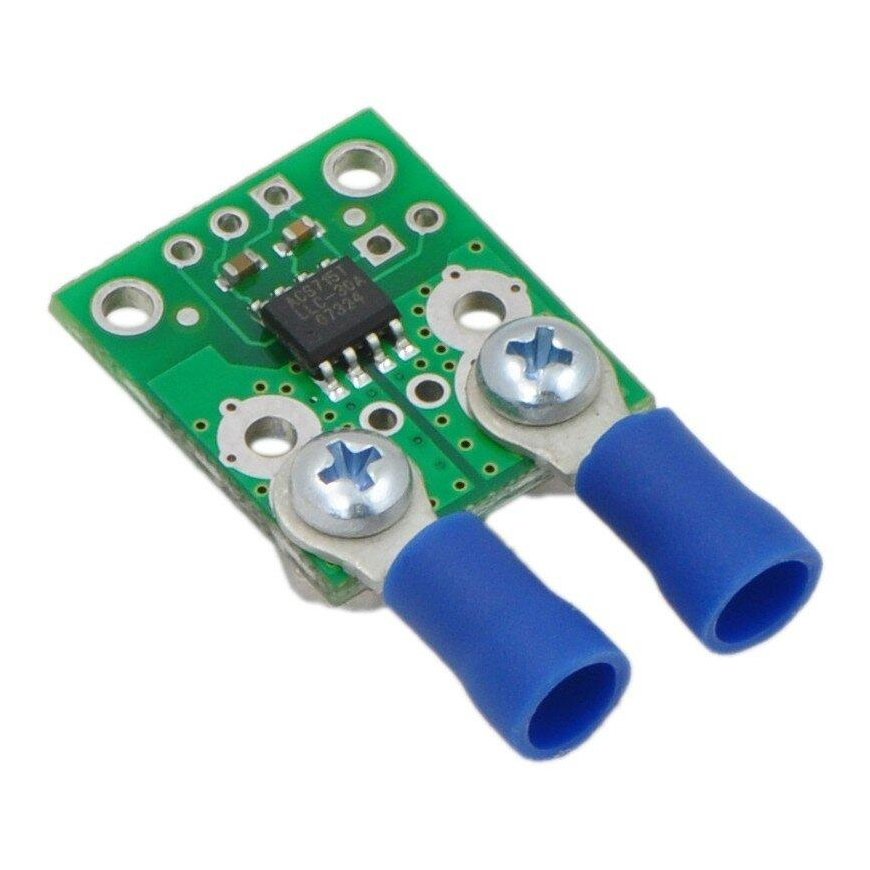

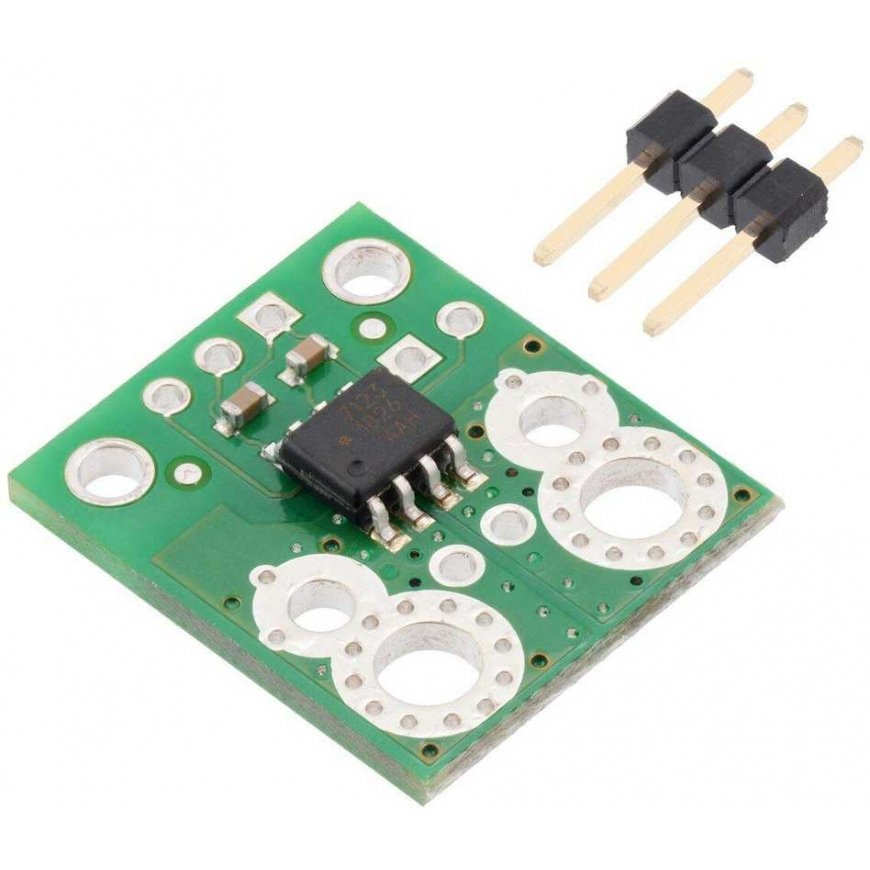

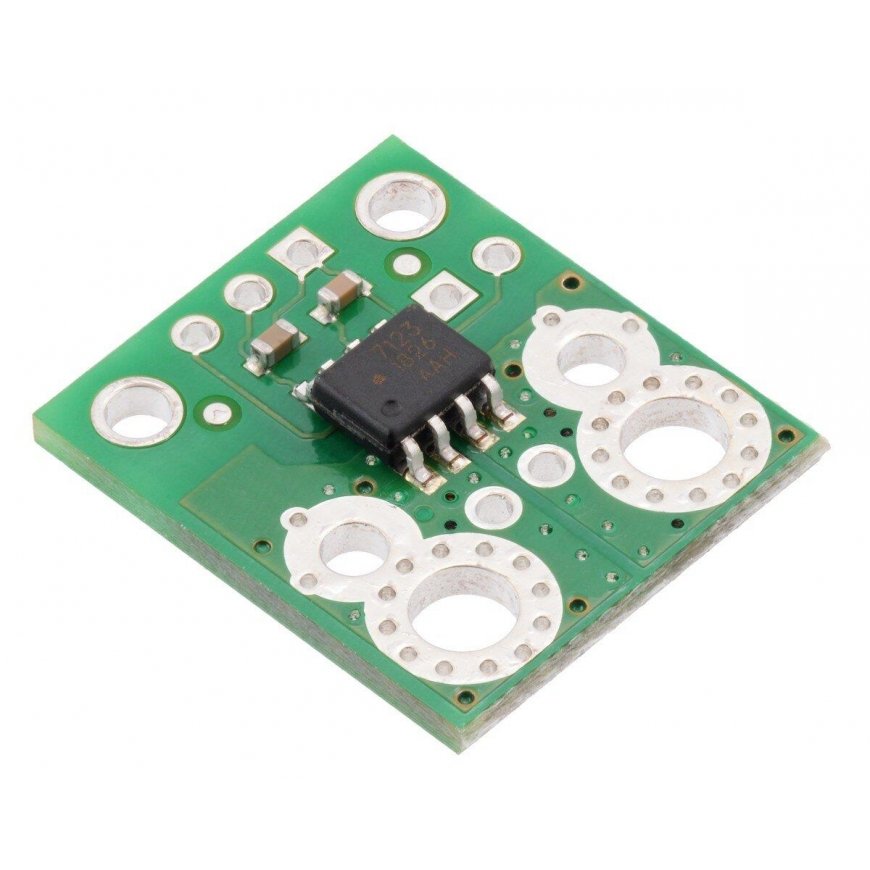

ACHS-7123 current sensor, from -30A to +30A, Pololu, 4032
21.30 €
3602069 AN-14234
5904422366698
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Current sensor operating in the range from -30A to +30A, based on the Hall effect. Input voltage from 4.5 V to 5.5 V. The sensor is designed for use in 5 V systems.
Main features:
- The system was designed for current flowing in both directions (from -30 A to 30 A)
- Low power loss
- low conduction resistance (0.7 mΩ)
- The PCB is made of 70 µm thick copper
- Possibility to install anywhere
- Wide temperature range: -40°C to 110°C
- Accuracy at room temperature: 1.5%

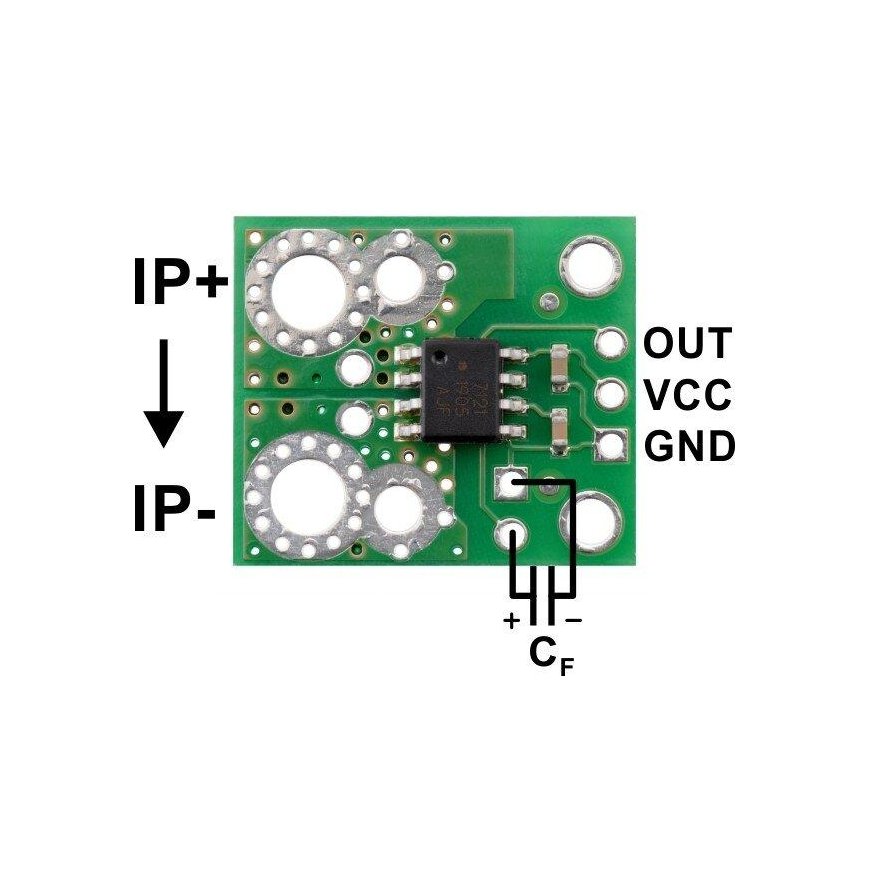

- Bandwidth up to 80 kHz (reduction with appropriate capacitor)
Specifications:
- Supply voltage: 4.5 to 5.5 V
- Suitable for use in 5 V systems
- Sensitivity power: 0.066 V/A
- Supply current: 15 mA

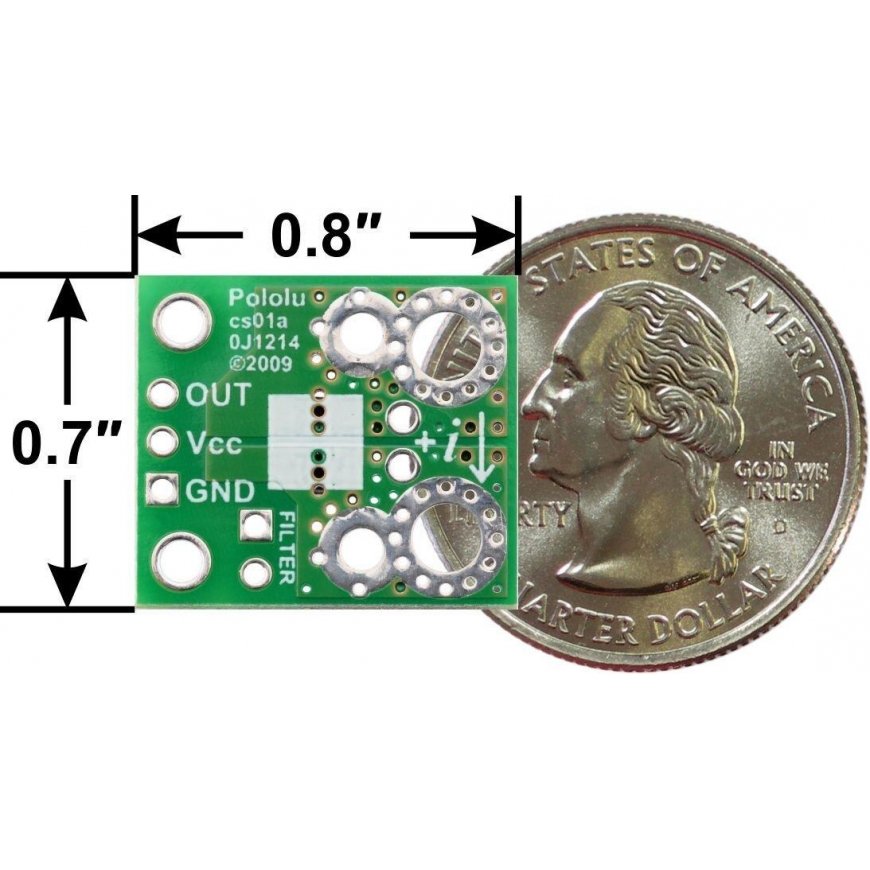

- Dimensions: 17.8 x 20.3 mm
