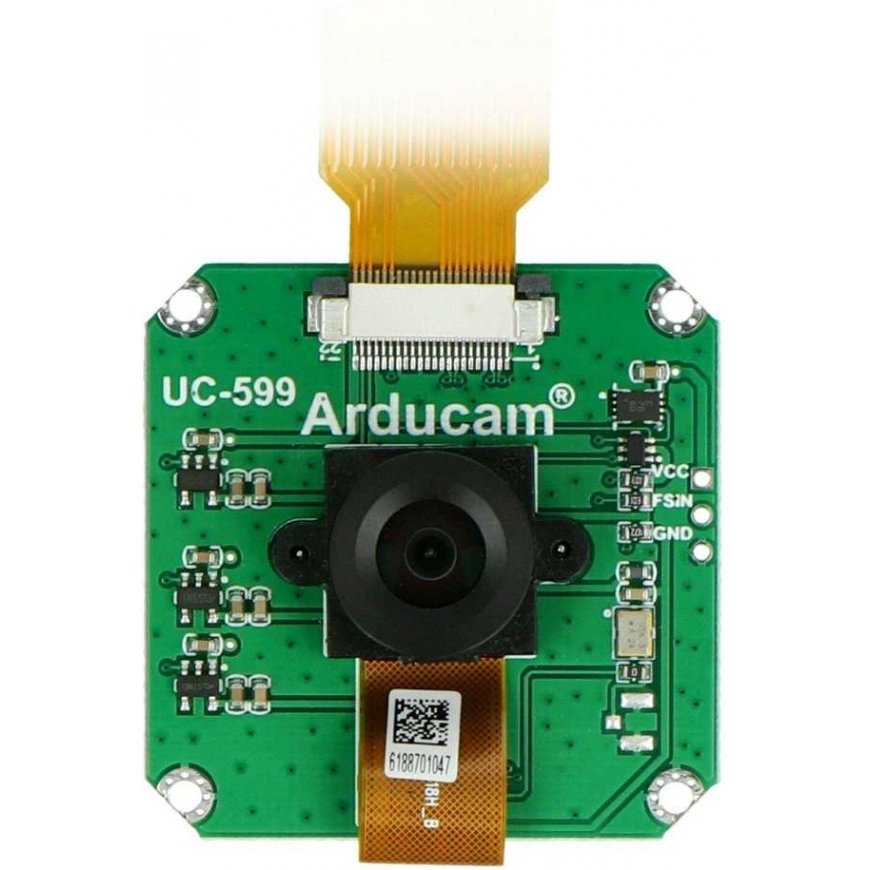

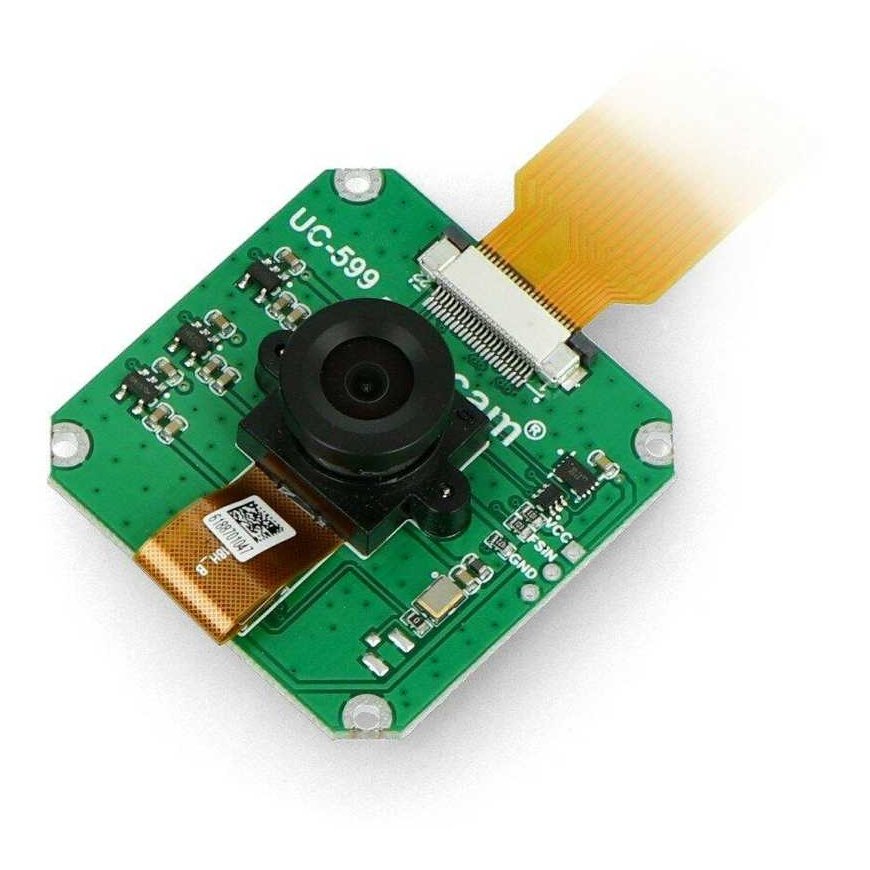

ArduCam OV9281 1Mpx Global Shutter camera with wide-angle M12 lens, for Raspberry Pi, MIPI, NoIR, monochrome
3601484 AN-16886
5904422326548
Shipping 8-15 b.d.
All about the product
The camera module with Omnivision OV2311 sensor, 1/4" diagonal, transmits black and white images with a resolution of 1280x800px. The sensor uses OmniPixel3-GS technology. The kit includes a 130° D / 110° H / 90° V lens with an M12 threaded mount. The device is designed for Raspberry minicomputers, no additional accessories are required to install the camera, the necessary cable for connection is included. The kit provided may be damaged by infrared rays.
Specifications:
- Pixel dimensions: 3 x 3 µm
- Matrix: 1 MPx
- Diagonal: 1/4"
- Maximum video speed: 120 frames per second at 1280x800px
- Focus range: 30mm to infinity
- Lens thread: M12x0.5p
- FoV: 83° horizontal / 130° diagonal / 90° vertical
- No IR filter
- Output interface: 2-core MIPI
- Output format: RAW 8/10 bit
- Module size: 40 x 40 mm
- The camera is compatible with Raspberry Pi version 4B / 3B+ / 3B / Zero

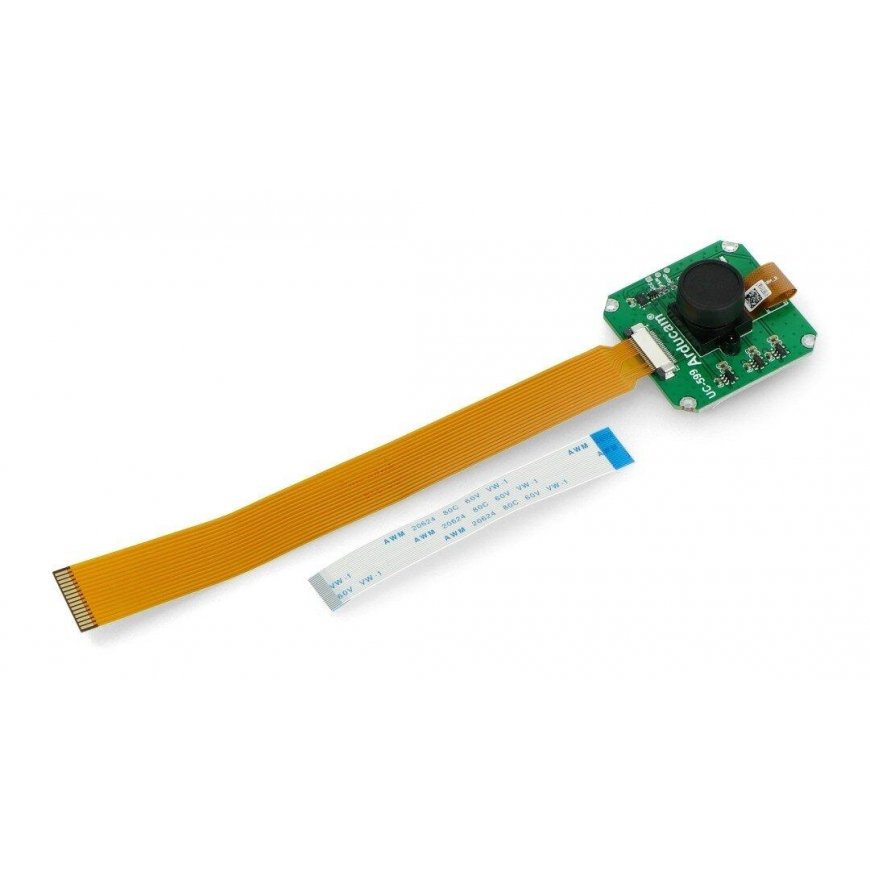

Included:
- Arducam OV9281 1MPx camera module
- Cables for connecting to Raspberry Pi
Links:
Manufacturer's page
