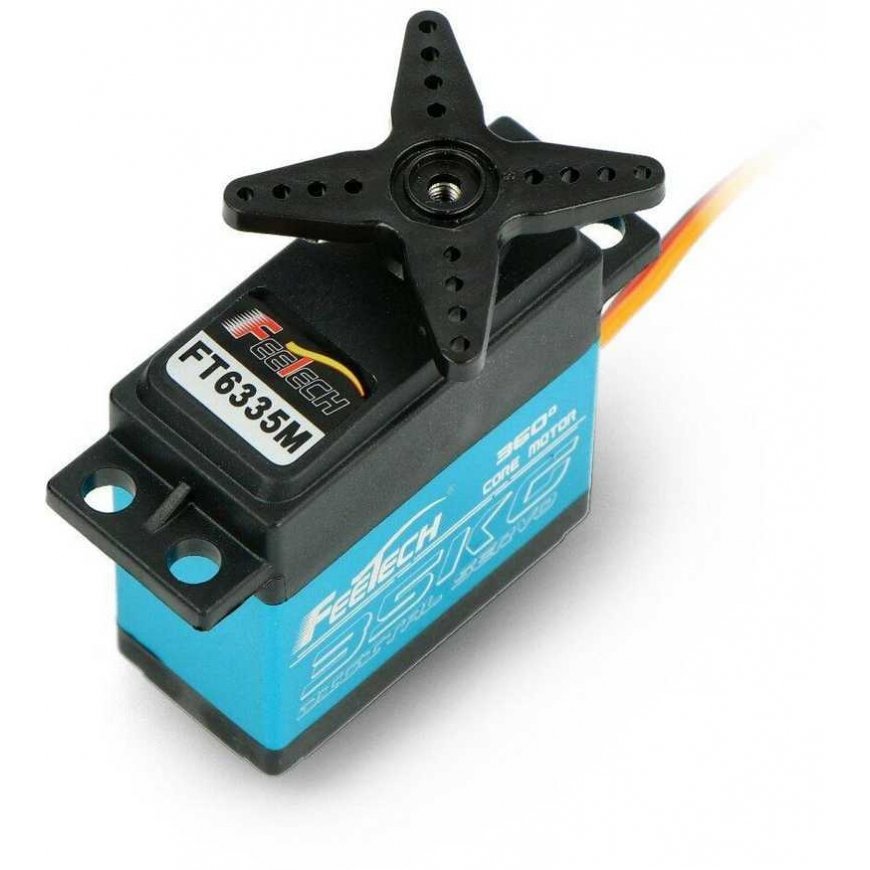

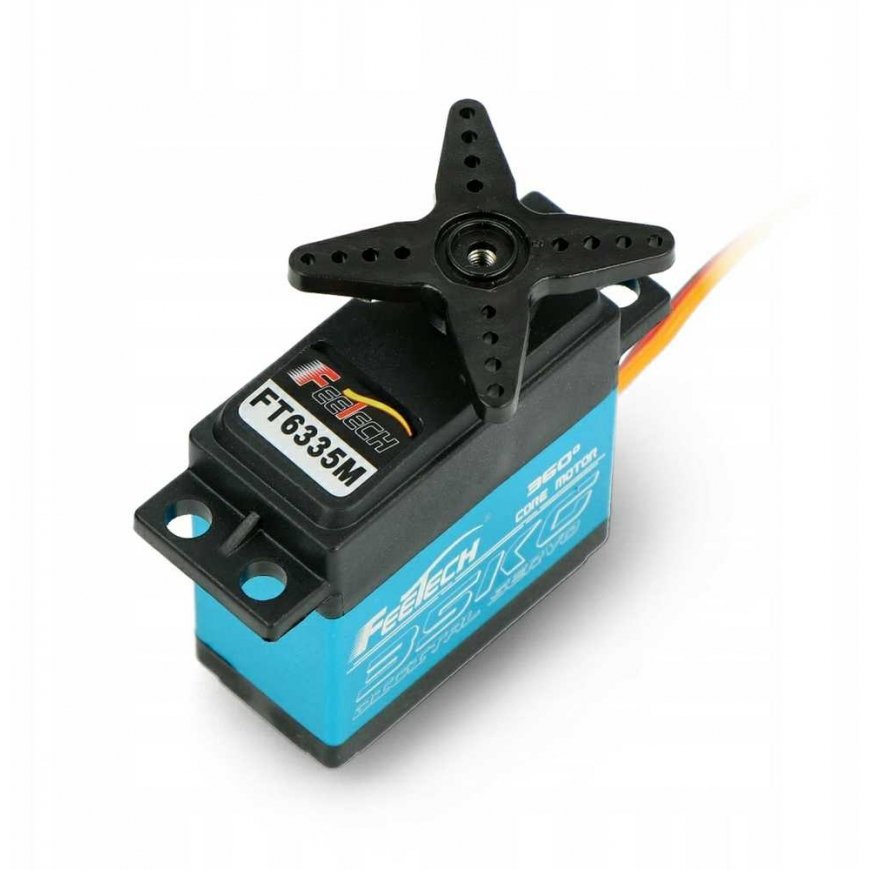

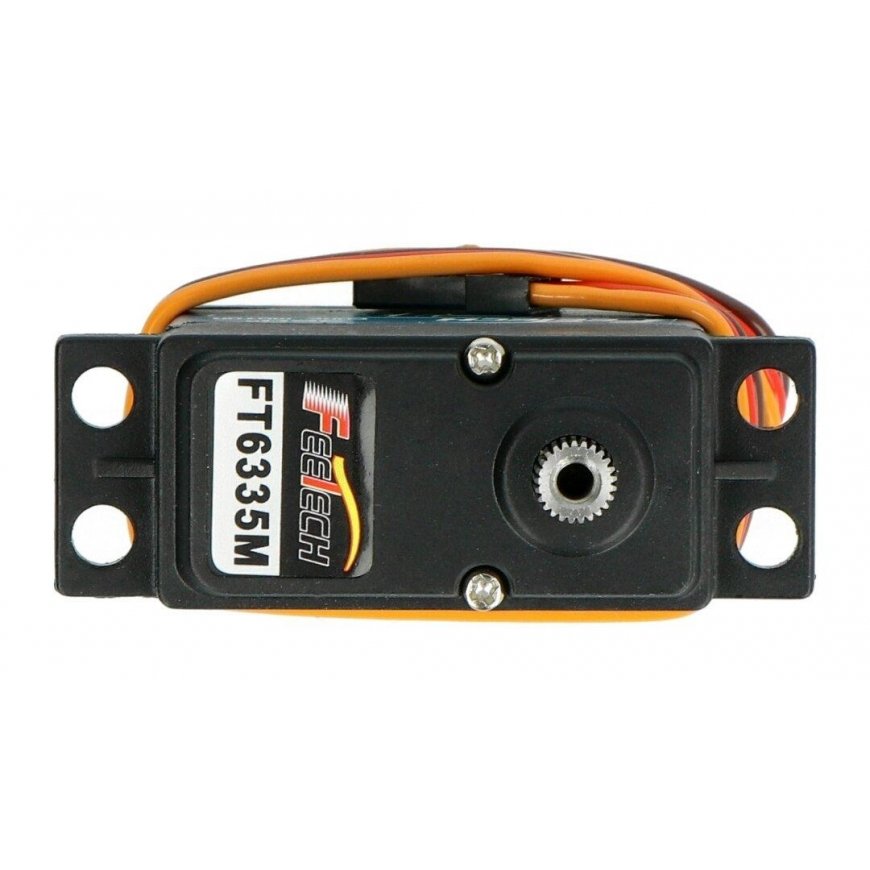

Servo Feetech FT6335M - standard
49.00 €
Monthly payment from 2,16 €
3599945 AN-17694
5904422328474
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The standard Feetech servo power supply is from 6 V to 7.4 V. The current consumption without load is 1200 mA. The servo movement range is from 0° to 360°. It has a 300 mm long cable, which ends with a JR connector. The servo torque is 35.5 kg/cm. The kit includes several additional servo propellers and parts necessary for their attachment.Specifications:
- Manufacturer: Feetech
- Model: FT6335M
- Supply voltage: 6 V to 7.4 V
- Servo type: digital
- Servo range: 0° to 360°
- Storage temperature: -30 °C to 80 °C
- Operating temperature: -20 °C to 60 °C
- Cable length: 30 cm

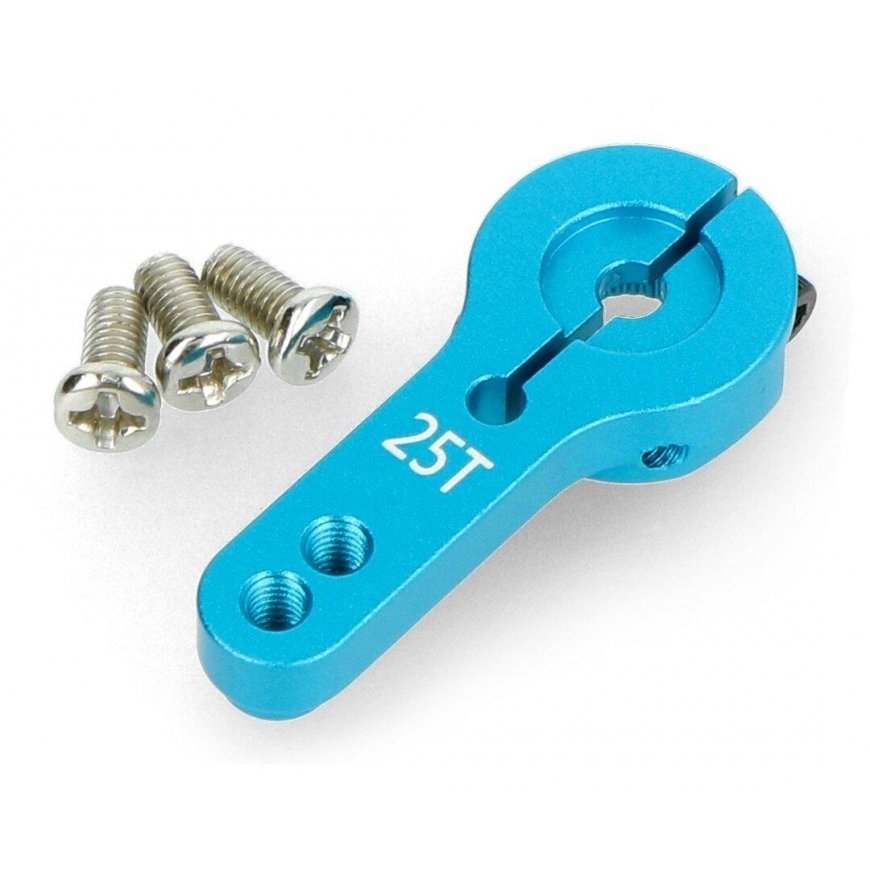

- Propeller type: 25T / 9.5mm
- Controls:
- Stop position: 1500µs
- Counterclockwise rotation: 1500 -> 2000µs
- Maximum pulse range: from 500 to 2500µs
- Bearing: ball bearing
- Protection degree: IP54
- Connector: Standard JR connector
- Servo dimensions: 55 x 20 x 43 mm
- Weight: 67 g
- 6V specifications:
- Torque: 28.8 kg/cm
- Speed: 0.238s/60°
- Current consumption when the spindle is stopped: 3.2 A
- Current consumption without load: 1000 mA
- 7.4V parameters:
- Torque: 35.5 kg/cm
- Speed: 0.192s/60°
- Current consumption when the spindle is stopped: 3.9 A
- Current consumption without load: 1200 mA

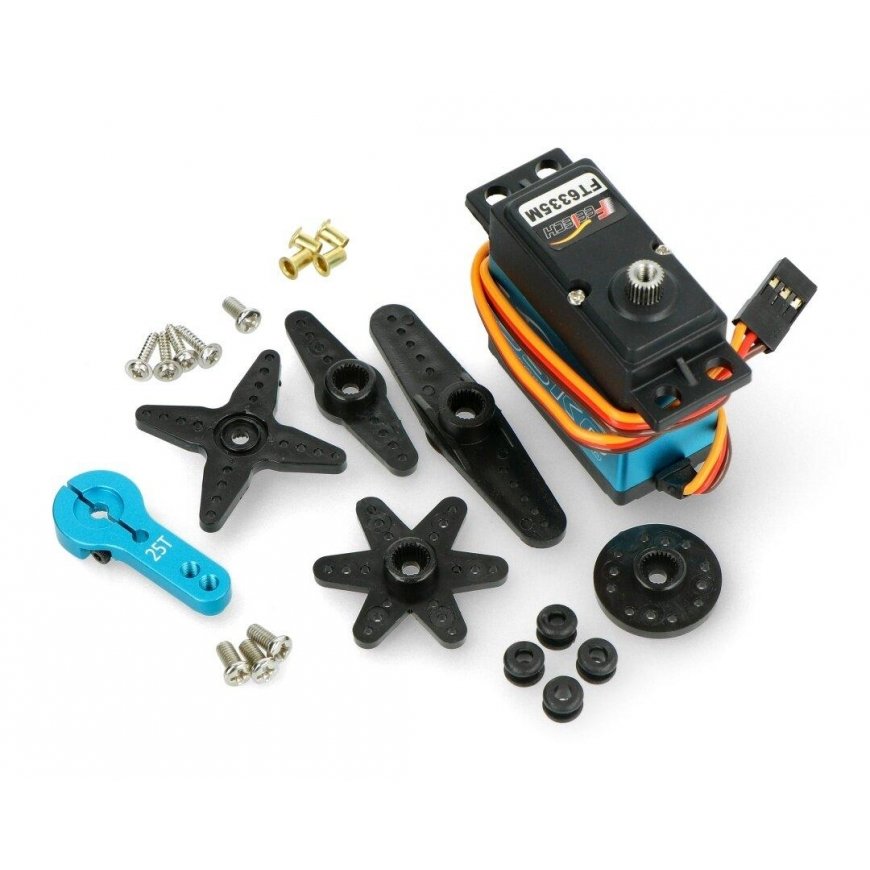

- Feetech FT6335M servo
- Propeller set
- Mounting elements
