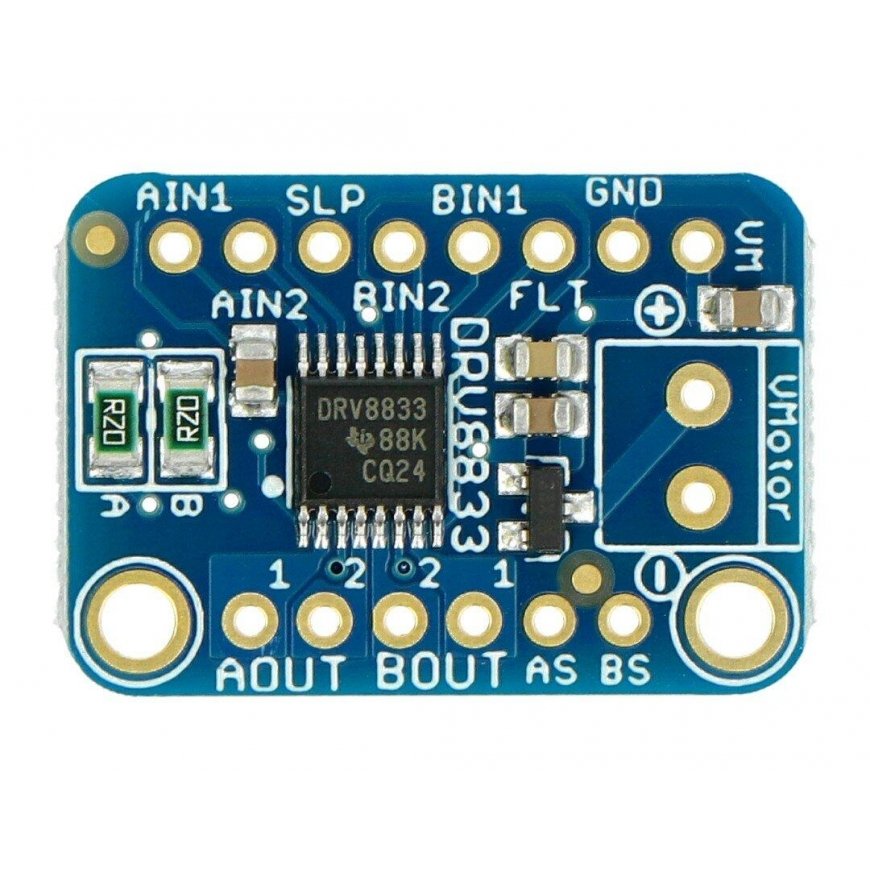

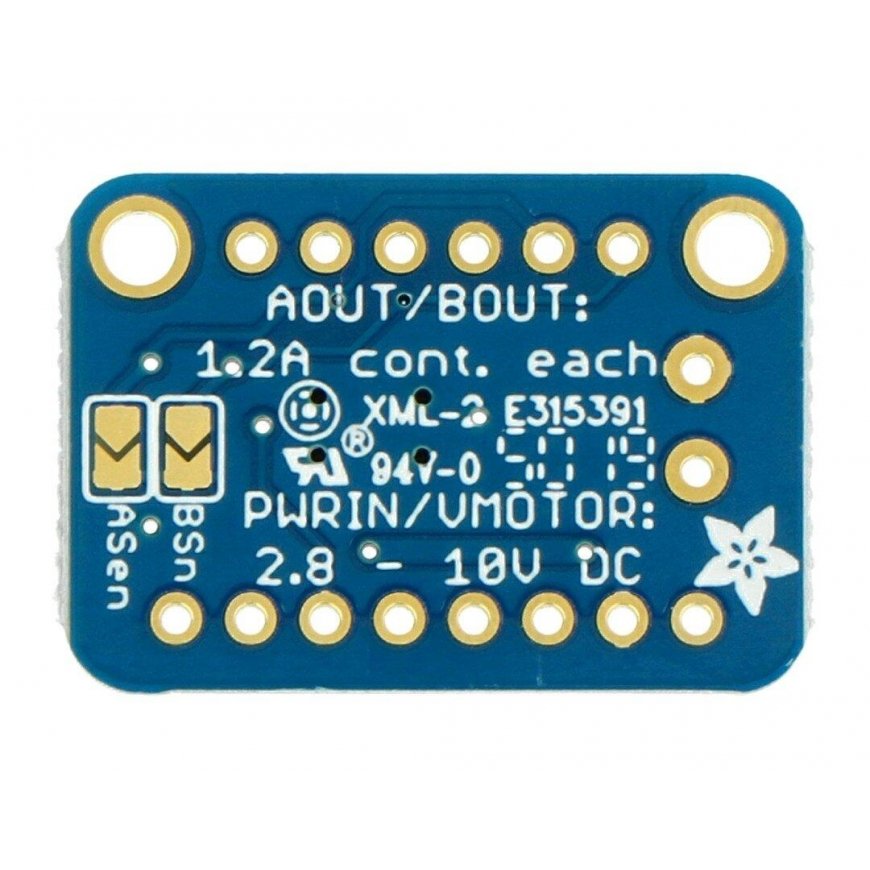

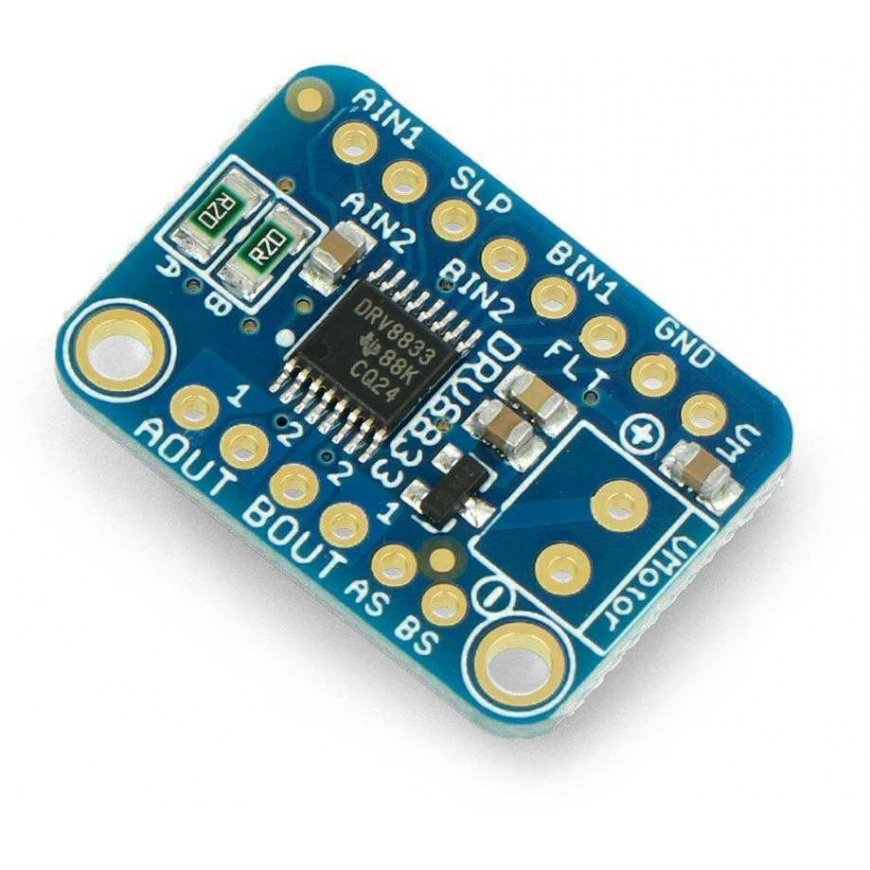

DRV8833 DC/Stepper Motor Controller Breakout Board, Adafruit 3297
20.61 €
3599057 AN-07665
5904422310707
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The DRV8833-based module allows you to control two DC motors or one stepper motor. The motor can be powered from 2.7 V to 10.8 V, with a continuous current of up to 1.2 A per channel, and temporarily (for a few seconds) up to 2 A.
Specifications:
- Number of channels: 2
- Supply voltage: 2.7 V to 10.8 V
- Logic operating voltage: 2.7 V to 10.8 V
- Continuous current per channel: 1.2 A
- Maximum channel current: 2 A
- PWM control
- Thermal protection
- Overcurrent protection
- Dimensions: 26 x 18 x 3 mm
- Weight: 1.5 g (without connectors)

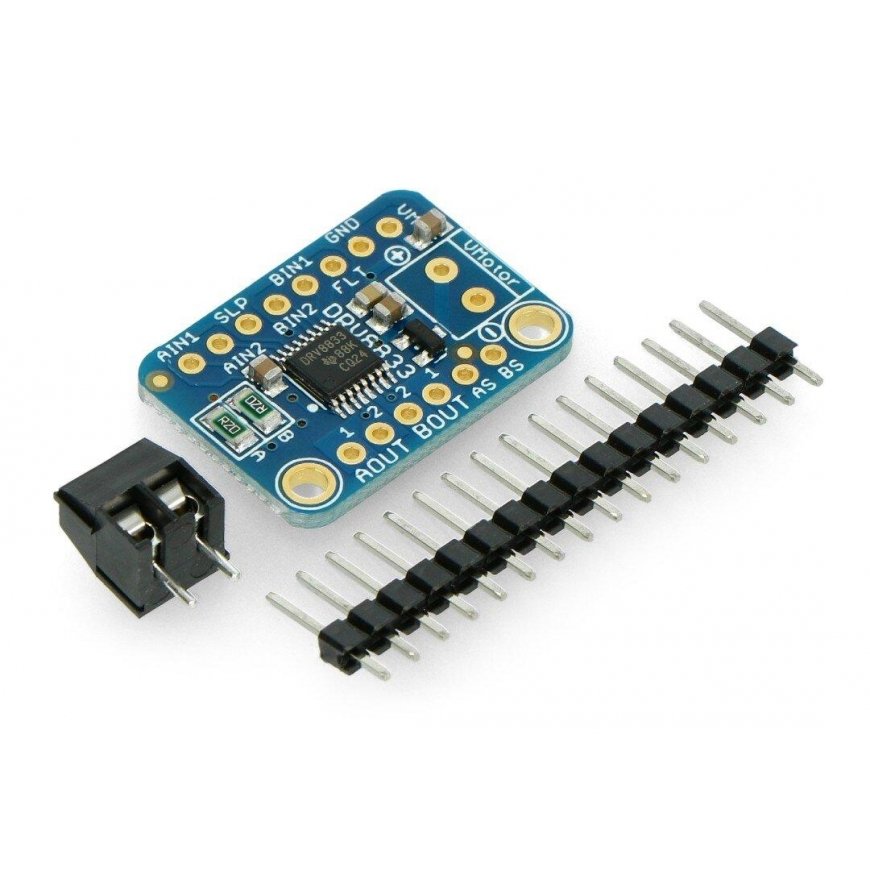

- Module, gold pins and screw connections included
