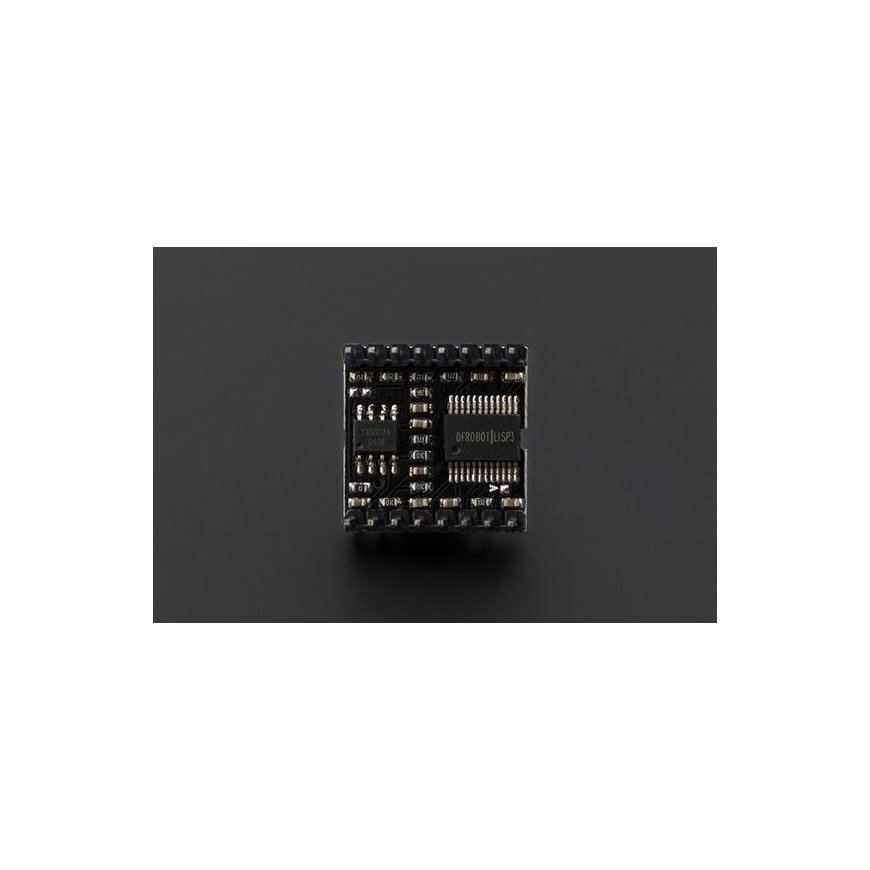

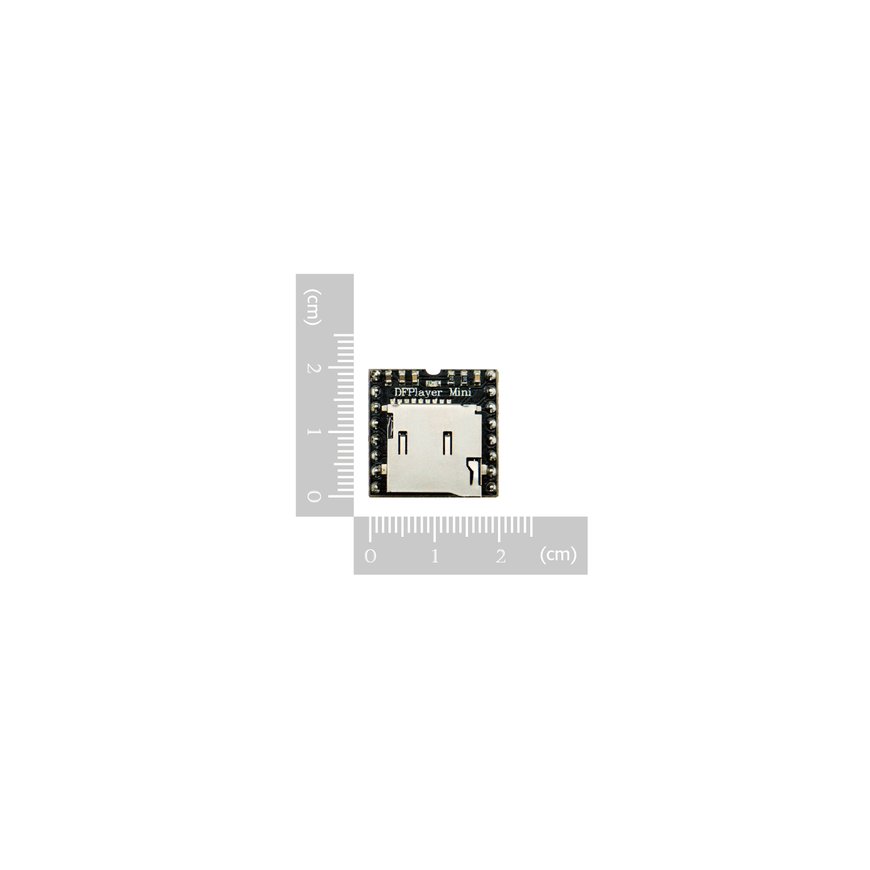

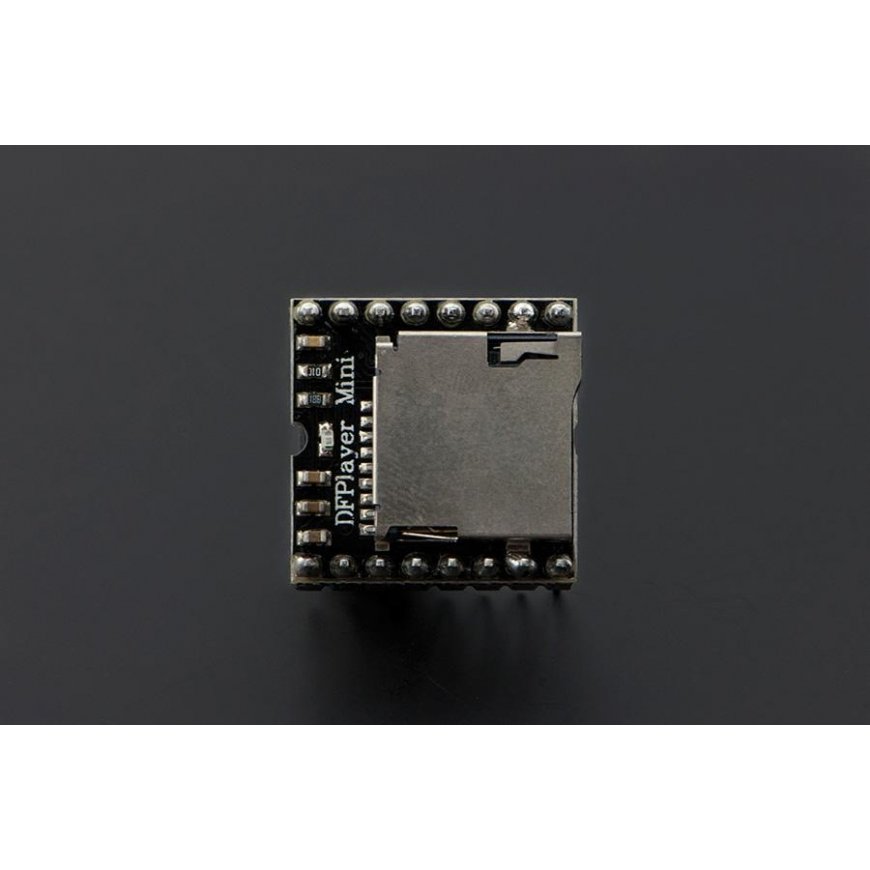

DFRobot DFPlayer mini MP3 player for Arduino Micro SD
19.44 €
3598962 AN-03170
6959420902521
Shipping 8-11 b.d.
You are interested in this product?
All about the product
A module that allows you to play music files directly from a micro SD card via a built-in slot. It communicates with a microcontroller via a UART interface - RX and TX pins.
Specifications:
- Supply voltage: from 3.2V to 5.0V
- Supports sampling rate: 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48 kHz
- It has a built-in DAC converter with 24-bit resolution, 90 dB dynamic range and 85 dB SNR
- The device has the ability to adjust the volume up to 30 levels with a 6-level equalizer
- Communicates via UART interface – RX, TX
- Supported formats: MP3 / WAV / WMA
- Files can be sorted into 100 folders of 255 songs each
- MicroSD card slot
- Supports microSD cards up to 32 GB with FAT16 or FAT32 file system
- Pins: soldered gold connectors, 2.54mm pitch
