DC controller module Raspberry Pi - I2C interface two channels
30.17 €
3597491 AN-13304
5904422377243
Shipping 11-18 b.d.
You are interested in this product?
All about the product

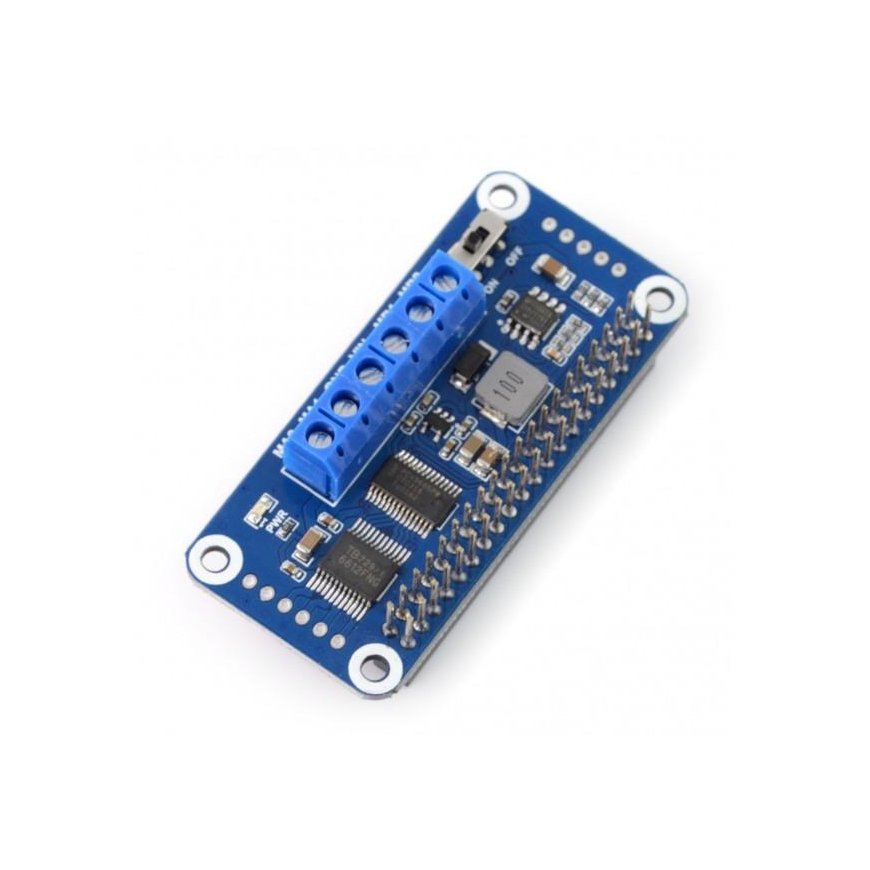

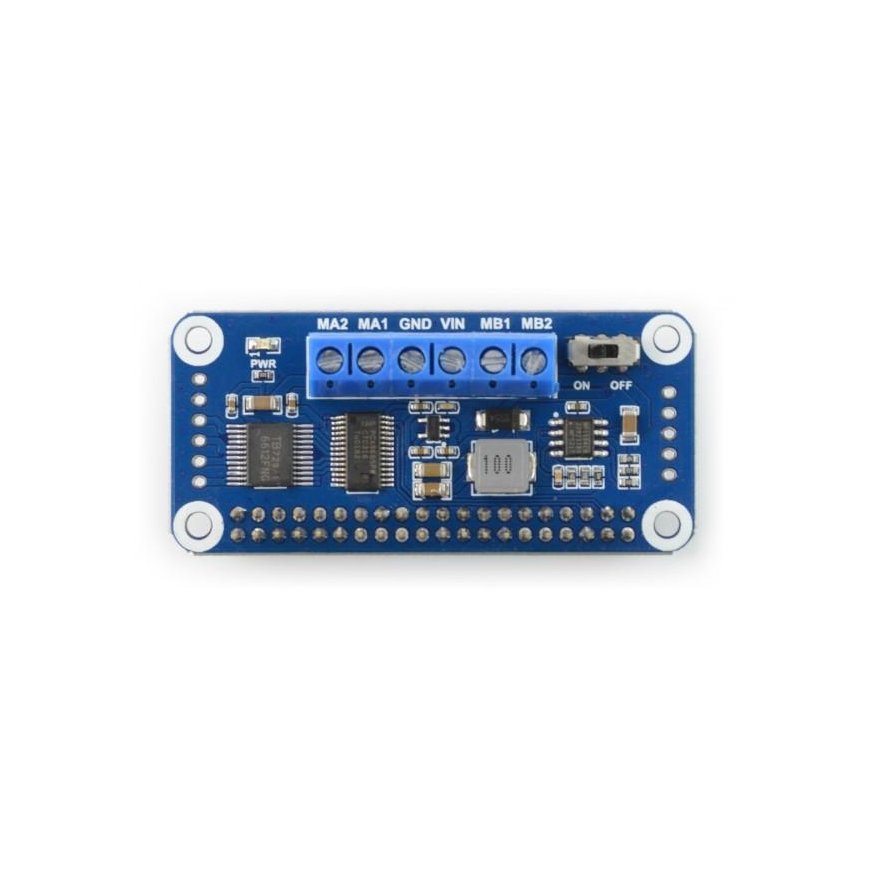

Raspberry Pi 3/2 / B + / Zero / Zero W" module allows you to control two DC motors using the I2C interface. Based on a dual-channel TB6612FNG controller and a PCA9685 system, thanks to which it provides 12-bit resolution for controlling the rotation of the motors and their direction. Built-in 5V voltage regulator capable of supplying a maximum current of 3A. The module is powered by 3.3V motors and motors from 6V to 12V. The kit also includes a set of screws and gaskets.
Technical data:
- Motor voltage: 6V to 12V (VIN)
- Control voltage: 3.3V
- Module supply voltage: 3.3 V
- Interface: I2C
- Controller PCA9685
- Motor driver: TBA6612FNG

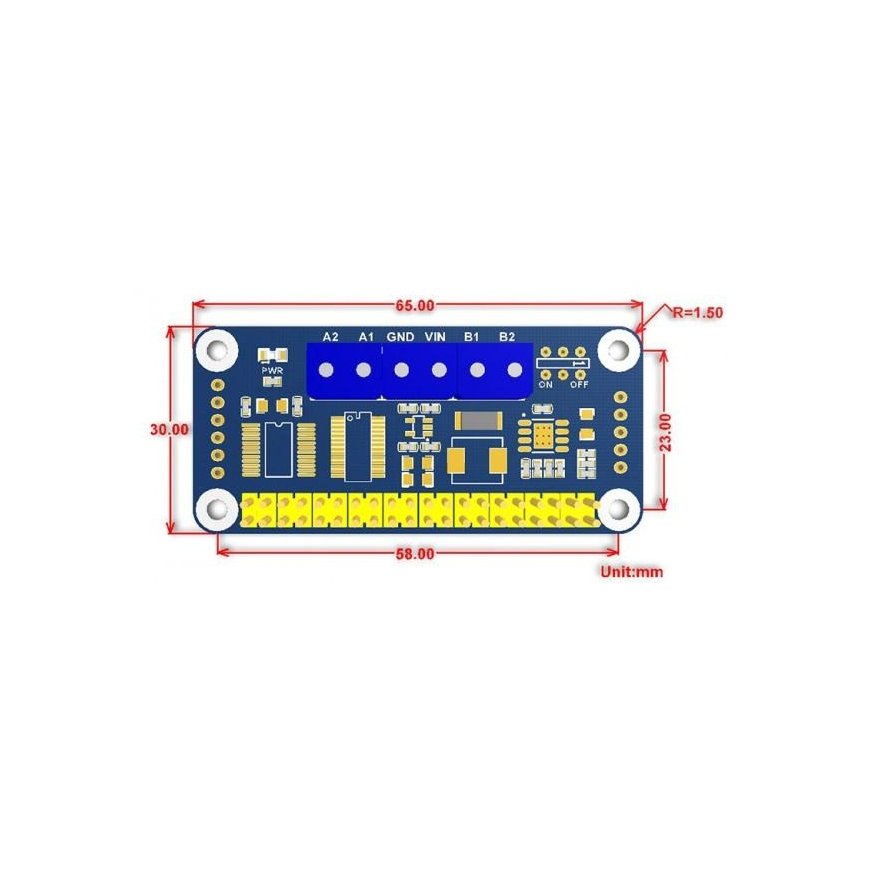

- Dimensions: 65 x 30 mm
- Mounting holes: 3 mm
