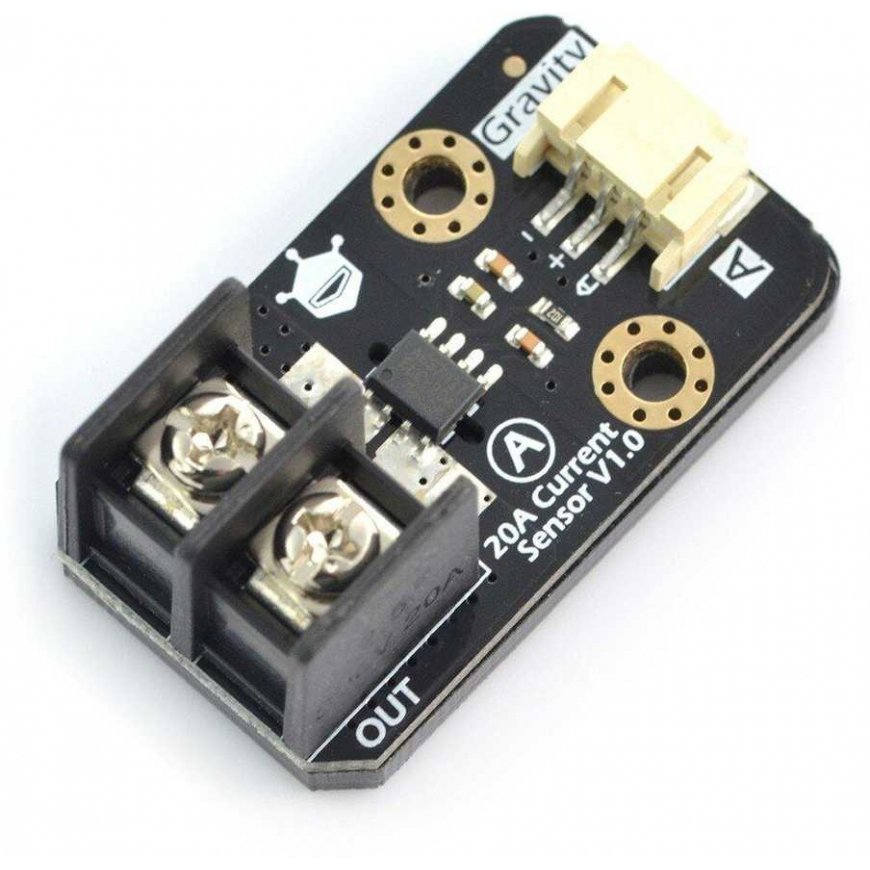

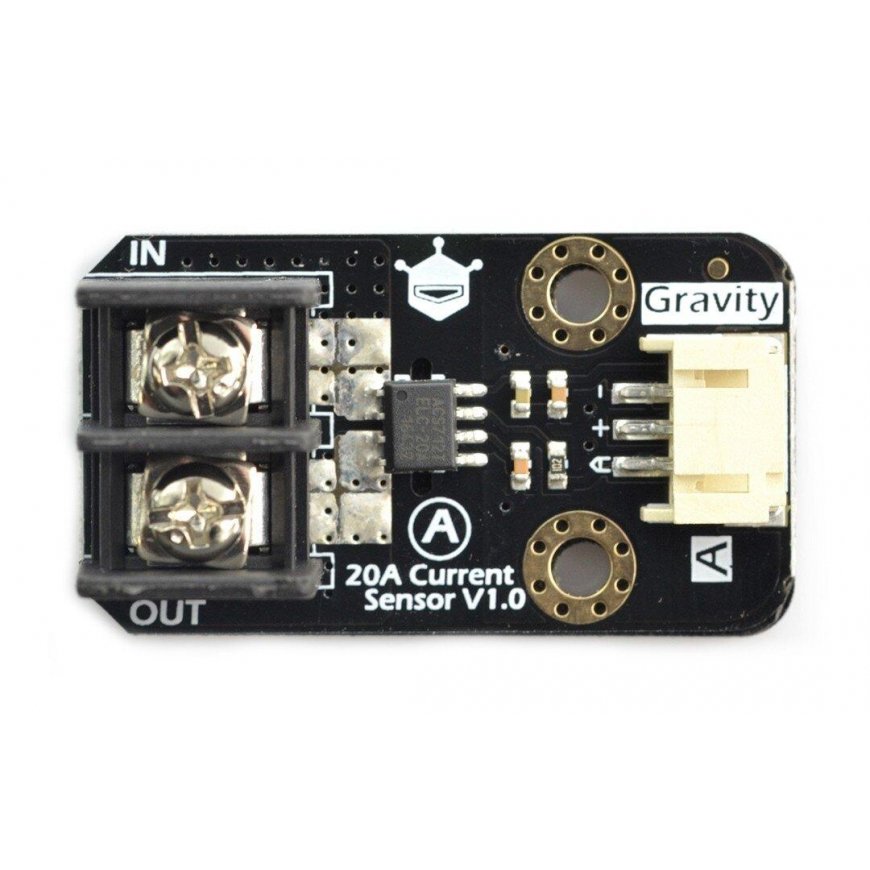

DFRobot Gravity analog 20 A current sensor
23.45 €
3596879 AN-08367
5904422360771
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Current sensor operating up to 20 A and up to 311 V, based on the Hall effect. Works with alternating and direct current. Output - analog voltage. Supply voltage 5 V. The sensor has insulation to protect against high voltage and a non-conductive stand to avoid danger. The kit includes a cable adapted to the Gravity DFRobot IO expansion attachment.
Specifications:
- Supply voltage: 5V
- Current intensity range:
- from 0 A to 20 A DC
- 0 to 17 A (RMS) AC current
- Maximum measured voltage:
- 220V AC
- 311 V DC
- Error: +/- 3%
- Connection cable included
- Dimensions: 39 x 22 x 17 mm
- Weight: 18 g

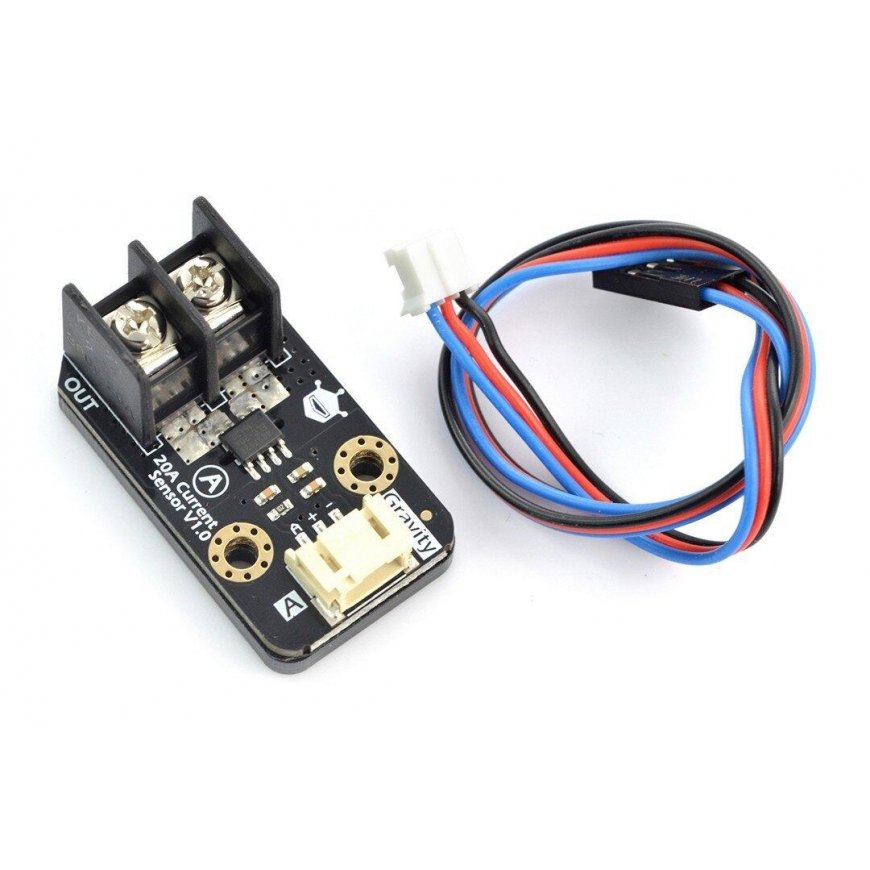

Included:
- Gravity sensor cable x1
Links:
Manufacturer's page
Manual
