LED matrix 16x8 MAX7219 for Raspberry Pi
19.00 €
3595494 AN-18523
5904422366346
Shipping 11-18 b.d.
You are interested in this product?
All about the product

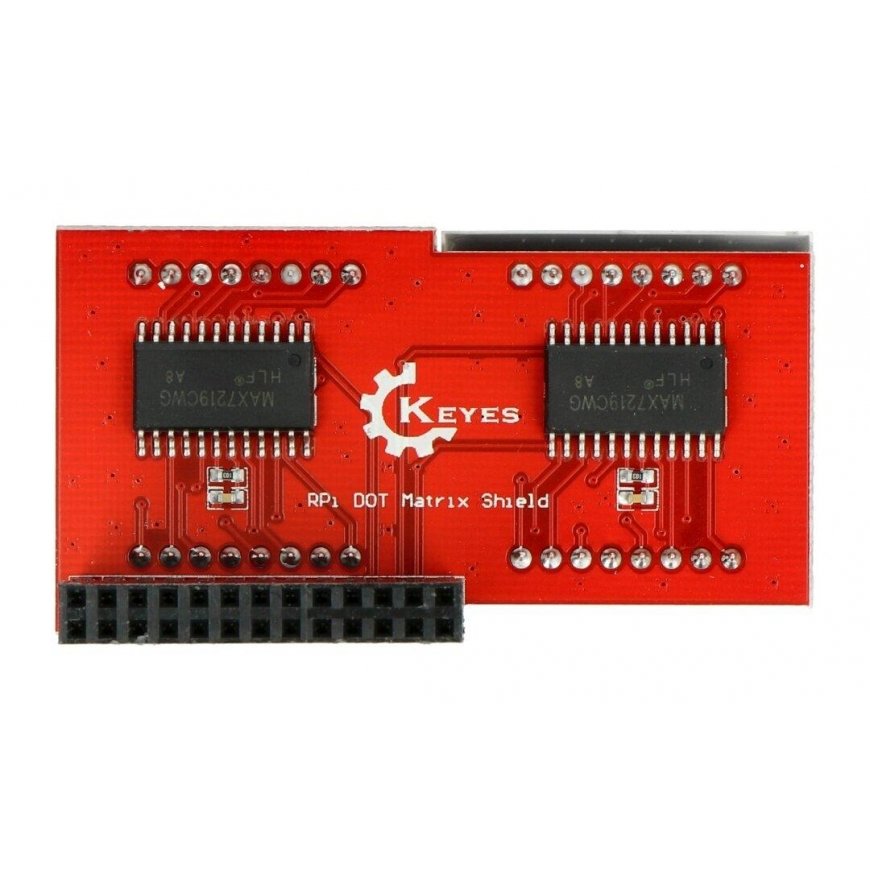

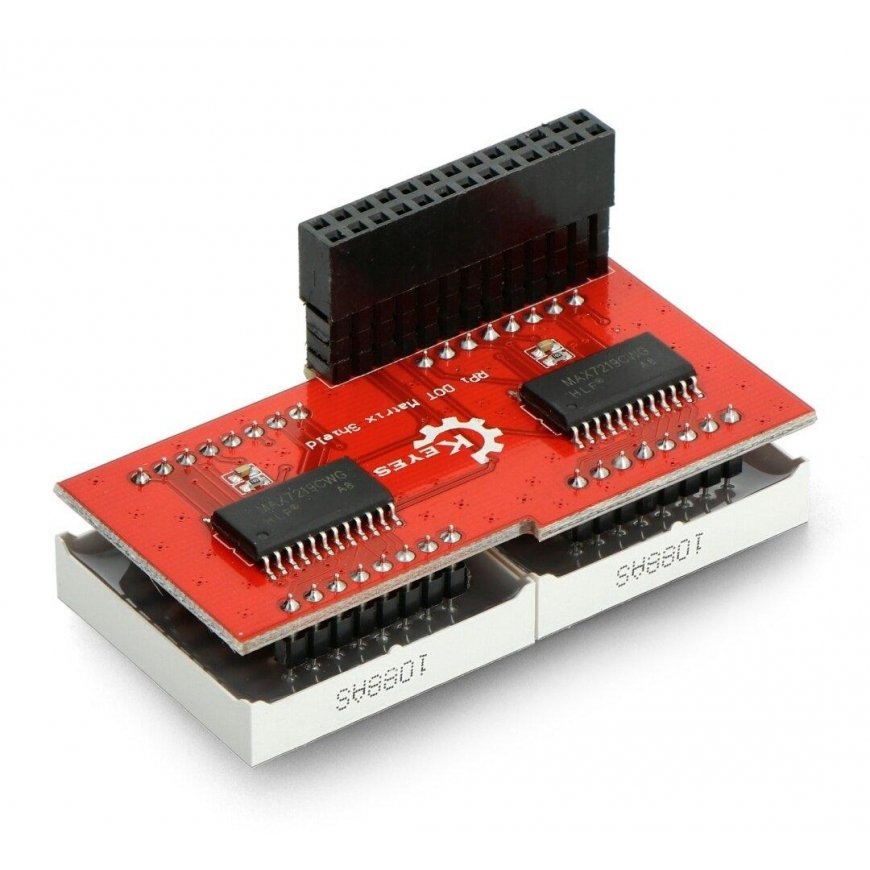

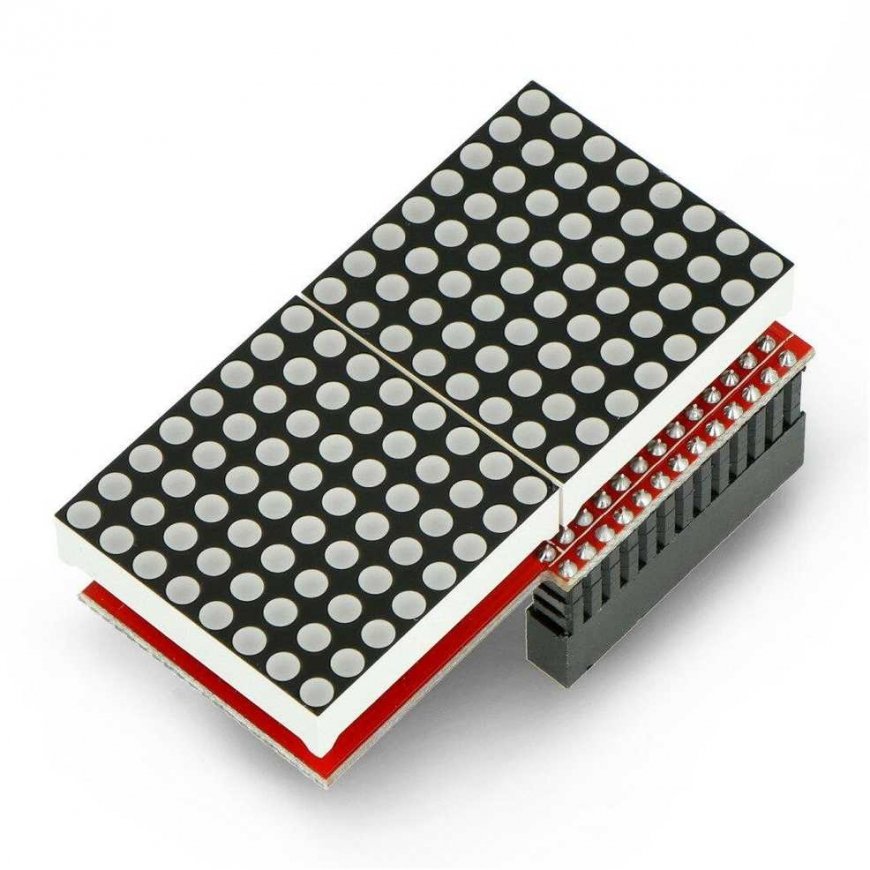

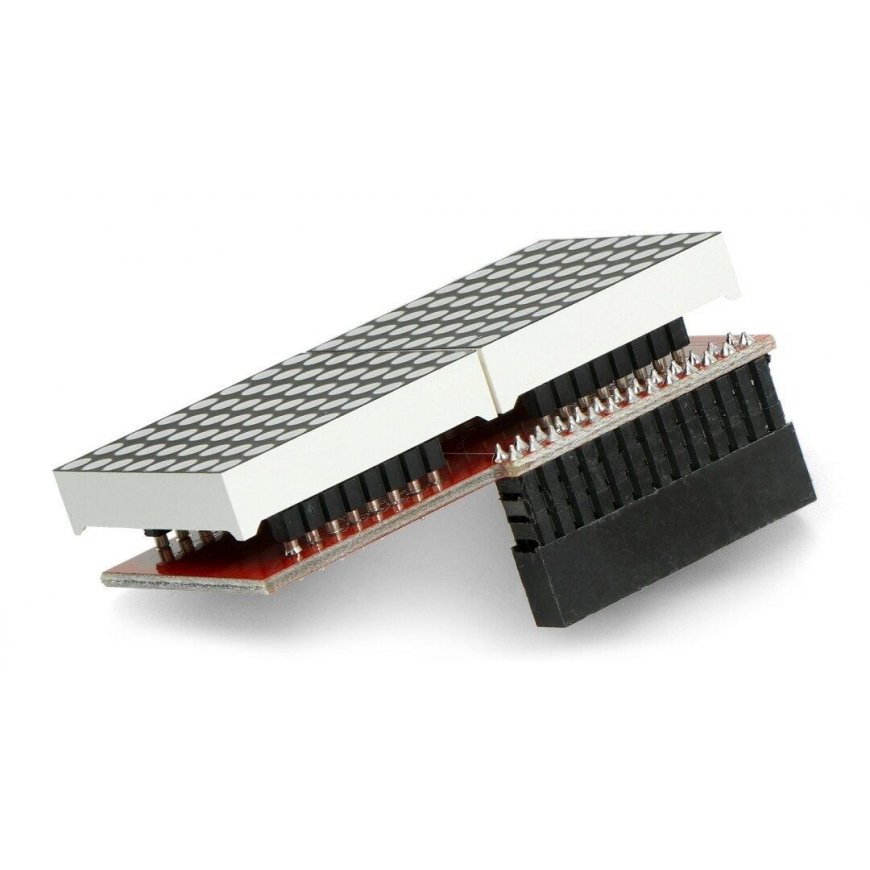

The board has two 64 LED matrix sockets. The kit includes two LED matrix modules with a total of 128 LEDs, red in color. The add-on module is based on the MAX7219 controller and has connectors that correspond to the Raspberry Pi GPIO.The board contains descriptions of the GPIO Raspberry Pi pins. The module supports communication via the SPI minicomputer interface and uses 26 GPIO Raspberry Pi pins.
Specifications:
- Power supply: From Raspberry Pi pins
- Number of diodes: 128
- LED matrix: 16x8px
- Diode color: red
- Controller: MAX7219
- Interface: SPI

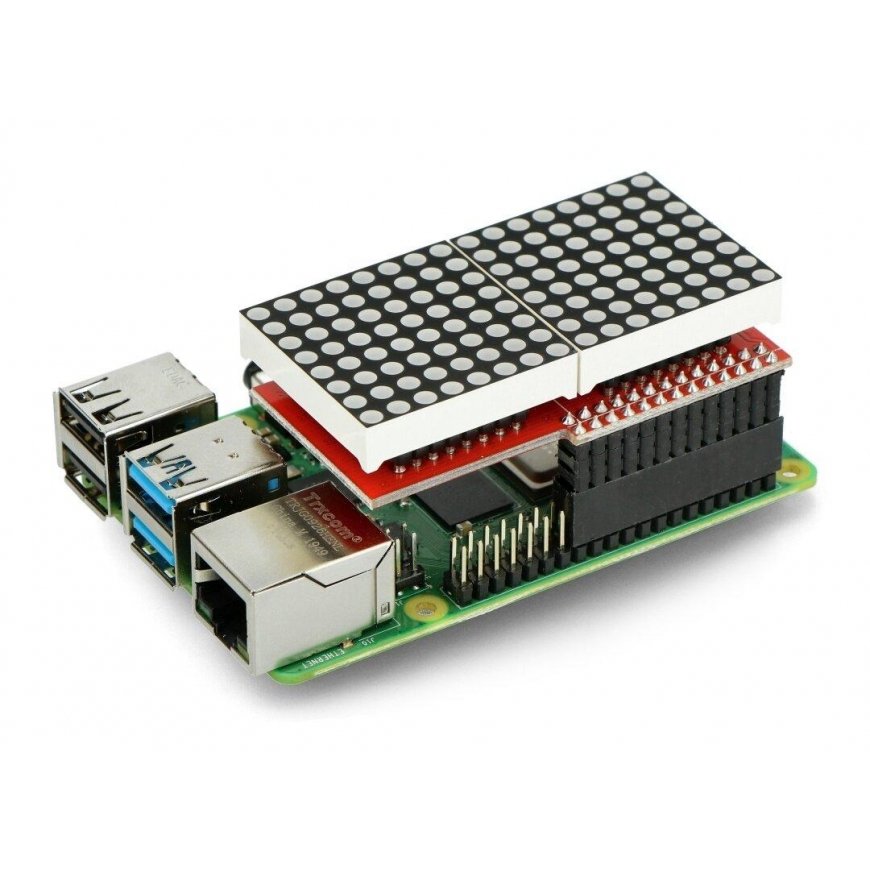

- Works with Raspberry Pi 4B / 3B+ / 3B / 2B / Zero
- Dimensions: 64.3 x 35 x 26.5 mm
